Modified Type-C Port and 1/4 Nut Base for Reolink E1, E1 Pro, and E1 Zoom Surveillance Cameras
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 5 walls, 20% infill
Designer
1.1 h
1 plate
Open in Bambu Studio
Boost
0
0
0
0
1
0
Released
Description
Content has been automatically translated.

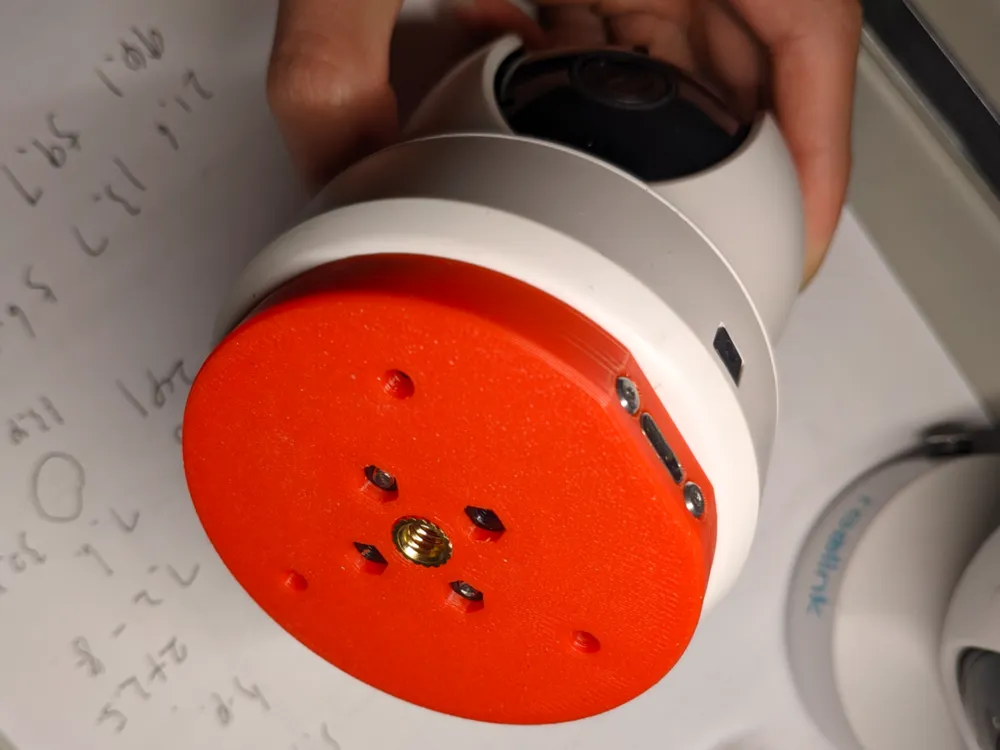

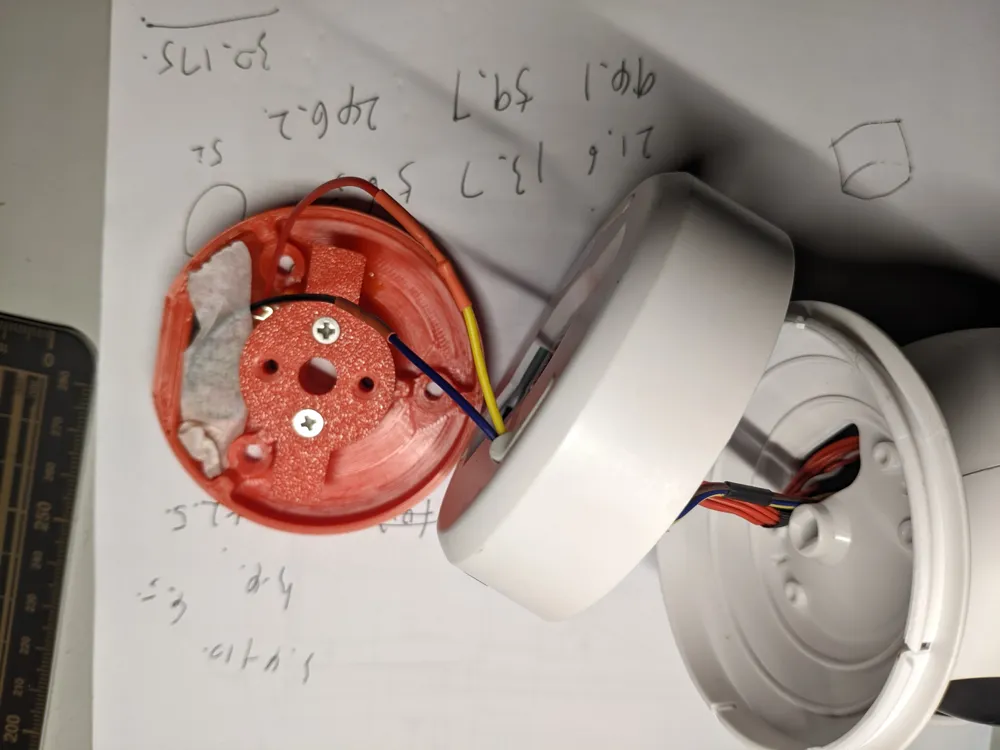

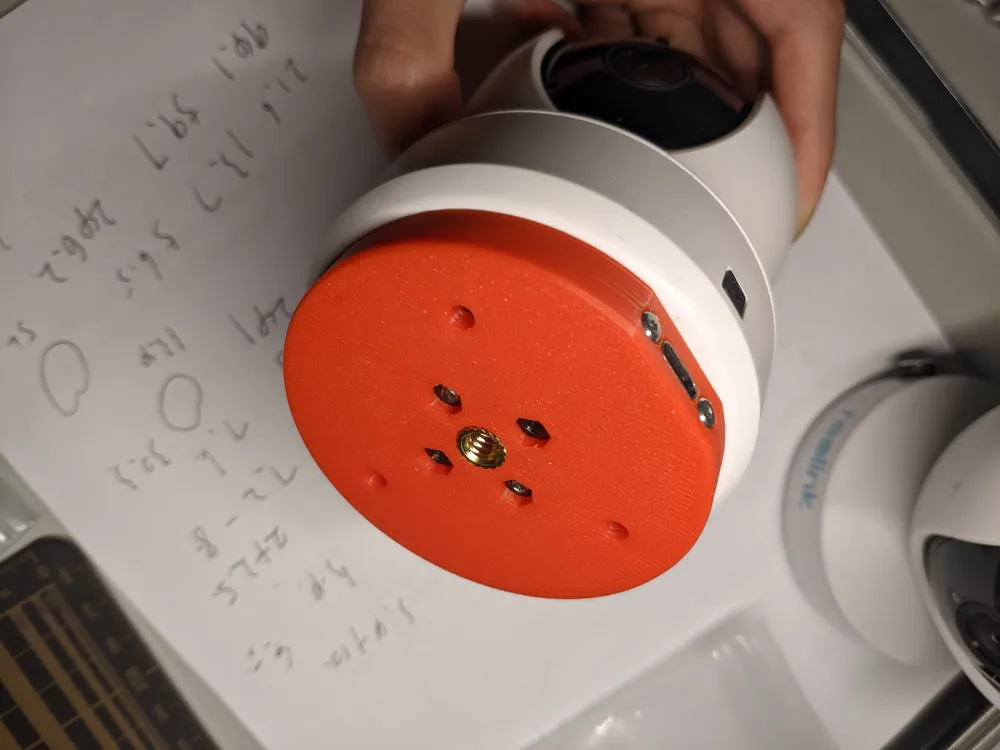

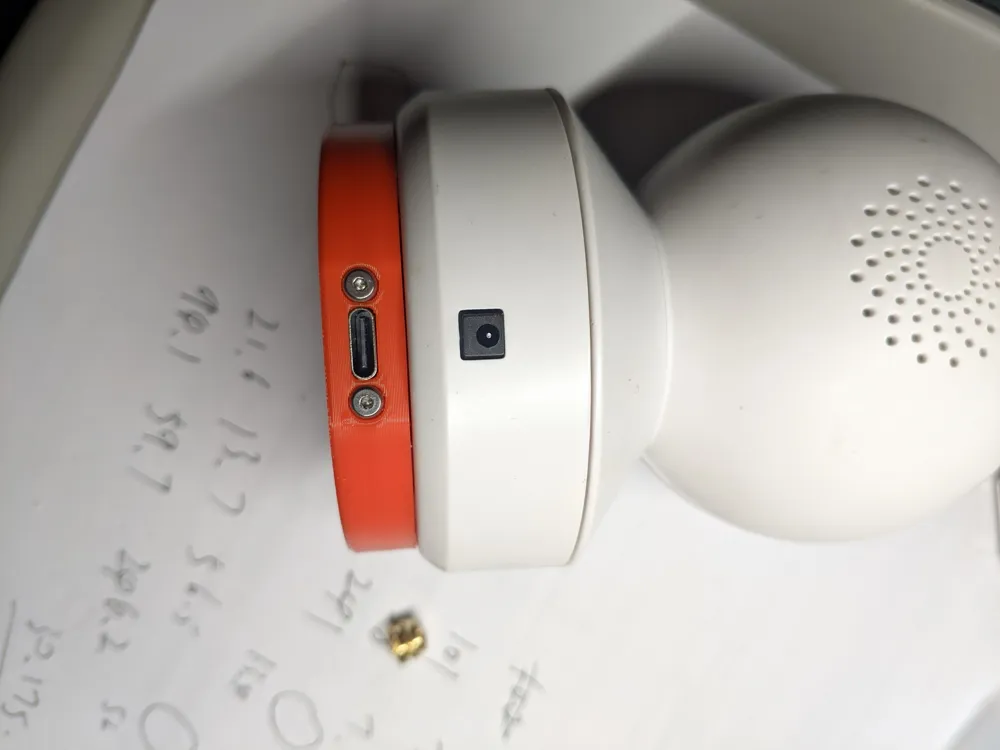

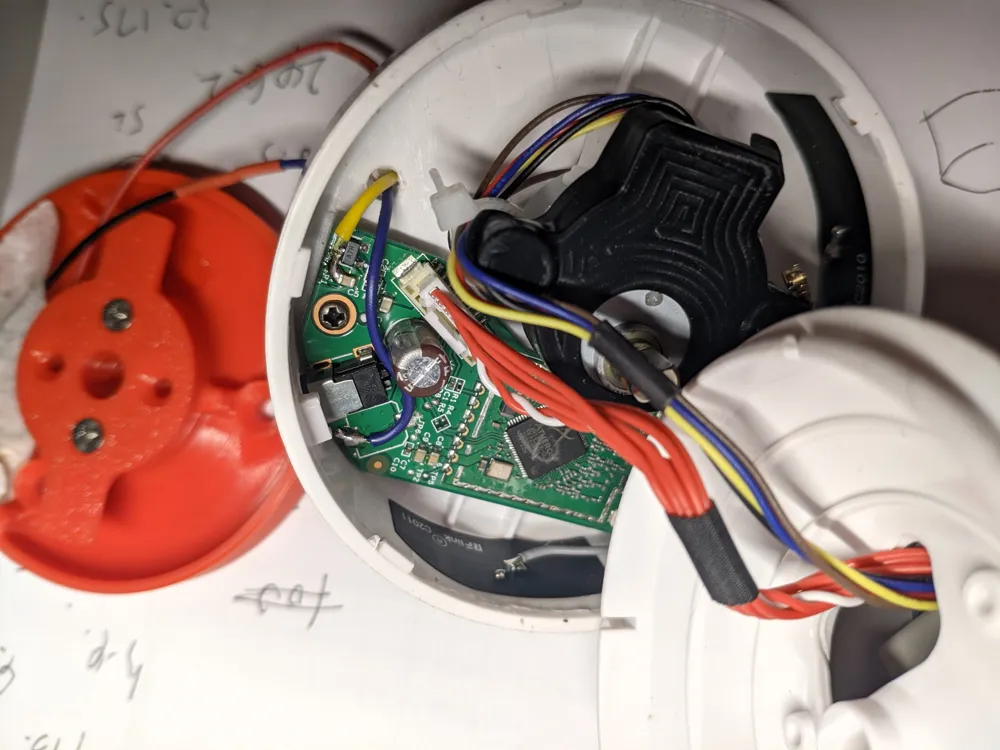

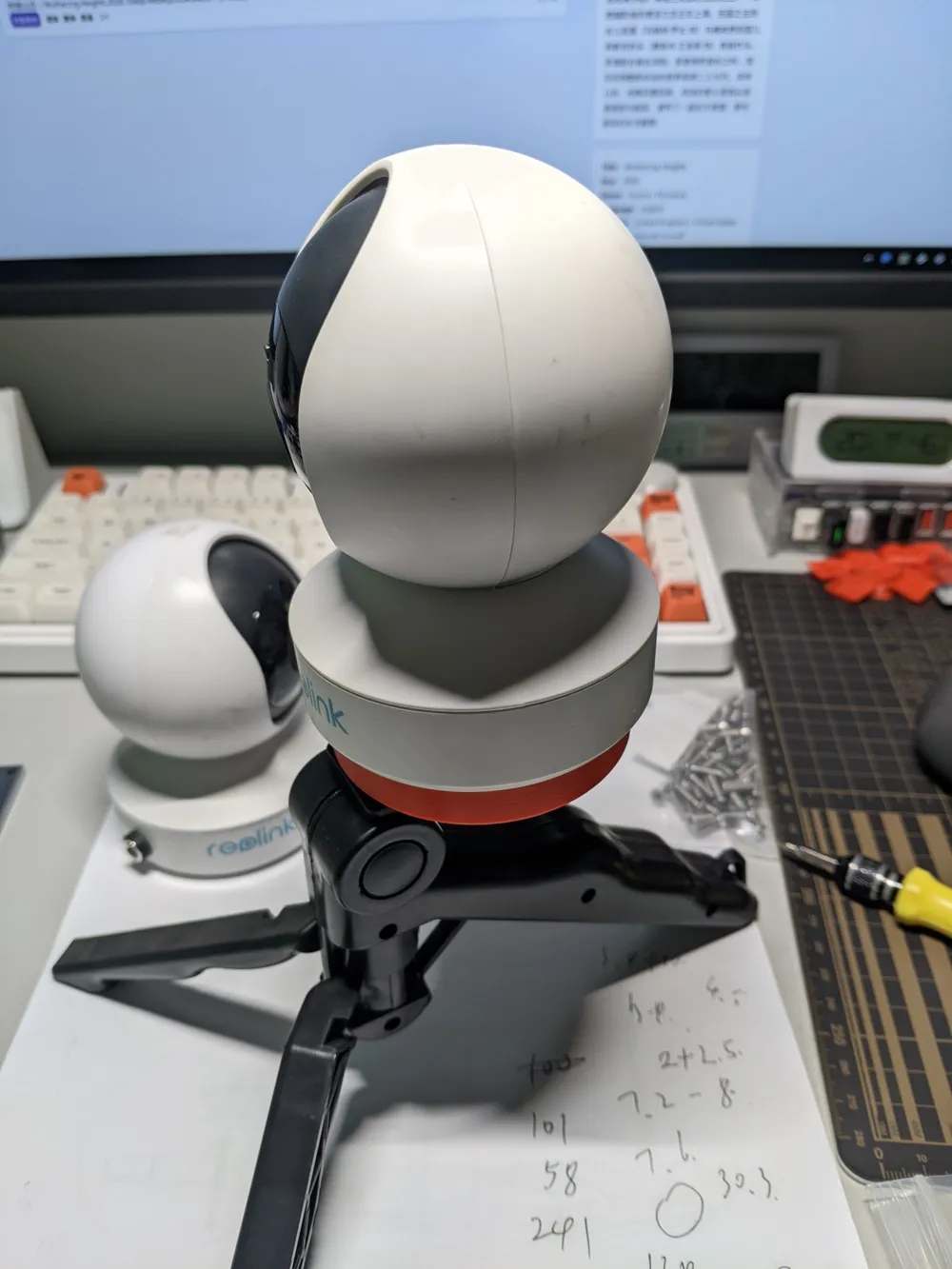

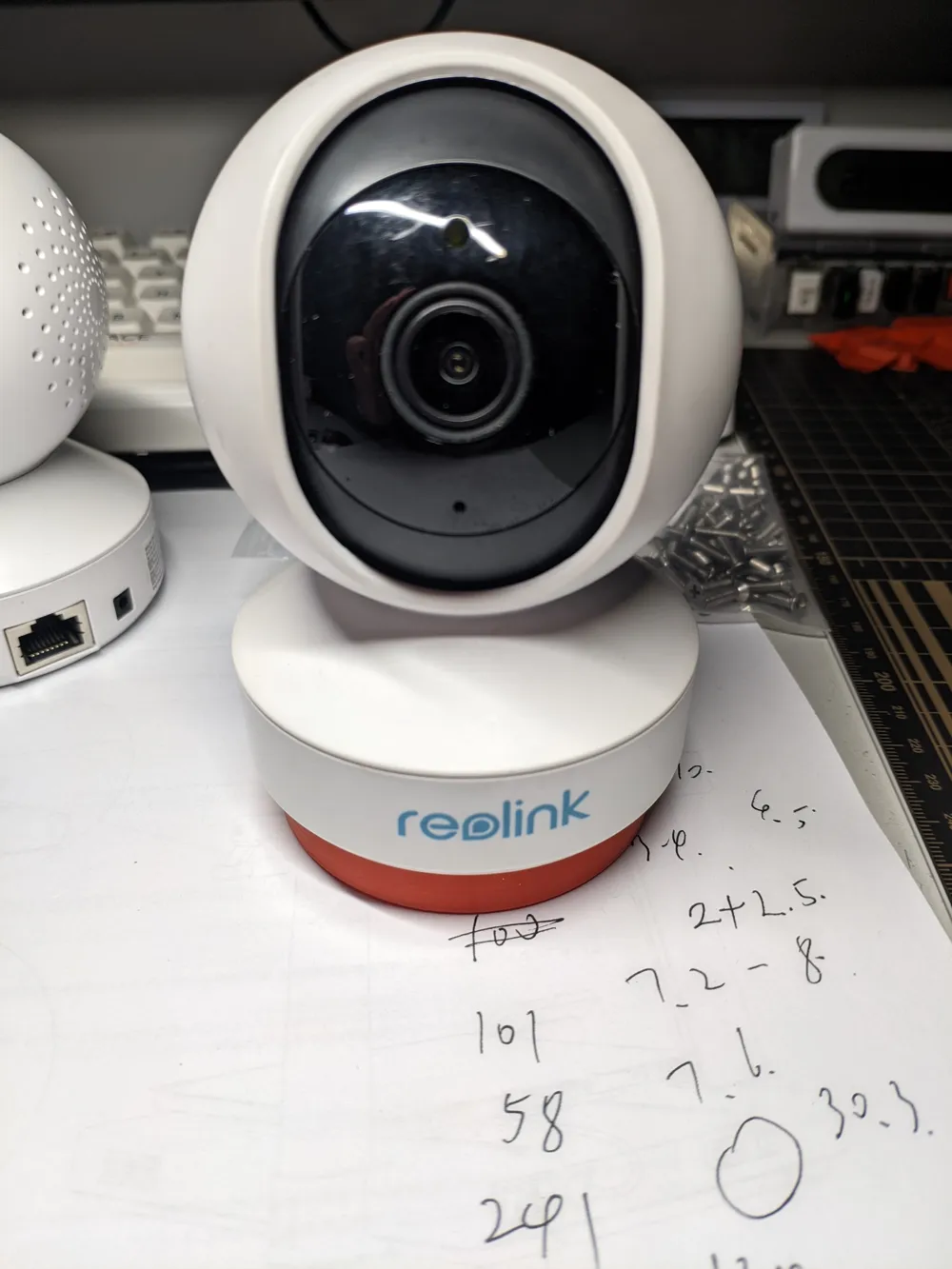

The Reolink E1's charging port often develops poor contact after extended use, preventing the camera from starting correctly This base converts the charging port to a common Type-C, compatible with mobile phone chargers, and converts the mounting base to a 1/4 inch interface, compatible with standard tripods The base supports mounting to a panel using M4 self-tapping screws
You will need M2*8 self-tapping screws, M3 nuts, and M3*12 countersunk screws

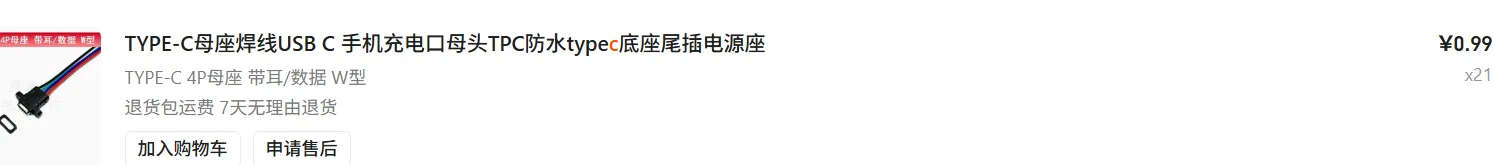

USB-C female connector

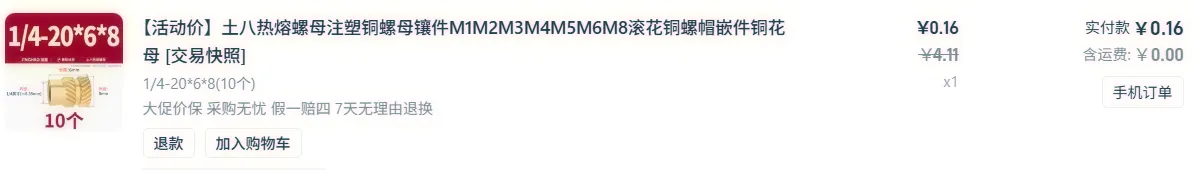

1/4 inch heat-set insert

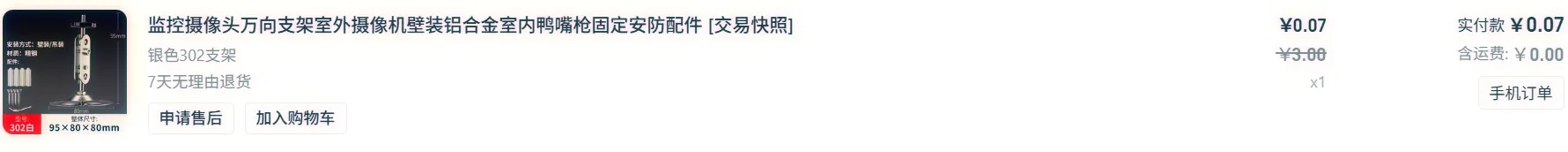

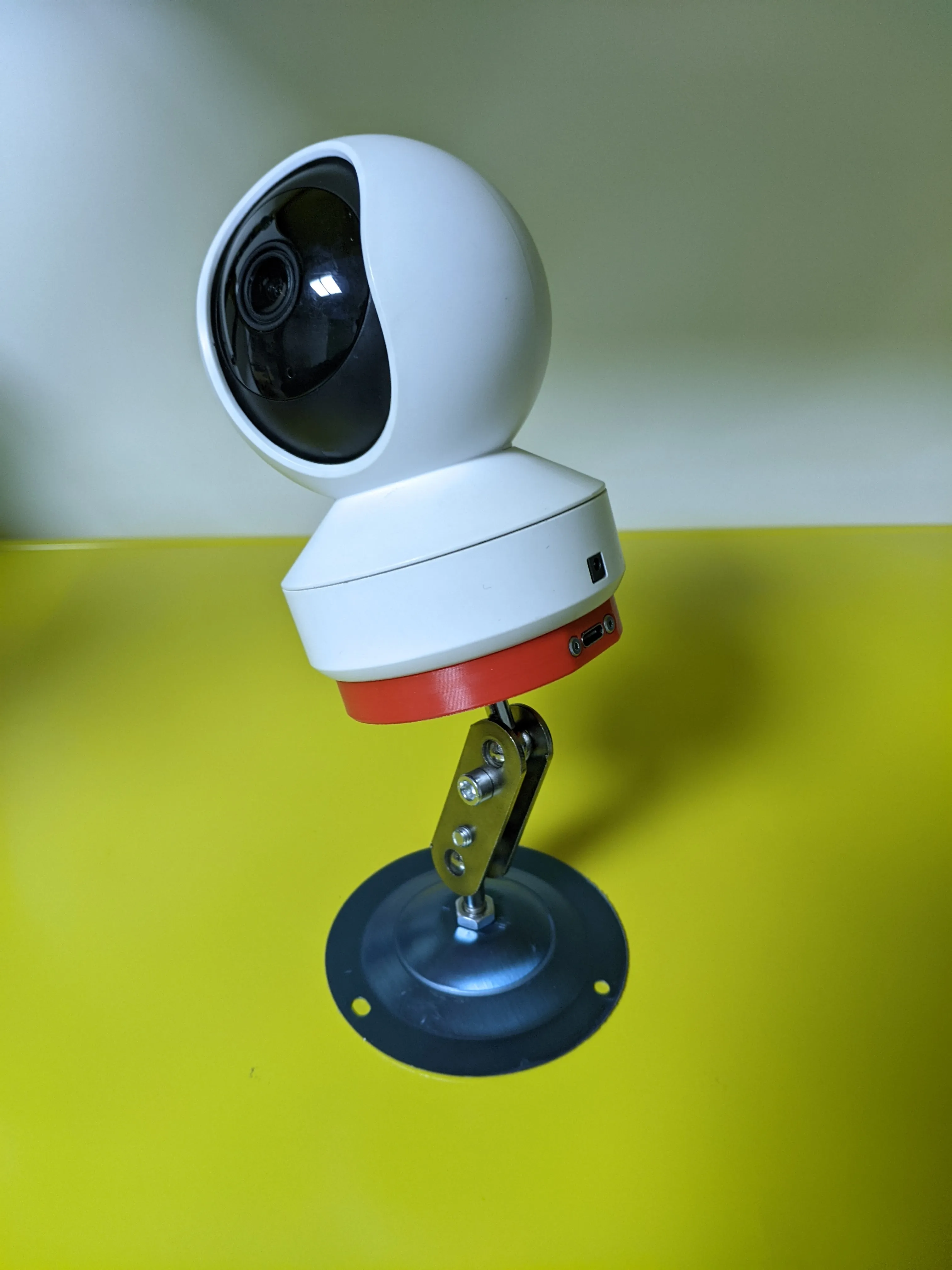

This inexpensive bracket can be used for wall mounting

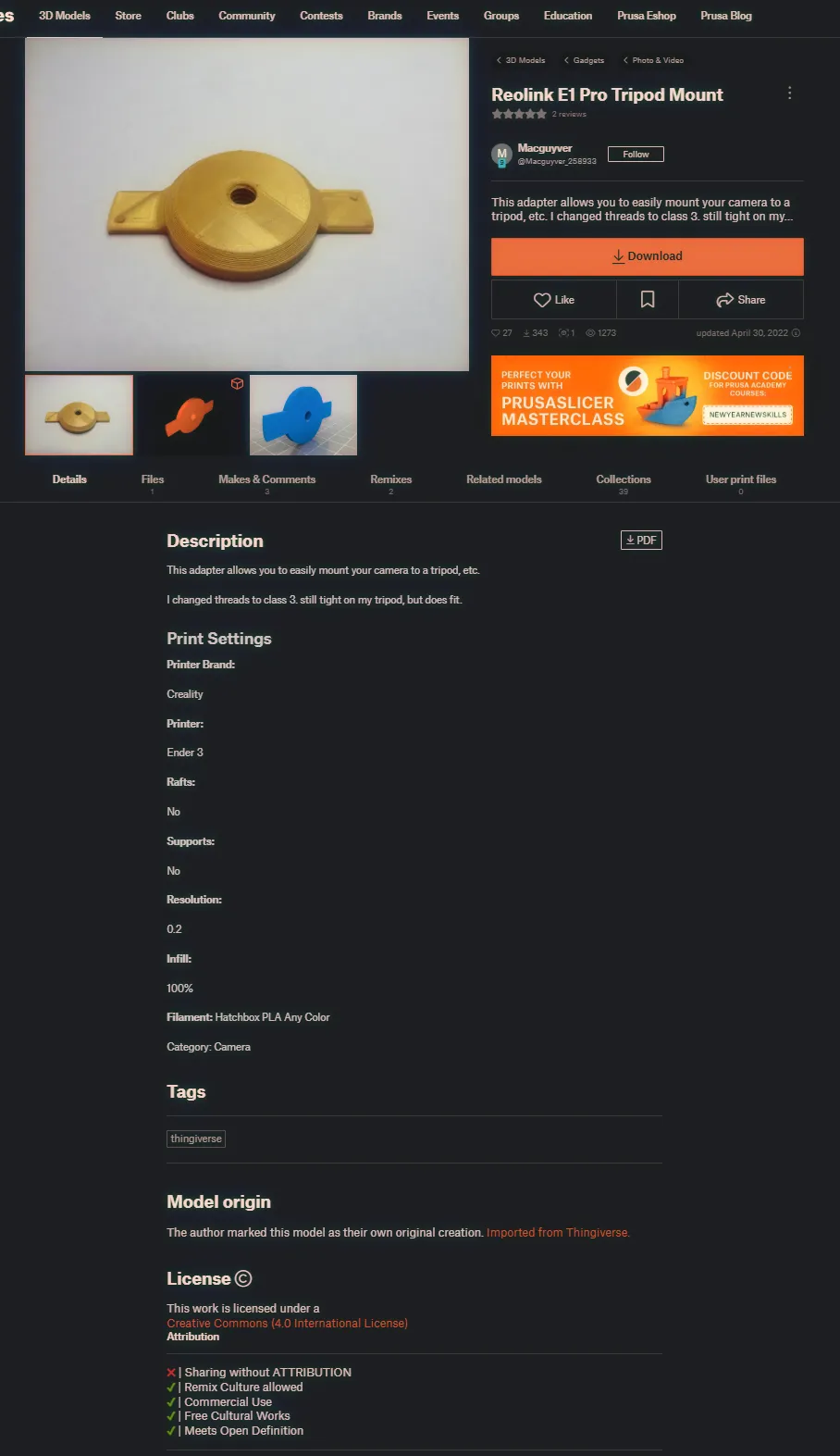

The mounting bracket is adapted from
This remix is based on
