This model is a physical corner radius reference set designed to help makers quickly identify and compare rounded edges in real-world objects.
Instead of estimating radius in CAD or measuring indirectly, these gauges allow you to physically match the curve to an edge, making it easy to determine the correct radius for reverse engineering, modeling, or design work.
The gauges are especially useful when working with rounded corners, fillets, product design, and mechanical parts.

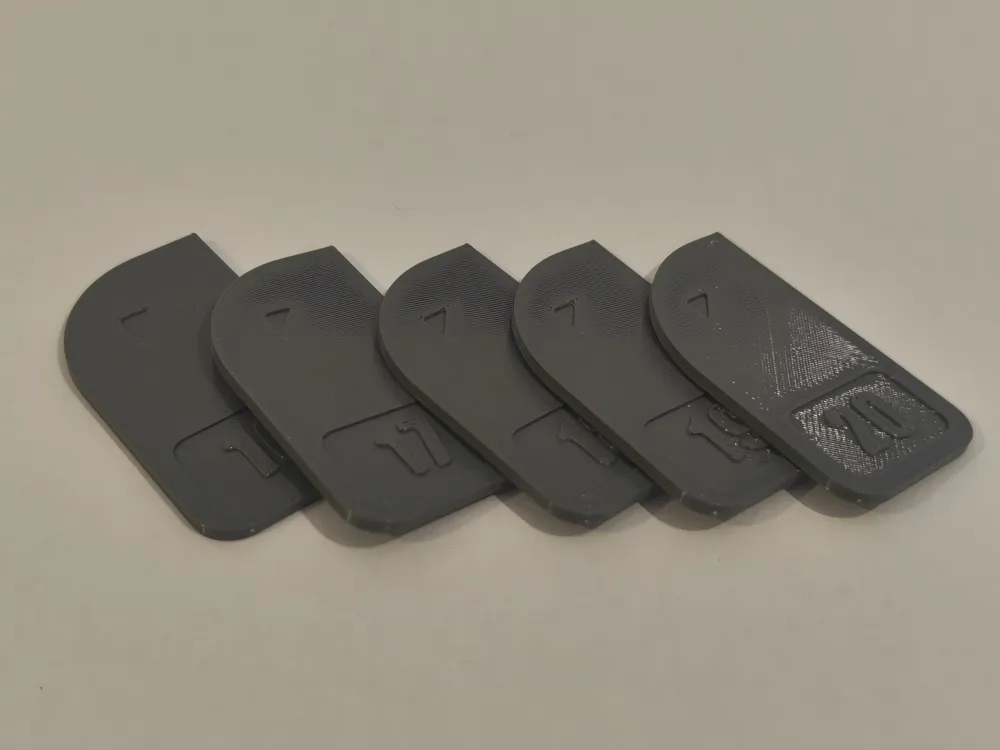

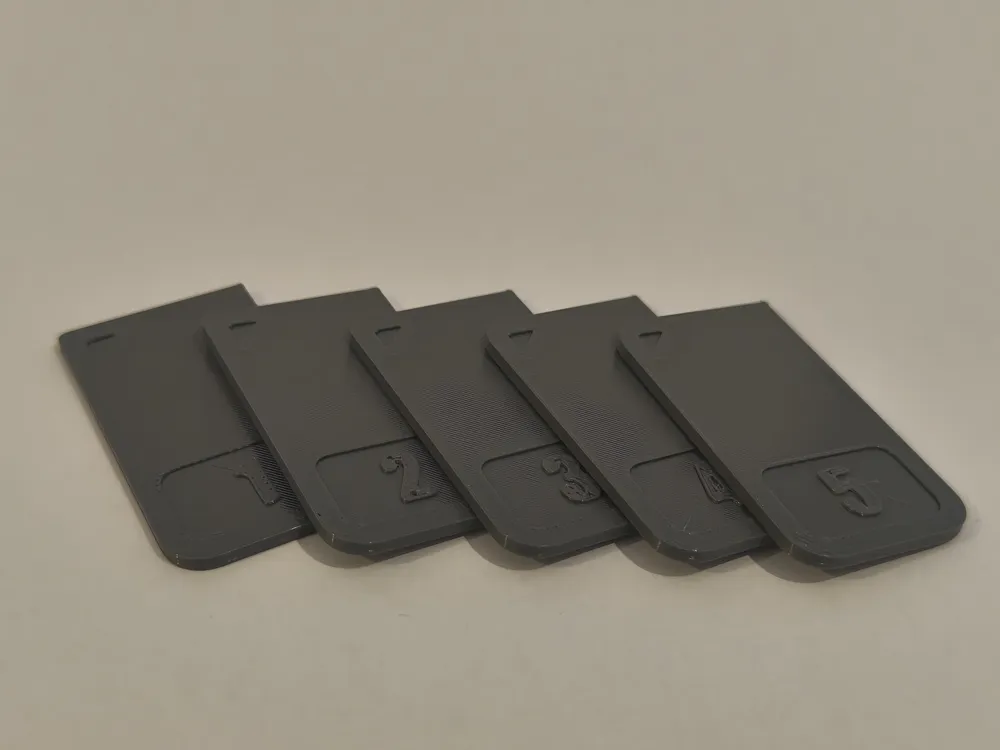

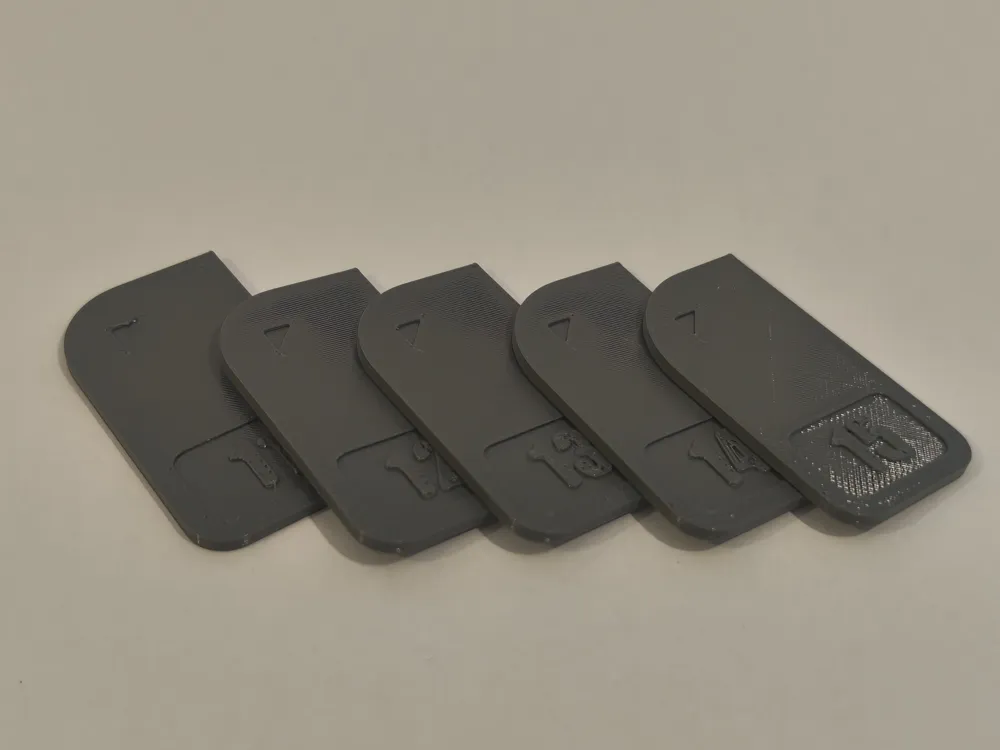

Each piece features a clearly marked radius value and is designed to fit into a compact storage stand, keeping the entire set organized and easy to access.
The set includes reference radius from:
1 mm to 25 mm
This range covers most common radius used in:
- product enclosures
- mechanical components
- 3D printed parts
- everyday objects
Features
- Physical corner radius reference gauges
- Radii from 1 mm to 25 mm

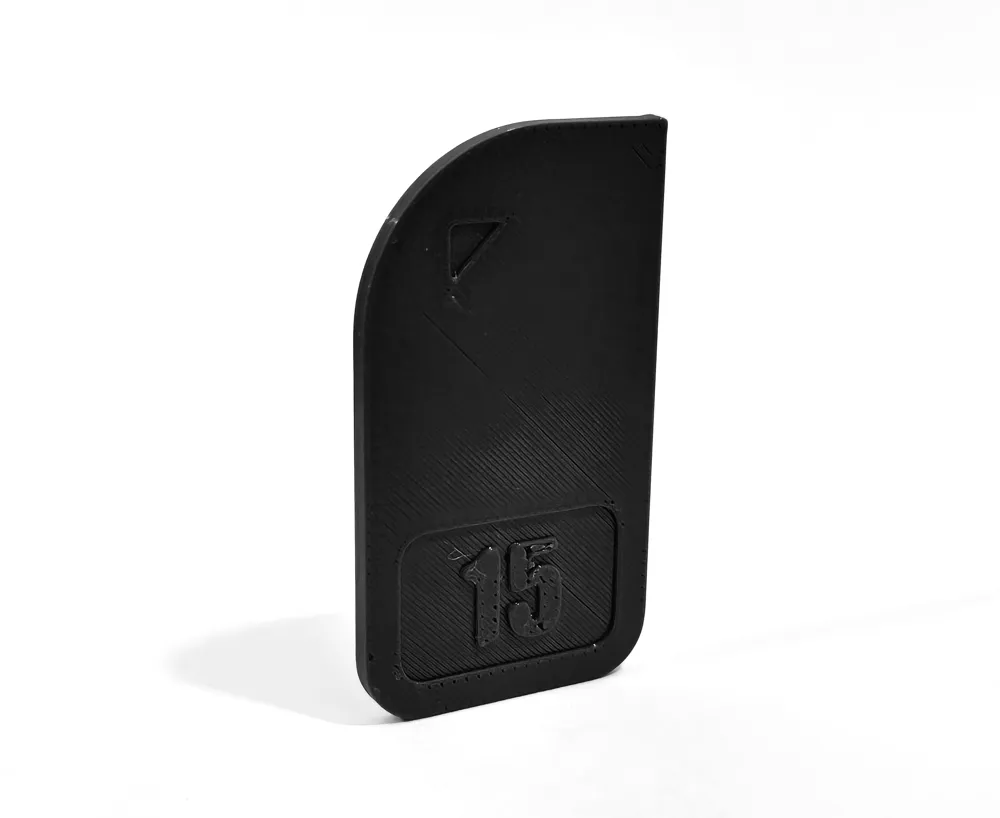

- Clear engraved labels for quick identification

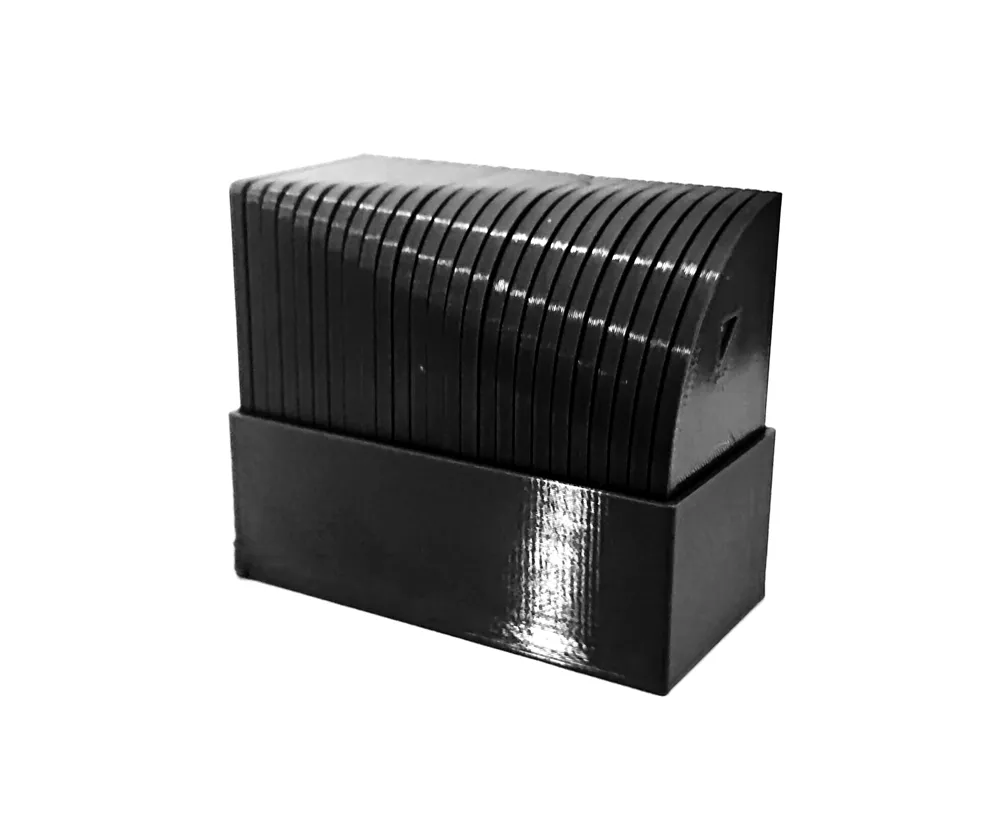

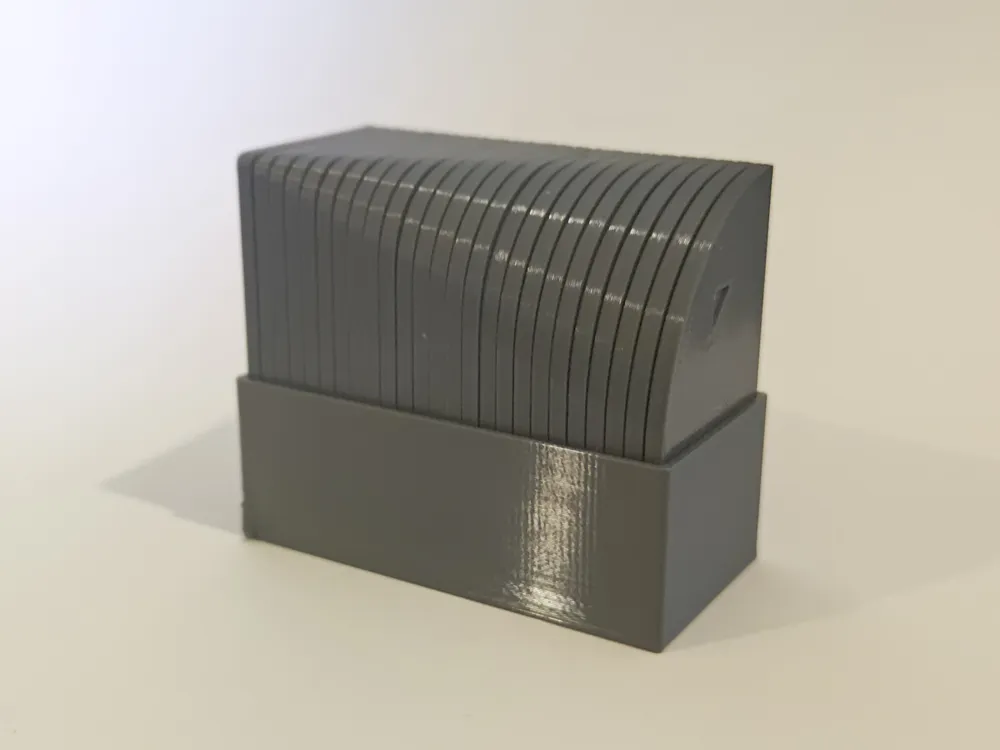

- Compact storage holder included
- Easy to use for reverse engineering and CAD modeling
- Ideal for makers, designers, and engineers
