DJI Mini 3-4-5 Pro Fly More Case
Print Profile(11)
Description

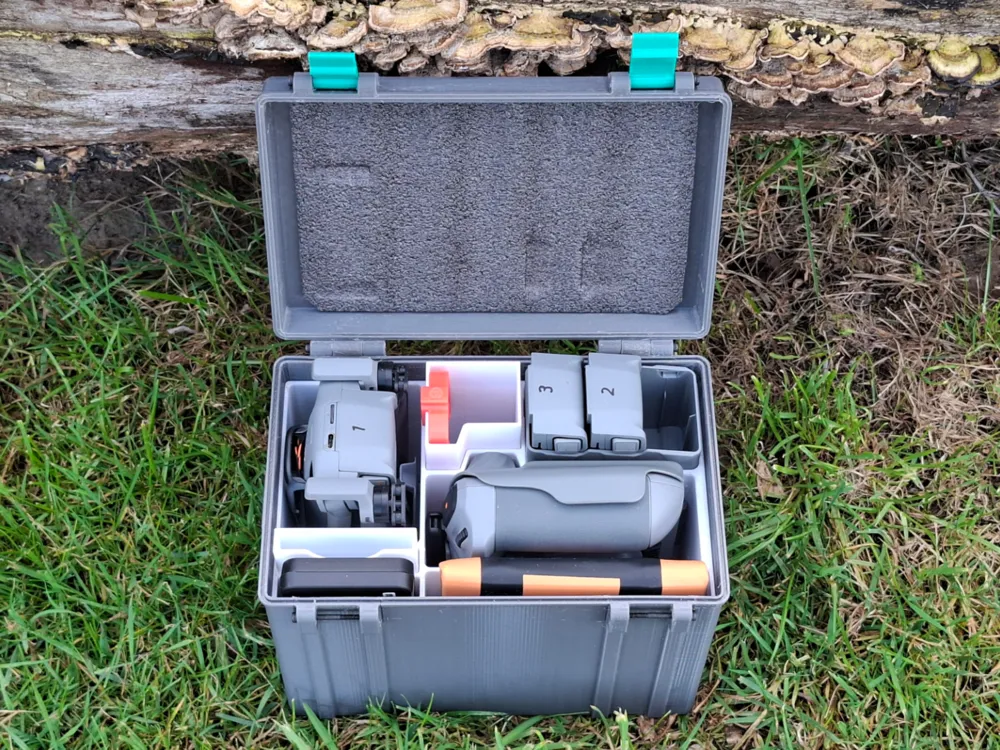

A Rugged Box for the Mini 3/4/5 Pro Fly More Combo and the DJI RC & DJI RC 2 equipped with a Sun Hood.
With separate compartments for the ND-Filter set and a foldable Landing Pad.
The Mini 4 Pro fits with the Prop Guard Buckle on.

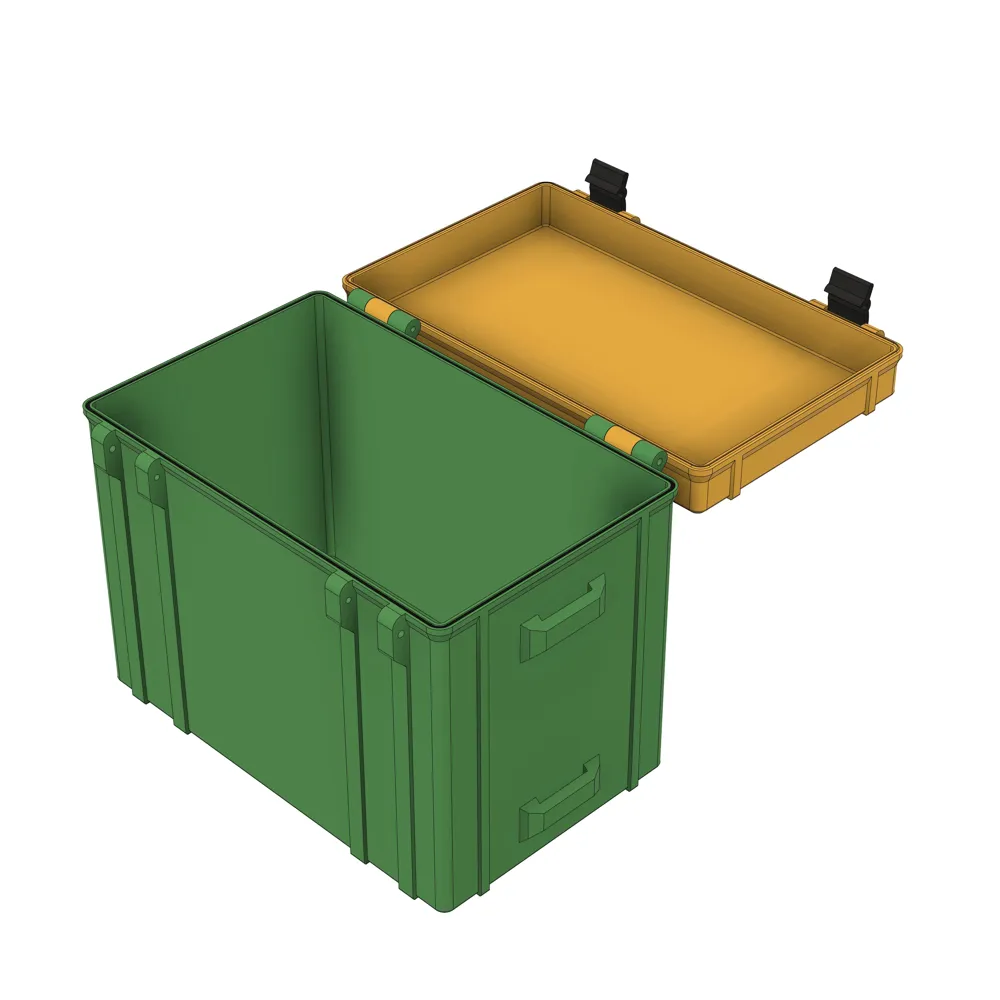

The Rugged Box itself is an adaptation of "Rugged Box (Parametric)" on Printables:
https://www.printables.com/model/258431-rugged-box-parametric
External dimensions:
240.8 x 161.8 x 182.8 (157.4+25.4) mm
There are 2 versions of the Rugged Box Lid:
- 1 with holes in the Lid for attaching a Handle (Plate #4).
- 1 without these holes (Plate #1)
The Handle is provided as a separate Print Profile.
The Rugged Box Print Profile uses modifiers to strengthen the hinges of the box only.
The Interior and it's parts:
All plates can be printed as is (no need to separate the different parts).
Plate #1: Doesn't include any shims
Plate #2: Includes a Shim when using the RC 2 without a sun hood.
Plate #3: Includes a Shim when using the RC-N2/RC-N3 controller.
Plate #4: A shim when using the RC 2 controller
Plate #5: A shim when using the RC-N2/RC-N3 controller
There are separate Print Profiles for the Mavic Mini, Mini 3 Pro, Mini 4 Pro & Mini 5 Pro Inlay Bricks (with cut-outs for the front of the drone).
(The Mini 2, Mini 2se & Mini 4k should fit the Mavic Mini Inlay Brick)

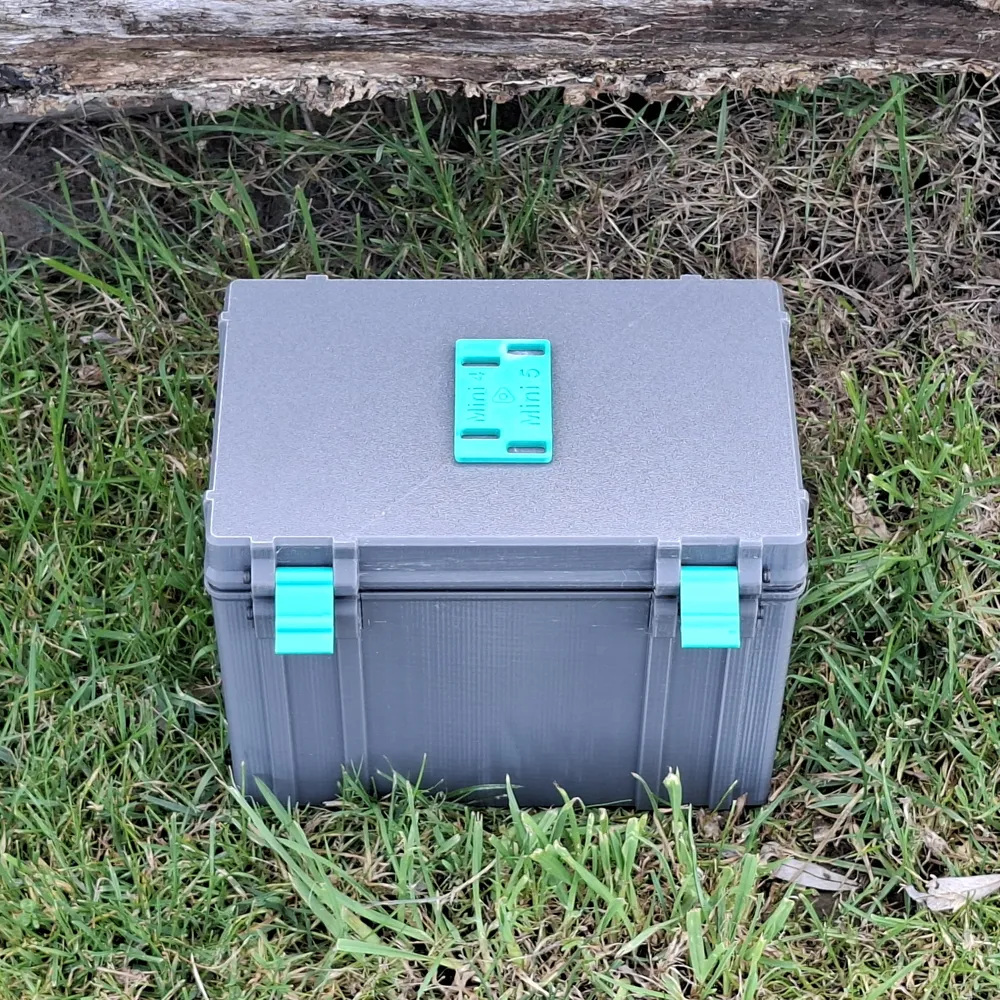

To prevent the drone from sliding off the top of the case, you can print one of the 3 Stops (to be glued in the middle, on top of the Lid)
Provided as a separate Print Profile: "Mini Drone Stops"
The Mini 4 Pro & Mini 5 Pro inlay bricks are coated/painted with Maston Rubber Coating.
Art. nr.: 199980-EU
QR Code: 6412490034160
A similar case for the Mini 3 & 4:
"DJI Mini 3/4 Pro Fly More Case v2"
https://makerworld.com/en/models/1765750-dji-mini-3-4-pro-fly-more-case-v2#profileId-1879114
Mini 3-4-5 Battery Extractor
https://makerworld.com/en/models/1998742-mini-3-4-5-battery-extractor

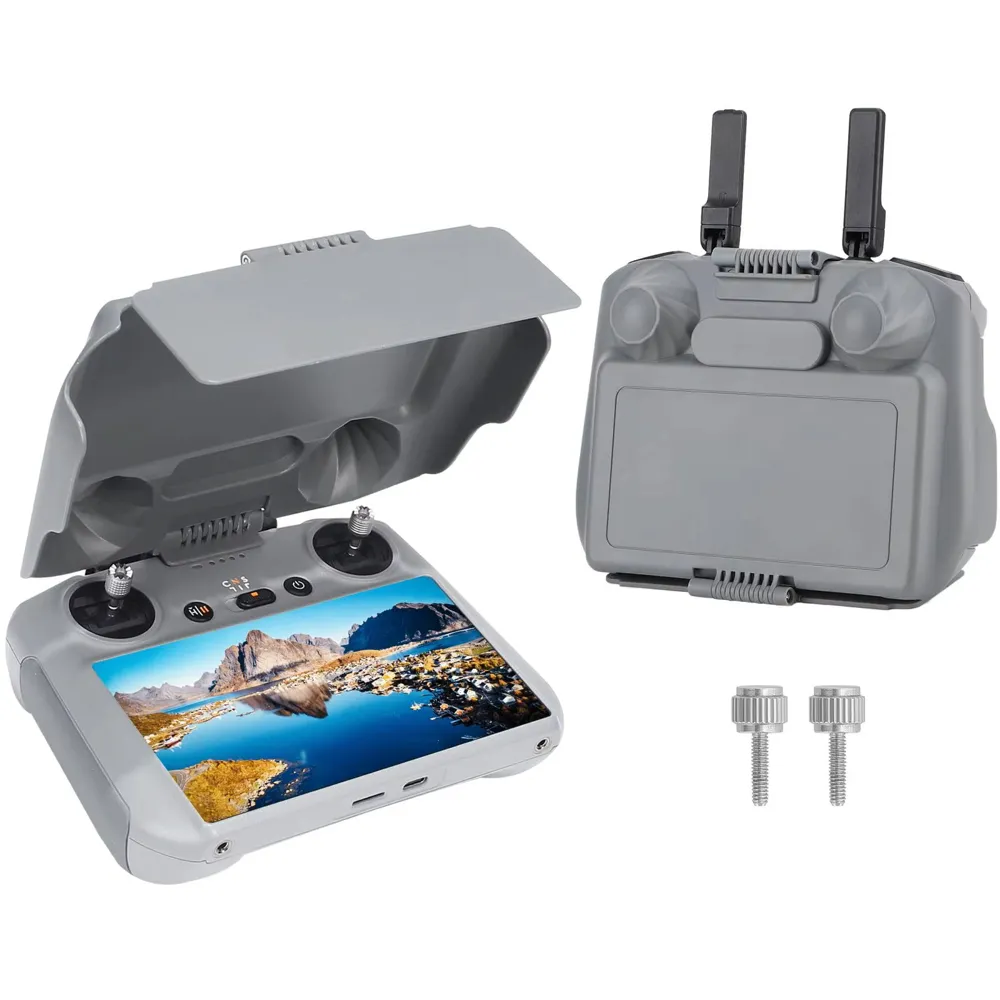

The Sun hood used:
'RC 2/RC Controller Sun Hood Cover for DJI Mini 4 Pro, DJI RC 2 Joysticks Protector for DJI Ari 3/ Mini 4 Pro Drone Accessories'
https://nl.aliexpress.com/item/1005006403970009.html
Landing Pad:
Sunnylife 35Cm Drone Foldable Landing Pad For DJI NEO/Mini 4Pro Double-Sided Color Leather Mini Drone Parking Mats For DJI Drone
https://aliexpress.com/item/1005012617024383.html
Screws:
2/5/10/50/100pcs m1 m1.2 m1.4 m1.6 M2 M2.5 M3 M4 m5 m6 DIN7985 304 Stainless steel Cross Phillips Round Pan Head Screw Bolt
https://aliexpress.com/item/32948746653.html
Size:M3 50pcs
Length: 40mm
Strap:
5pcs 2M Zinc Alloy Pressure Buckle Pallet Cargo Straps Luggage Fixed Car Fixed Tightener Tensioner Straps Ratchet Tie-Down Belts
https://aliexpress.com/item/1005009802793473.html
or
2M Buckle Tie-Down Belt Cargo Straps With Metal Buckle Tow Rope Strong Ratchet Belt For Luggage Bag Motorcycle Car Accessories
(25 x 2mm)
https://nl.aliexpress.com/item/1005002957871268.html
Hardware:
6 pcs Screw M3 x 40mm
1 Strap 30 x 3mm (max) L=900mm
4 pcs Rubber feet (or printed in TPU)
