TIMELINE Date Stamp
Print Profile(1)
Description

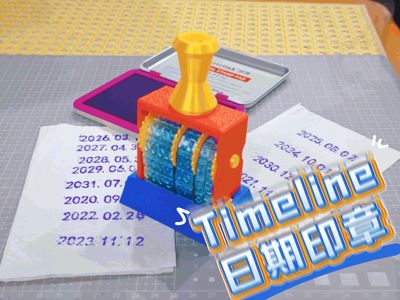

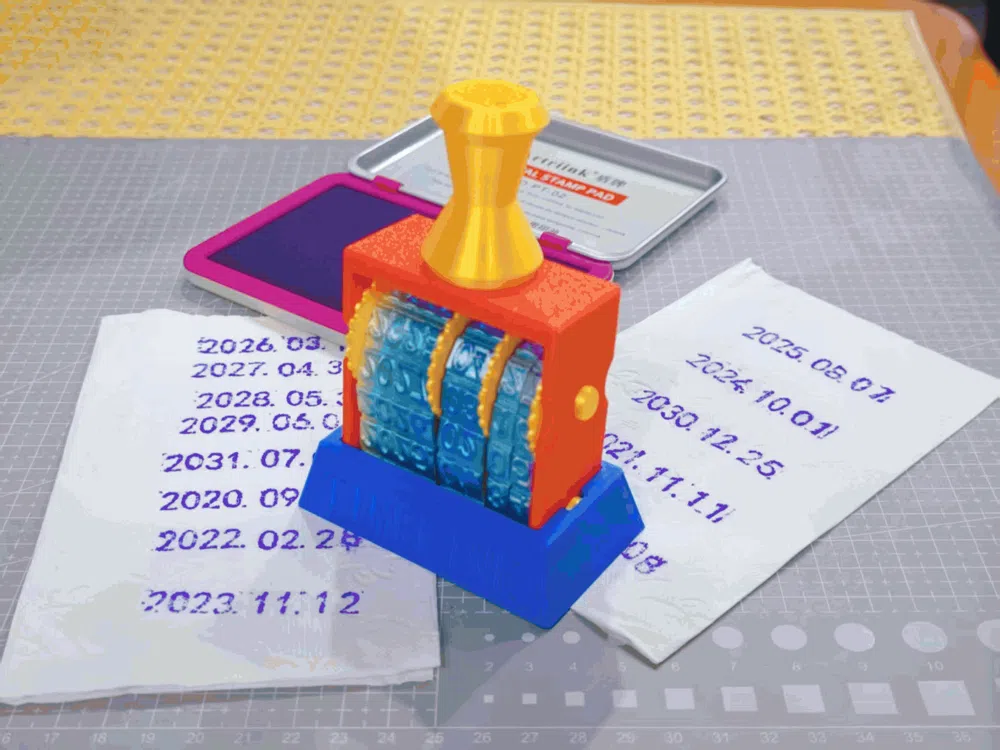

TIMELINE date stamp, helps you record every memorable day
Utilizing the toughness of the filament, this printable sprocket-style stamp was designed
Recordable time range: 2020.01.01—2031.12.31。
Installation tutorial below：

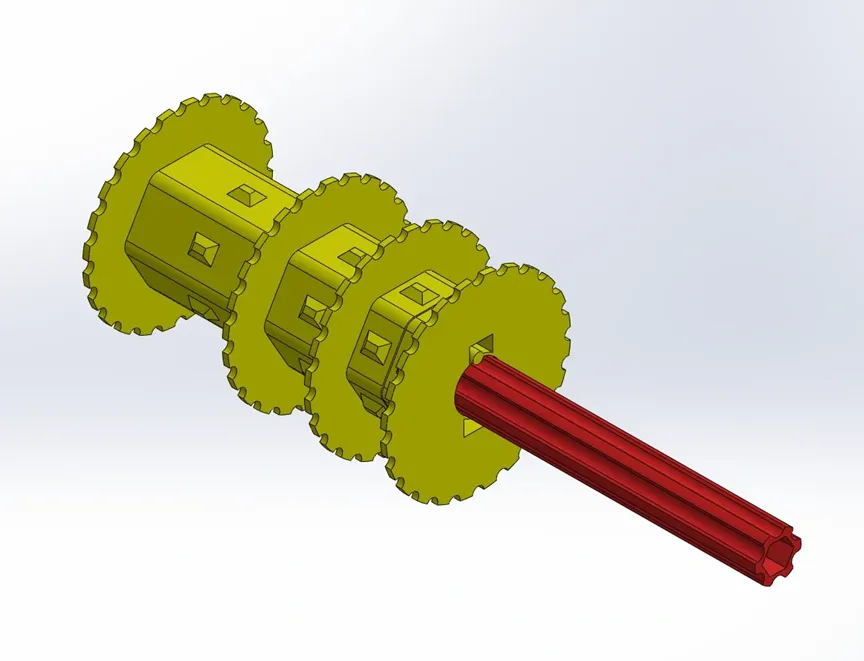

1 Bottom sprocket assembly

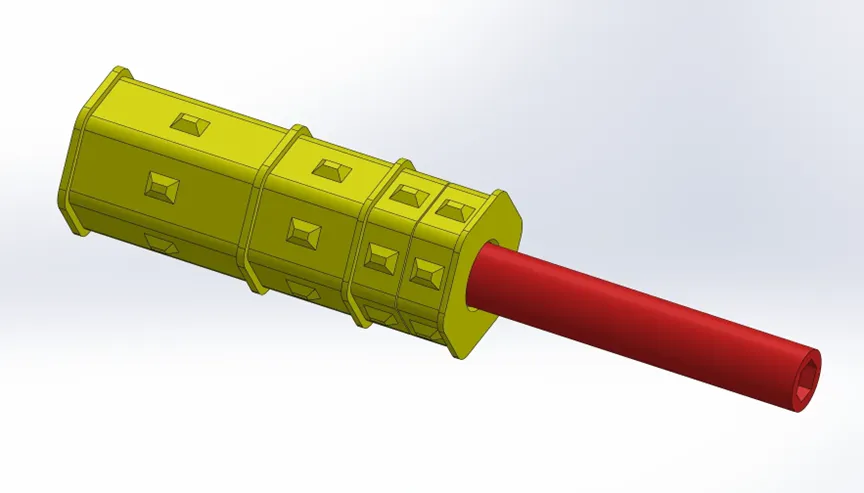

2 Top ratchet assembly

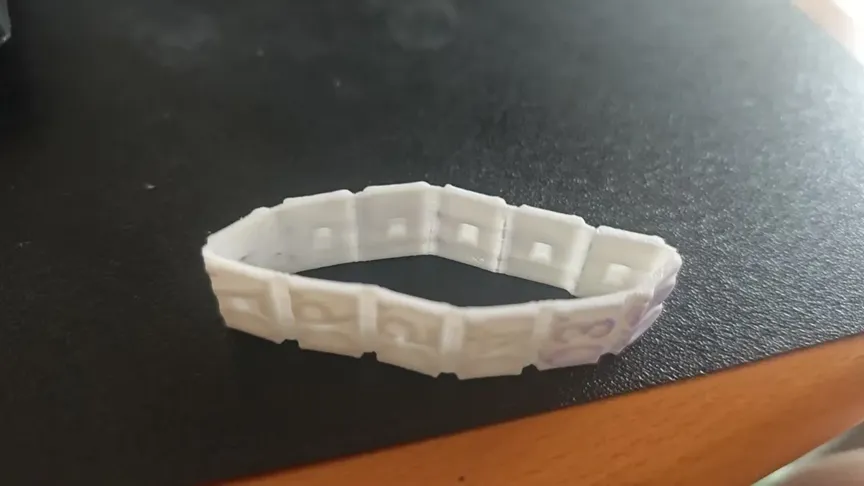

3 First, fold all the stamp wheels

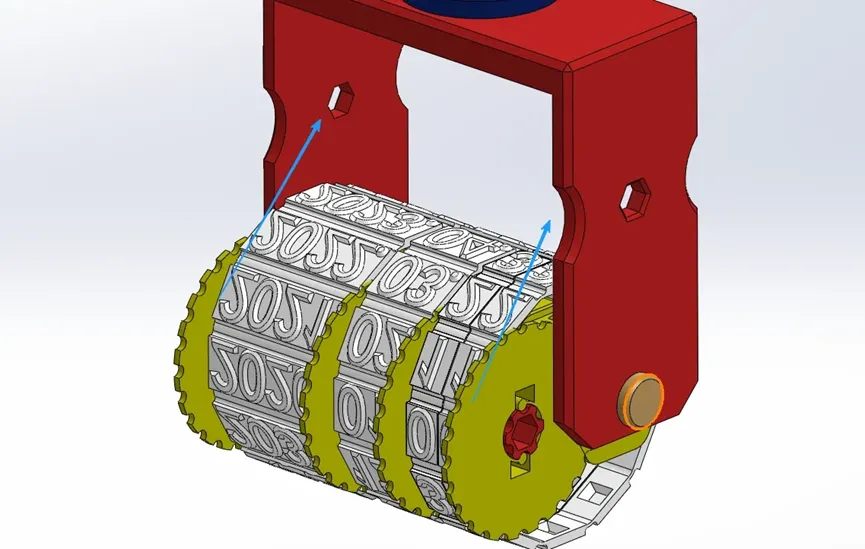

4 Insert all stamp wheels into the bottom sprocket assembly in year/month/tens digit of day/day order, then install them into the bracket

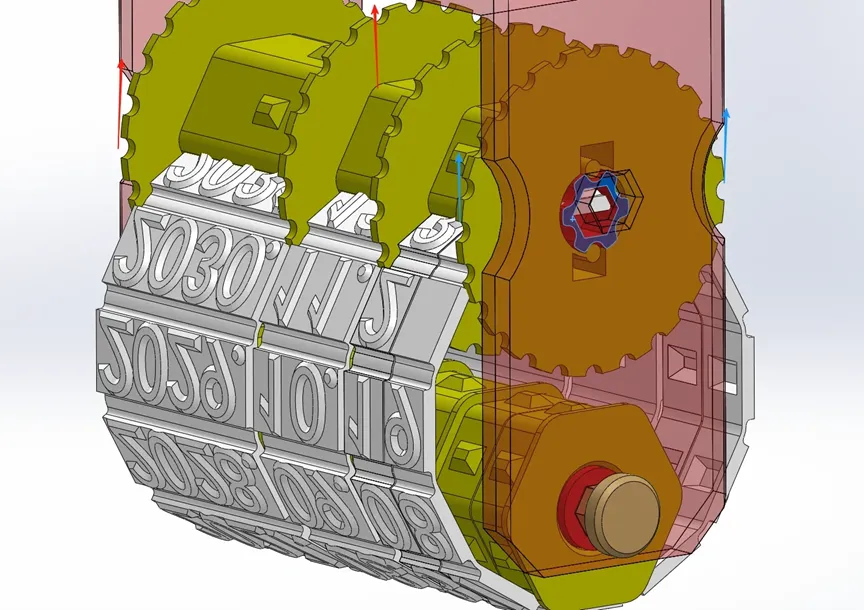

5 Using elasticity, thread the top ratchet assembly into the stamp wheels, then guide it into place for installation

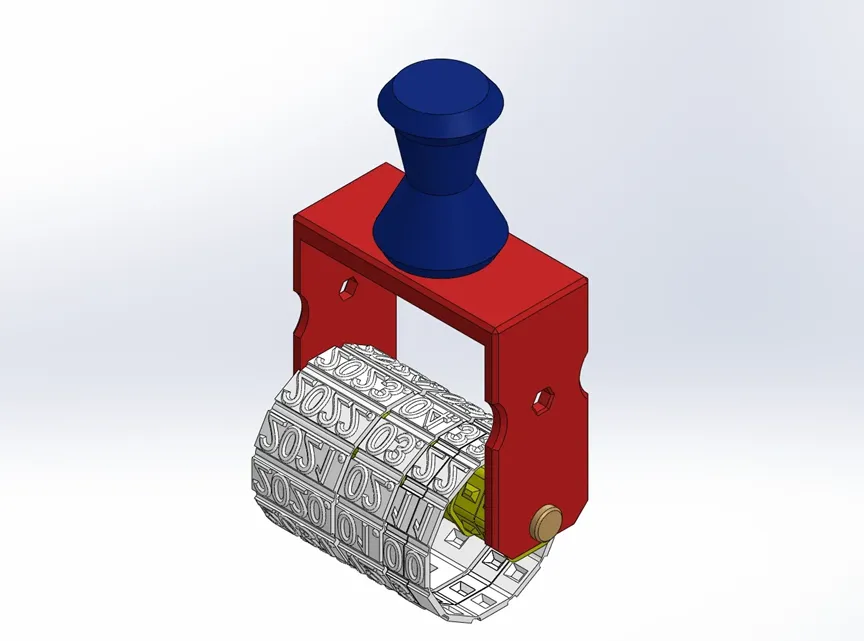

6 Due to structural deformation and elasticity, the top ratchet assembly cannot be smoothly installed into place; you need to first bend one side to install the retaining pin for a tight fit

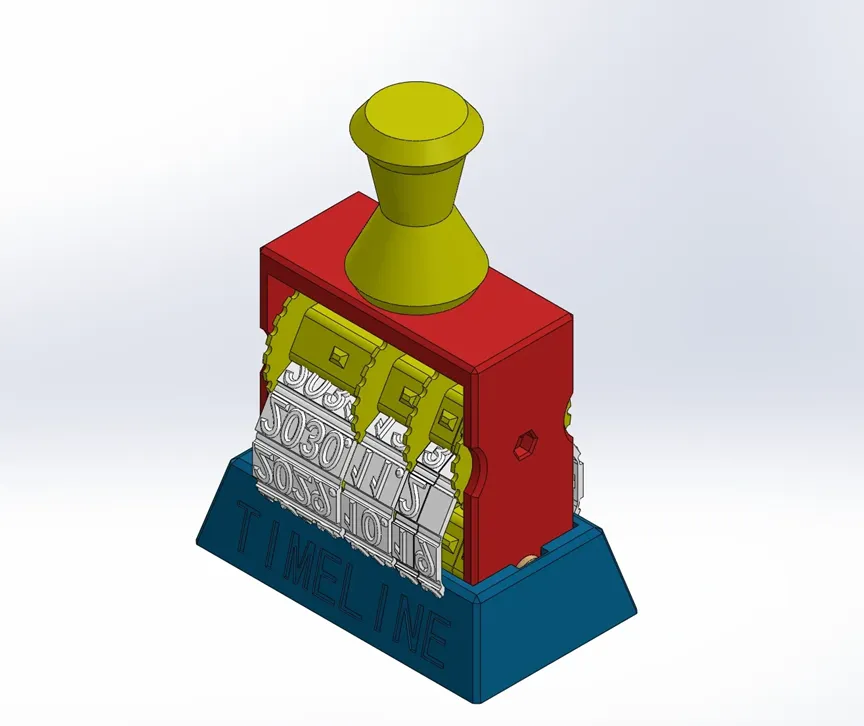

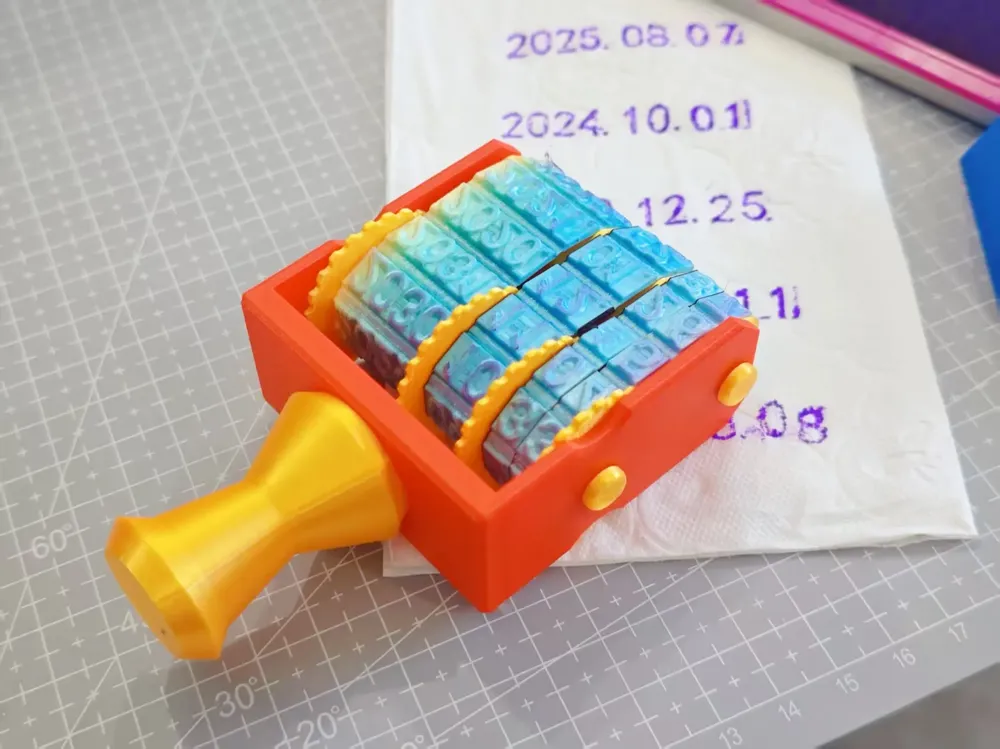

7 Final installation diagram
