Description

Content has been automatically translated.
Show original

The rings for limiting drilling depth have several disadvantages (assembly, crooked seating, loosening, etc)

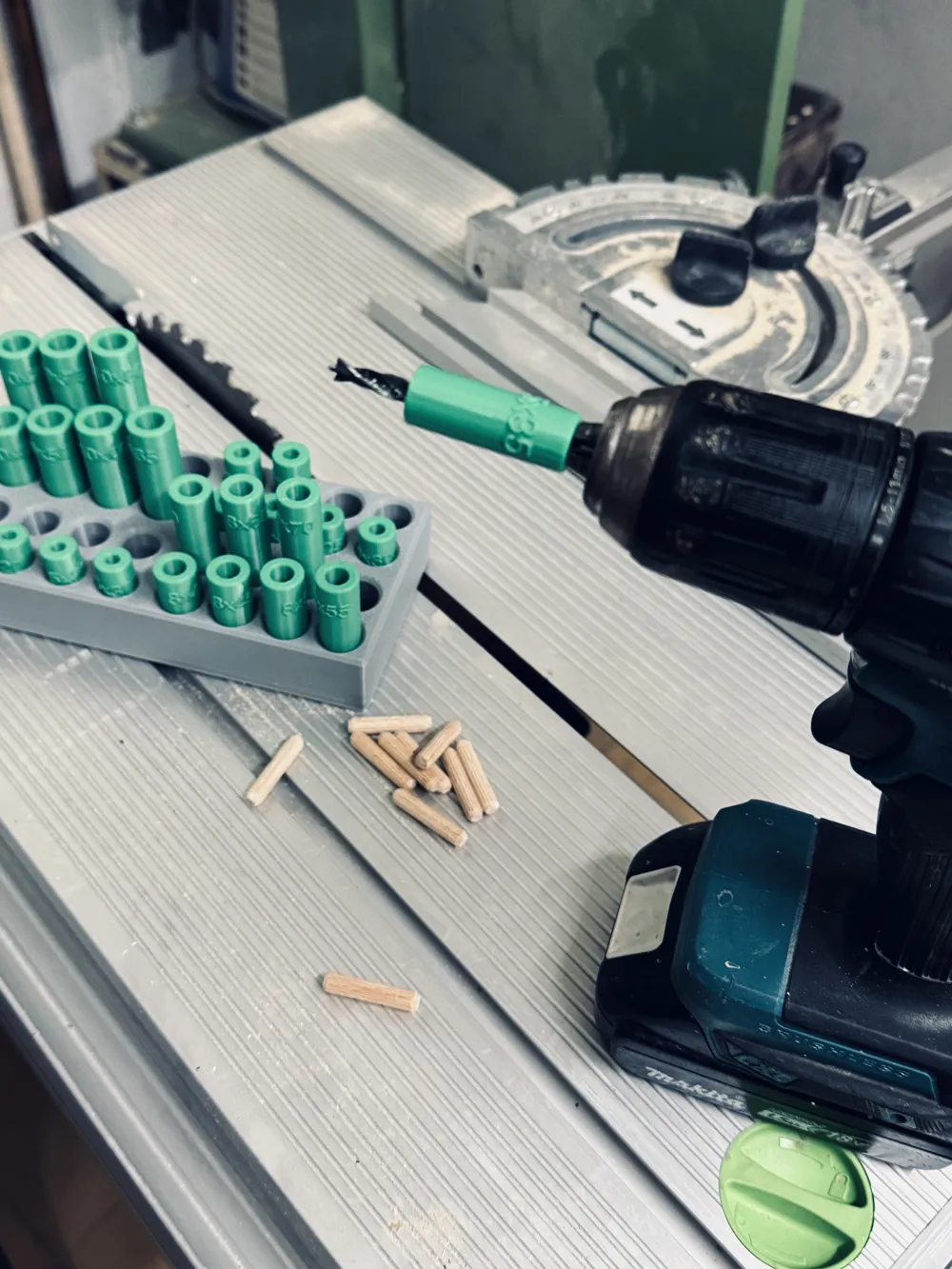

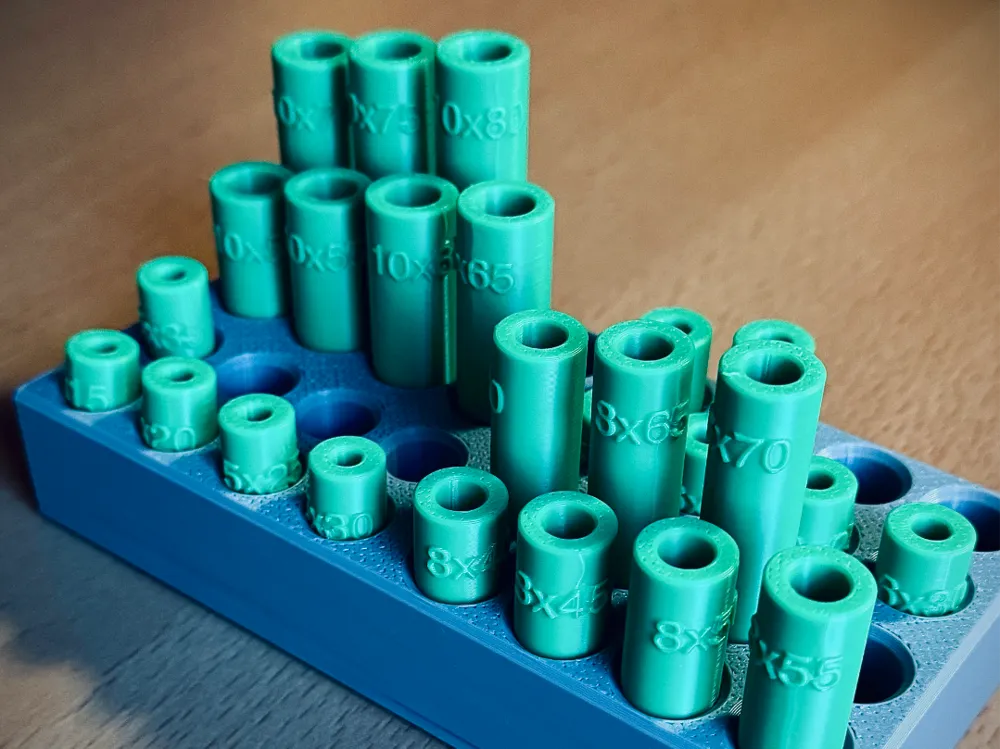

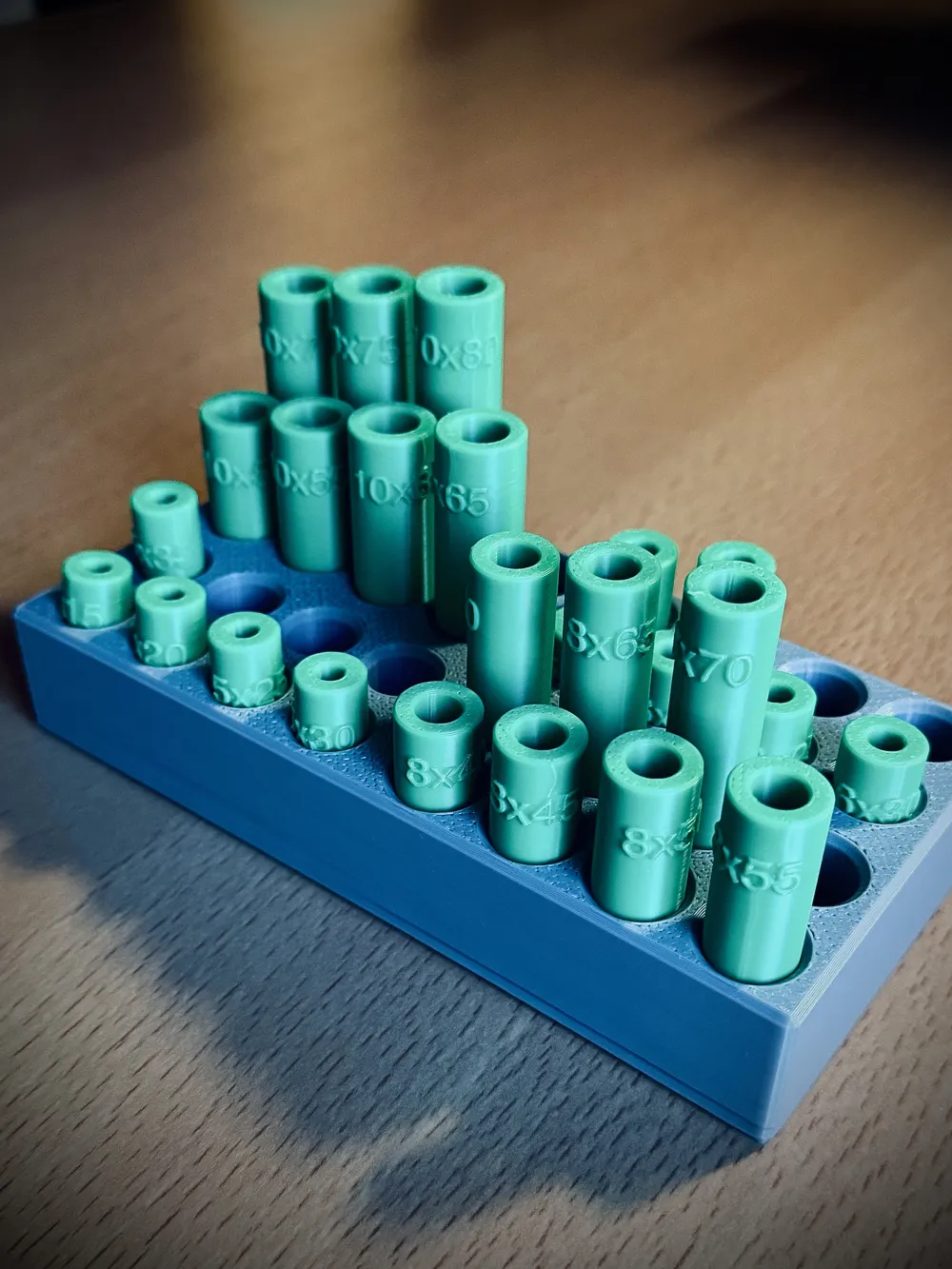

With this set, the drilling depth of ⌀5, ⌀6, ⌀8, ⌀10 drills can be limited much more safely The gradation is in 5mm increments The millimeter-accurate depth is then set via the drill chuck The sleeves may have a slight undersize in the inner diameter depending on the drill, so they can be drilled out during the first use and thus sit securely on the drill (hold with pliers, for example, when pre-drilling)



This ensures you won't drill deeper than planned
