Description

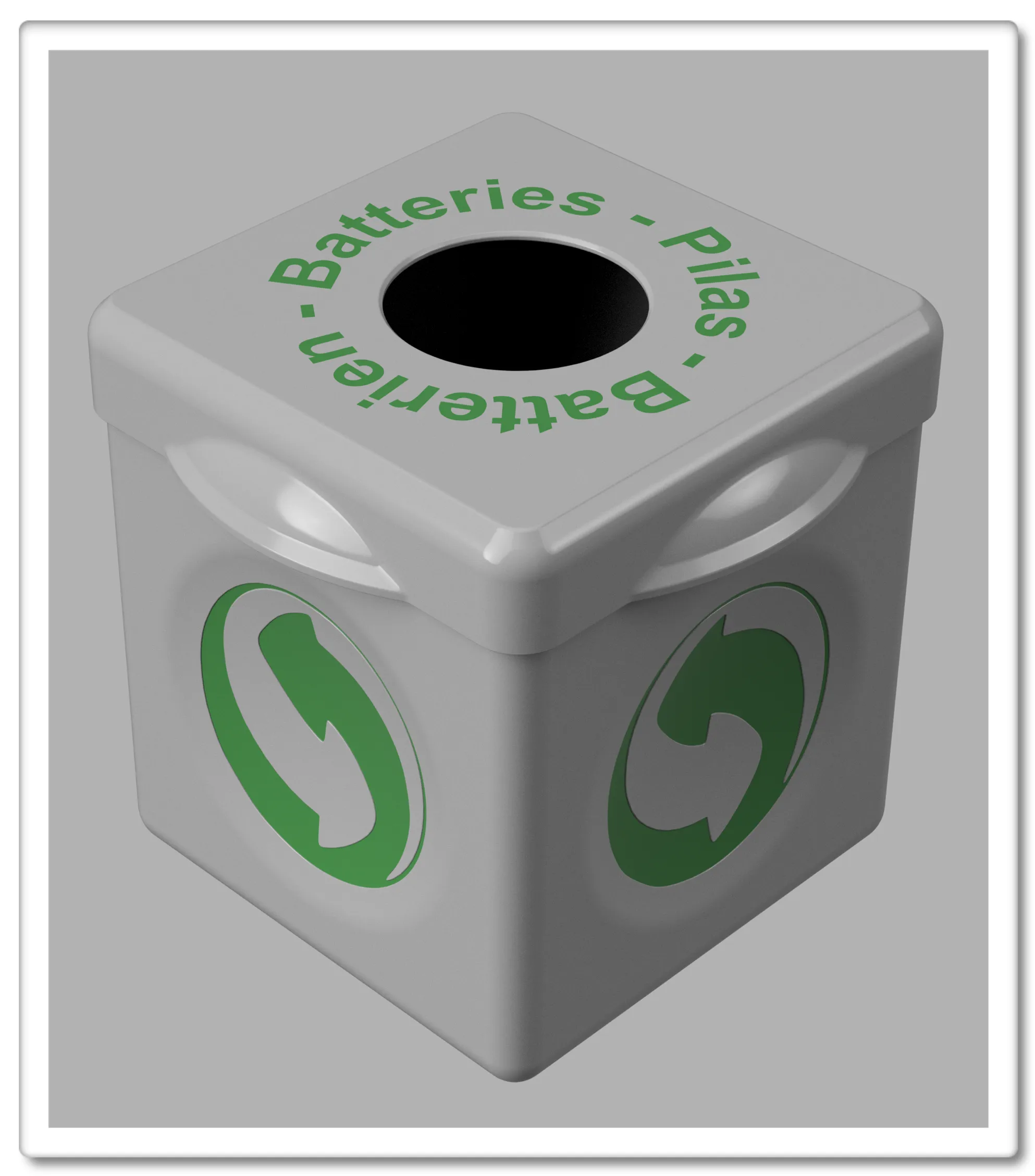

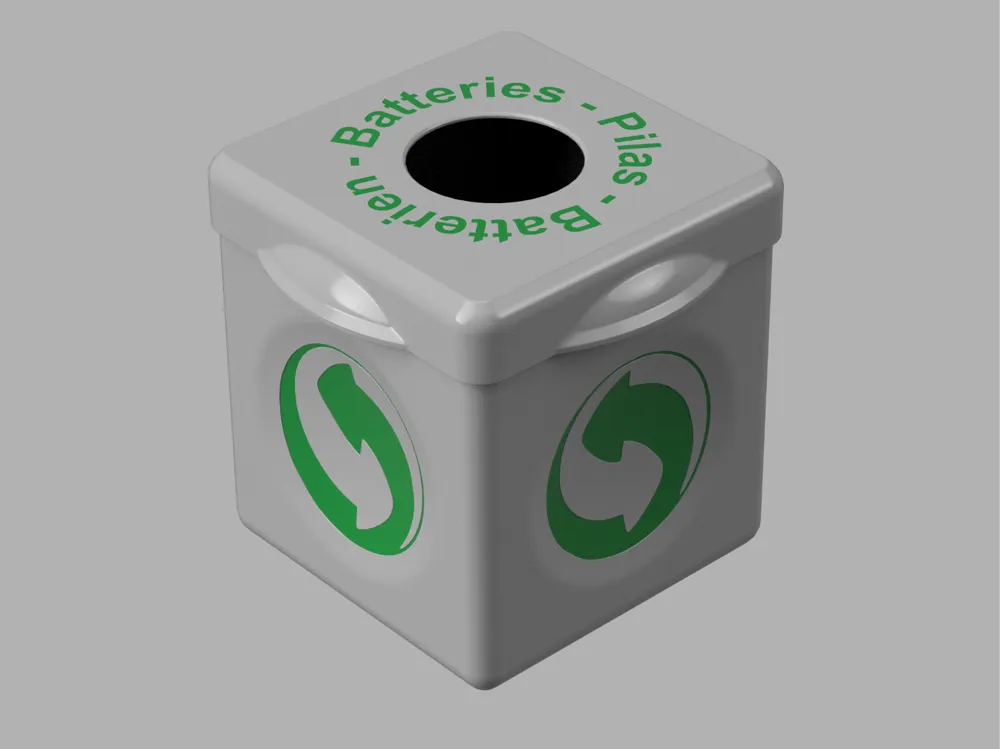

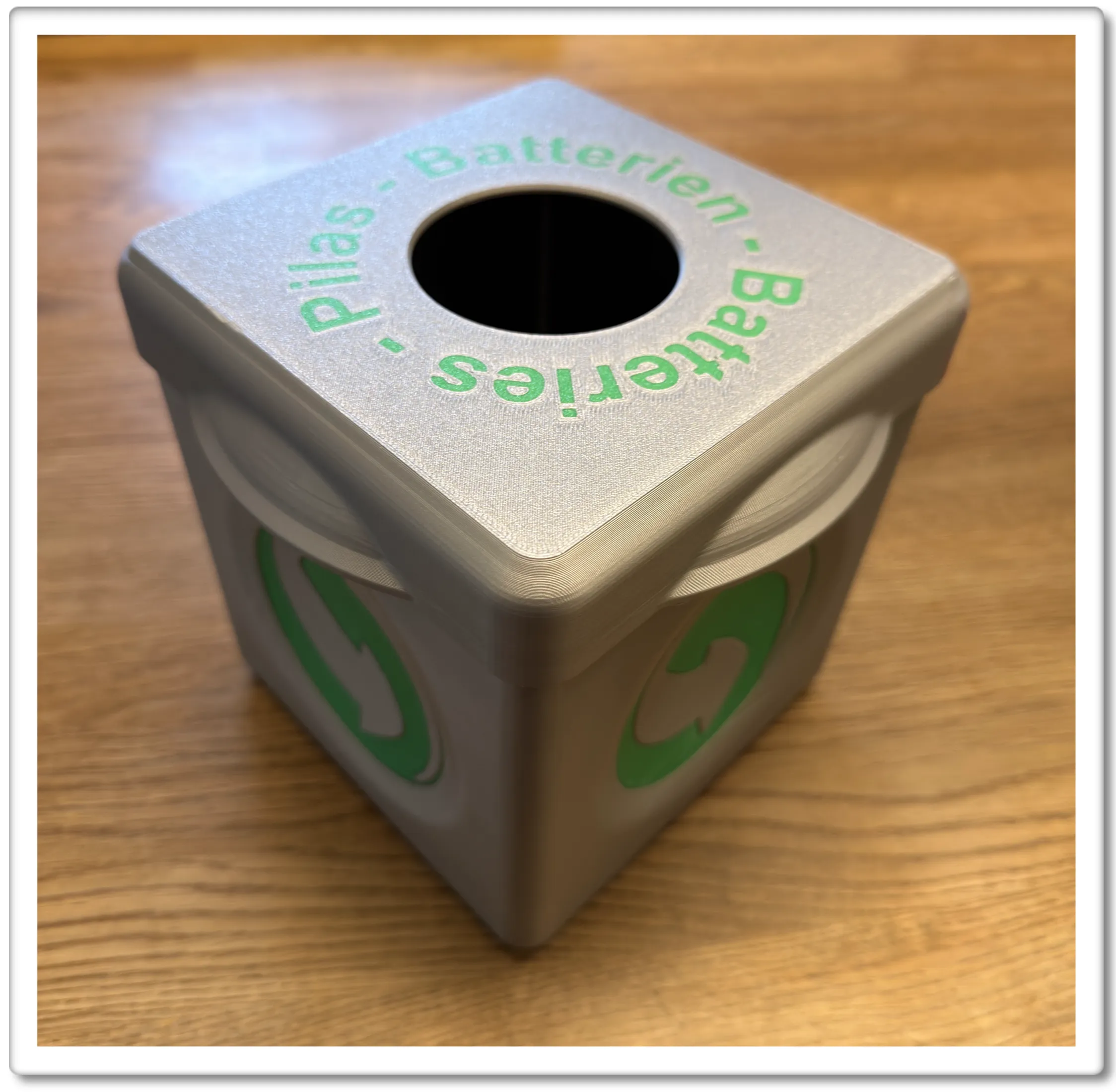

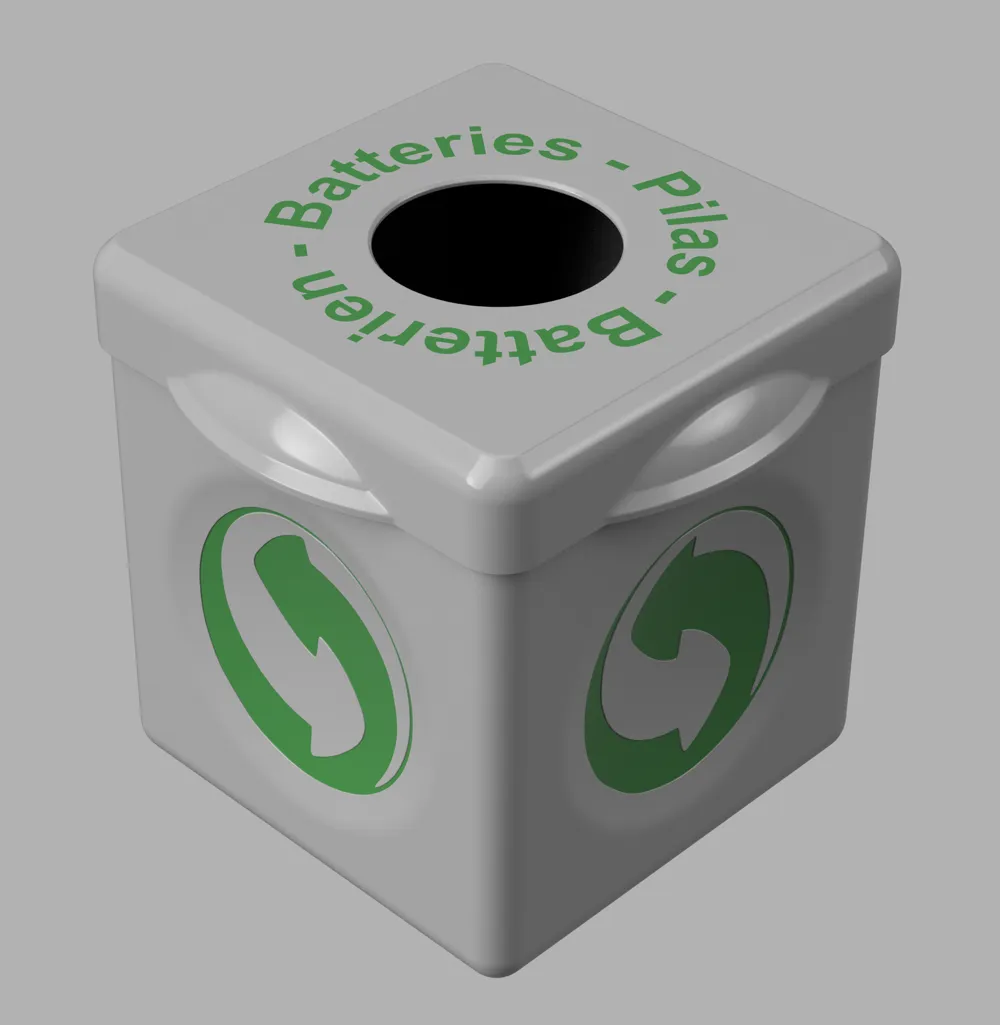

Container for old batteries

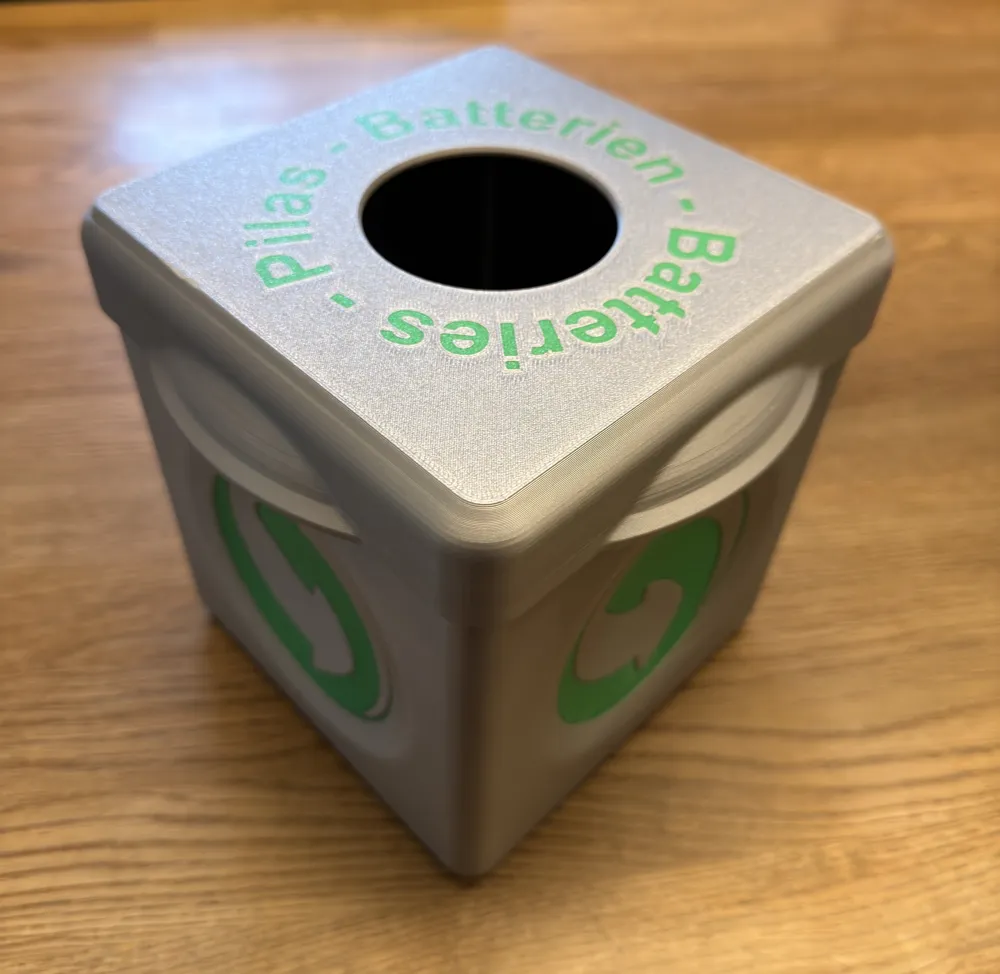

This is a container for old batteries. The lid snaps into place and is then well secured to the bottom part of the container.
The dimensions are 150 mm x 150 mm x 170 mm.
The hole on the lid has a diameter of 65 mm.

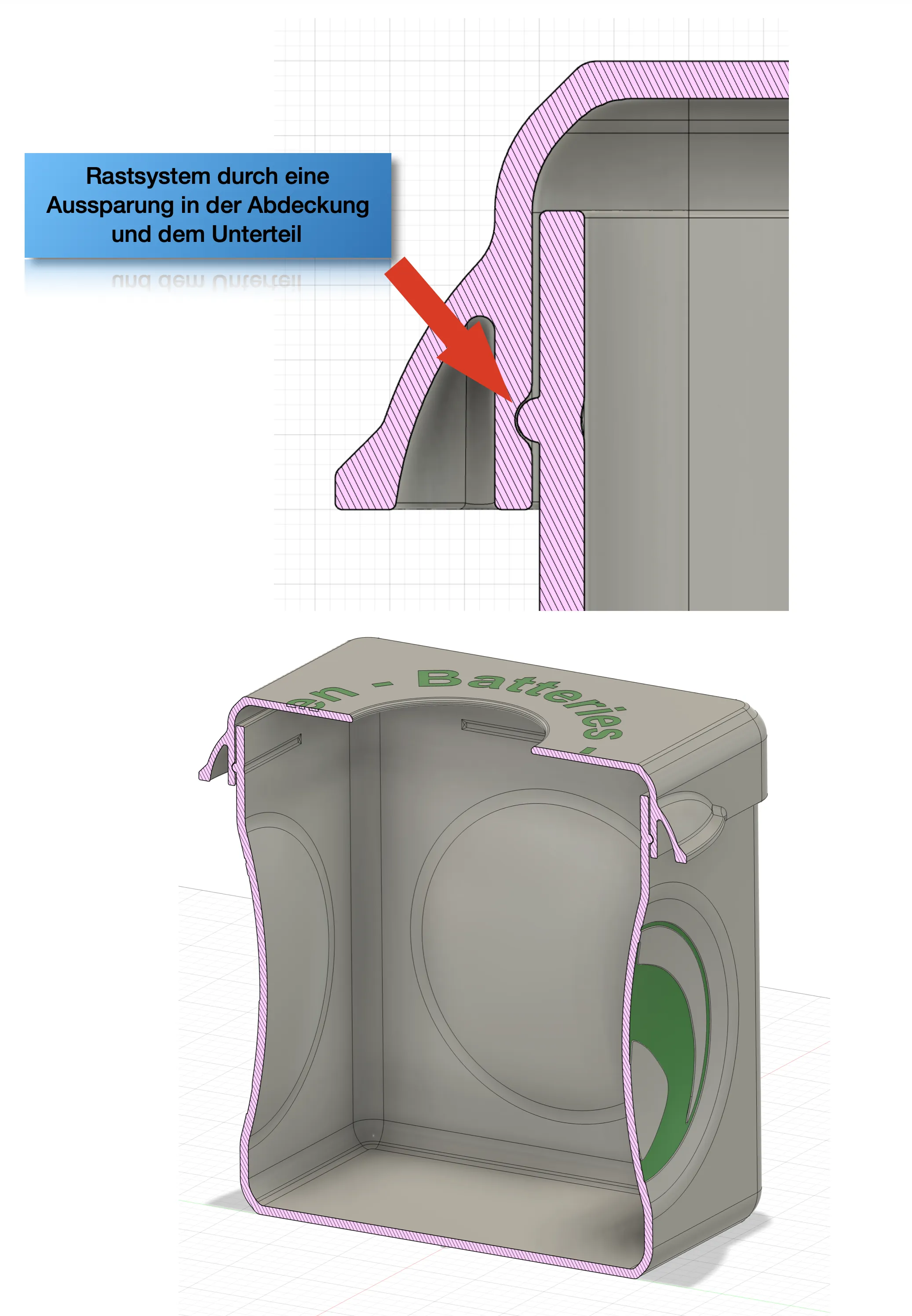

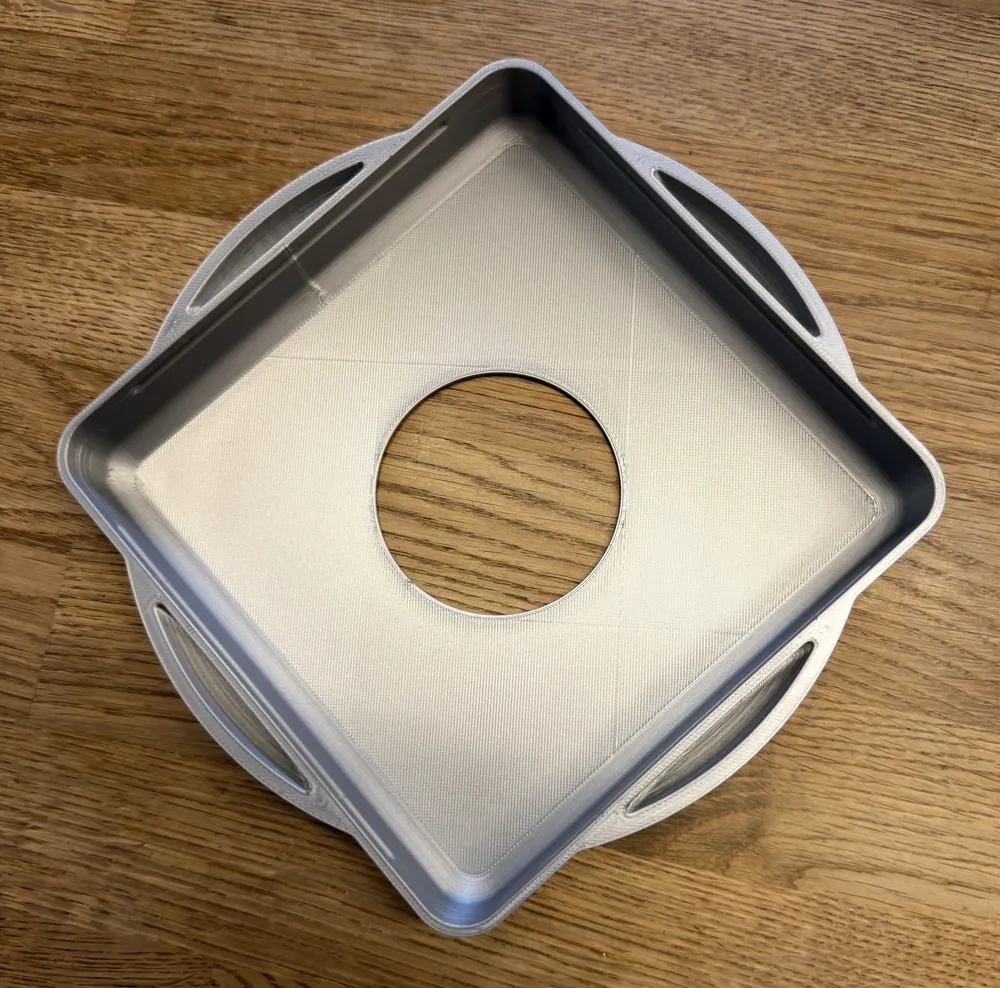

The locking mechanism:

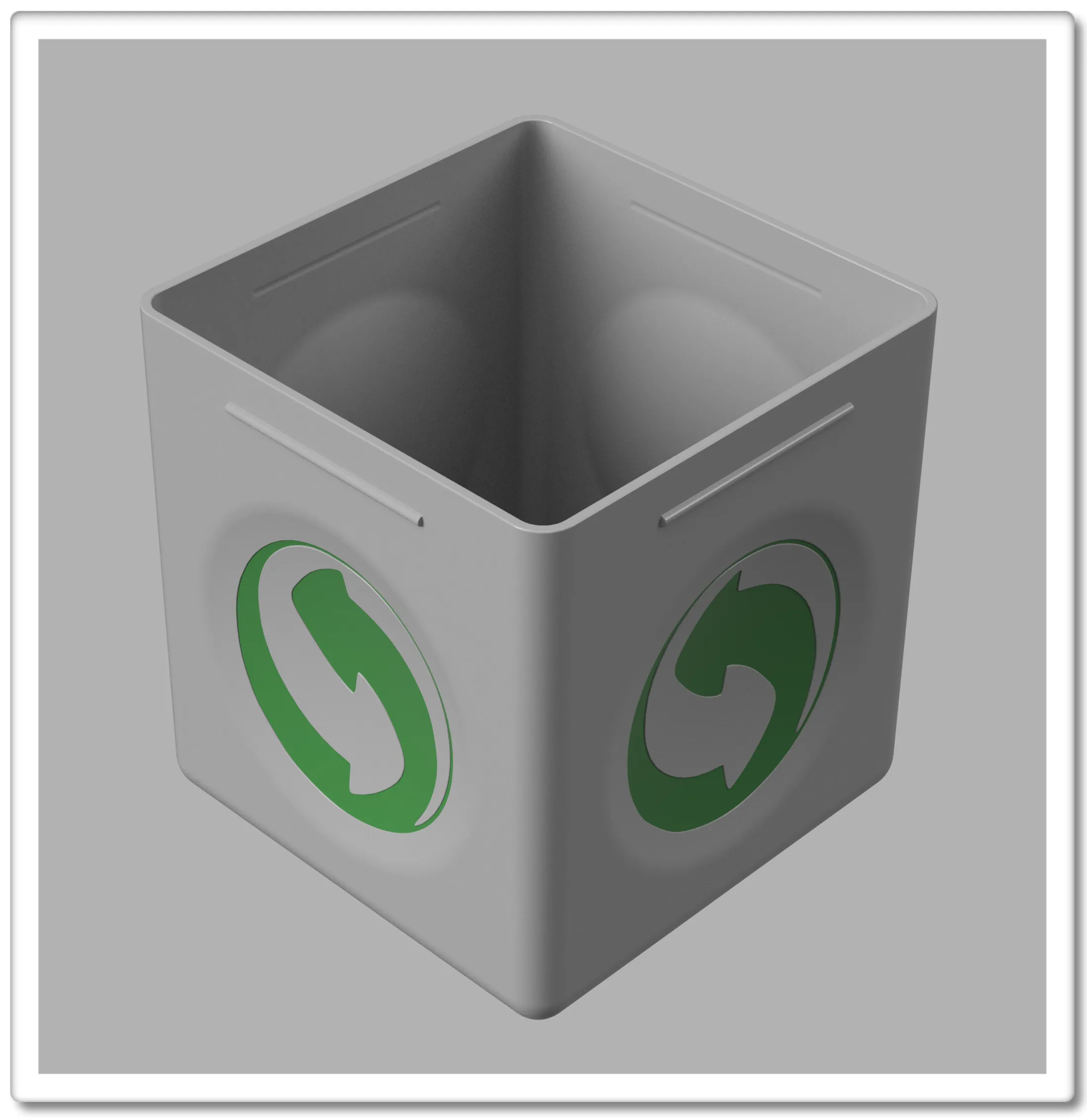

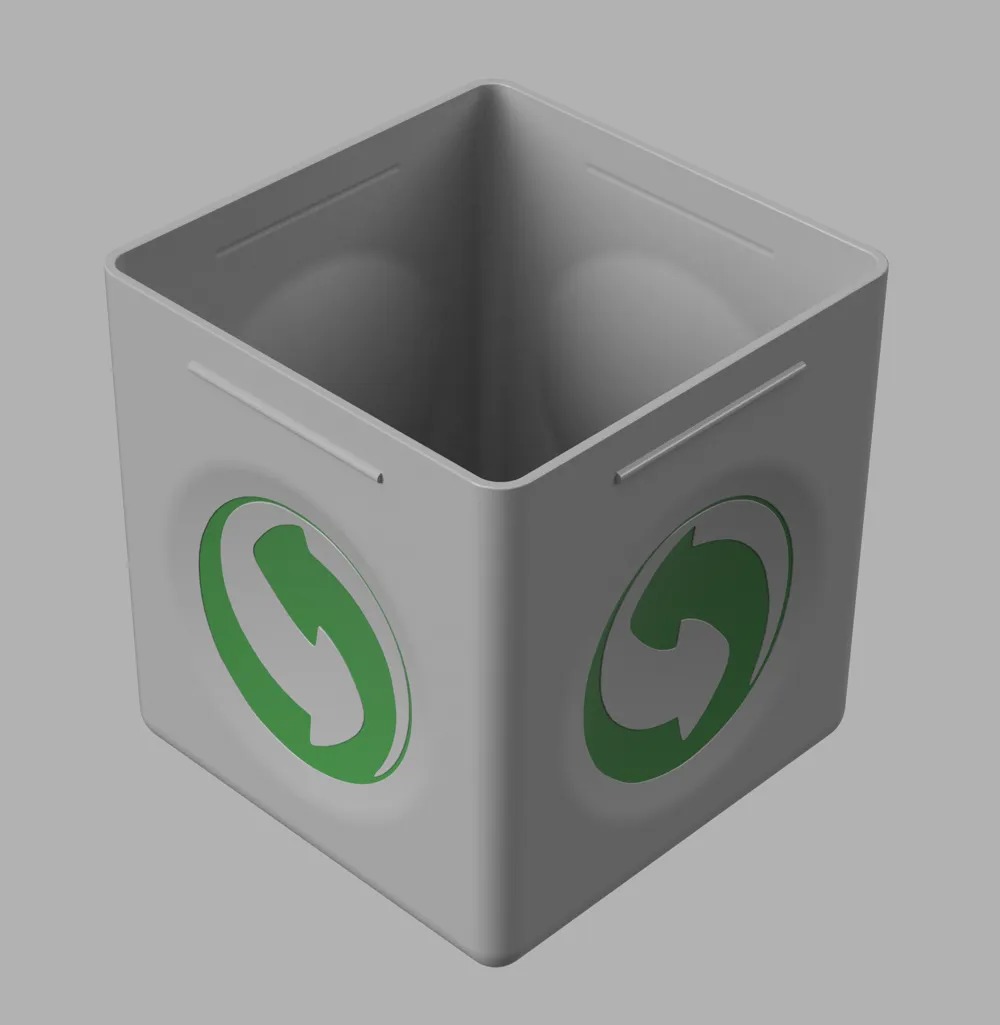

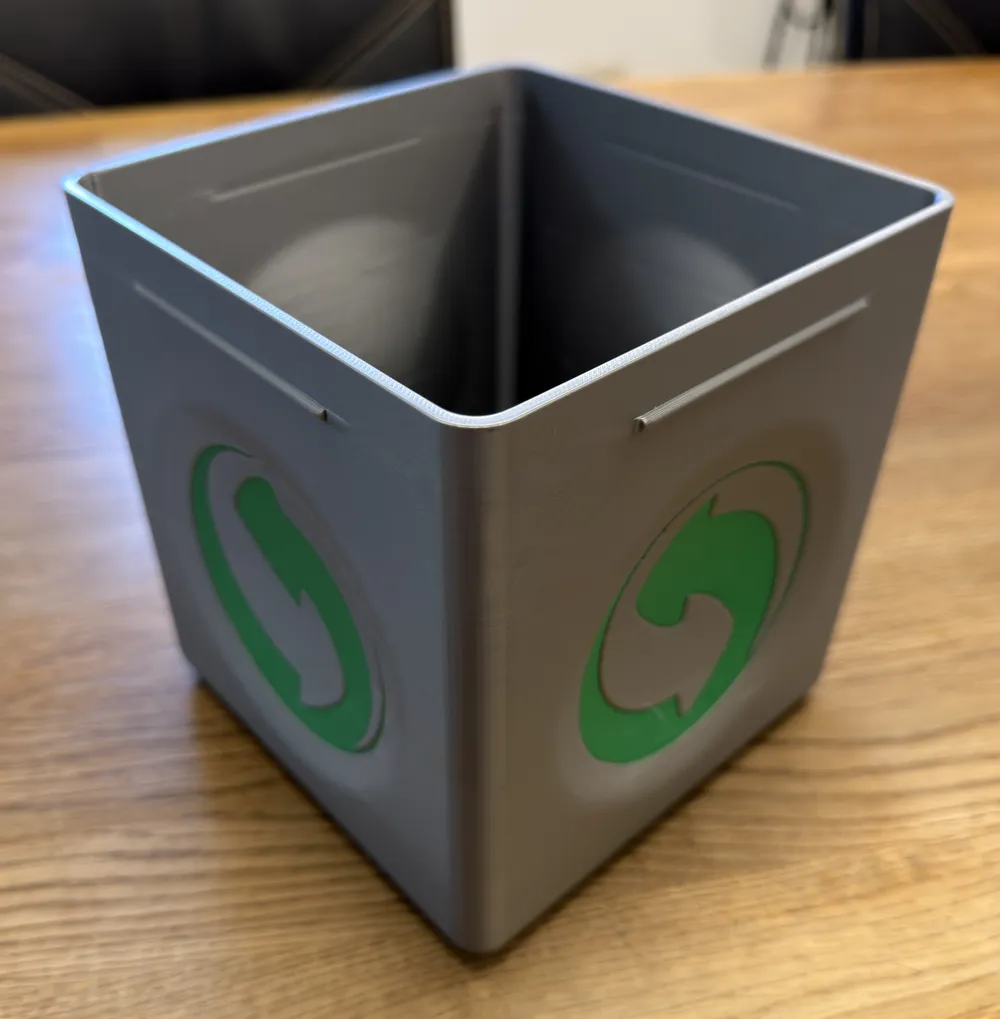

Bottom part:
The colors of the symbols and labels on the lid are freely selectable in the slicer.

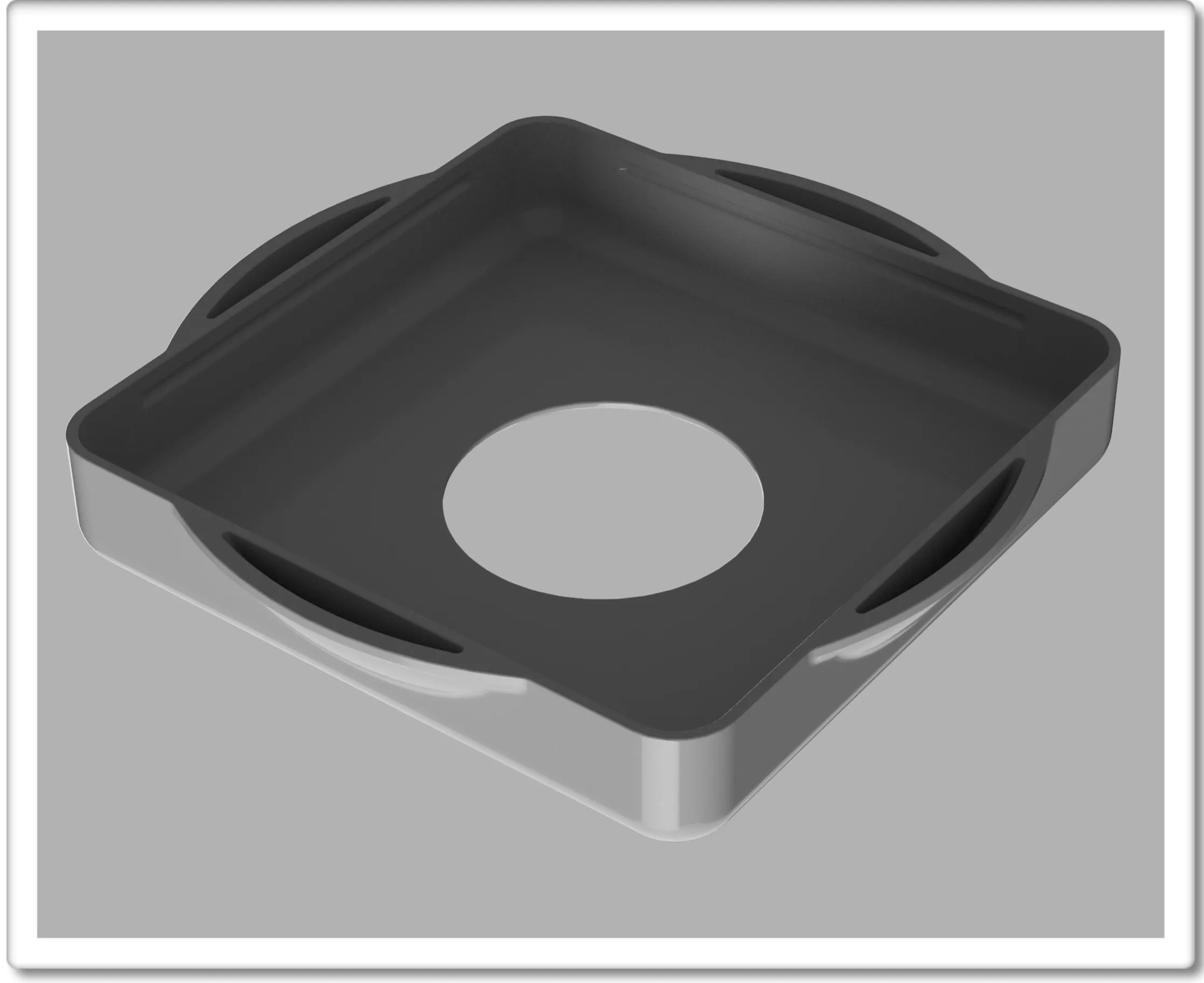

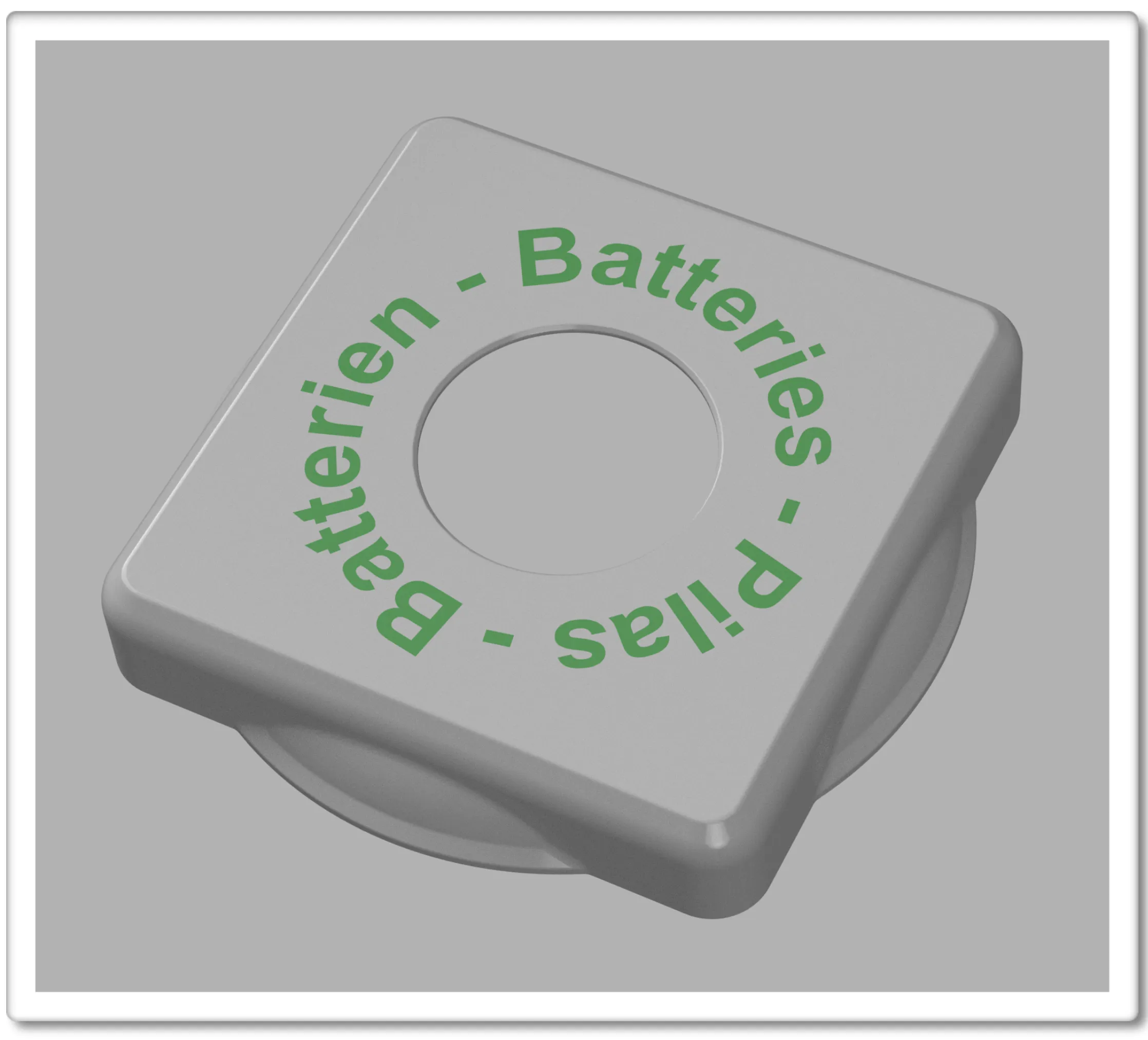

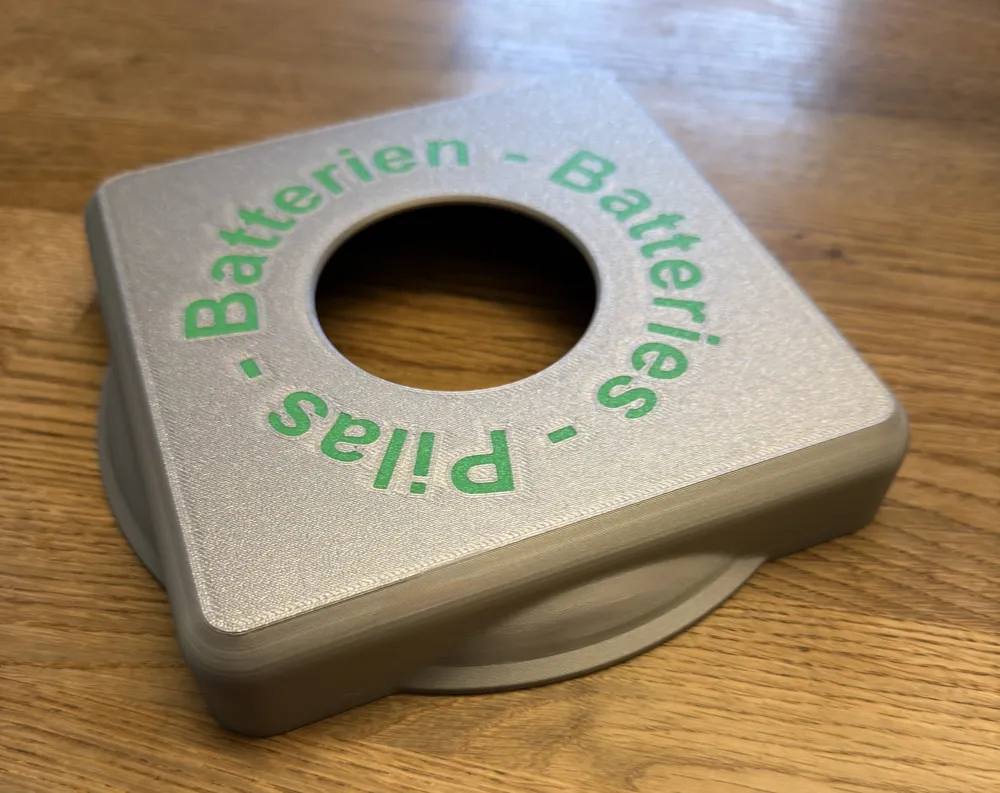

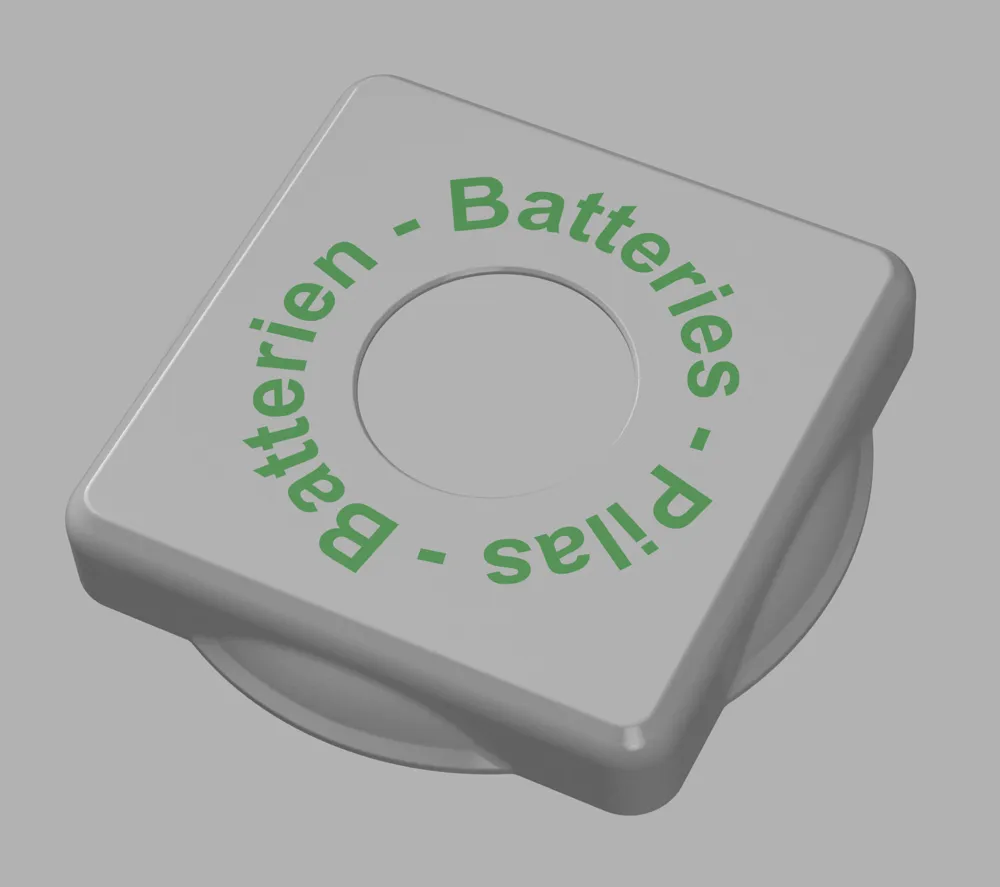

The lid:
Print Information - Material and Build Plates:
- I used PLA Basic from Bambu Lab for both models. PETG is also a good choice
- Build Plate: Textured PEI - Plate
- The STL files are also available.
Print Settings with PLA - BASIC:
Lid
Wall lines: 2
Detect thin walls: Yes
Layer height: 0.2 mm
Infill / Infill pattern: 30% / GYROID
Ironing type: TOPMOST LAYER ONLY
Ironing pattern: RECTILINEAR
Seam position: ALIGNED
Wall generator: Classic
Support type: NONE
Bottom part
Wall lines: 2
Detect thin walls: Yes
Layer height: 0.2 mm
Infill / Infill pattern: 30% / GYROID
Ironing type: TOPMOST LAYER ONLY
Ironing pattern: RECTILINEAR
Seam position: ALIGNED
Wall generator: Classic
Support type: NONE
Speed setting: Slow down after height
All other values remain at default.
Boost Me (for free)
If you like the model, I would be very happy for your support with a Boost and a thumbs up!
Happy printing!
