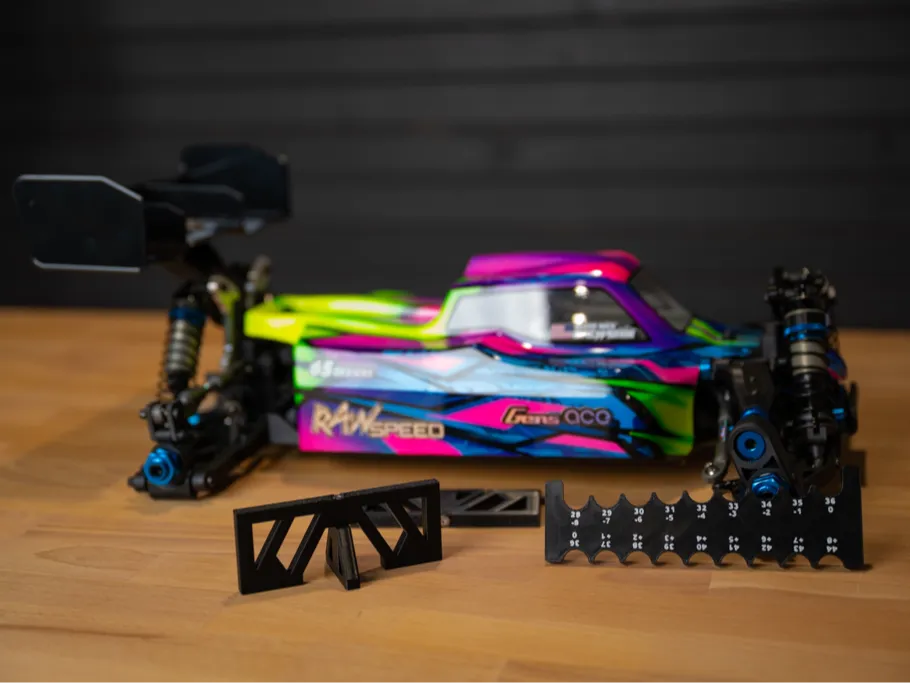

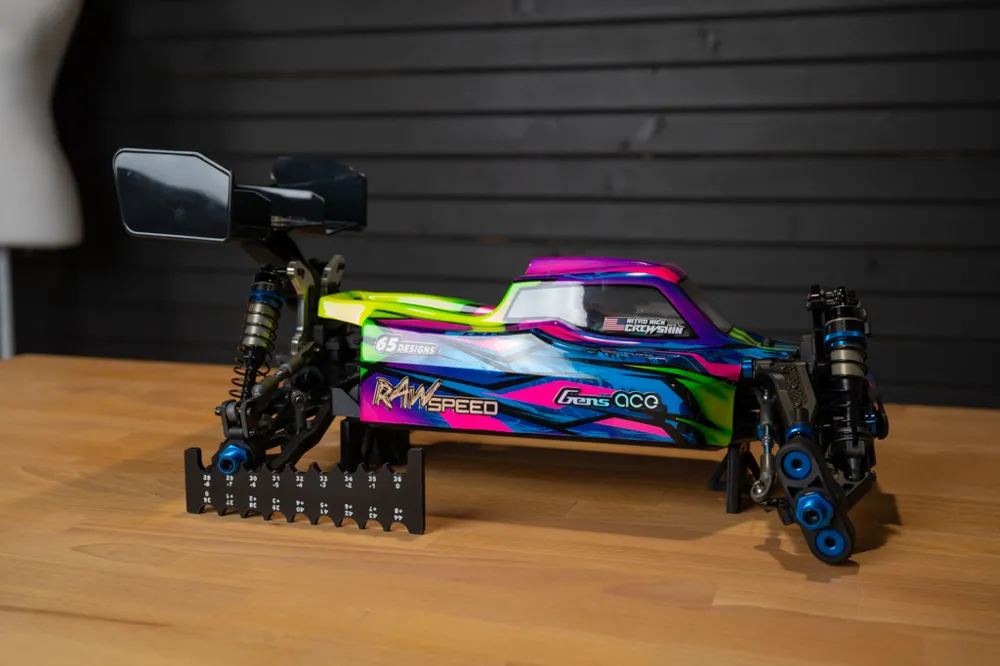

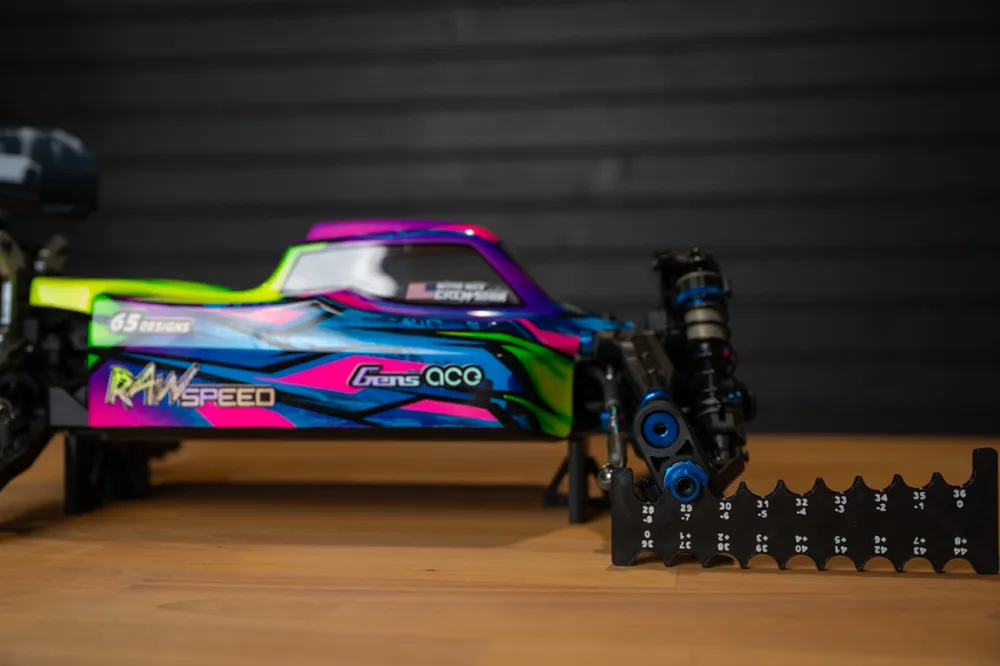

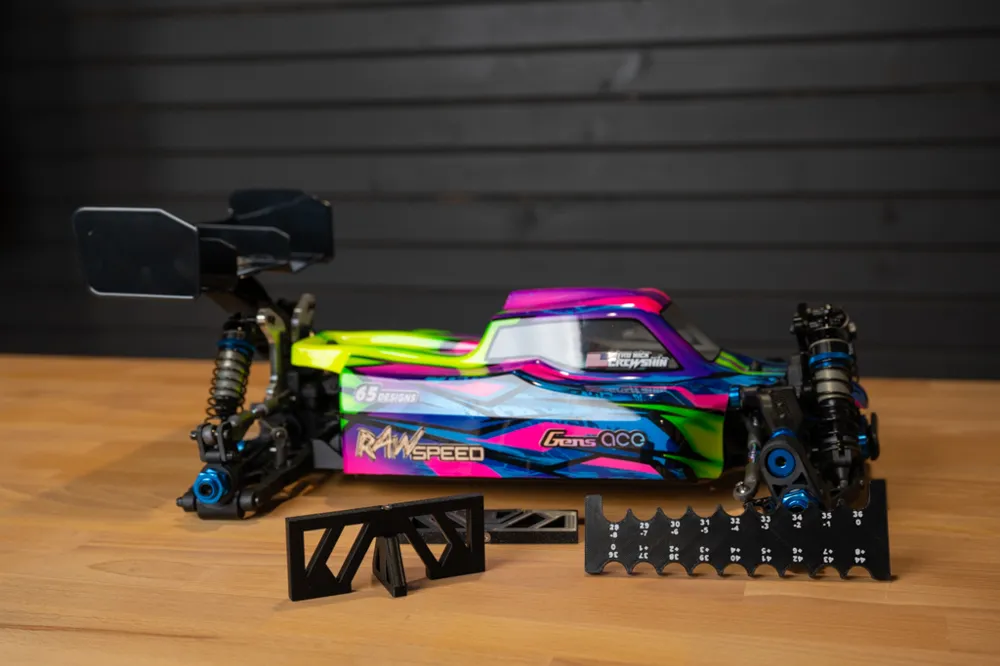

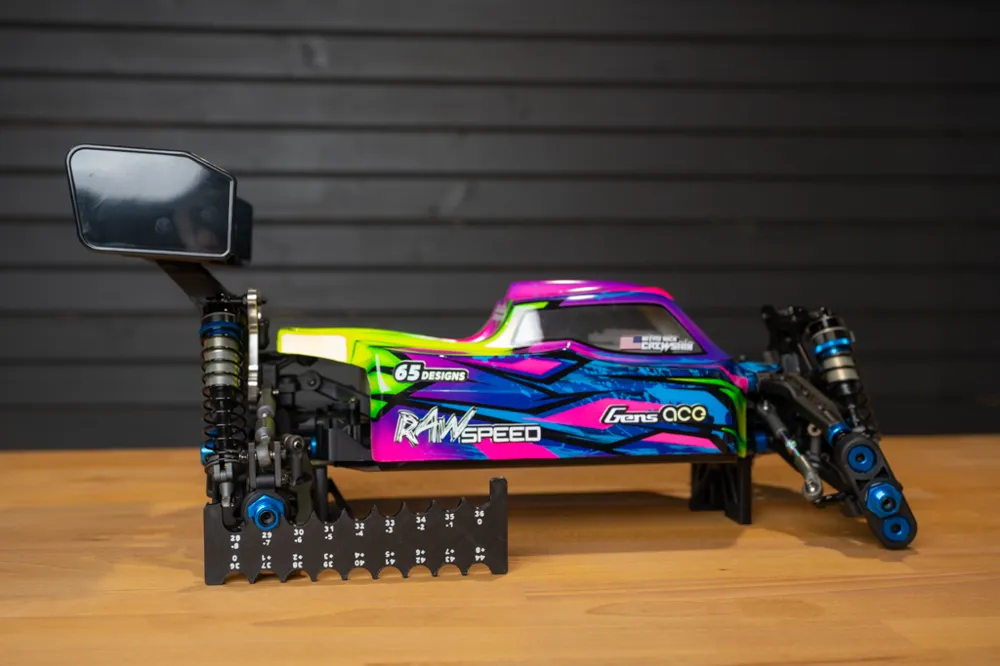

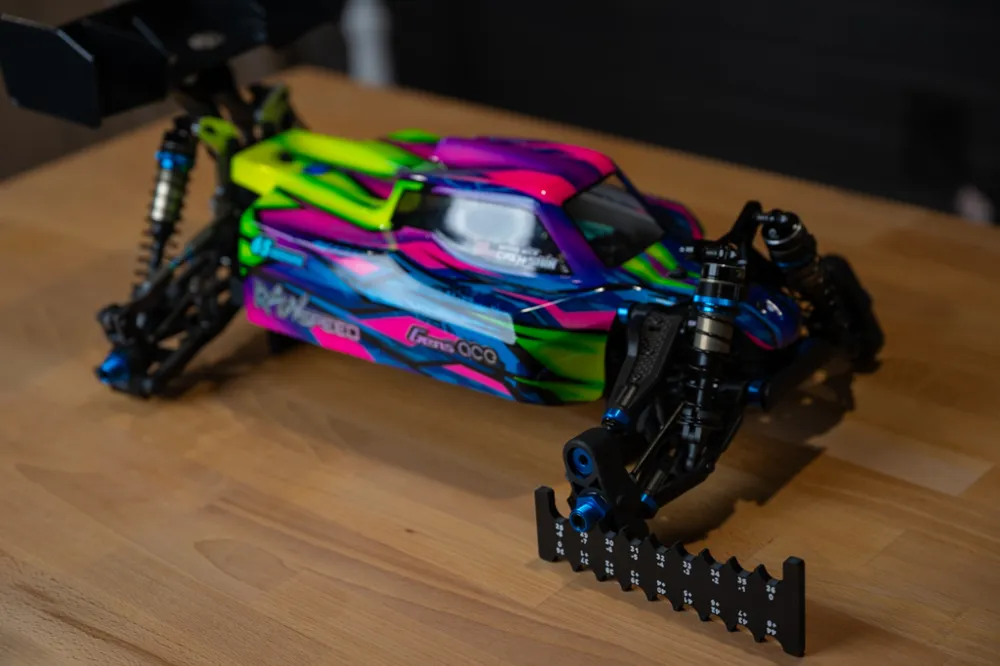

1/8th scale droop gauge

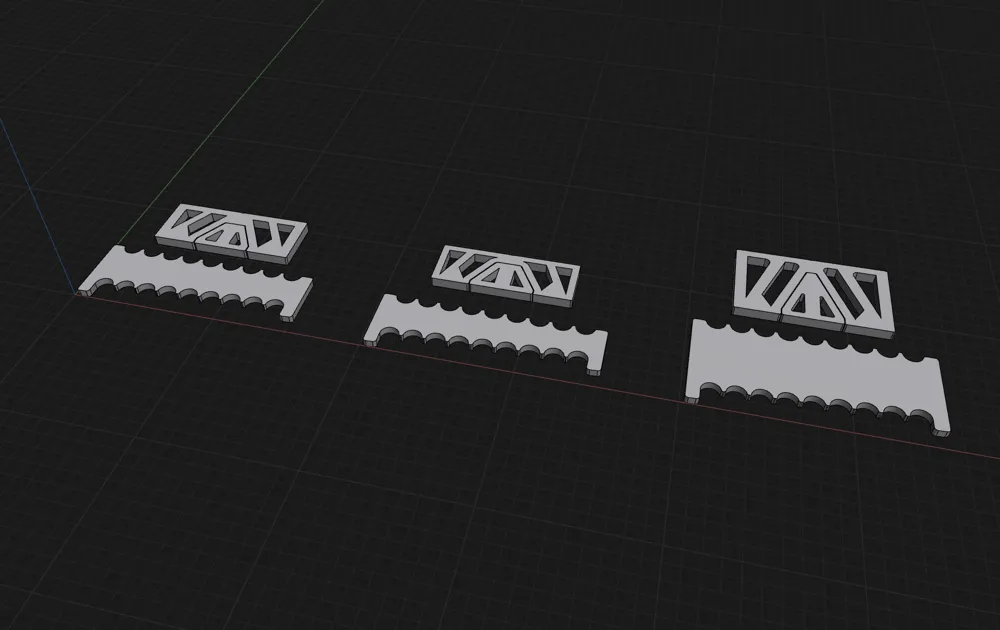

There are 4 different gauges here (3 models). Choose wisely young padawan.

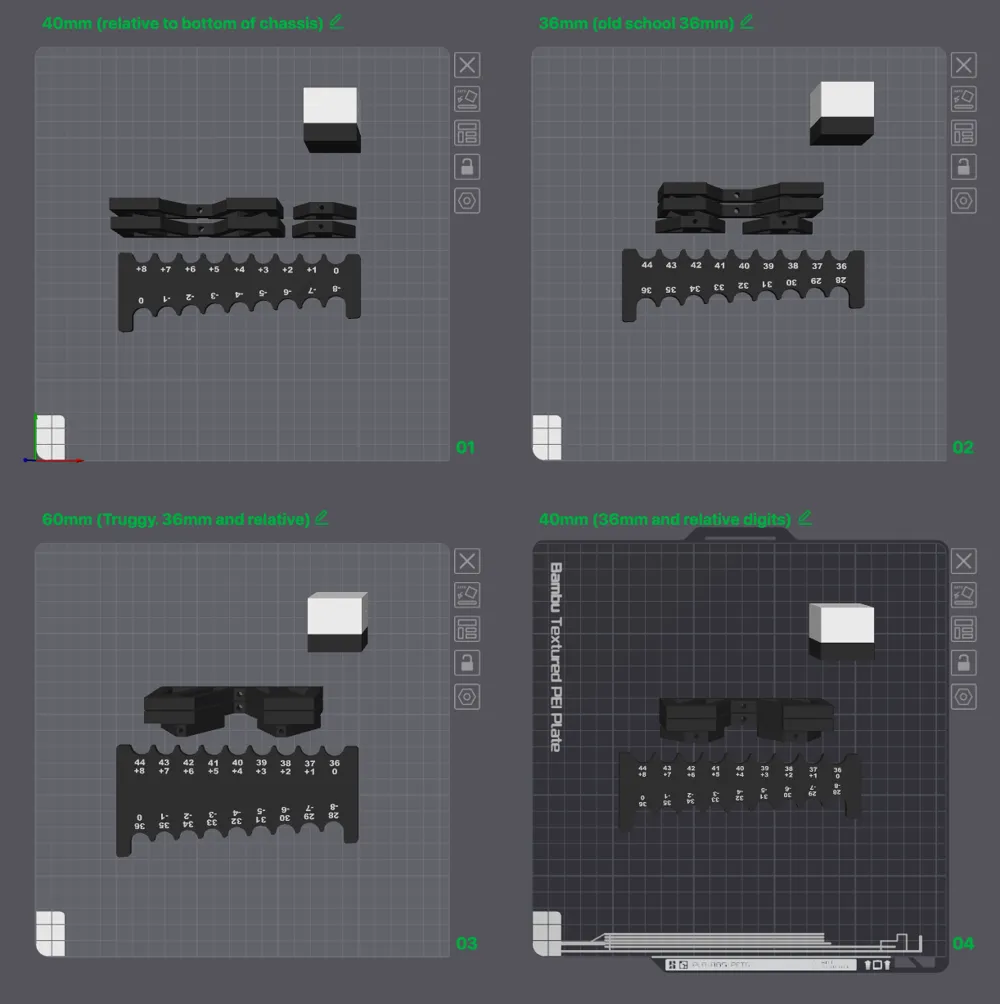

Important note: All of these will give you the same droop settings. They are all relative to the bottom of the chassis. Below bottom is negative numbers. Above is positive. Unless you need a truggy version… imo the best one to print is the 40mm with both number systems (plate 4). That way you can easily convert if you find a setup sheet online.

• 36mm. This is the OG style. Makes the most sense if you are used to working with 36mm based numbers.
• 40mm. This is the newer most logical style that's simply relative to the bottom of the chassis. -4 is 4mm below the chassis.
• 60mm. This is simply higher up to support truggies. Still based on the bottom of the chassis.

Personally I print almost everything in ABS and can vouch for durability with that filament. But for this thing almost anything should work.

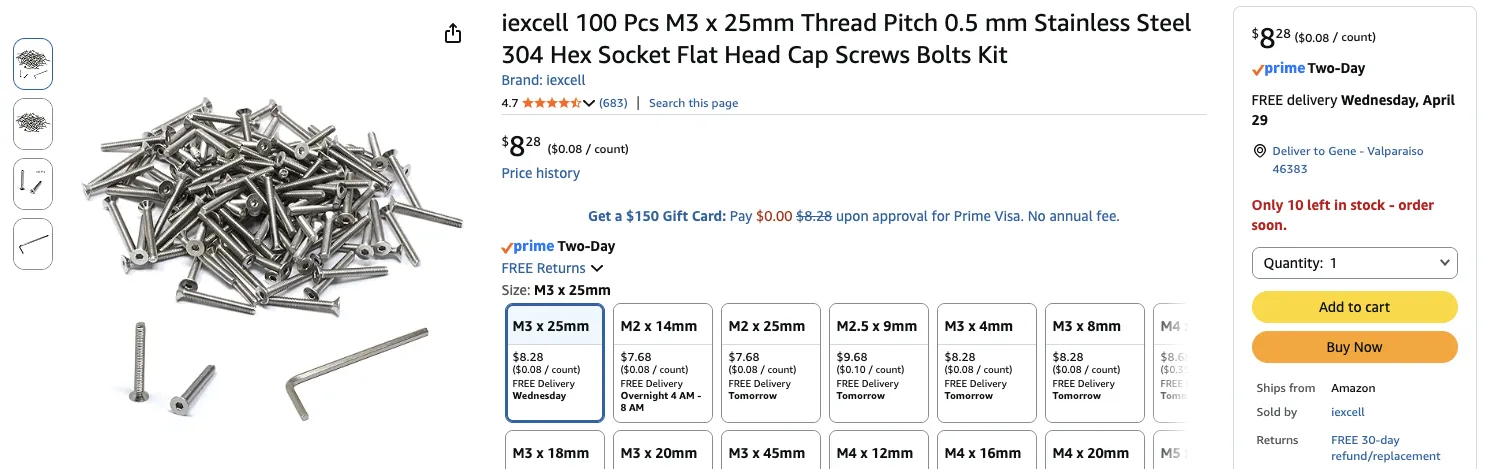

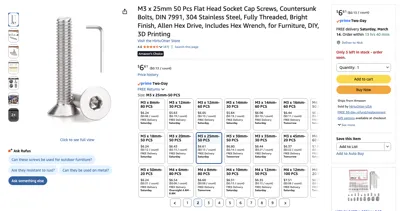

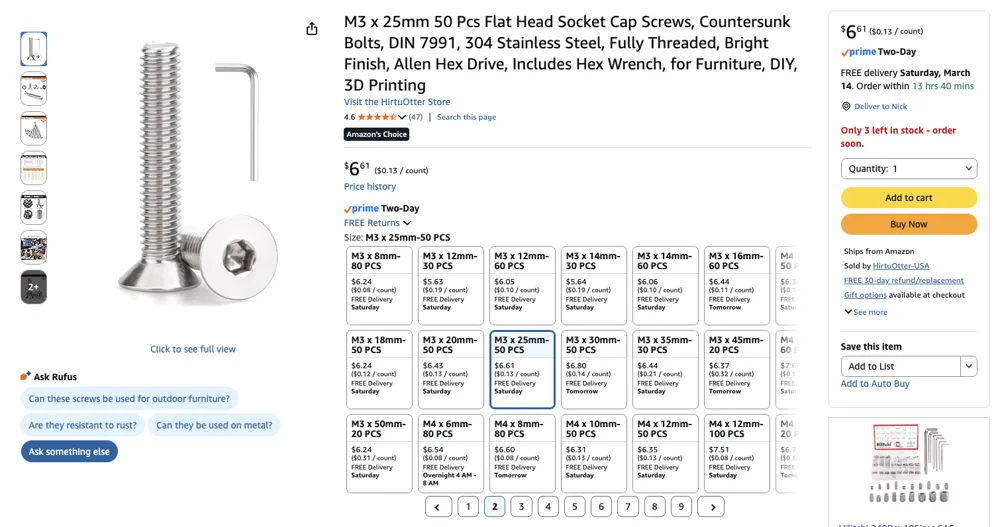

IMPORTANT: 2 long countersunk 25mm hex bolts are required to complete: https://www.amazon.com/dp/B0CR6F77Y3?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

It's kinda/sorta important to be able to print multi-color for these. It's not required if you can count or I guess user a marker… but it's def nice. If you DON'T have that ability and want one. Shoot me an email and I can print one for you for a few bucks.
