Seven-Segment Digit Stencil – Digital Number Drawing Template
Boost Me (for free)
If you like this model and find it useful, please consider giving it a BOOST.
Your support helps me create more designs.
Thank you!
Description
A practical stencil for drawing numbers in the classic seven-segment display style, commonly used in digital clocks, calculators, and electronic devices.

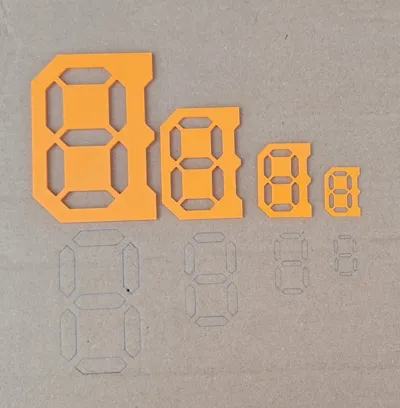

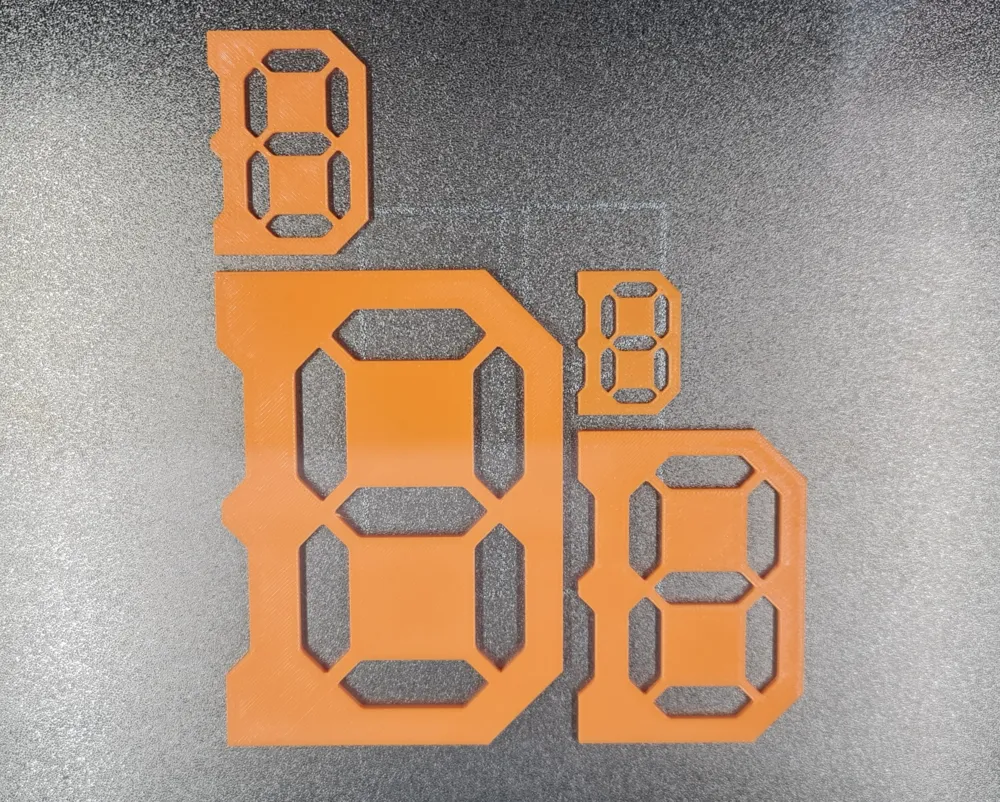

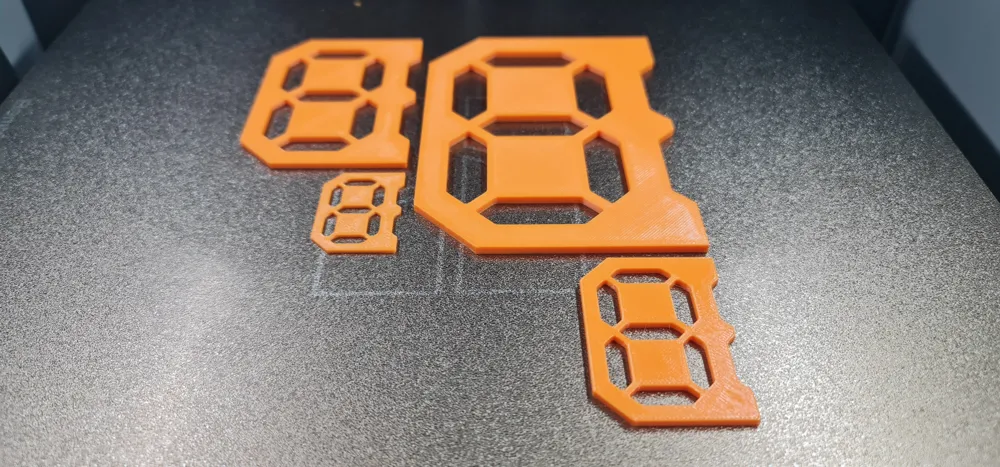

The stencil includes four different digit sizes, allowing you to draw digital numbers at different scales. Simply place the stencil on paper and trace the required segments.
Stencil sizes

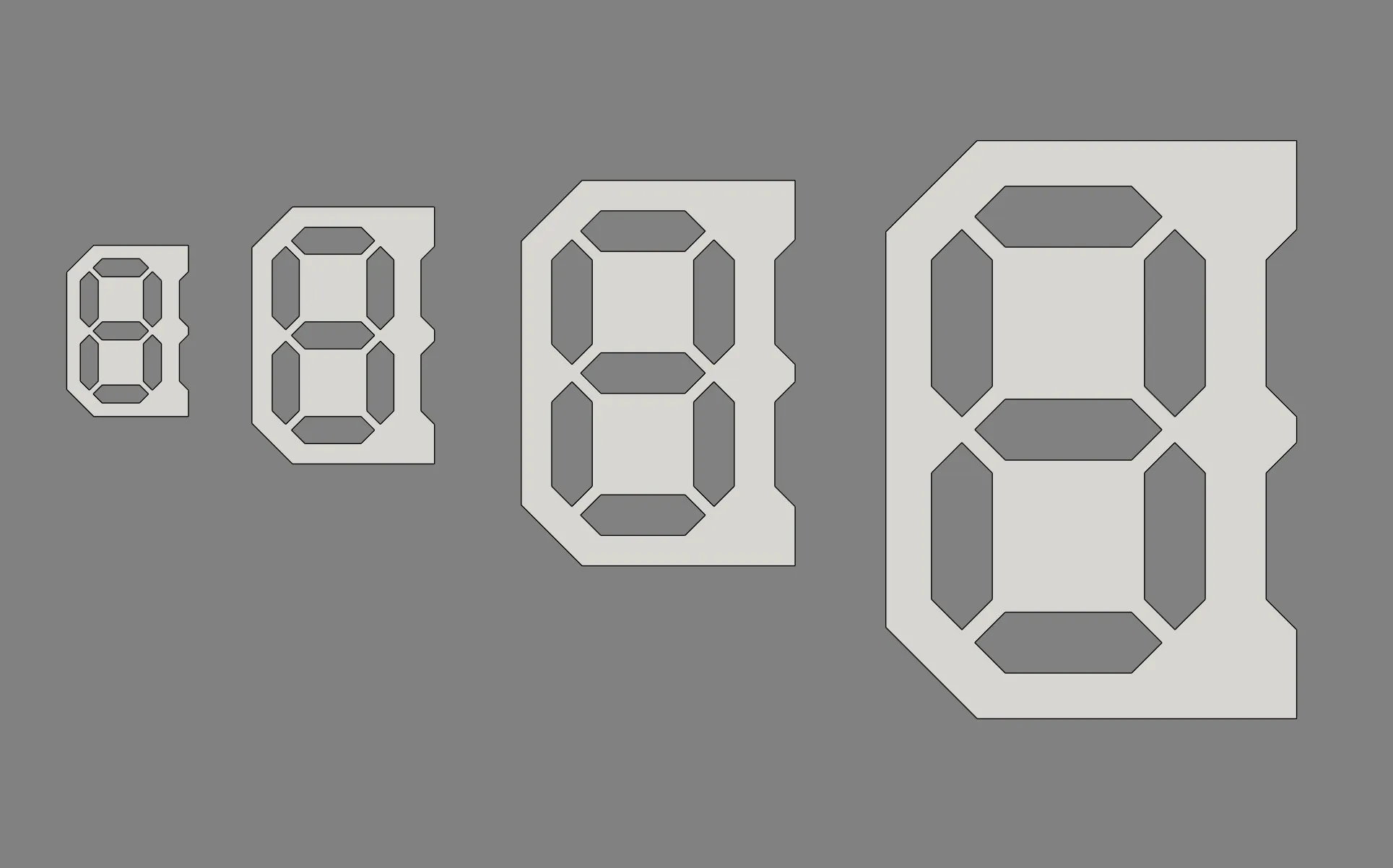

| Size | Width | Height |
|---|---|---|
| Small | 27 mm | 35 mm |
| Medium | 40.5 mm | 57 mm |
| Large | 60.5 mm | 85.5 mm |
| XL | 91 mm | 128 mm |
These sizes make the stencil suitable for small technical sketches as well as larger digital display layouts.
Perfect for
- electronics sketches
- digital clock designs
- technical drawings
- school projects
- DIY projects
- makers and hobbyists
Features
- 4 different digit sizes
- accurate seven-segment style
- easy and fast print
- reusable stencil
