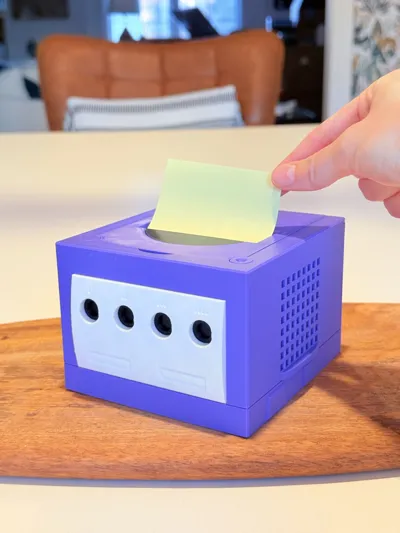

GameCube Sticky Note Dispenser - No AMS

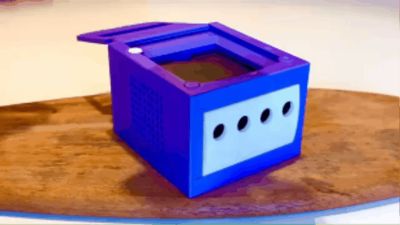

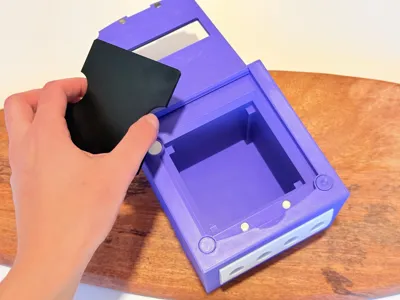

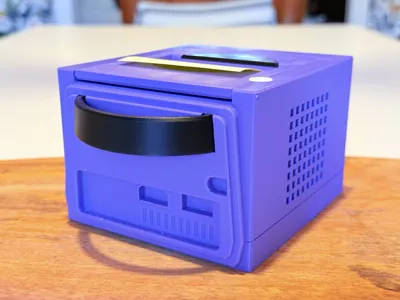

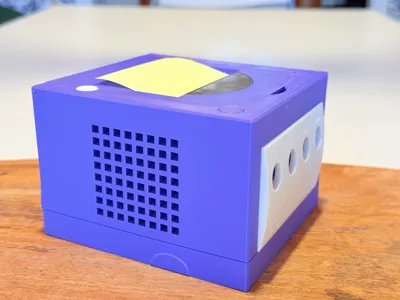

This GameCube Sticky Note Dispenser is an awesome retro desk accessory! I painstakingly recreated each detail based off of reference images from the Wiki and unboxing videos from YouTube. It is roughly 79% scale from the original. I tried to keep it as small as possible while still preserving the original proportions. There is an additional storage compartment underneath the Sticky Note pad – perfect for paper clips or other small office supplies :) Best of all, no AMS is needed and this print works on the A1 mini!

Full Assembly Instructions are Located in Documents. In brief:

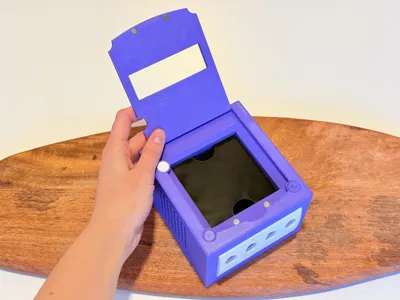

• Four 6x2 mm magnets are suggested to keep the lid closed
• A piece of filament must be used as the hinge
• Glue all pieces as shown in the item images.

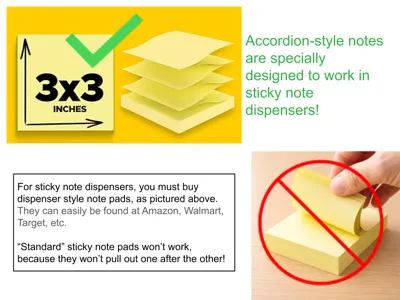

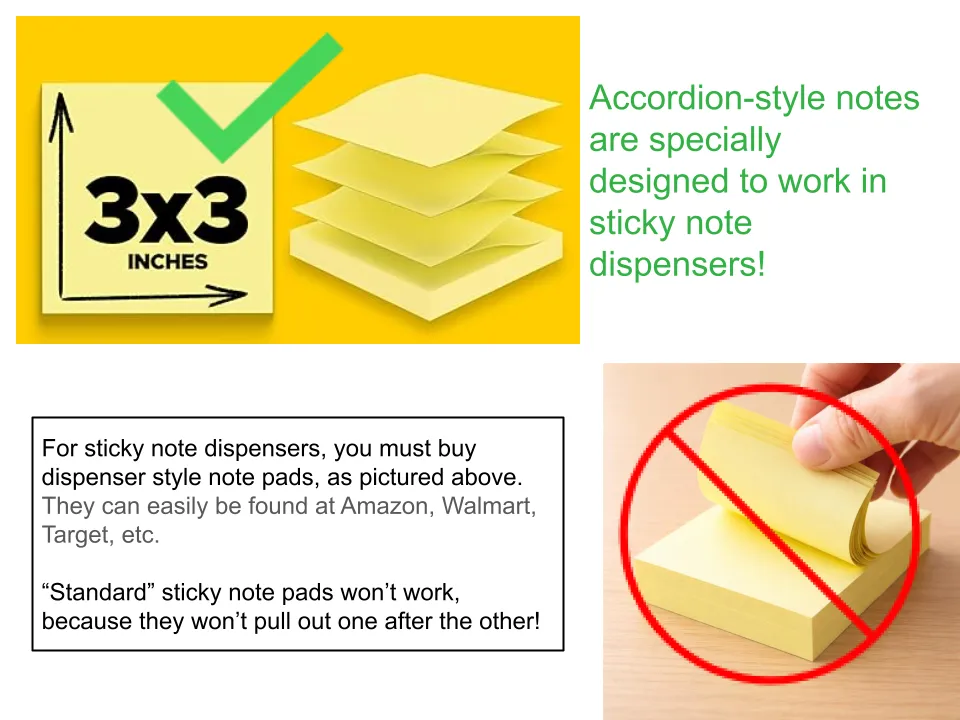

• Please note that dispenser-style sticky notes are required for this (and all) sticky note dispensers

Print Settings:

It is recommended to use my attached print profile. If you do not, here are some suggestions for printing:

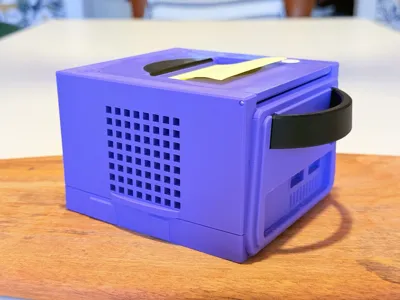

• The main body should be printed upright. The front and back will need supports. Do NOT add supports inside the “ports” or inside the 8x8 “vent” grid. They will be a pain to remove.
• Printing the front white panel up on it's left or right side will improve print quality significantly. If you do so, add snug supports to the holes. Also, add a brim
• None of the other pieces need supports

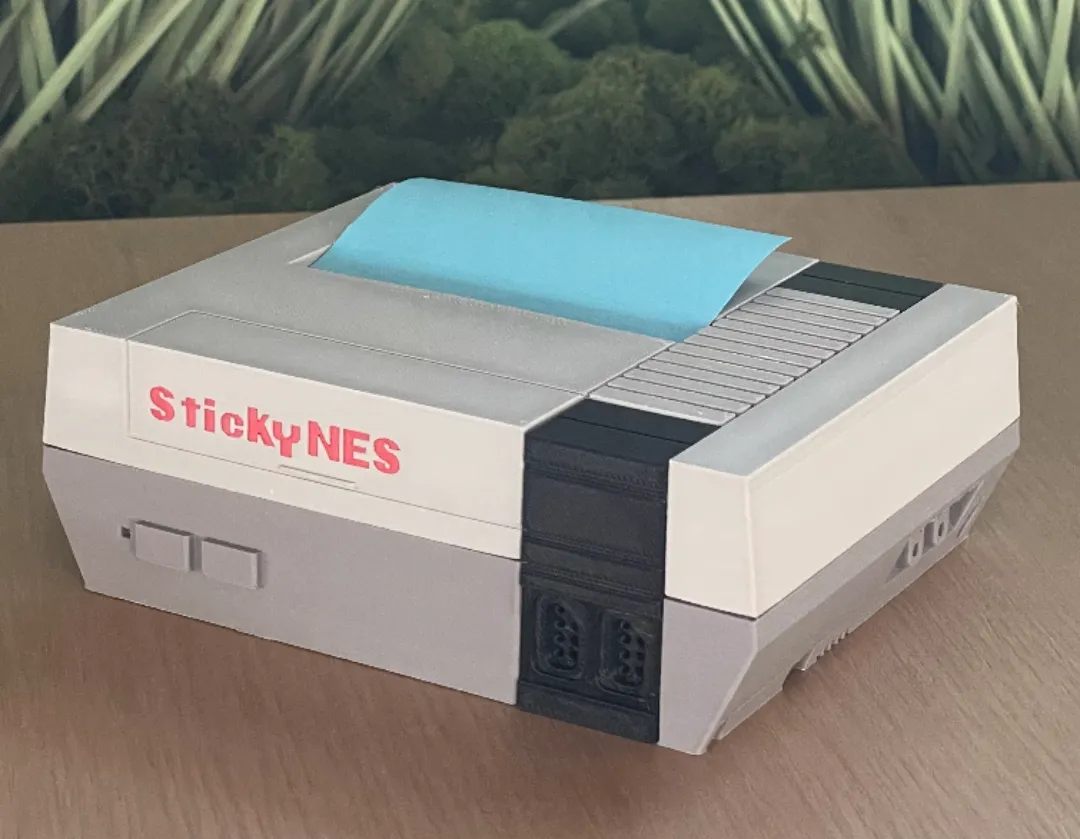

See my NES Sticky Note Dispenser here:

Want to sell prints of my designs? Check out the commercial license on my Patreon!

Designer's Note: No AI was used at any point in the creation of this file. All design work was done manually, and images have not been enhanced by AI.
