Ultimate 4-Blade Return Boomerang (PETG Optimized, Precision Flight)

A high-performance, modern 4-blade boomerang designed for perfect return flights and durable outdoor fun!

This is a complete redesign of the classic returning boomerang, optimized for multi-color 3D printing and exceptional flight stability. The unique 4-blade configuration provides a smooth, predictable flight path and is perfectly weighted to return right to you. Printed in PETG, it’s durable enough for countless throws and ready for the park.

There are versions for the right and the left hand online :)

Key Features:

• Engineered for Return: The precise 4-blade design ensures a stable, consistent flight. With proper throwing technique and a bit of practice, it will return to your hand every single time.
• PETG Optimized: This model is specially designed and tested with PETG filament. The material’s flexibility is perfect for fine-tuning the dihedral angle, and its durability means it can handle a few rough landings during practice.

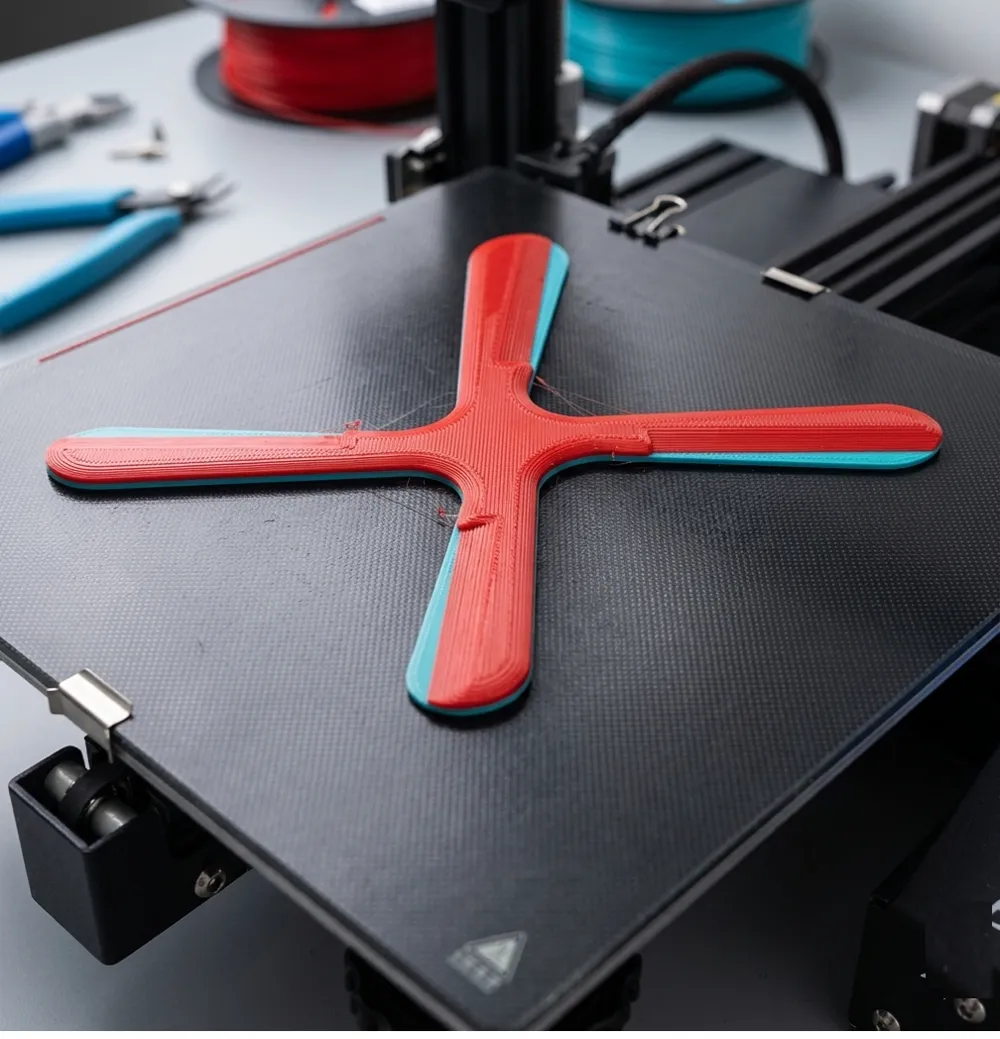

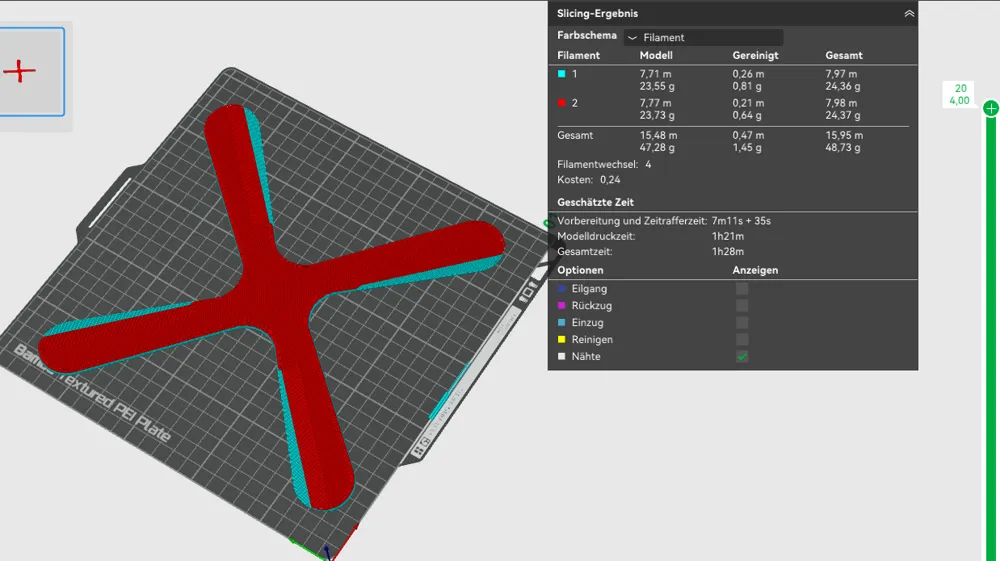

• Multi-Color Design (AMS Friendly): The model is pre-divided into easy-to-paint regions (as shown). The vibrant red body with contrasting bright blue levers creates a stunning look both on the print bed and in the air.
• Tactile & Safe: Featuring all rounded edges, it’s smooth and comfortable to hold, making catches safer.

Printing Recommendations:

• Printer: Bambu Lab X1 or P1 series with AMS.
• Material: PETG is highly recommended for its durability and flexible tuning properties.
• Filament (as shown):
  • Main Body: [Insert Red PETG Brand/Color, e.g., Matte Red PETG]
  • Accent Levers: [Insert Blue PETG Brand/Color, e.g., Basic Light Blue PETG]
• Layer Height: 0.2mm for a smooth finish and durable flight surfaces.
• Infill: 15% - 20% (Grid or Gyroid)
• Walls: 3-4 (provides essential structural strength for flight)
• Top/Bottom Layers: 4-5
• Build Plate: I recommend the textured PEI plate for a nice matte bottom finish. No brim or raft is required, provided your plate is clean and your printer is calibrated for PETG.

Tuning for Flight (IMPORTANT):

To achieve a perfect return flight, you must fine-tune the blades. PETG makes this easy!

1. Check for "Dihedral Angle": After printing, place the boomerang on a flat surface. All 4 blades should be slightly lifted from the table (about 1-2mm). This upward angle is crucial.
2. Adjusting with Heat: If the blades are too flat, you can gently heat the center of the X shape (using a hairdryer or heat gun on a low setting) and carefully bend the blades upwards. Let it cool in that position.
3. Tuning the Airfoils: The rounded edges are aerodynamically important. Ensure they are clean and free of zits or globs.

How to Throw (Practice Makes Perfect!):

This is a skill-based model. It won't return magically on the first throw. But don't give up—practice is key!

1. The Grip: Hold the boomerang vertically, like a pistol, with the painted (aerodynamic) side facing you.
2. Angle: The most important part! Hold it at a 15-20 degree angle to the right of your throwing arm (for right-hand throwers). NEVER hold it flat like a Frisbee.
3. Wind: Throw it across the wind, not directly into it. Ideally, throw it 45 degrees into the wind.
4. Practice: It may take 10-20 throws to get the angle, power, and wind interaction right. If it doesn't return, check your throwing angle and dihedral angle first.

Safety Warning & Liability Disclaimer:

This model is a projectile sports device. Use it at your own risk. Never throw it towards people, animals, or property. Ensure a wide, clear area for use. The designer is not responsible for any injuries or damages resulting from the use or misuse of this 3D-printed object. By downloading and printing this file, you agree to take full responsibility for its safe operation.

I hope you enjoy printing and mastering this design! If you get a great return flight, please share your makes and videos and leave a rating.
