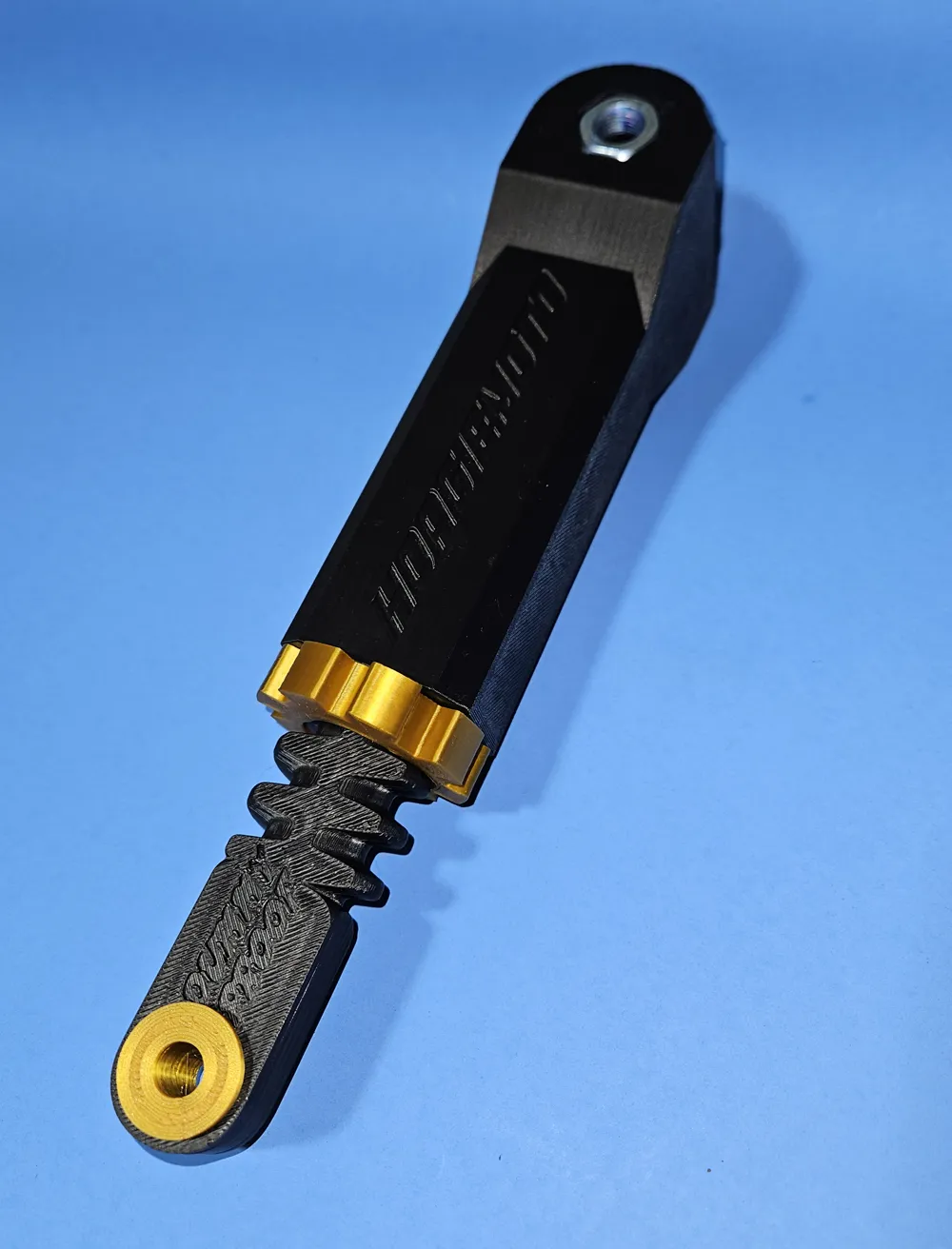

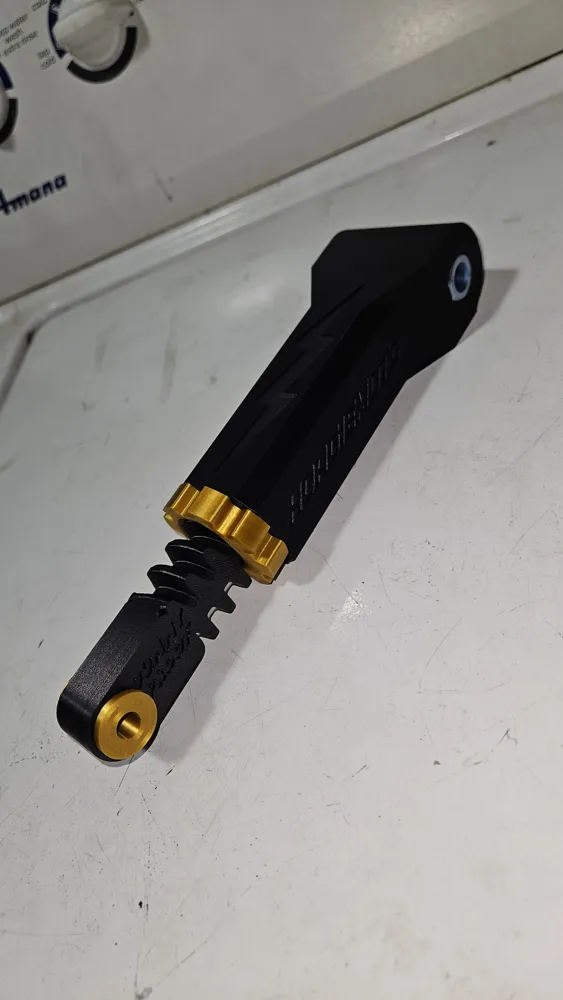

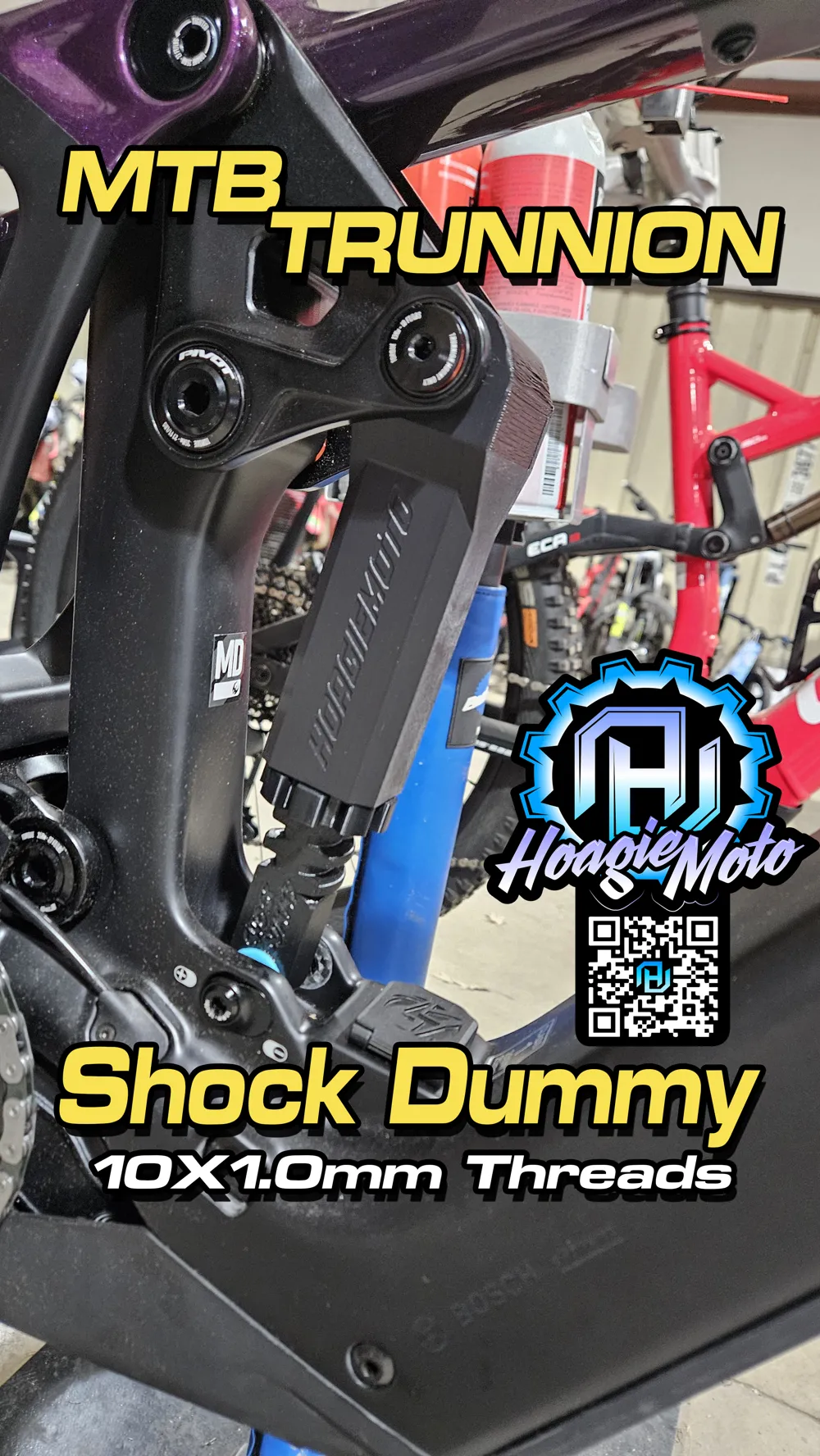

HoagieMoto MTB Trunnion Shock Dummy

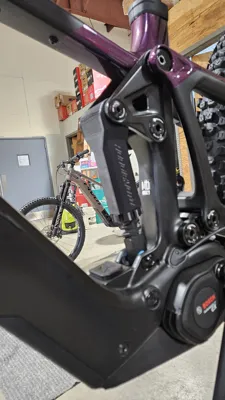

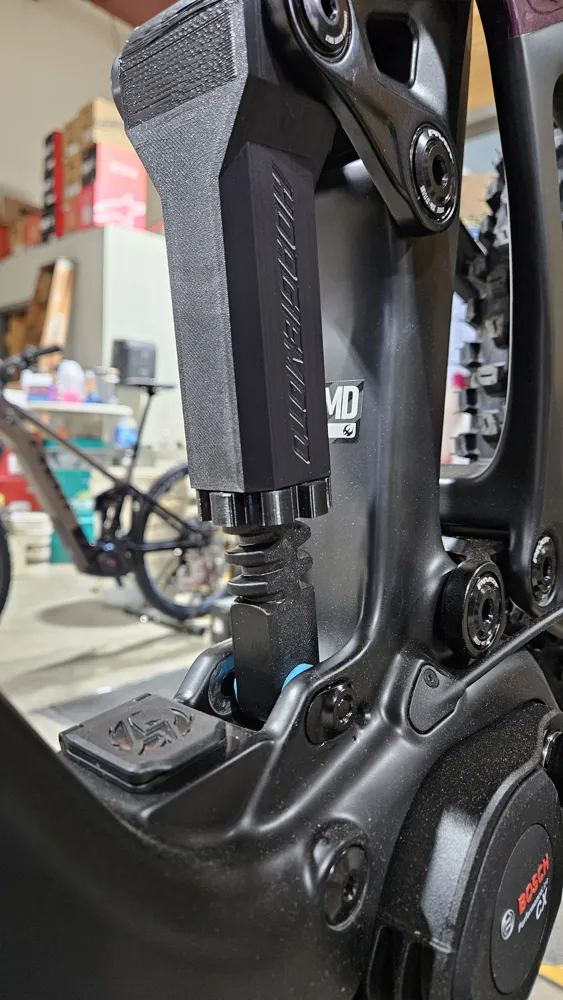

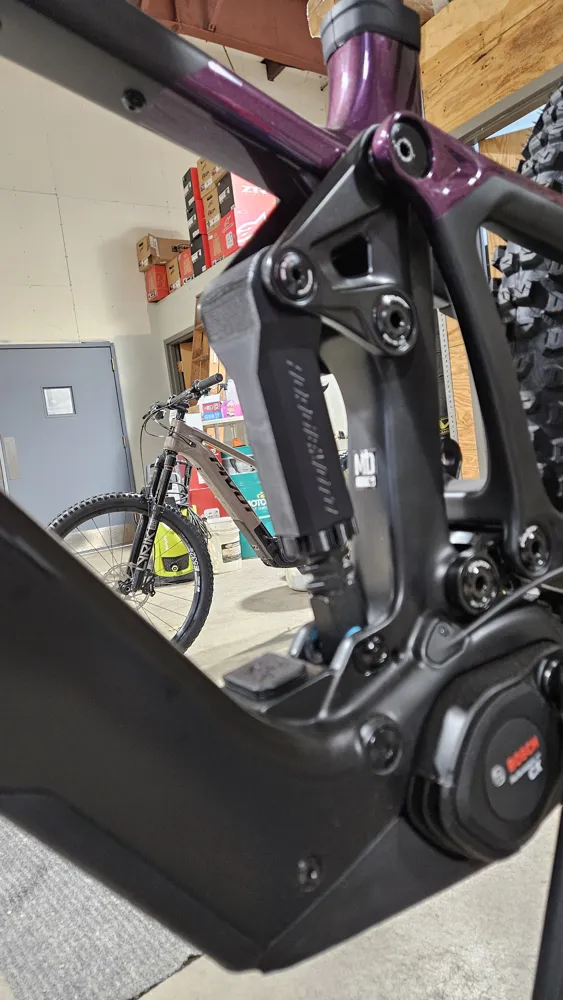

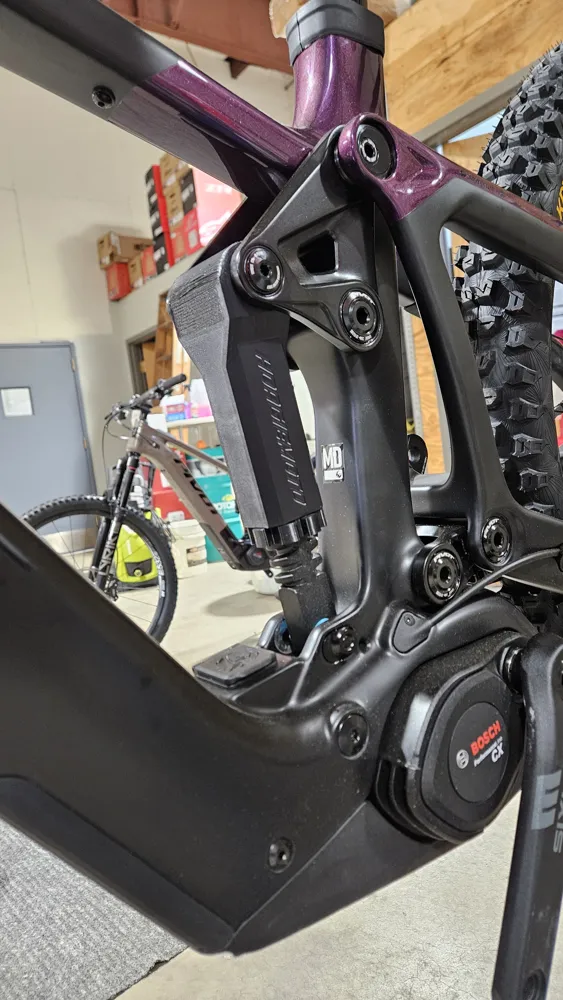

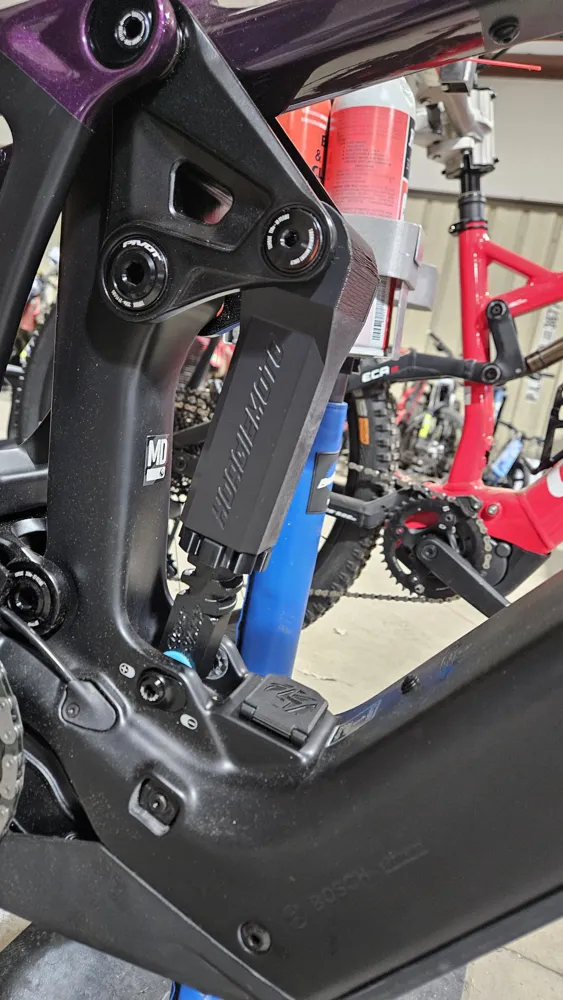

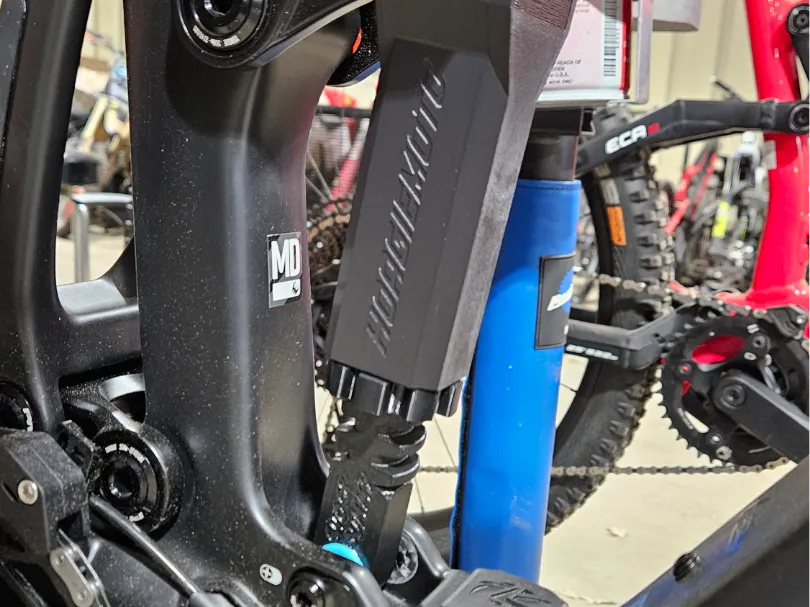

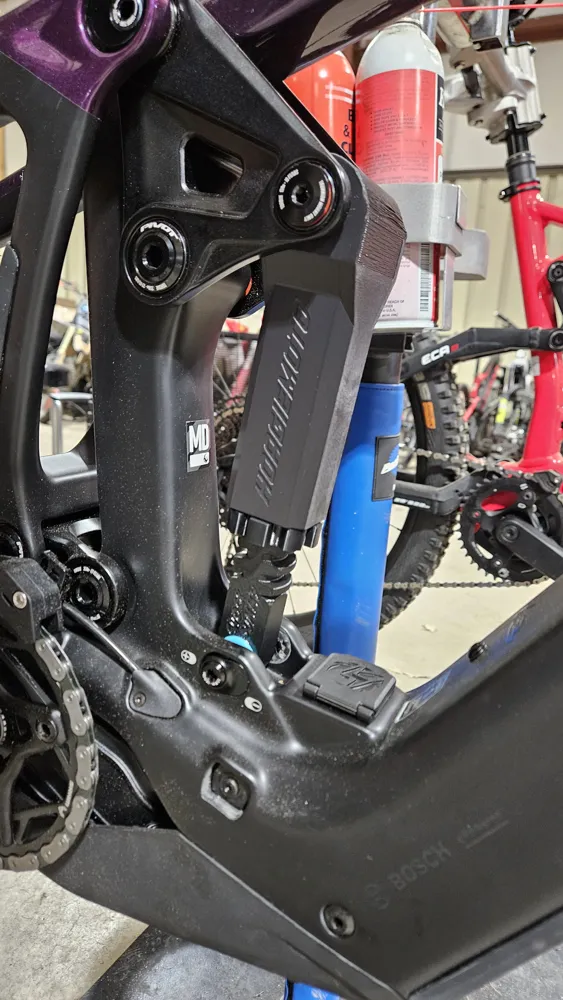

The HoagieMoto Trunnion Shock Dummy is a universal tool designed to hold your bike’s linkage in place while your rear shock is removed for maintenance, cleaning, or transport.
This version fits MTB trunnion shocks that use 10x1.0mm mounting bolts and modeled with exact dimensions of a Fox rear shock.

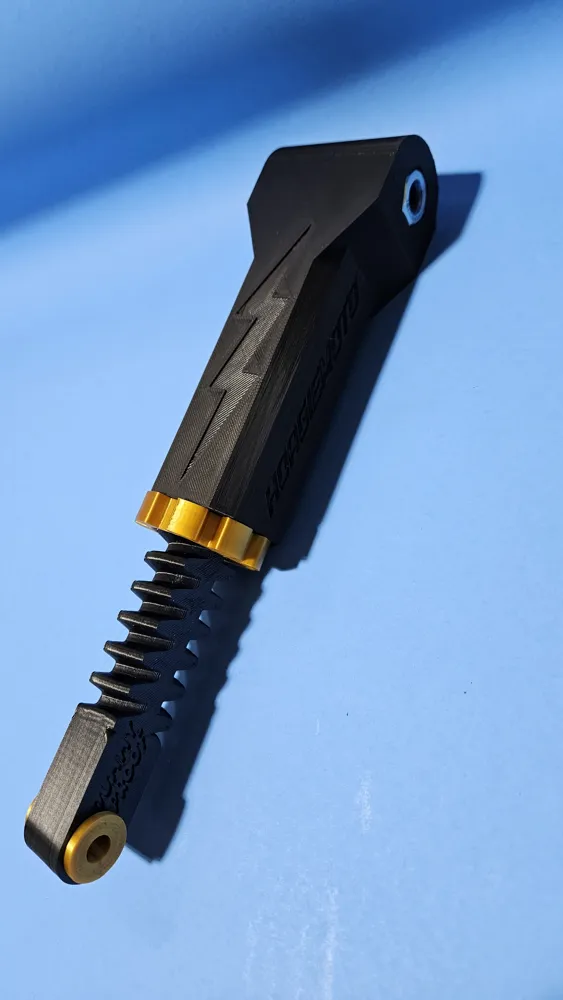

The threaded rod design allows adjustment for different shock lengths, making it compatible with a wide range of mountain bikes.
Features
- Fits trunnion shocks using 10x1.0mm bolts
- Adjustable length using threaded rod
- Includes 6mm, 8mm, and 10mm shock bushings
- Modeled after a Fox shock body
Hardware Needed
- 2× 10x1.0mm nuts
- Nut OD should be about 16.85mm
Nut pockets are intentionally tight and should be pressed in with a vise. No glue required.
Print Settings
- Material: PETG
- Walls: 7 perimeters recommended
⚡ Compatible with my Dual Eyelet Shock Dummy — the same threaded rod and bushings can be reused. Just print the trunnion body if you already have that version. Check out the Dual Eyelet Shock Dummy if you havn't!
