Vivo X200 Ultra RMS Macro Lens Adapter

This is for those who have the official Vivo Camera Case for the X200 Ultra.

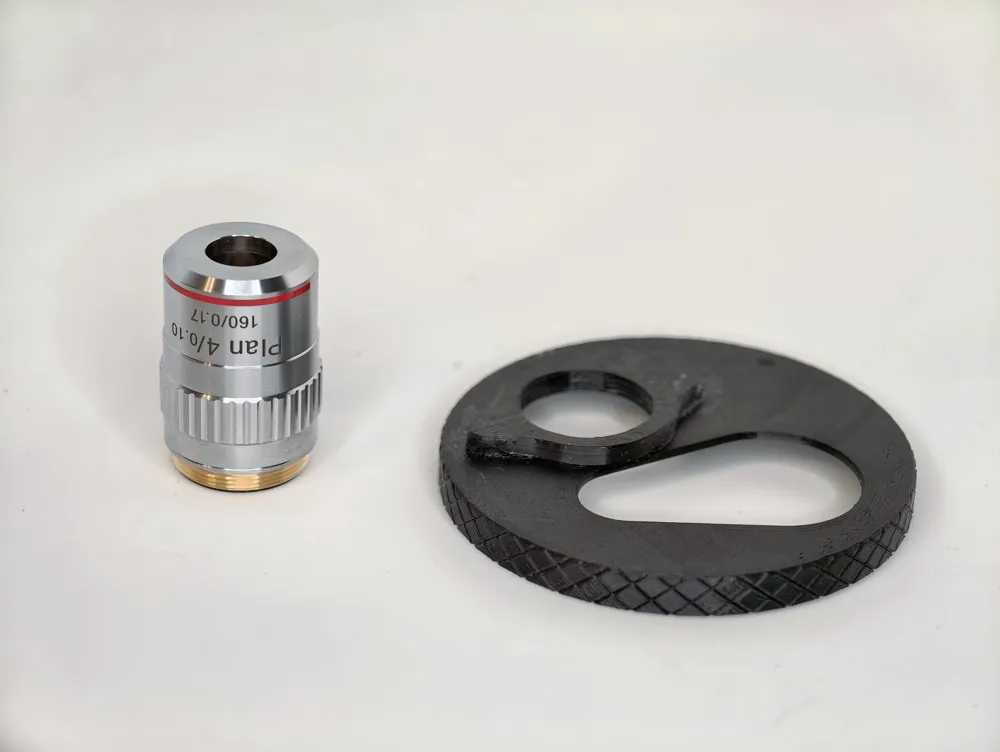

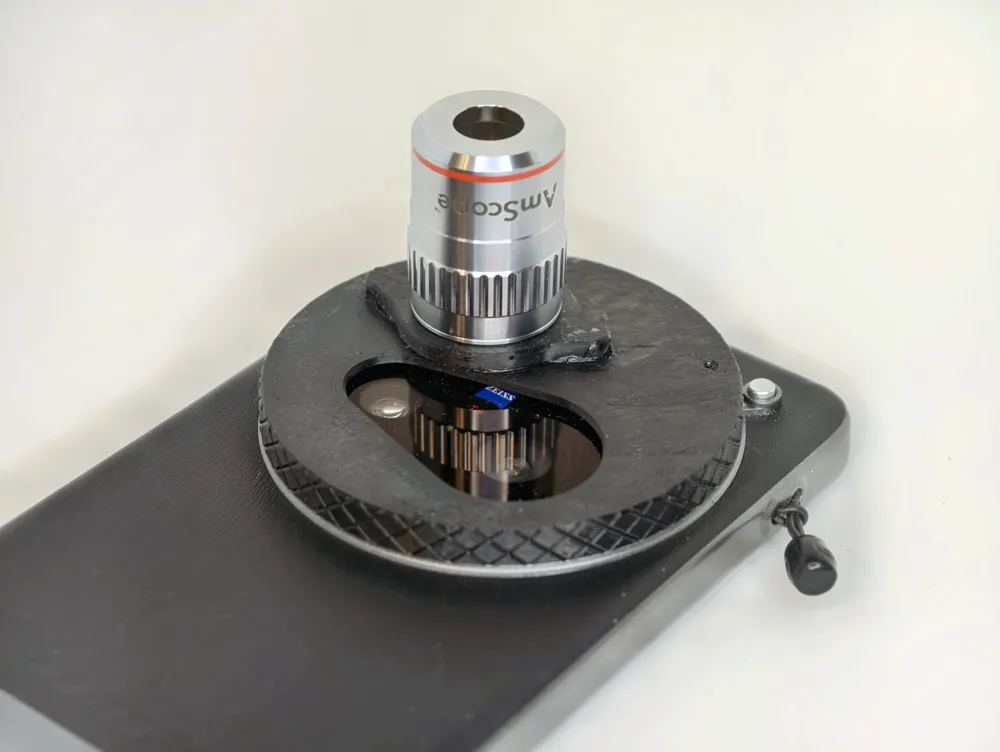

It allows you to clip in a lens adapter that allows you to mount a standard microscope objective to the telephoto lens for macro photography.

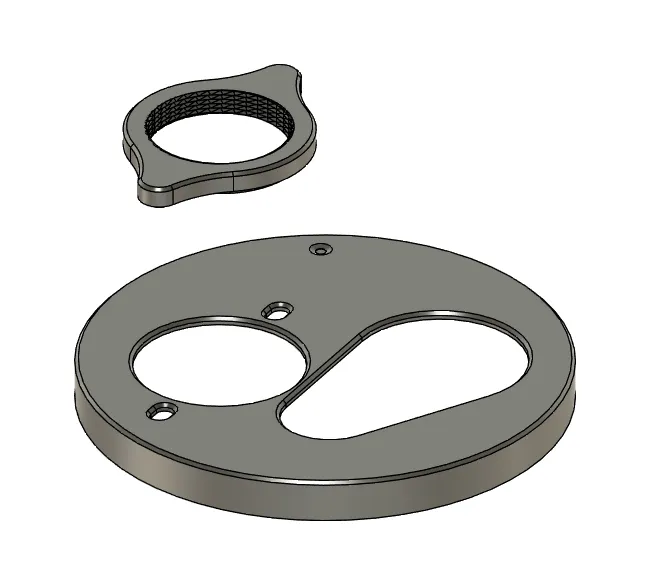

Super glue the RMS lens mount to the lens plate.

Note:

• There is significant vignetting with this method. You will need to use 170mm to remove the vignetting.
• Working distance from lens to subject is about 8mm.
• If you have the 2.35x Zeiss Teleconverter, you can try this instead, which does not vignette.
  • https://makerworld.com/en/models/2511325-vivo-x200-ultra-zeiss-teleconverter-to-microscope#profileId-2761820
• The microscope objective I bought was this:
  • https://www.amazon.com/dp/B01G4CCGRC?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Printing:

I used a layer height of 0.16mm with a 0.4mm nozzle because there are some pretty fine tolerances to get the lens plate to mount to the camera case.
