TP-Link M8550 5G Router Wall Mount
Print Profile(1)
Description

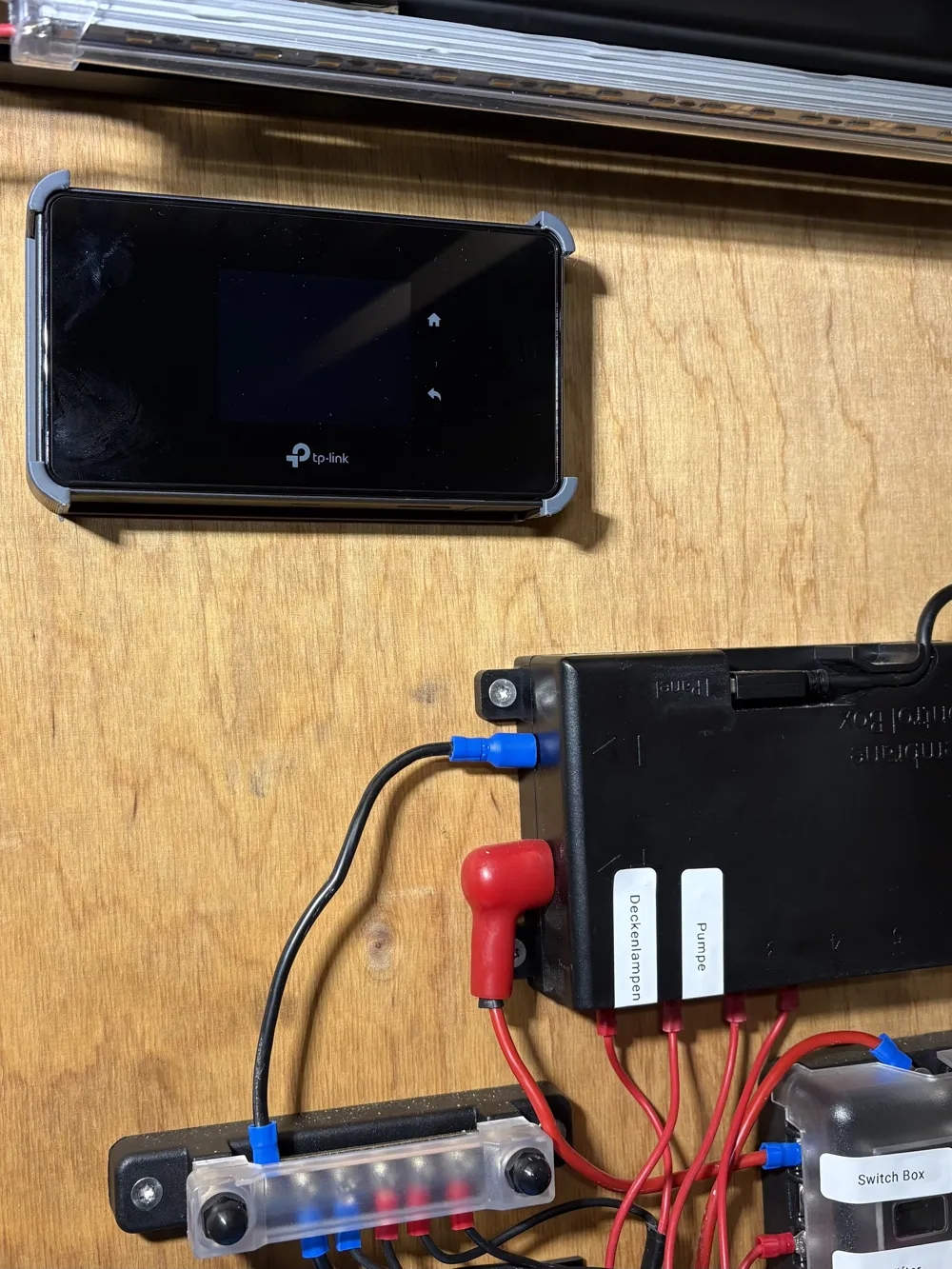

A simple and solid wall mount designed specifically for the TP-Link M8550 5G mobile router. The router slides into the holder and is secured by four retaining clips that keep it firmly in place while still allowing quick removal when needed.
Boost Me (for free)
If this model saved you time or made your install cleaner, hit Boost—it directly supports further improvements and new van-focused designs.
The mount is designed to be printed with supports. This orientation makes the clips much stronger because the layer lines run in the correct direction. Printing it flat without supports may look easier, but the clips can break off when inserting or removing the router due to weak layer adhesion.
Ideal for home network setups, workshops, network cabinets, or camper/van installations where you want the router mounted cleanly instead of lying around.
Features
- Custom fit for TP-Link M8550
- Secure 4-clip retention
- Strong clip orientation when printed with supports
- Easy wall mounting with two screws
- Router can be inserted and removed quickly
Printing
- Supports required (recommended for strong clips)
- 0.2 mm layer height works well
- PLA
If this mount is useful for your setup, consider leaving a like or uploading a make so others can see it in use. Feedback and improvements are always welcome.
