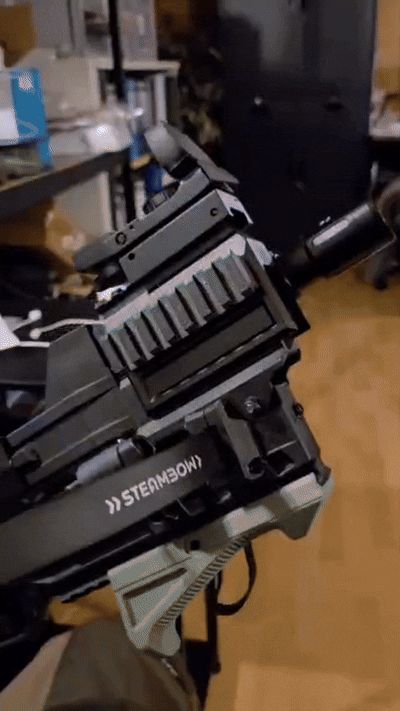

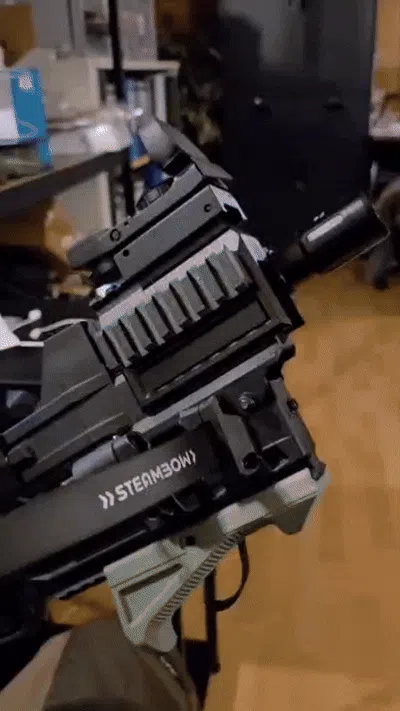

Steambow Stinger 2 Flashlight Holder

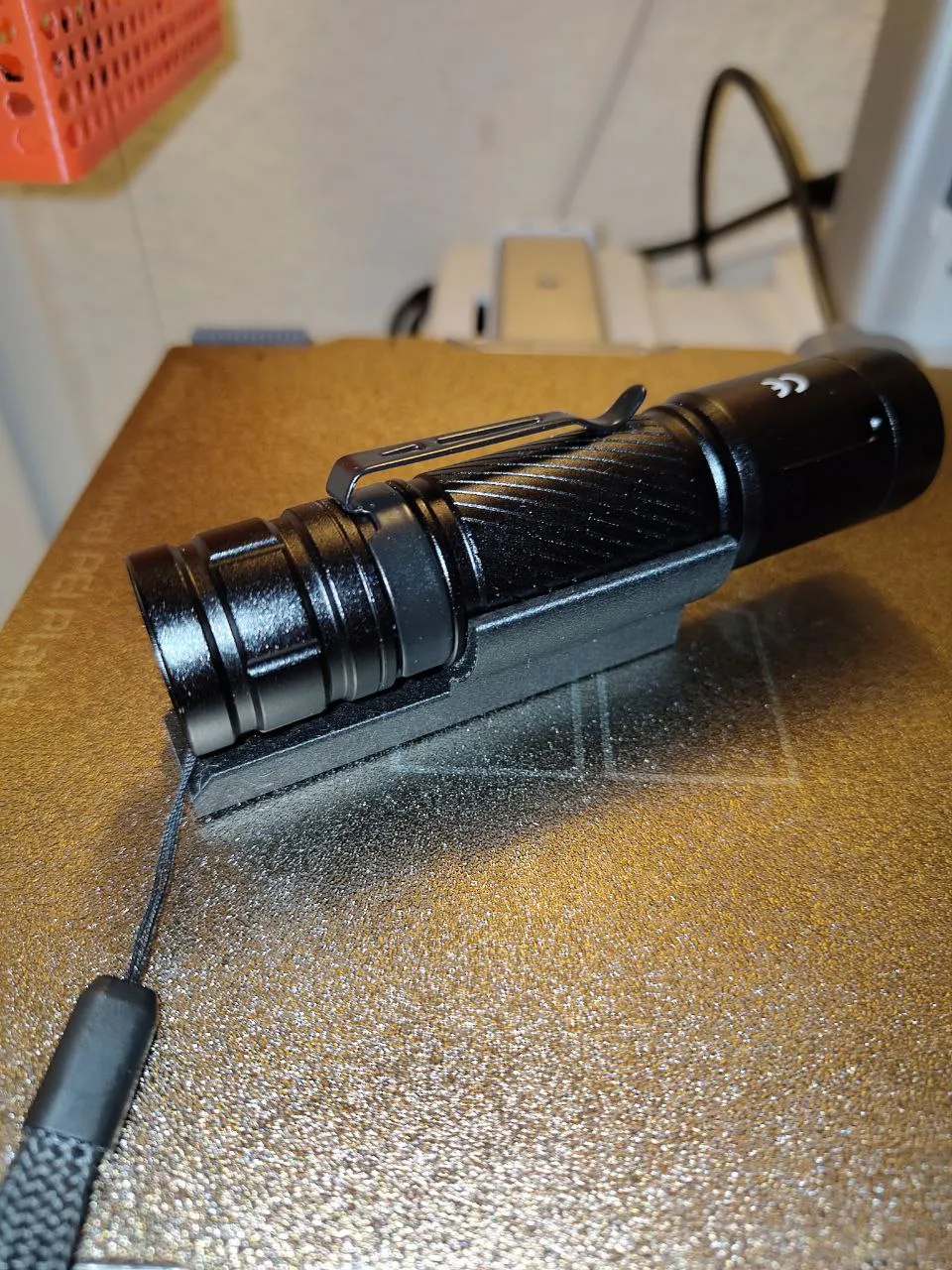

A flashlight holder for the Steambow Stinger 2, designed for the flashlight available on Amazon

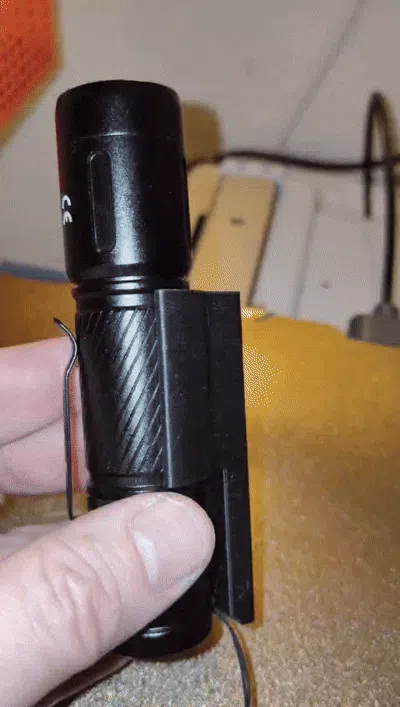

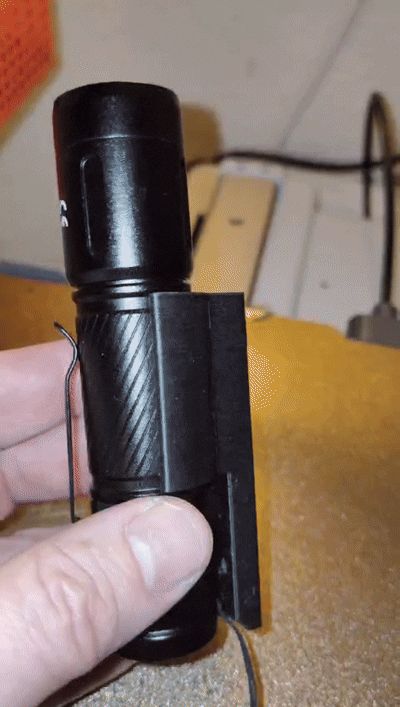

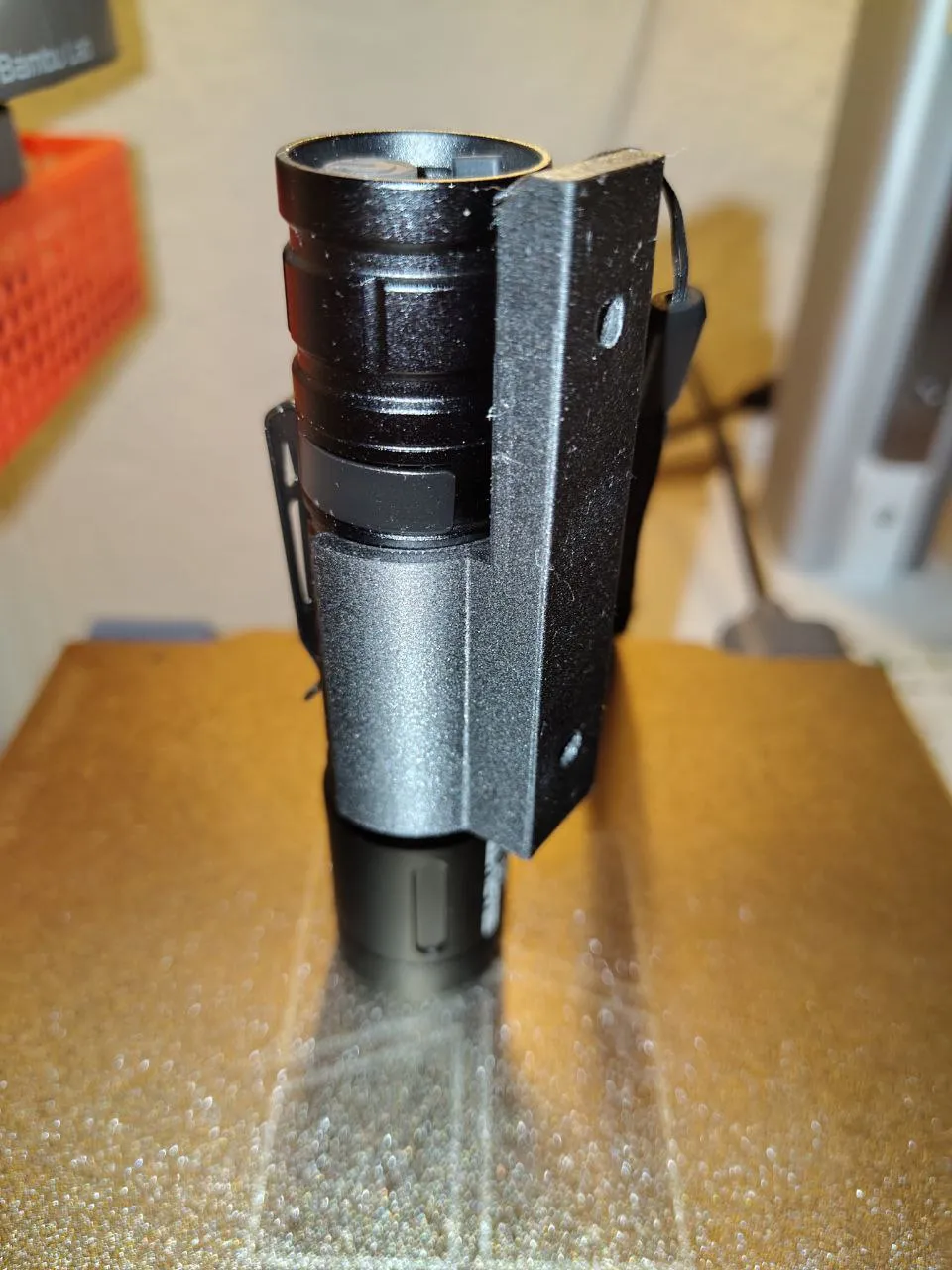

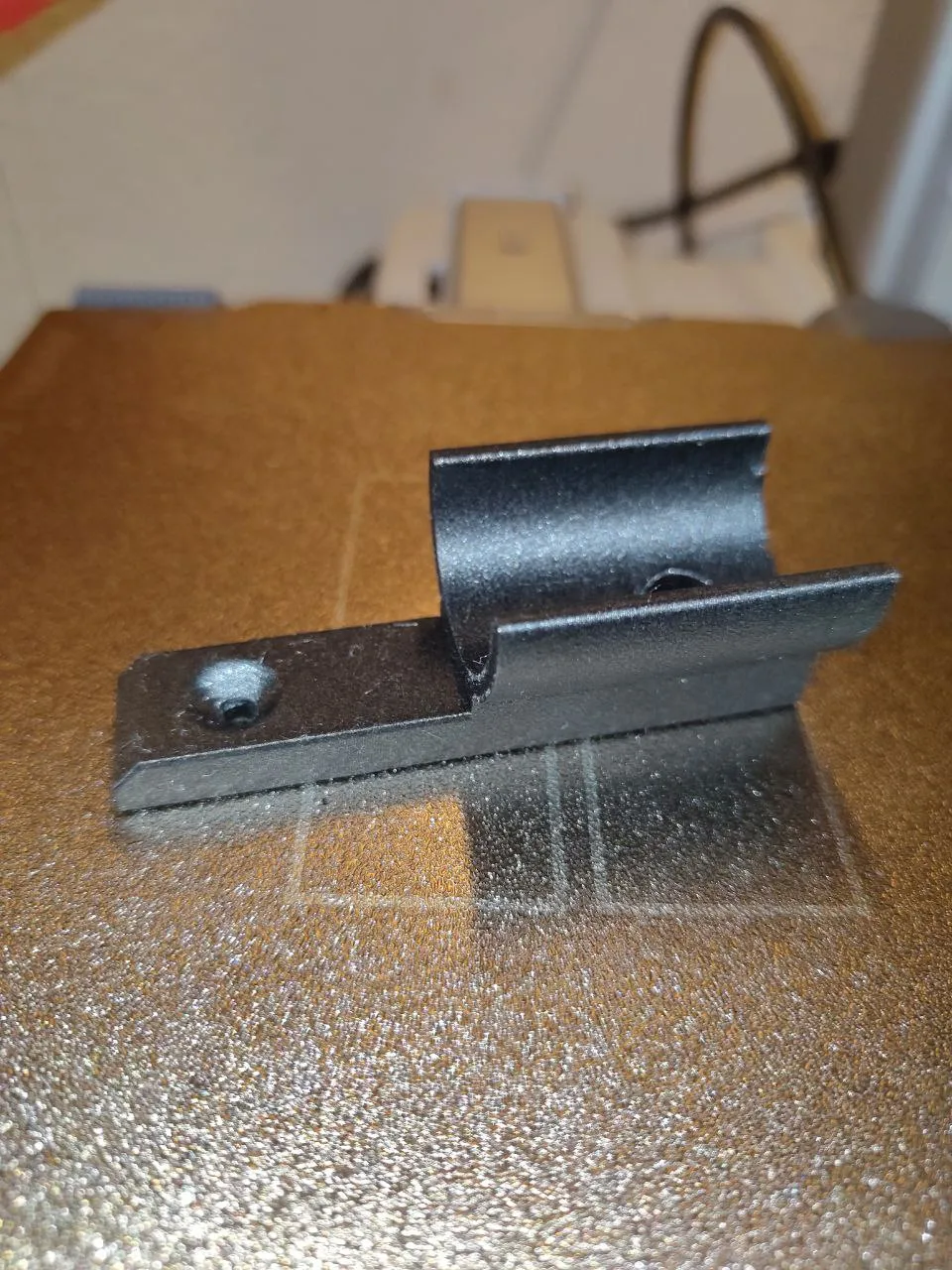

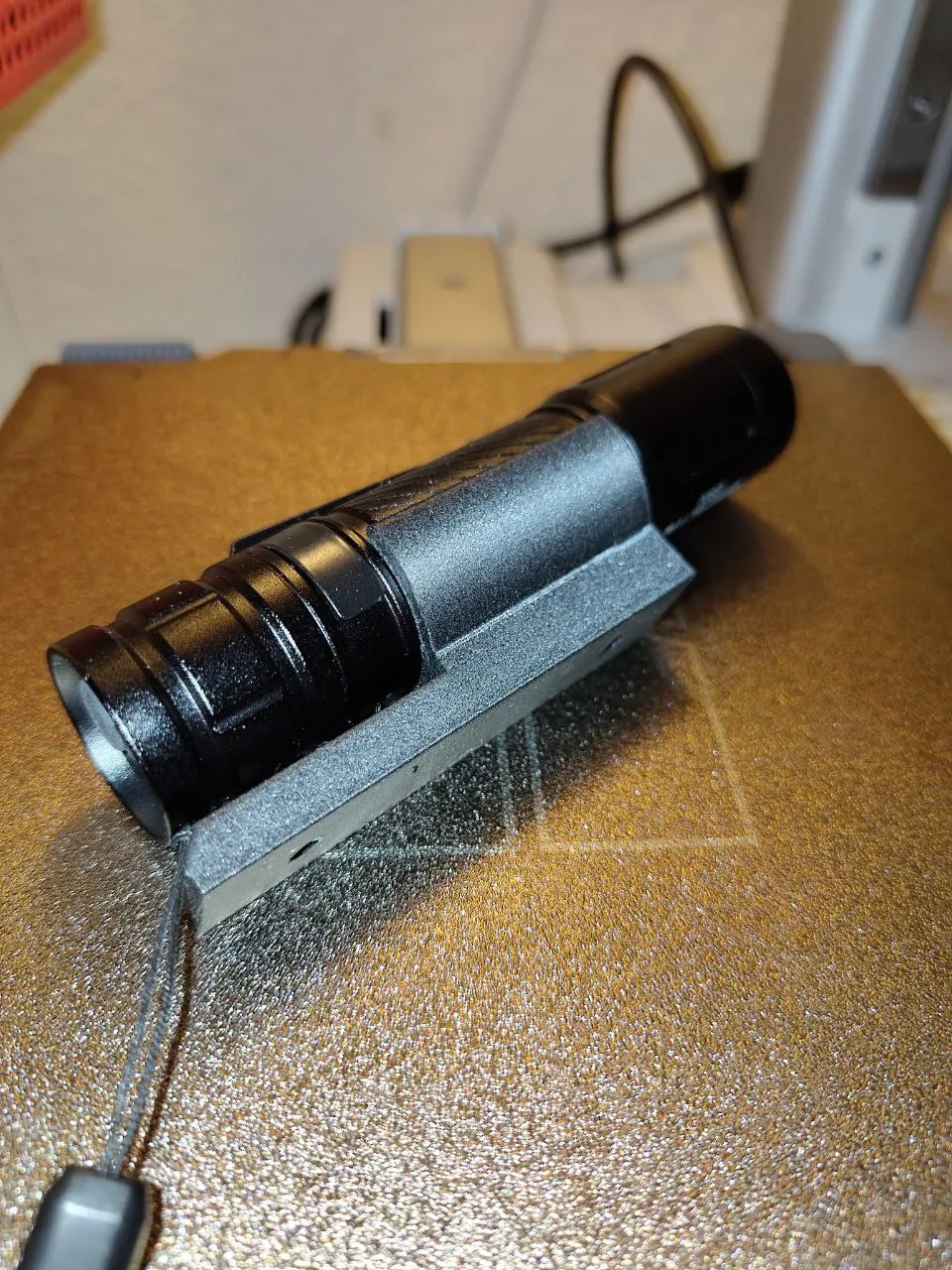

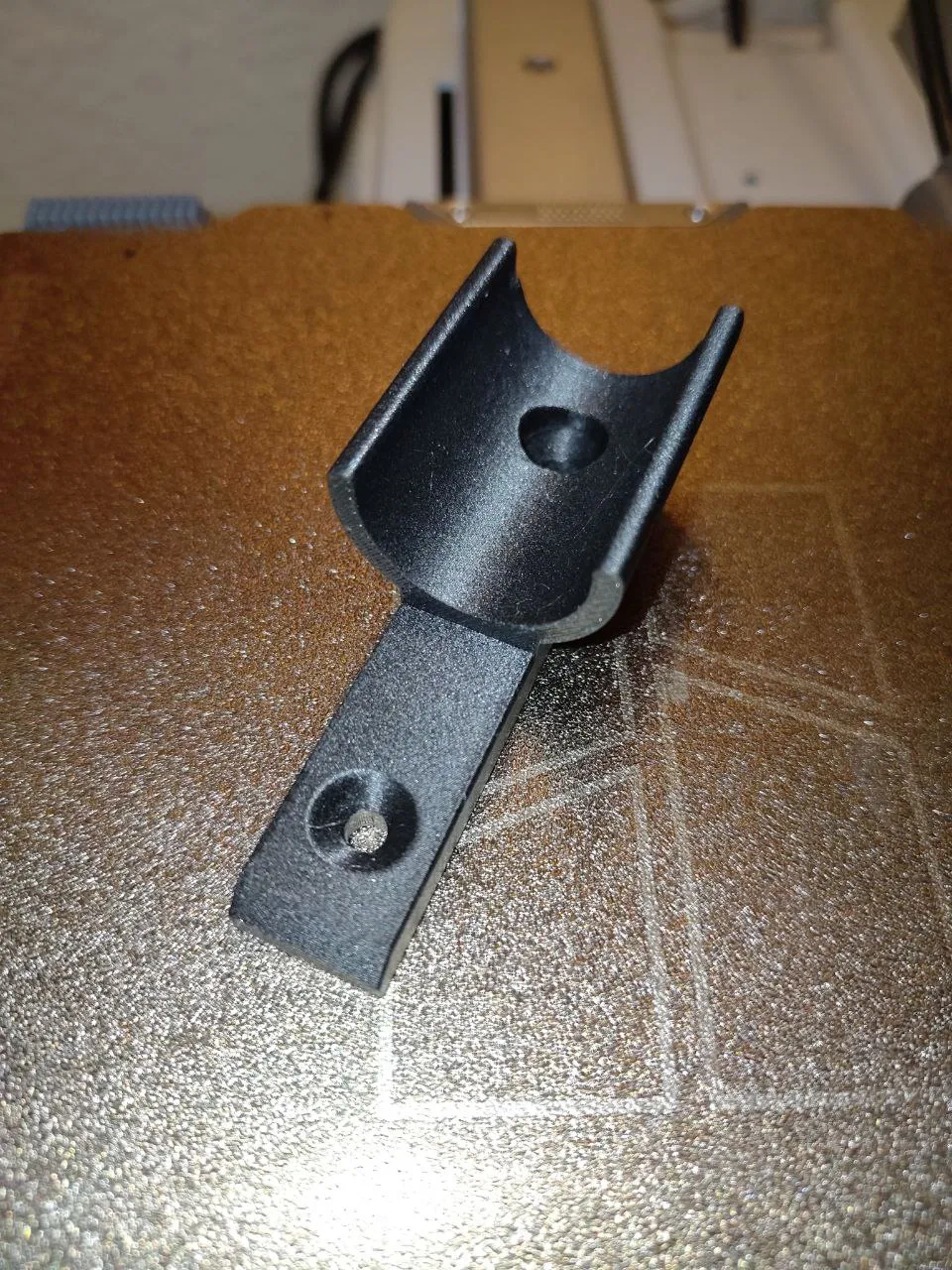

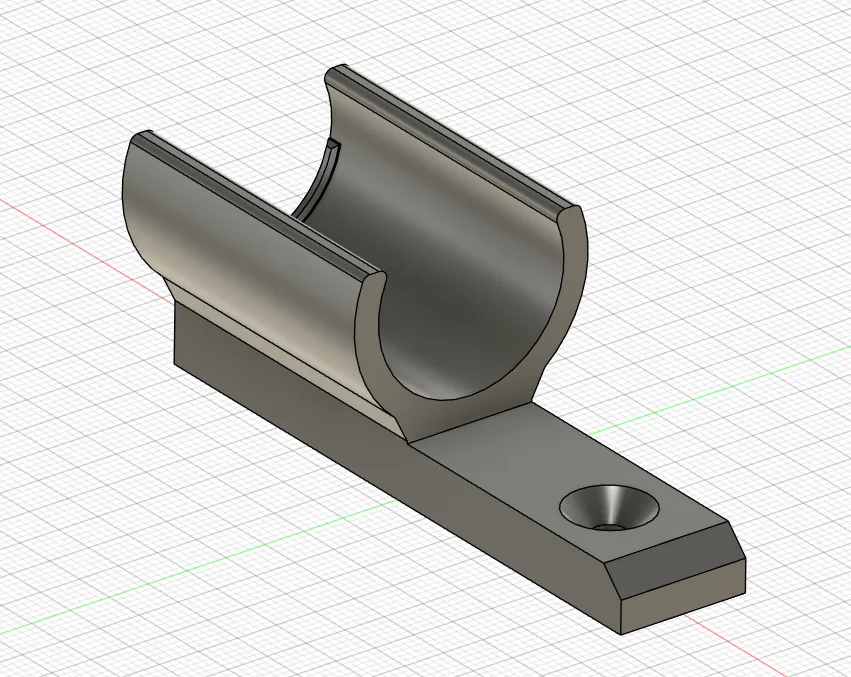

There are two versions of the lamp holder, V2 and V4, which should be tried depending on the printer, print settings, or material to see which fits best

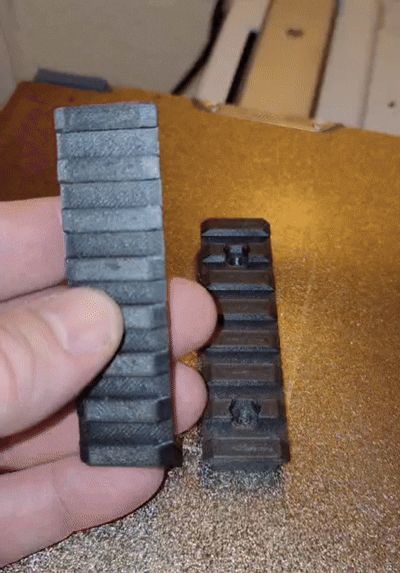

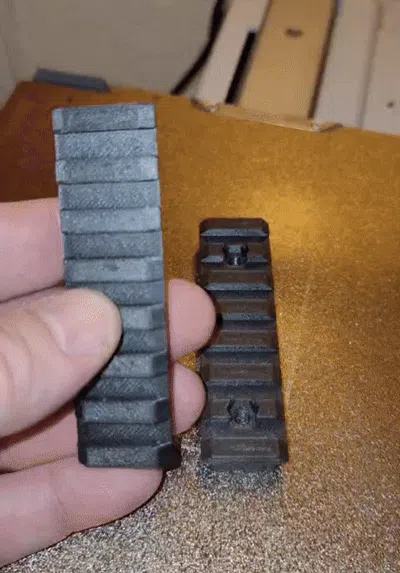

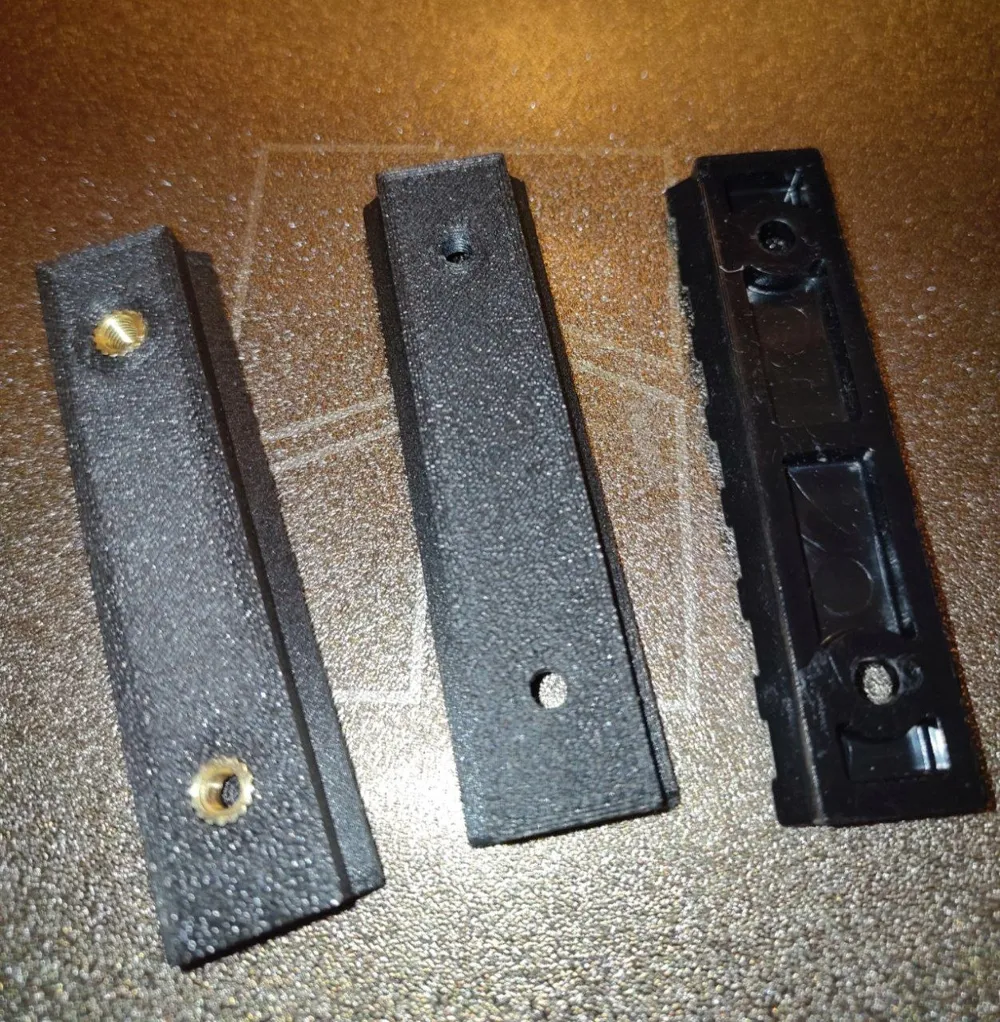

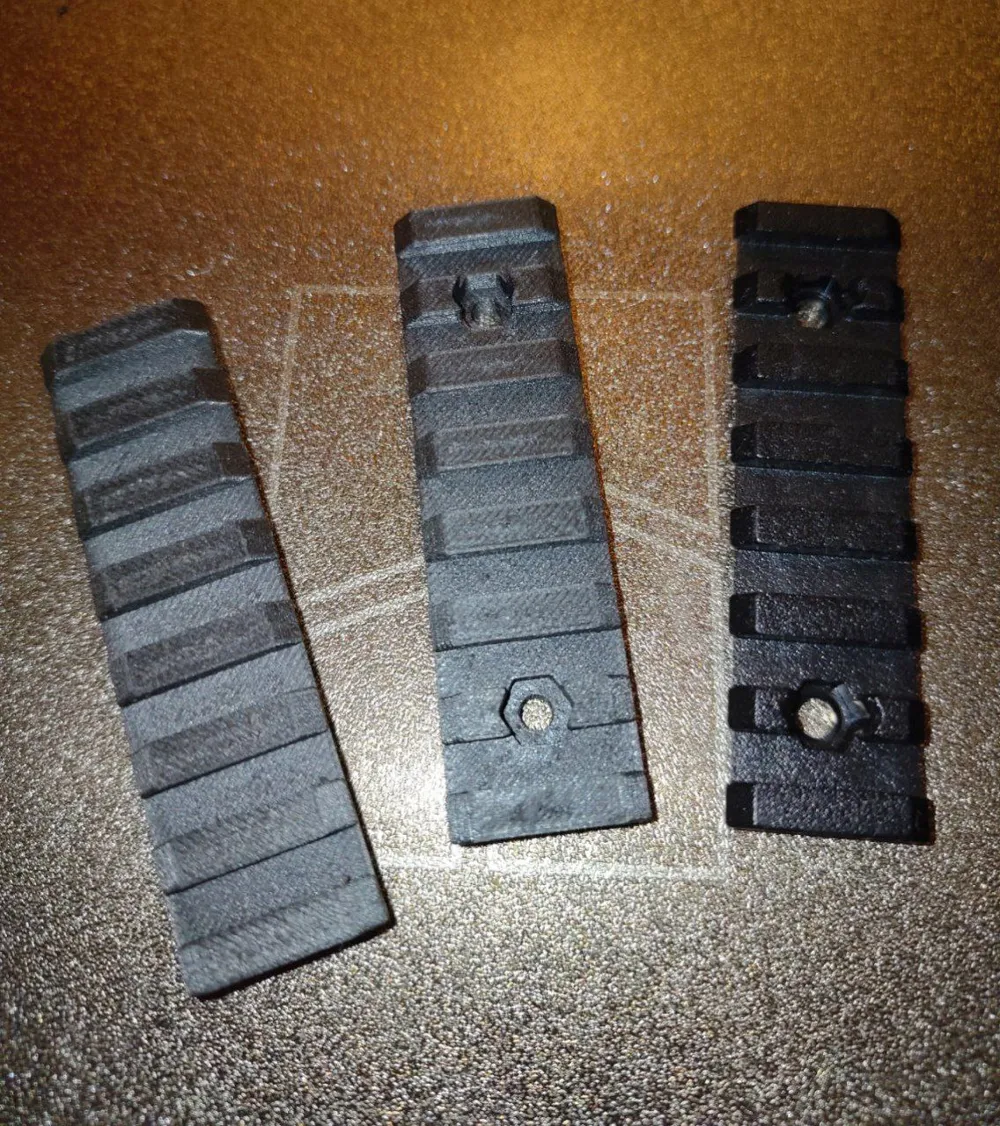

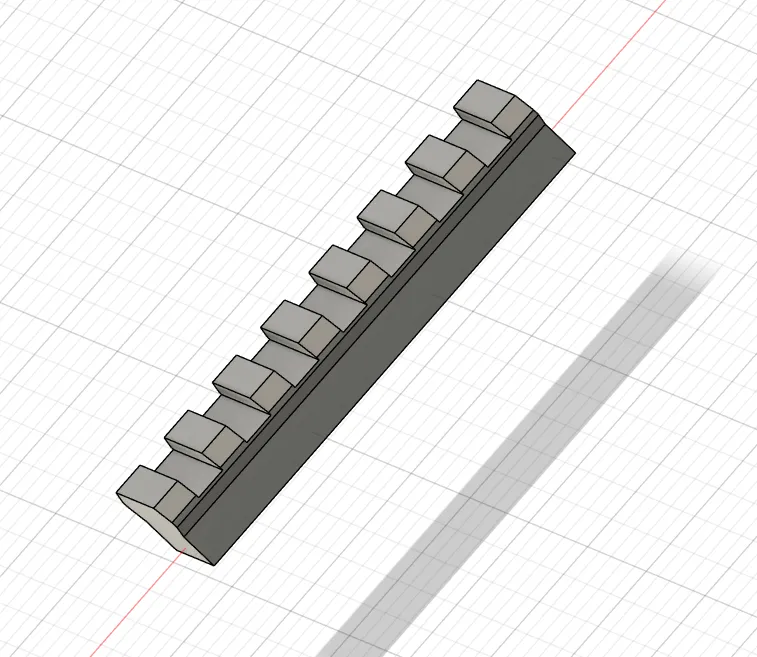

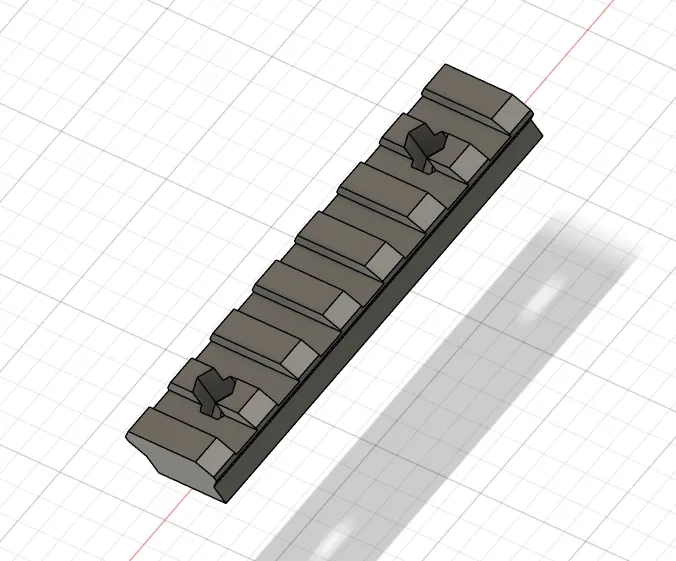

And the counter blocks / rail, one with nuts and one with M4x6x6 brass heat set inserts
For assembly, 2 M4x45mm countersunk screws are needed
and depending on the block used, either 2 M4 nuts or 2 M4x6x6 brass heat set inserts
I printed the parts with PETG Carbon, although the carbon here was more for aesthetics; regular PETG should be perfectly sufficient
ABS, ASA would also be possible
The hole spacing is 50 mm. If your crossbow has a different hole spacing, I could design a suitable version
