Small dog rear leg splint orthosis
IP Report
Print Profile(1)
0.2mm layer, 5 walls, 25% infill
Designer
2.5 h
2 plates
Open in Bambu Studio
Boost
27
104
1
0
77
48
Released
Bill of Materials
List other parts
- Thin Velcro Straps x 4:
Description
Boost Me (for free)
If you boost me you help a lot to make my models.Thanks.

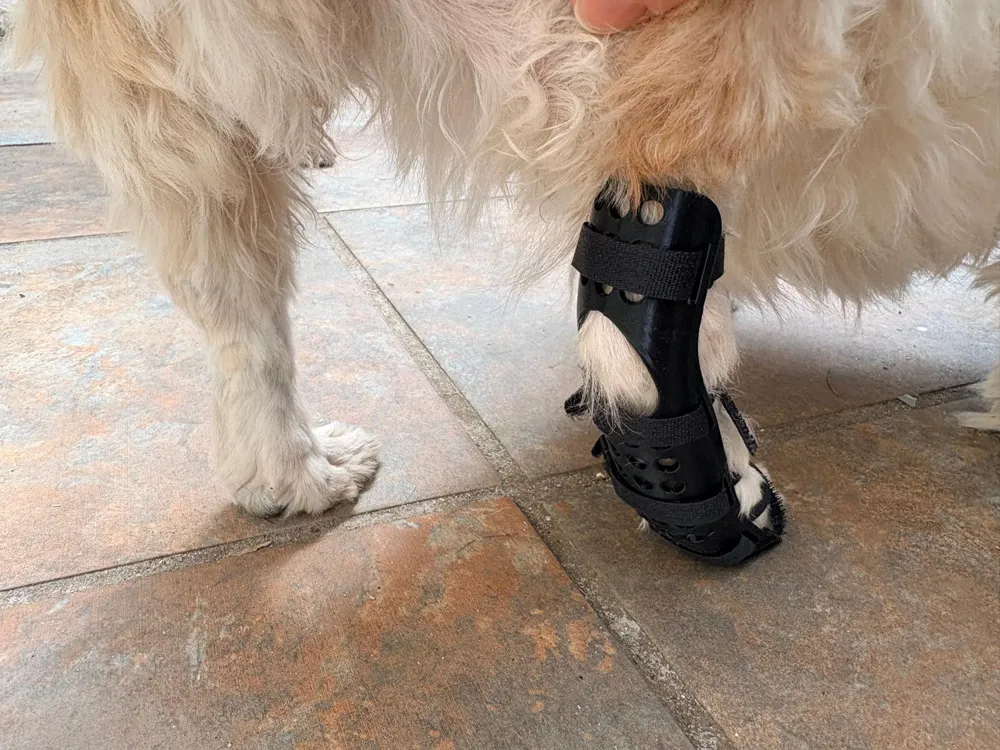

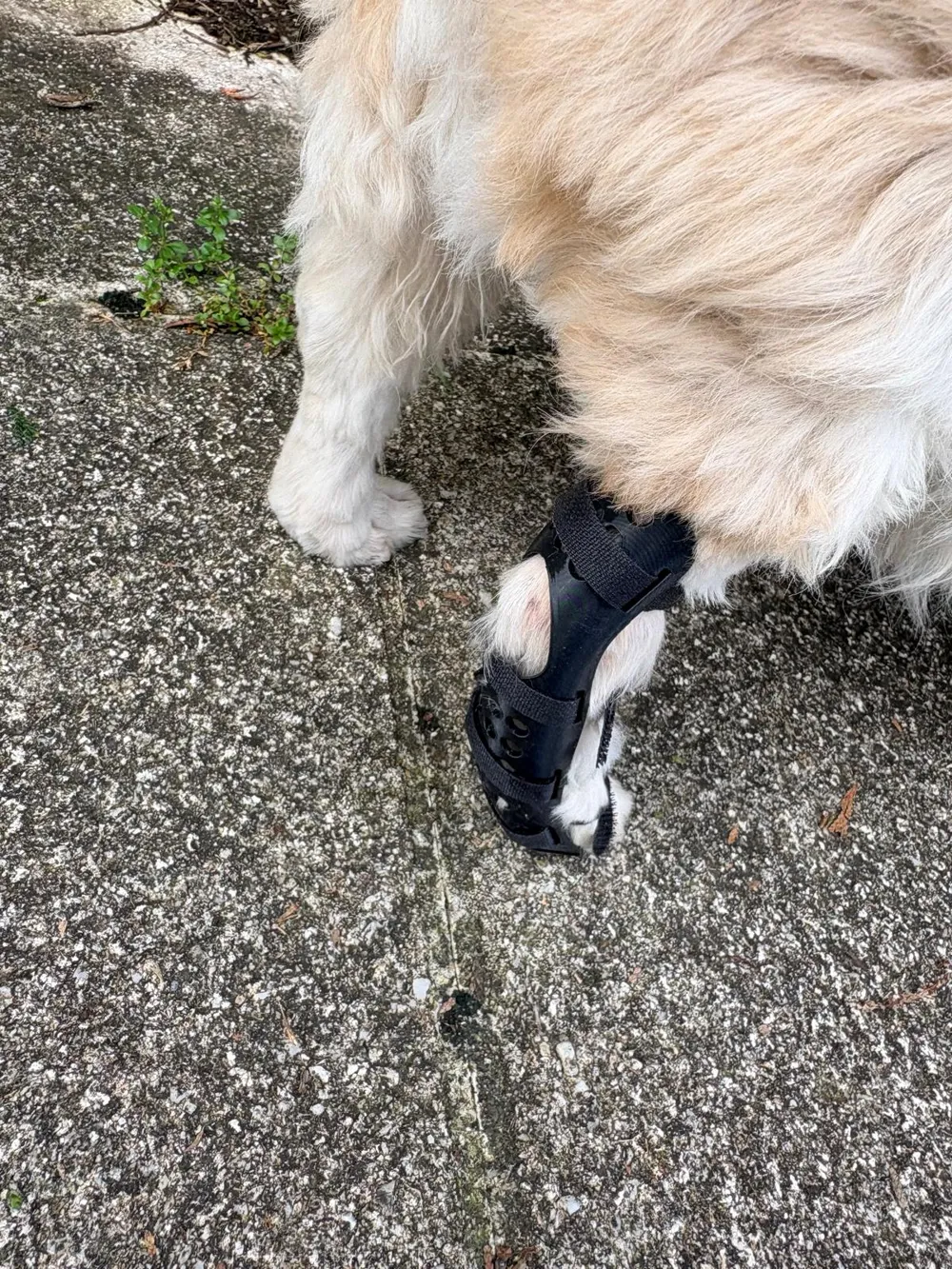

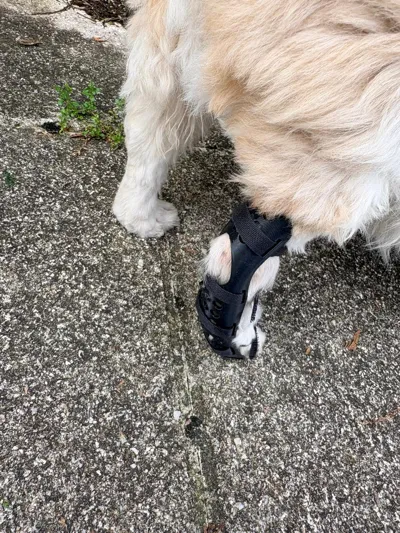

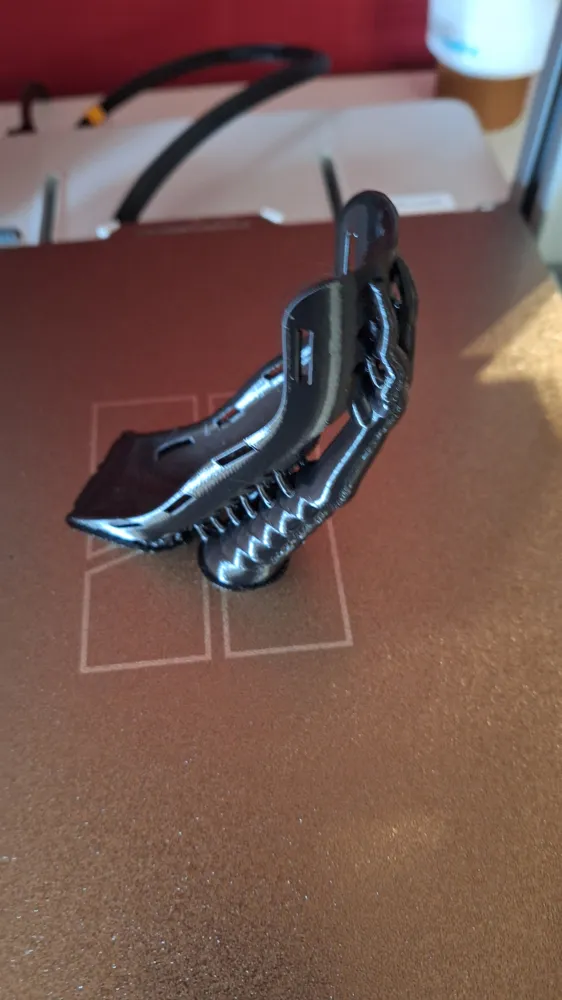

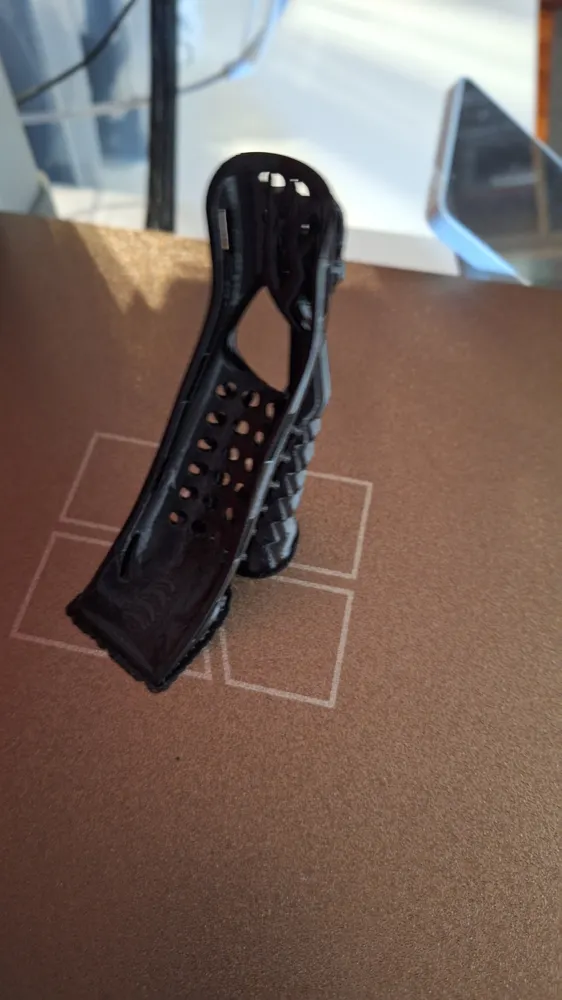

Rear Leg Splint for Small Dogs
This 3D-printable splint is designed to restrict mobility in the hind leg of small dogs recovering from minor injuries.
The model consists of two parts:

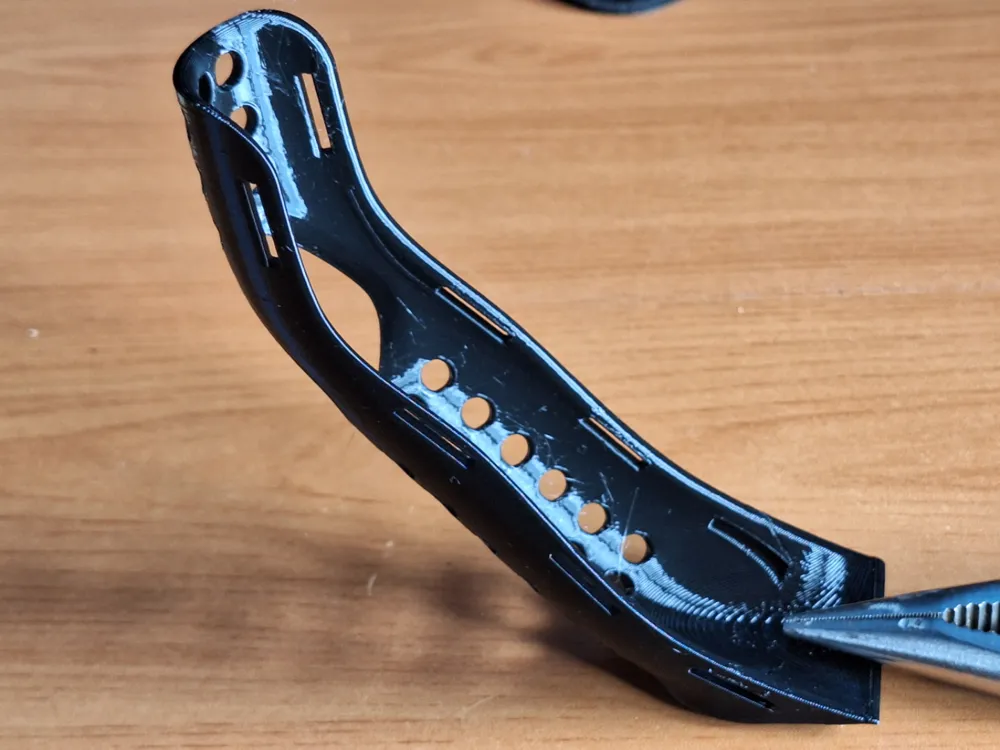

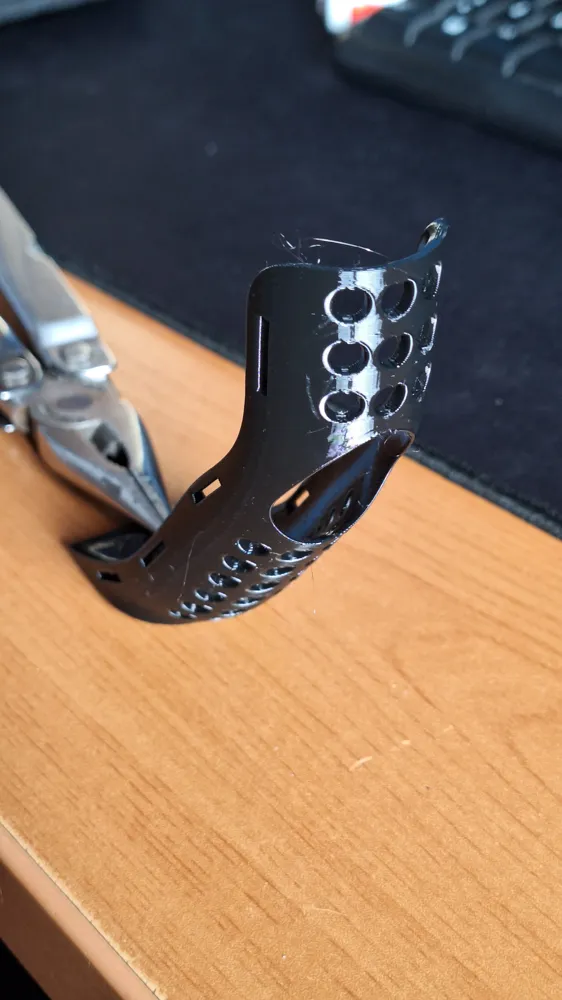

- Main Splint: The rigid structural support.

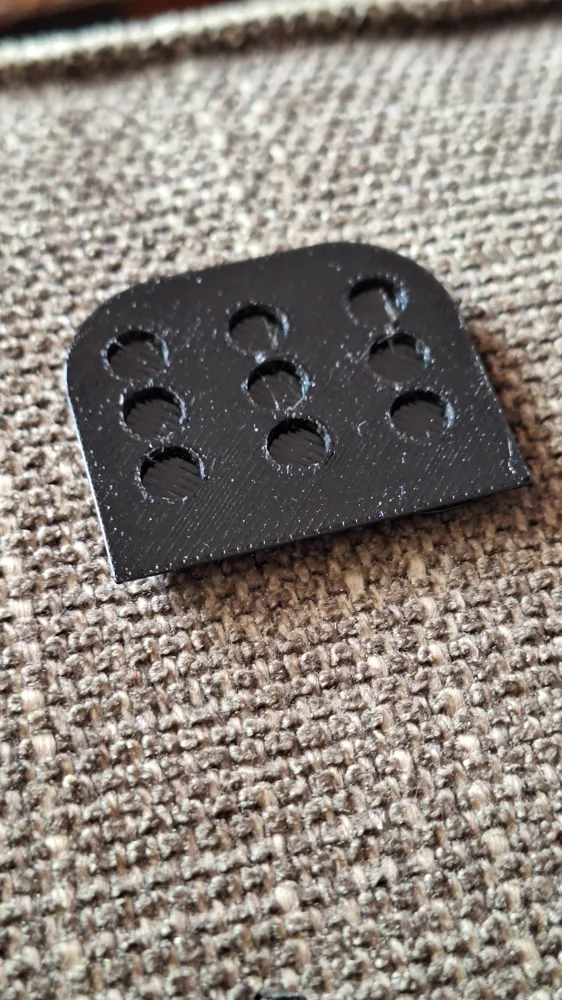

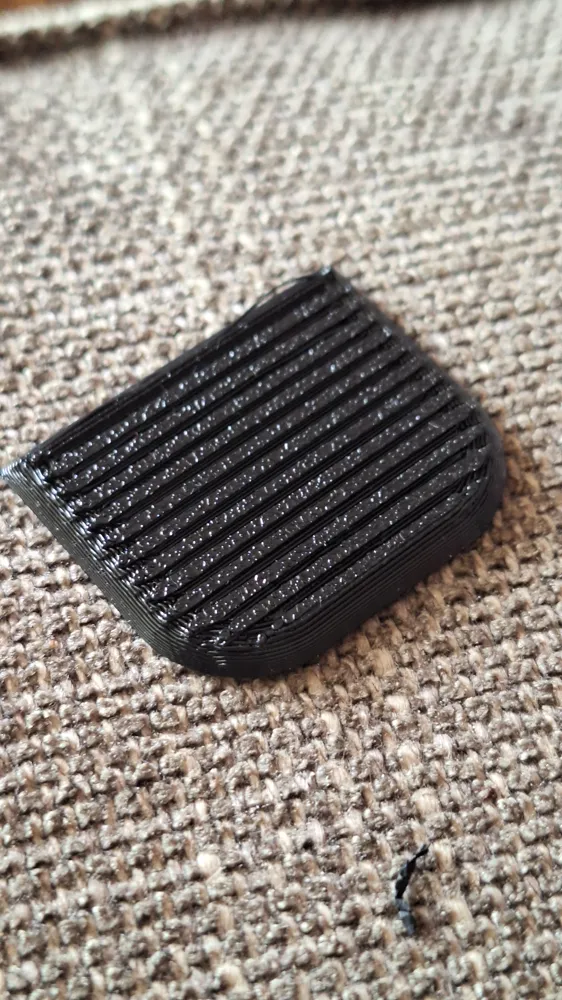

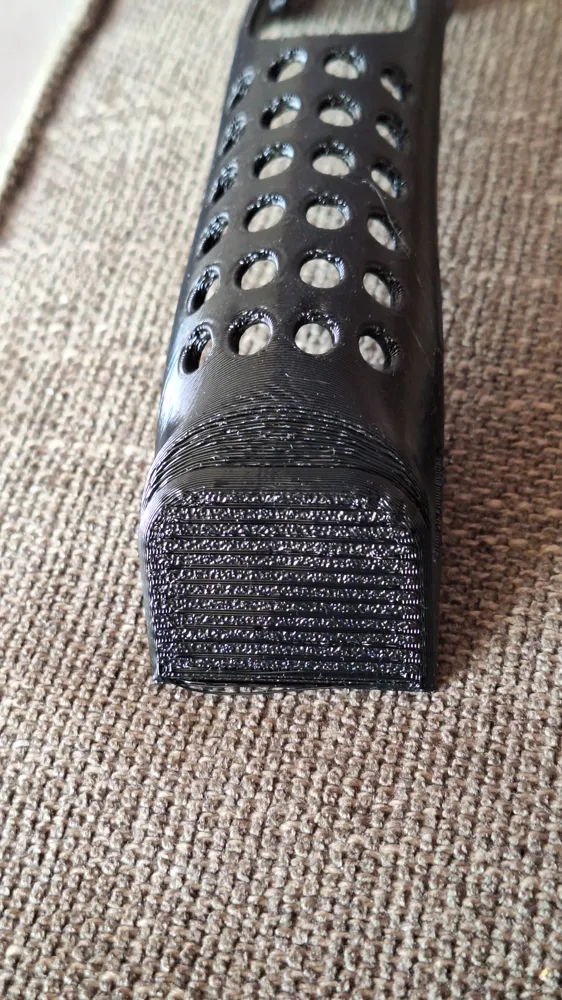

- TPU Sole (Tread): A base printed in flexible material (TPU) to provide grip and prevent slipping on smooth surfaces.
Assembly & Fitting:
- Snap-fit: Both parts are designed to fit together perfectly. However, a drop of superglue is recommended for a permanent, secure bond.

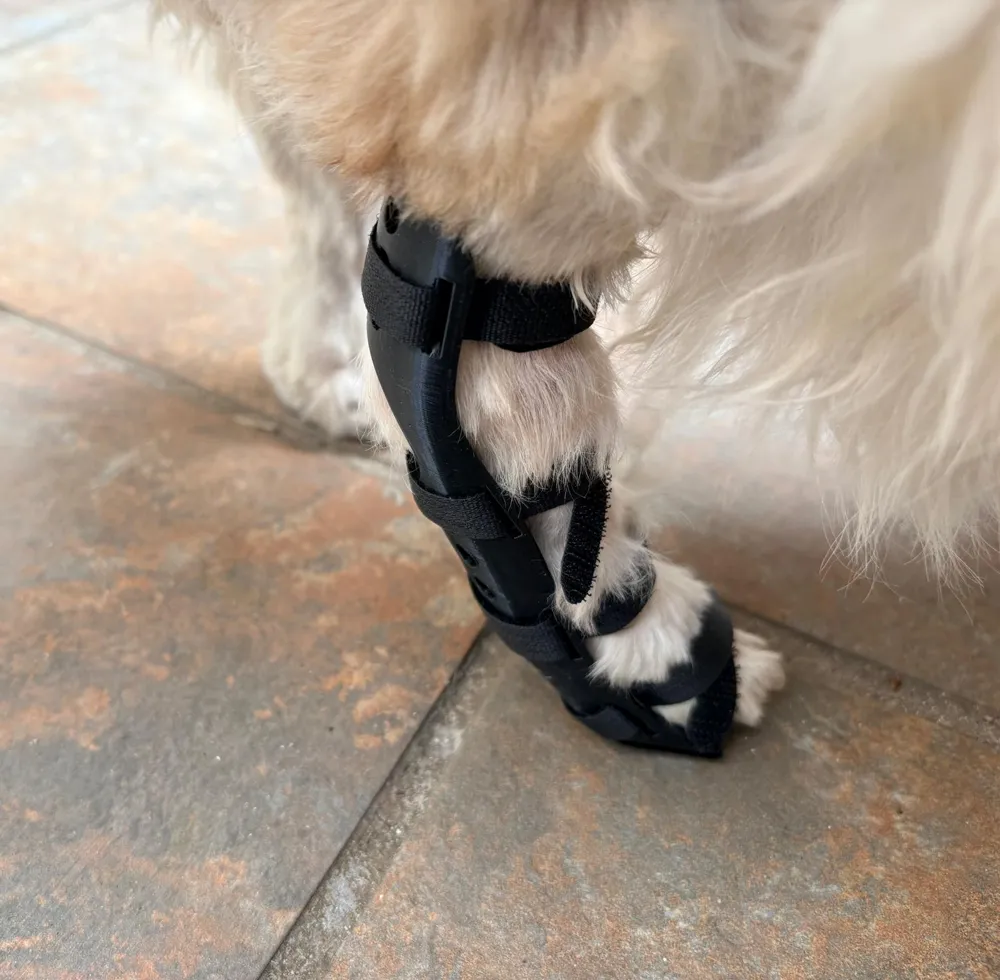

- Fastening: The splint can be easily secured using thin Velcro straps.
- Pro-tip: When fitting, ensure the "hook" (rough) side of the Velcro points away from the dog's leg to prevent it from catching or pulling the fur.
