22lr Speedloader for Tube Magazines

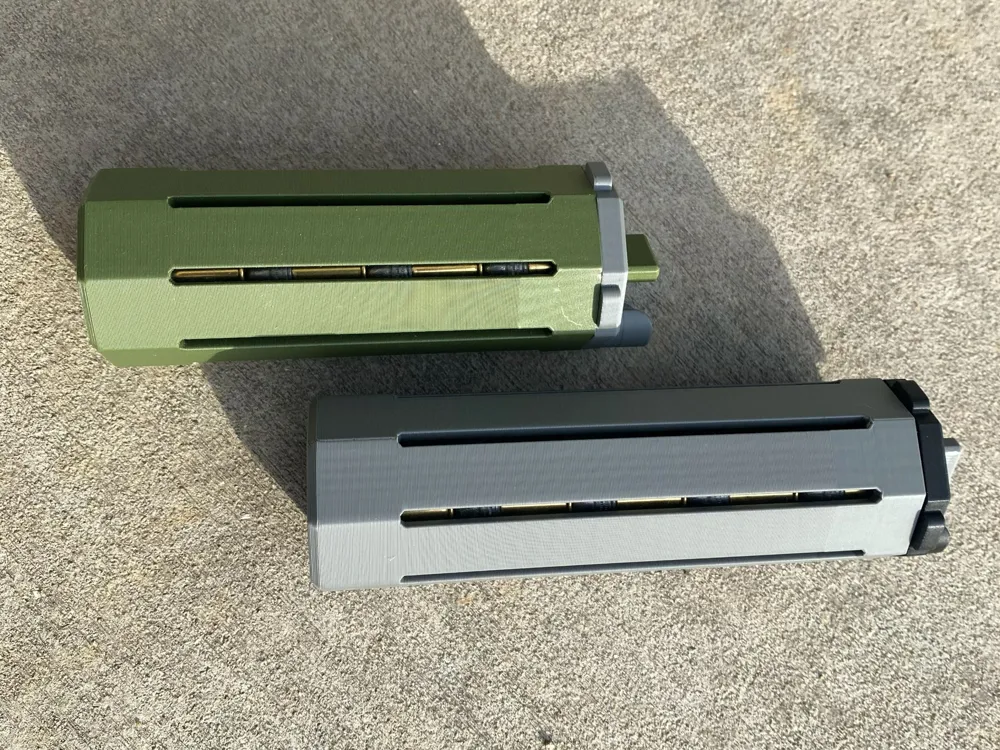

22lr Speed loader for Tube Magazines

8 tubes

4 or 5 rounds per tube

32 or 40 total rounds per loader

To Load

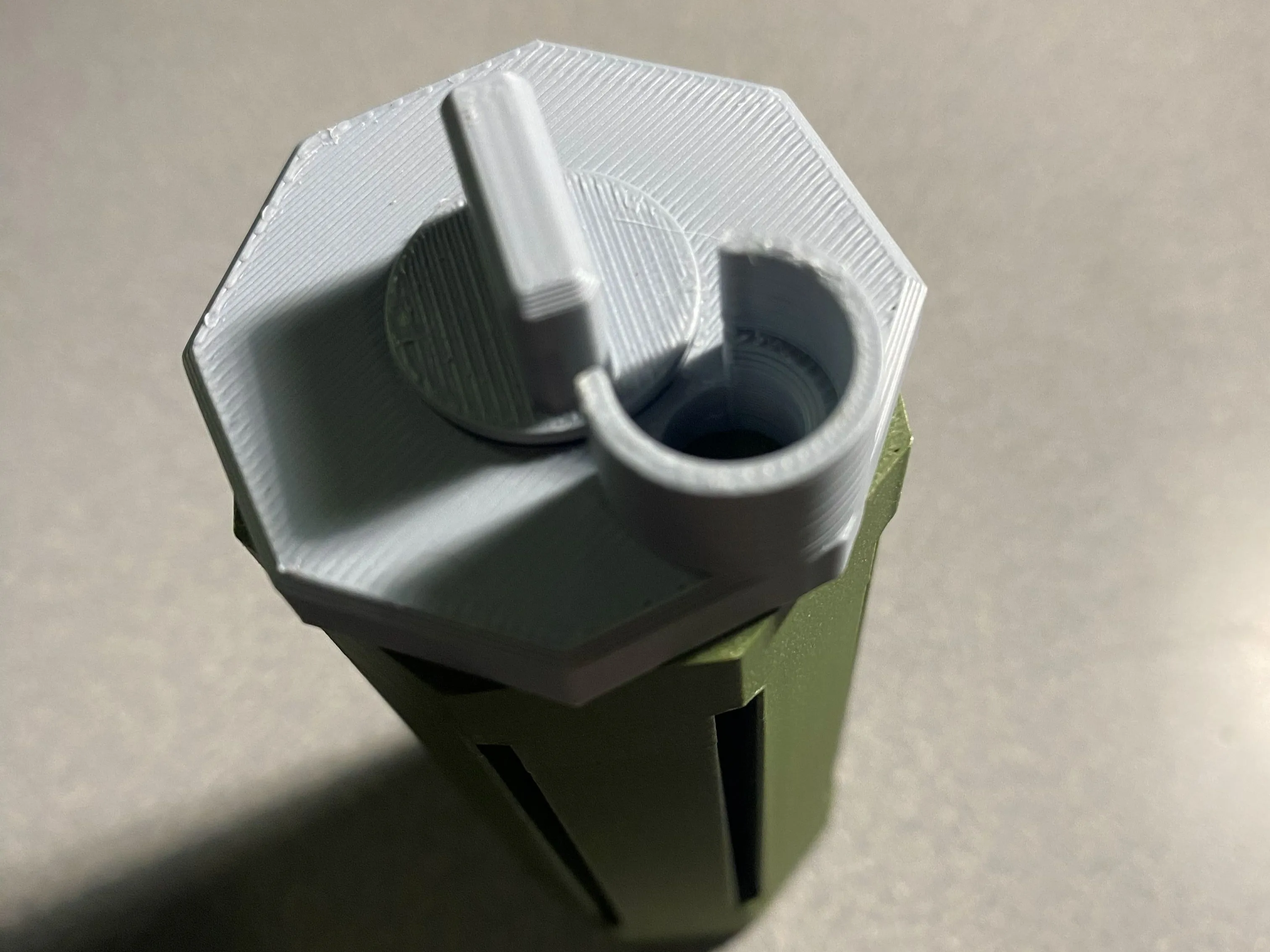

1. Rotate lid to the open position
2. Load 4 rounds nose down through the funnel on the lid
3. Rotate lid to the next position, sides of lid will align with sides of the body
4. Repeat as needed
5. Rotate lid to the closed position to lock rounds in, corners of lid should stick out between corners on the body

To Use

1. Make sure lid is in the closed position

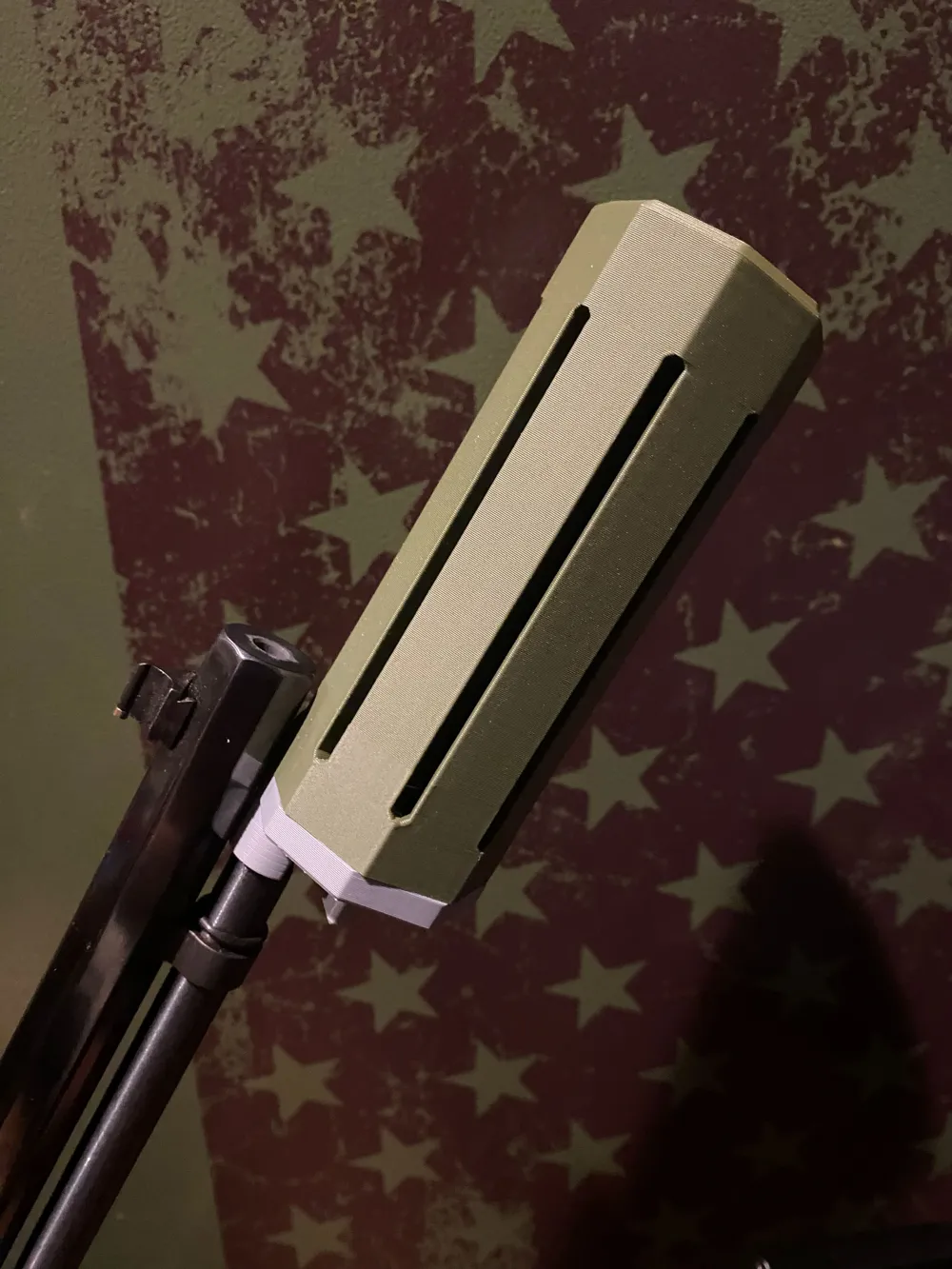

2. Place the loader onto the tube magazine of your firearm
3. Hold your firearm near vertical, muzzle in the air
4. Rotate body on to a loaded tube, 4 rounds will dropped in the tube magazine
5. Continue to rotate body onto loaded tubes dispensing rounds into the firearm until the magazine is full
6. Remove the loader

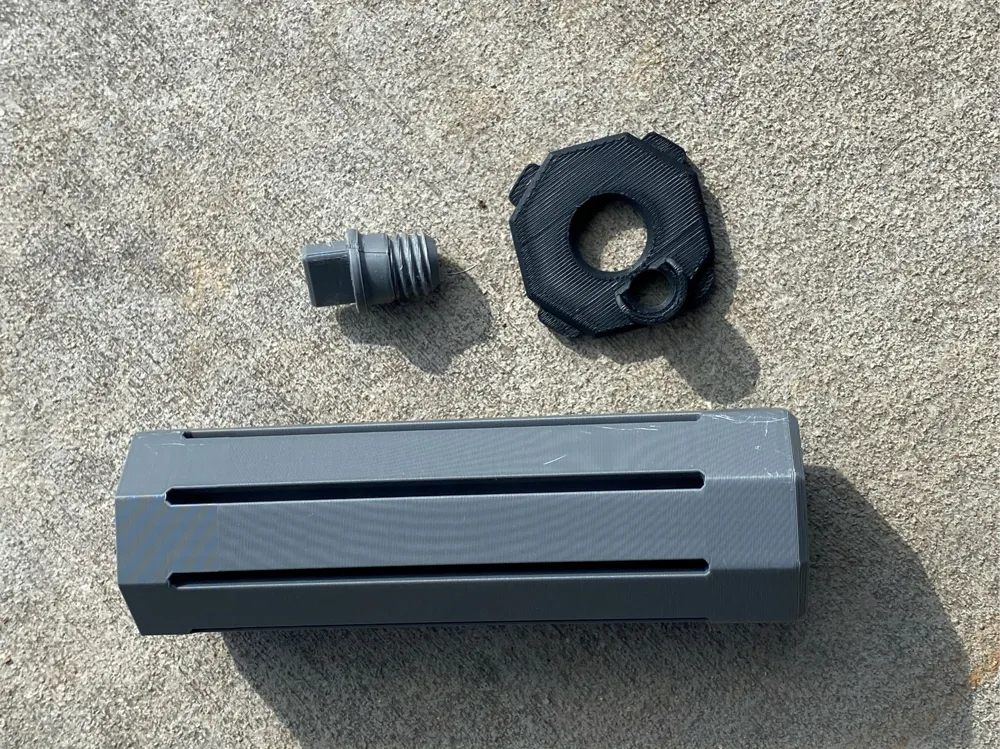

Some assembly required

1. Place the lid on top of the body
2. Push retaining screw through the center hole in the lid piece
3. Thread the screw down into the body, do not over tighten, (may be tight depending on filament used, pliers may be useful to help tighten the screw, may also help to thread screw into the body without the lid and remove to loosen threads)
4. Thread until the lid spins with little resistance

*Update 5/26/2026

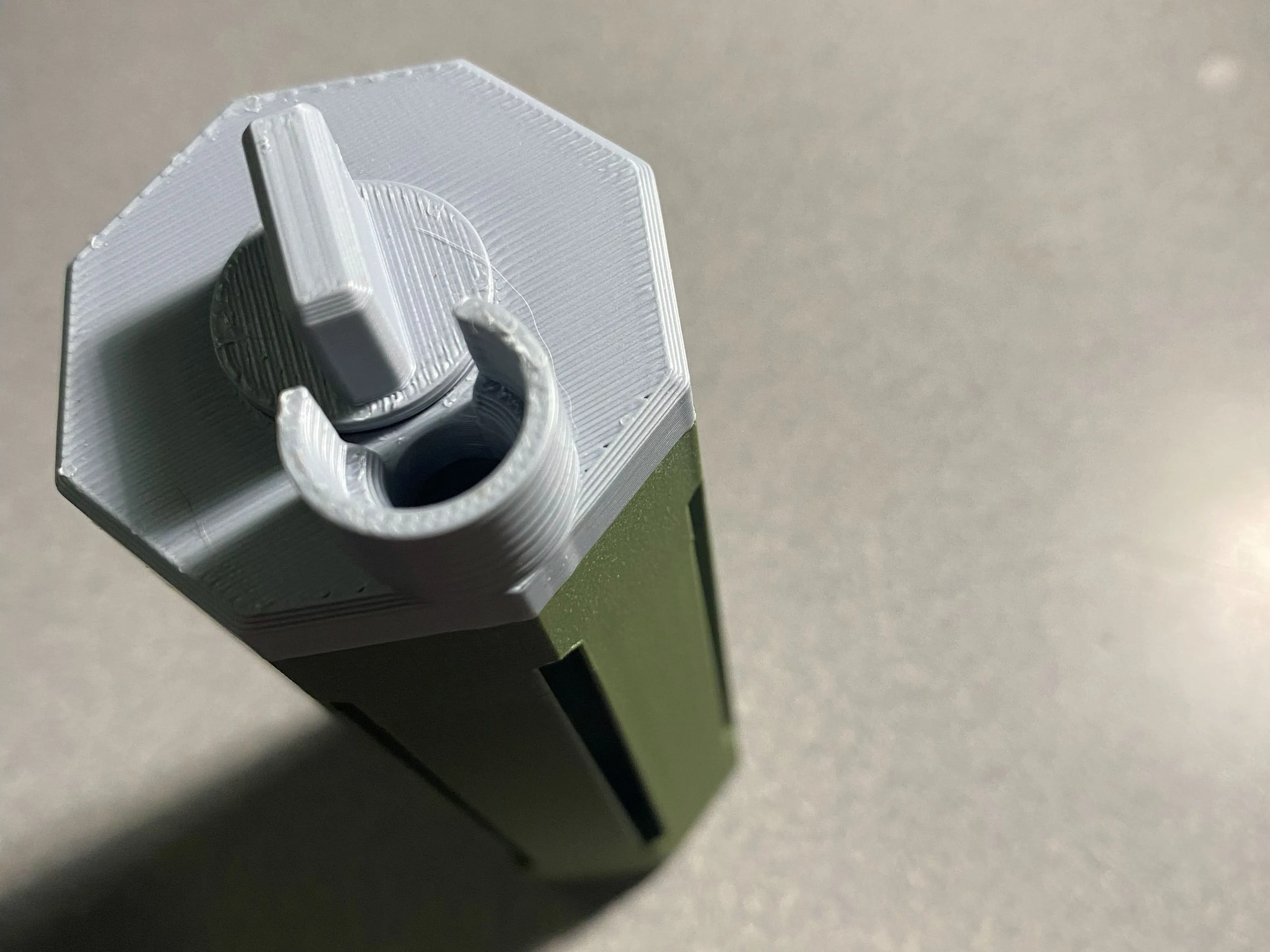

   Changed lid design - rounded feed lips, added grip surfaces (kept old lid design as a print profile if you prefer it)

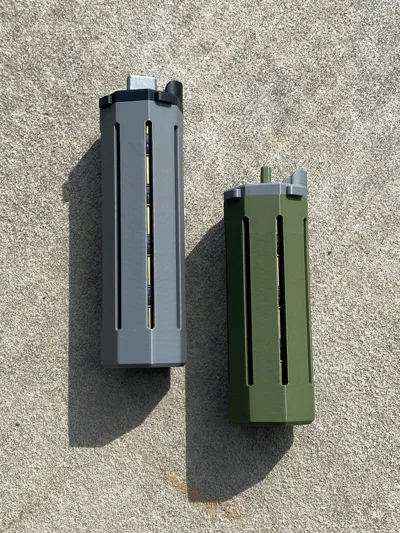

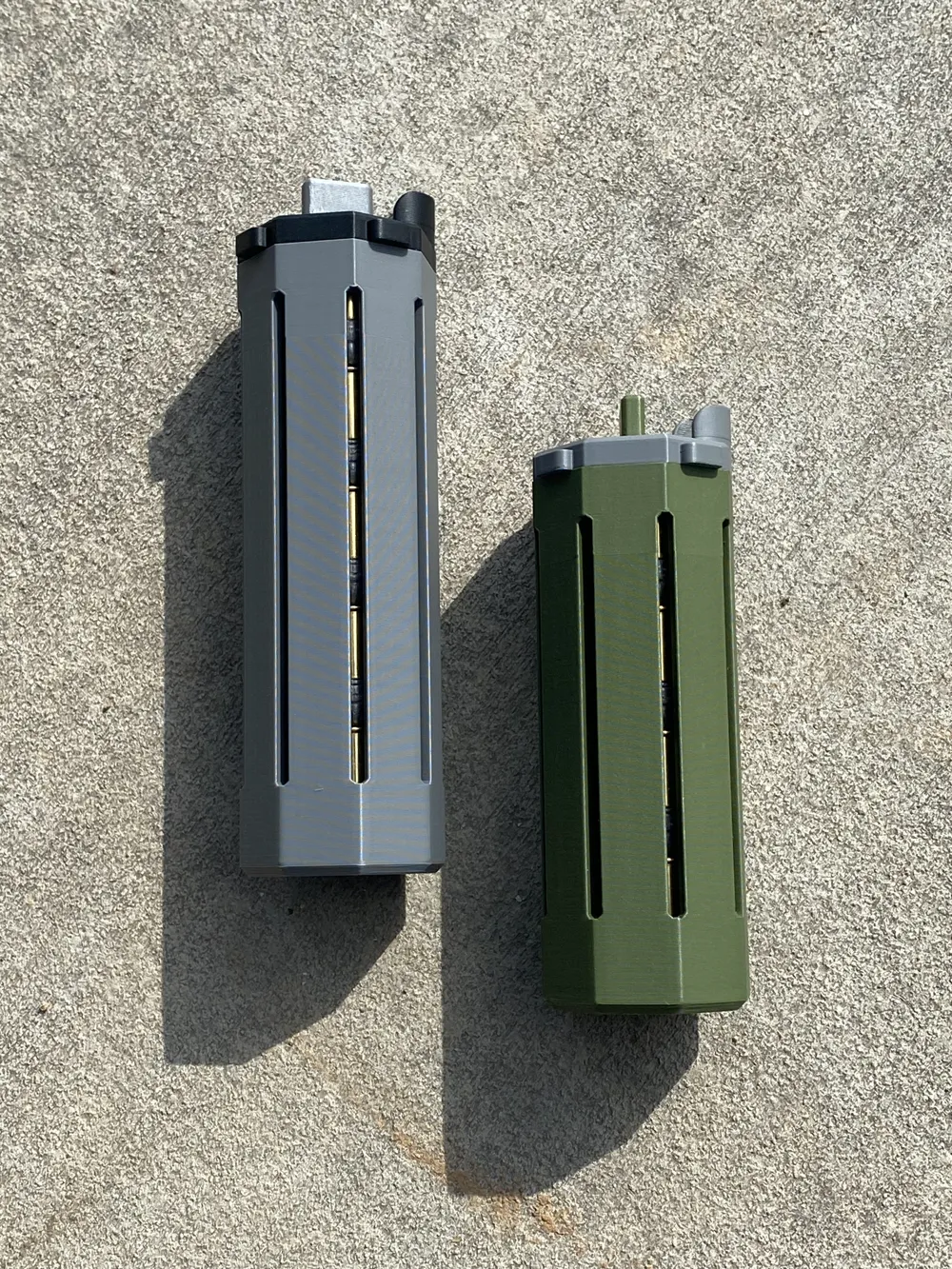

   Added 5rd extended version
