Resin Printer UV Cover Wall Mount

🚀 Free Your Workbench – Vertical UV Cover Wall Mount 🚀

Working with resin printers often means dealing with bulky protective covers (UV hoods) that take up valuable space when they are not on the machine.

They usually end up sitting on the workbench where they can collect dust, resin residue, or scratches.

This wall-mounted support provides a simple and professional solution to safely store your printer cover while you prepare prints, remove models from the build plate, or clean your parts.

Keep your workspace clean, organized, and efficient.

🧩 What this model is 🧩

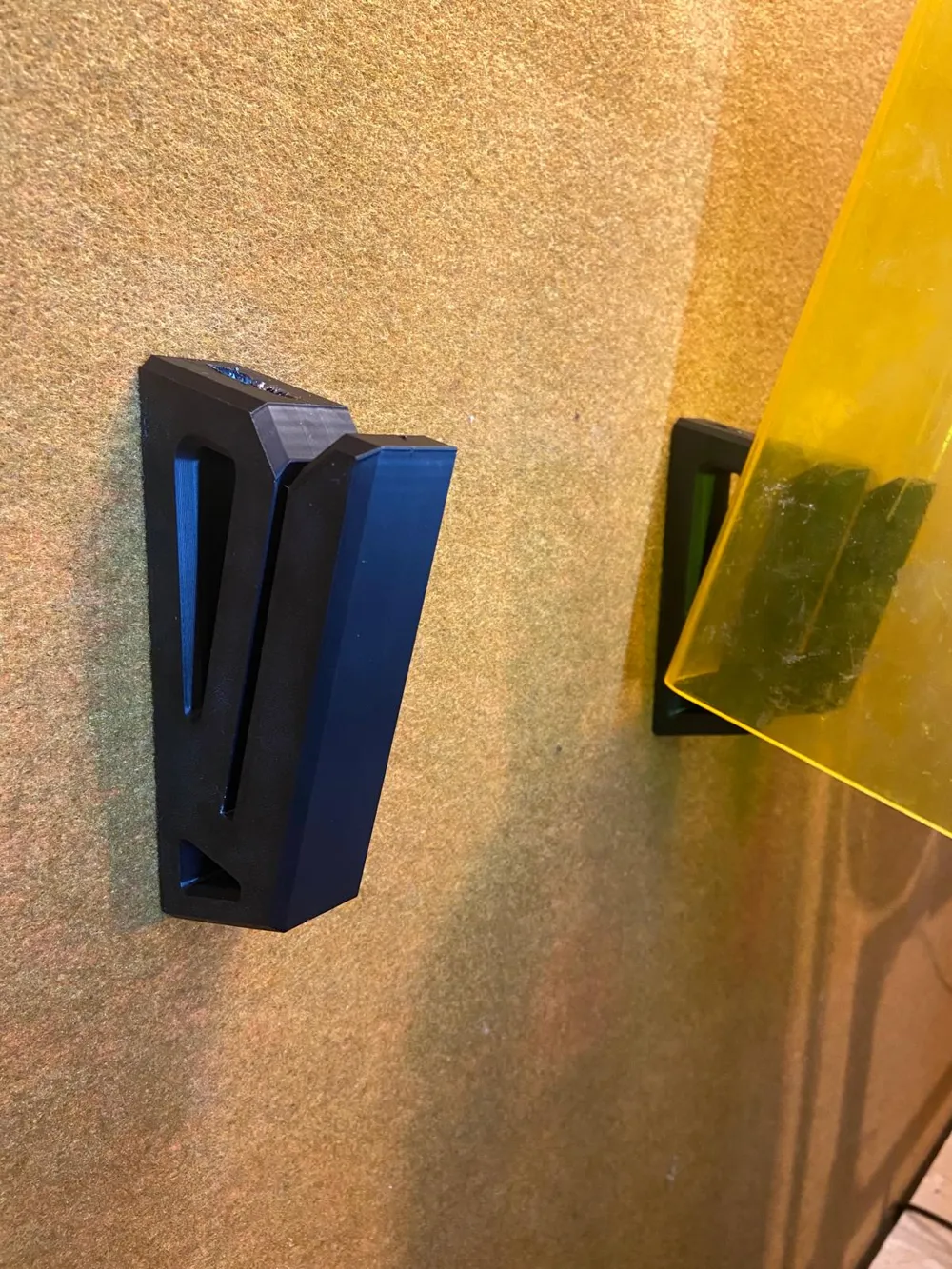

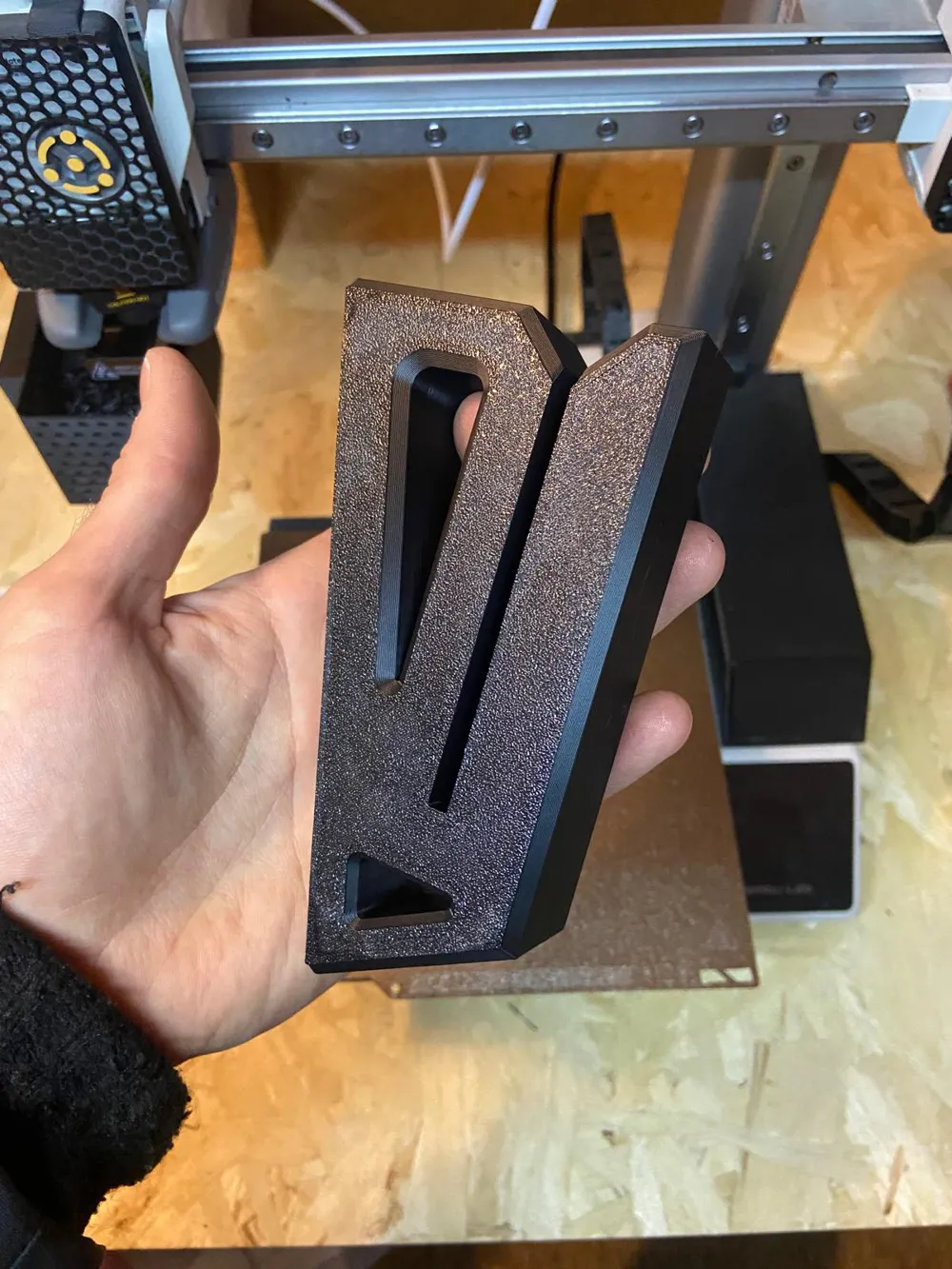

This model is a minimal yet robust wall-mounted support arm, specifically designed to hold the UV covers of resin printers and Wash & Cure stations.

Key features:

• Lock-in Design – the inverted V-shape allows the cover to slide into position and remain securely supported against the wall.

• Protection – prevents the cover from falling or collecting dust and resin residue from the workbench.

• Universal Compatibility – works with many common resin printer covers such as Anycubic, Elegoo, Creality, and similar machines.

🛠 Installation 🛠

The support includes reinforced mounting holes to ensure the weight of the cover does not stress the printed part over time.

For best results we recommend:

Wall Plugs (Anchors): 6 mm diameter – 40 mm length
Screws: 4 mm diameter – 50 mm length

Installation Steps

1. Print two supports (one for each side) for optimal stability
2. Mark the mounting points on the wall, ensuring both supports are aligned
3. Drill the holes and insert the 6×40 mm wall plugs
4. Secure the supports using 4×50 mm screws

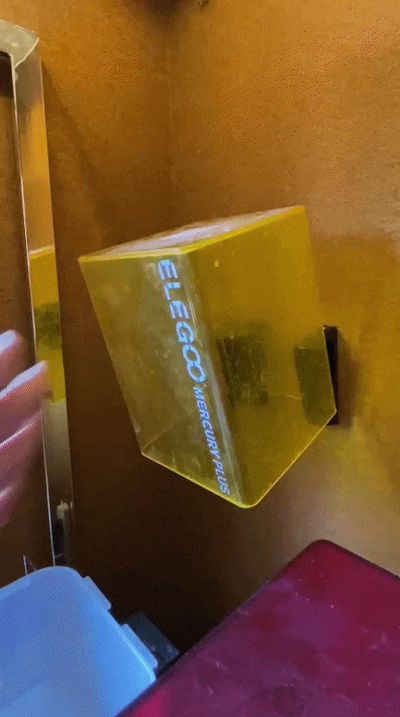

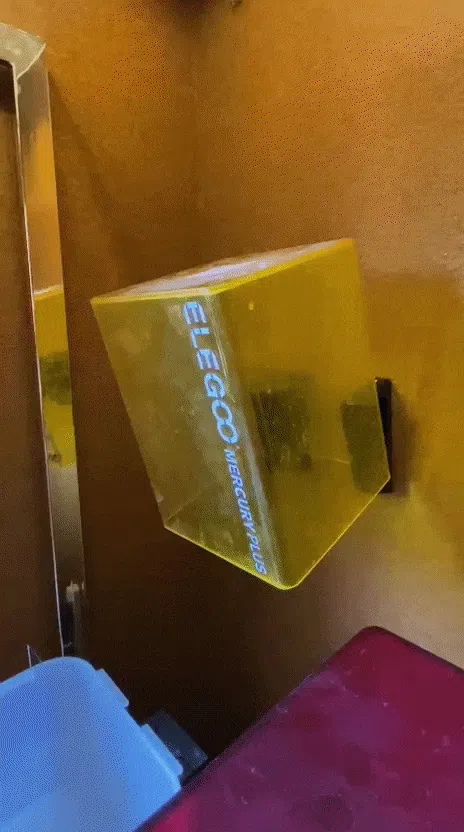

5. Slide the UV cover into place

Your printer cover will now be securely stored and easily accessible.

🖨 Recommended Print Settings 🖨

Material: PLA or PETG (PETG recommended for improved durability)
Layer Height: 0.2 mm
Wall Loops: 2
Infill: 5% Honeycomb
Supports: Not required

🏠 Compatibility

Designed to support most standard UV covers for resin printers and Wash & Cure stations.

Compatible with covers commonly used by brands such as Anycubic, Elegoo, Creality, and similar resin printing systems.

💡 Why I created this model

Working with resin printing requires a clean and organized workspace.

I needed a simple way to store the printer cover during post-processing, without leaving it on the workbench where it could get dirty or damaged.

This wall mount transforms a bulky object into a clean and organized element of your printing lab.


If this model helped improve your workspace:


⭐ Give the model a Like
🔁 Share it with the resin printing community
📸 Post a Make of your setup


Happy printing!
