1290 Super Adventure R/S windscreen offset
IP Report
Print Profile(1)

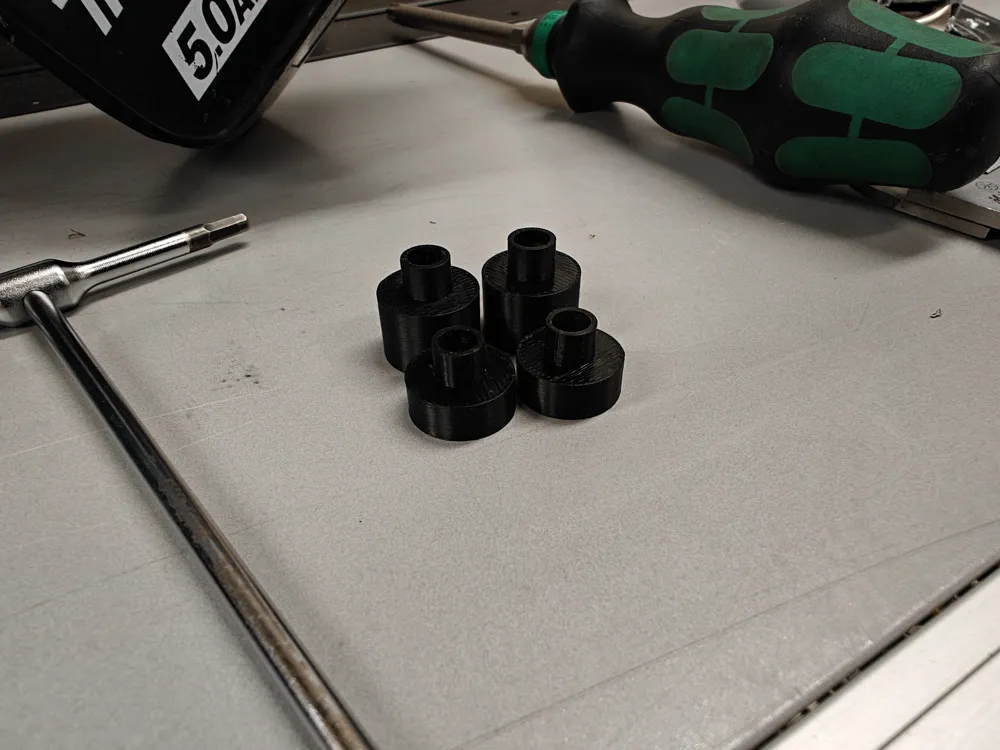

0.6mm - 5.5mm - 8mm - 10mm - 12mm adapters
Designer
45 min
1 plate
Open in Bambu Studio
Boost
8
19
0
0
8
7
Released
Description

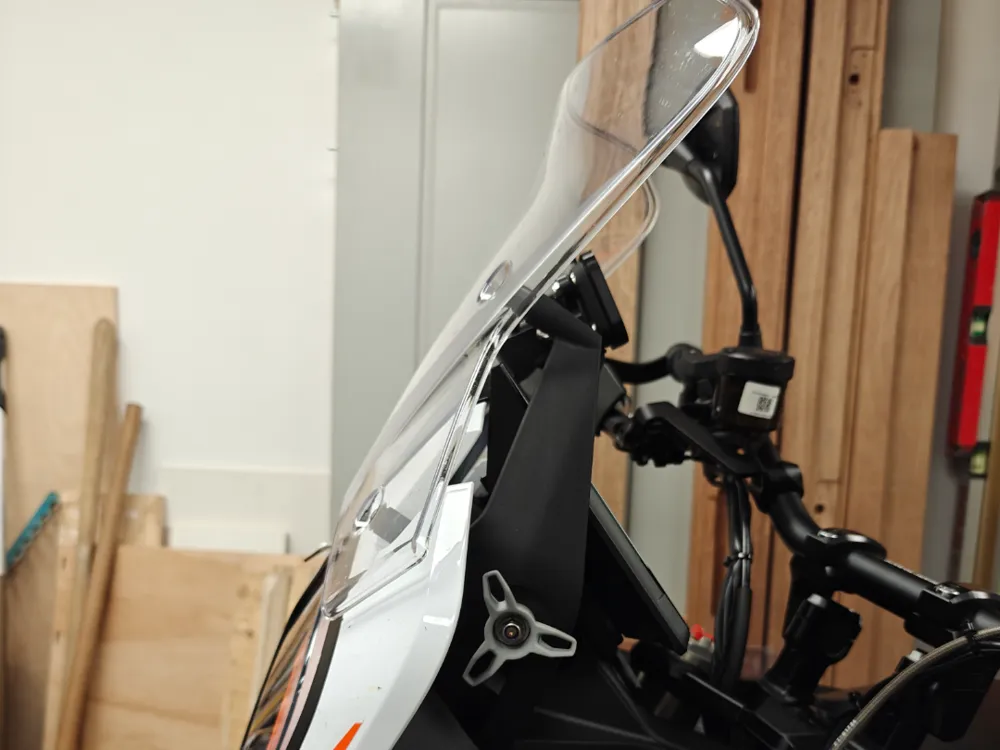

Some simple adapters for the KTM 1290 Super Adventure R and S (2021+ tested) windscreen to make it tilt more forward on the top mounting points.

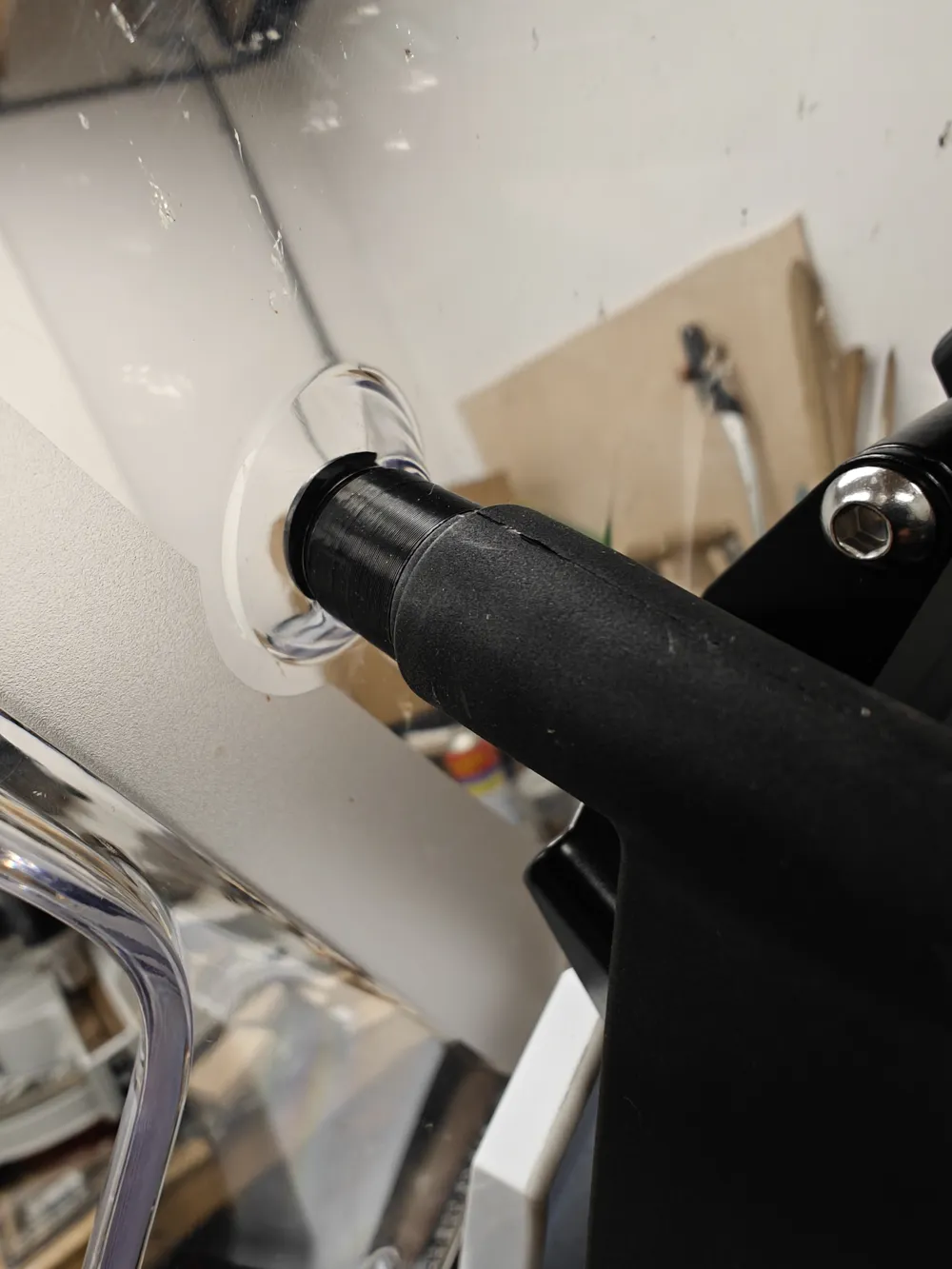

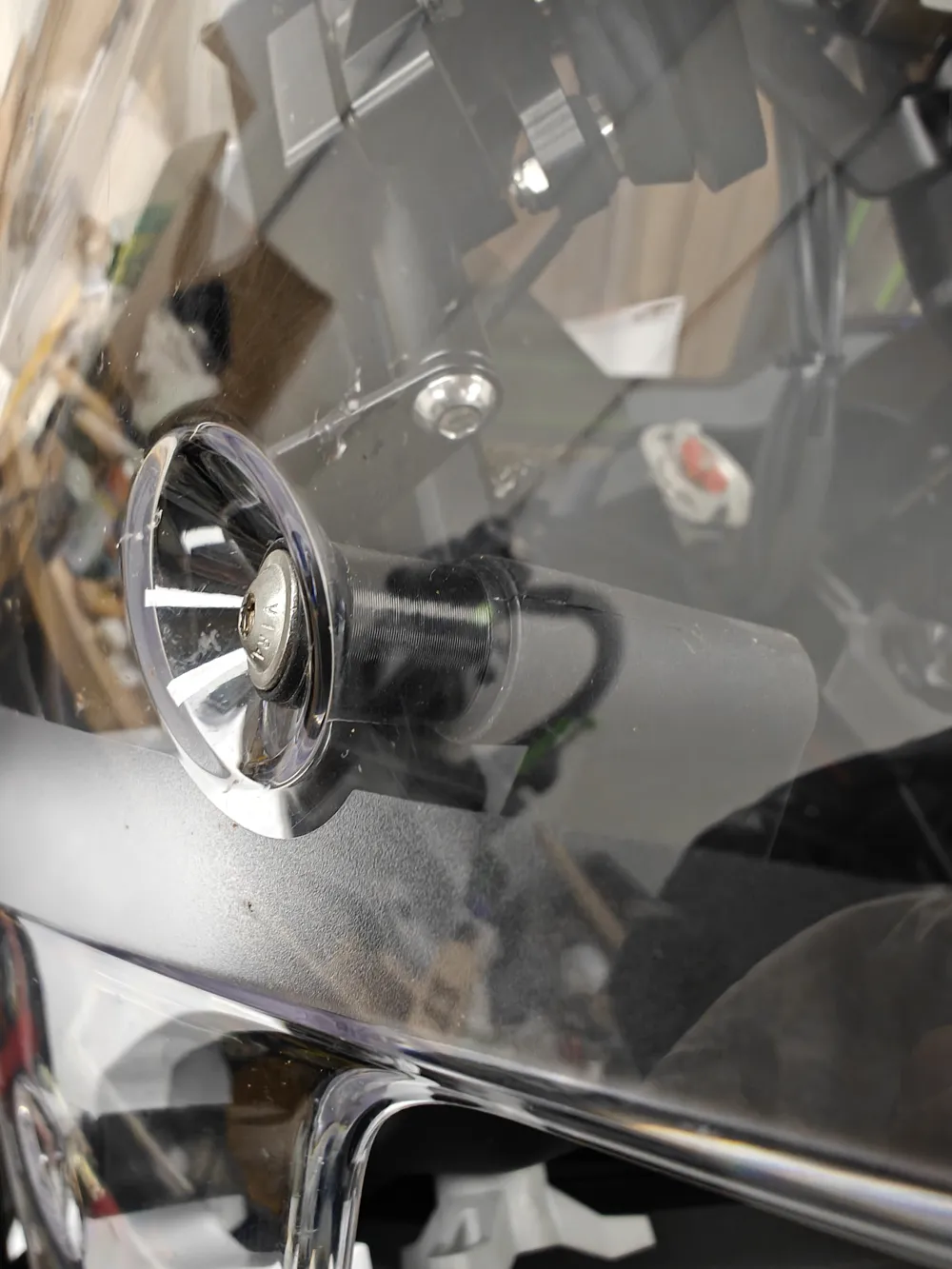

As a taller super adventure owner the wind hits my helmet visor which is very loud, so i made these to make it simple to test some different setups. The small cylinder goes into the rubber grommet preventing the windscreen to be cracked when overtightening a regular M5 screw like the original screws do.
Also added the 0.6mm thick spacer to use on the bottom mounting so i could have matching screws on all 4 positions, I used BHCS screws.
ABS/ASA or similar weatherproof filament is recommended.
