mt32-pi case for Zero 2 W and MiSTer

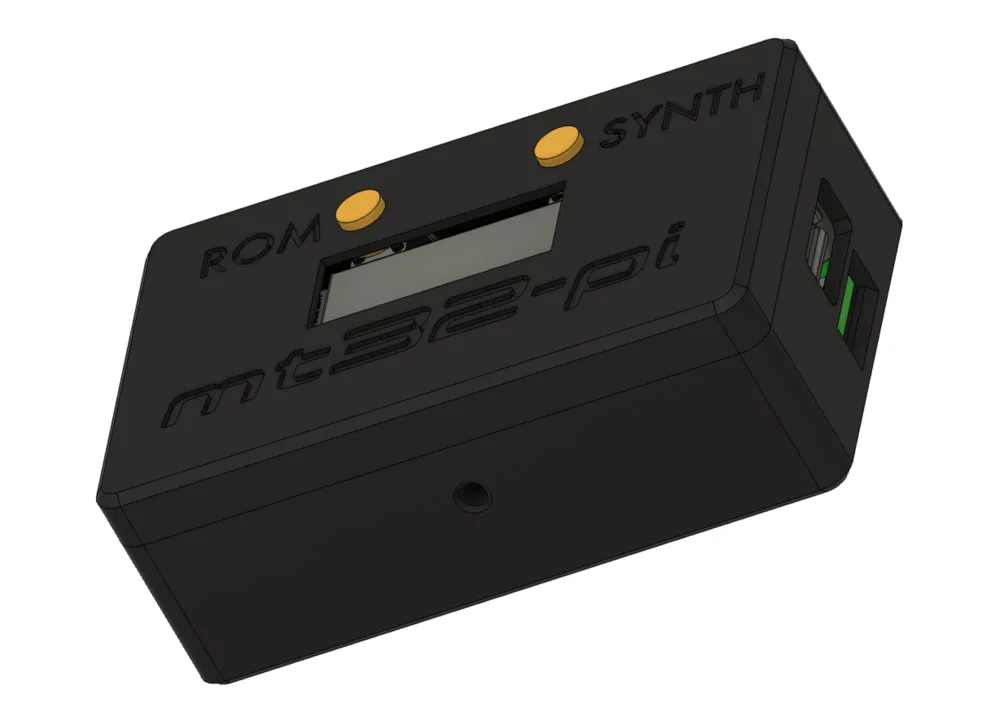

This is a mt32-pi case for the Raspberry Pi Zero 2 W and the mt32-pi hat sold by Yavimaya.

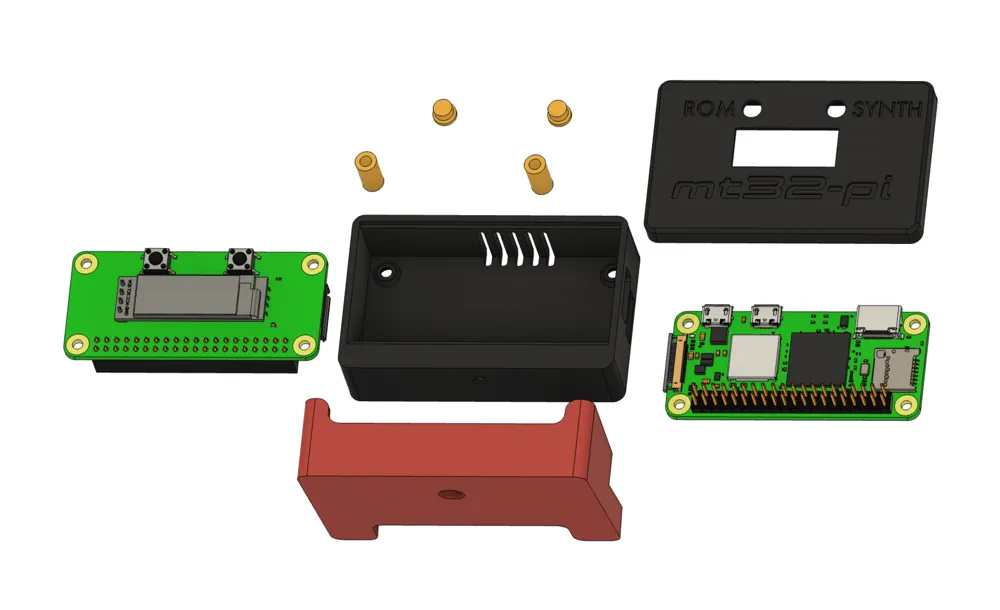

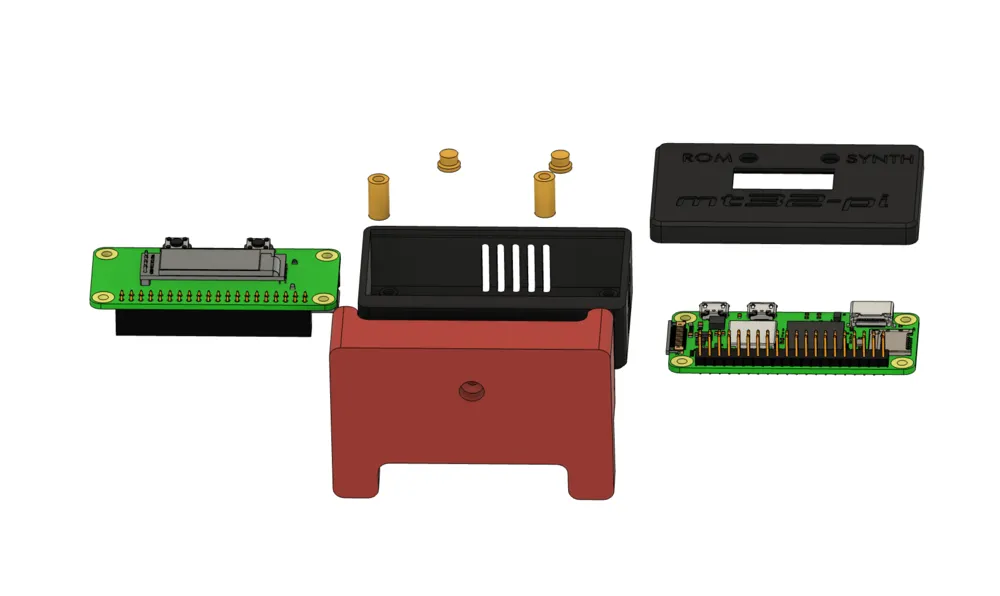

The design includes 2 case pieces (front and back), a 11 mm spacer and 1 button. You will need to print off 2 buttons and 2 spacers.

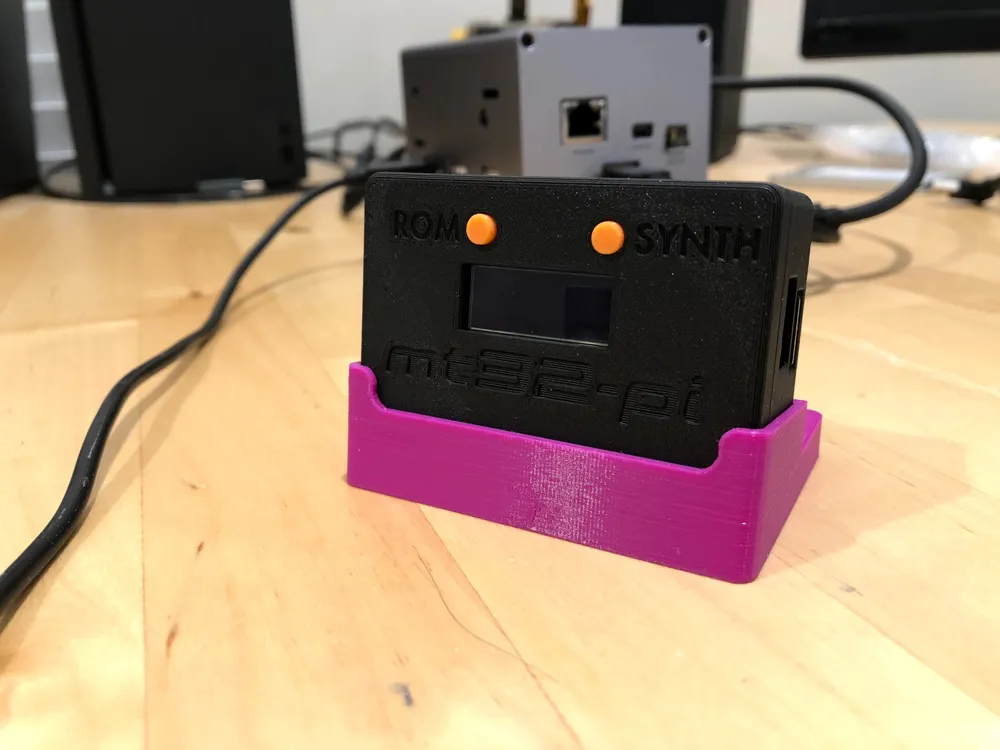

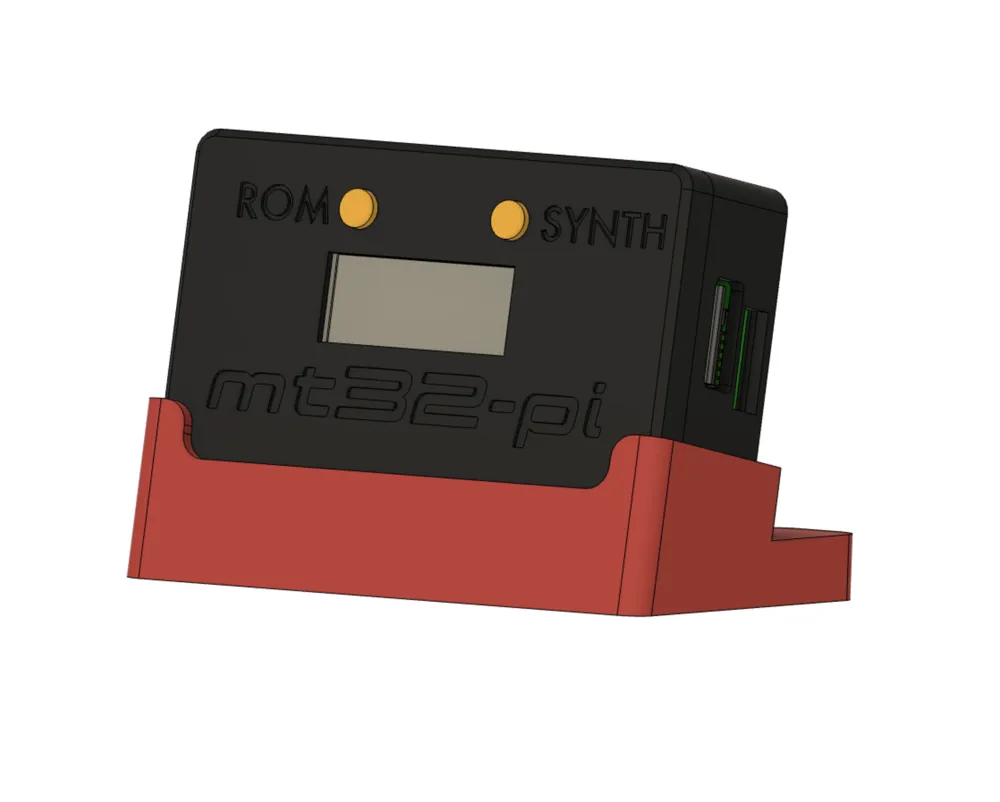

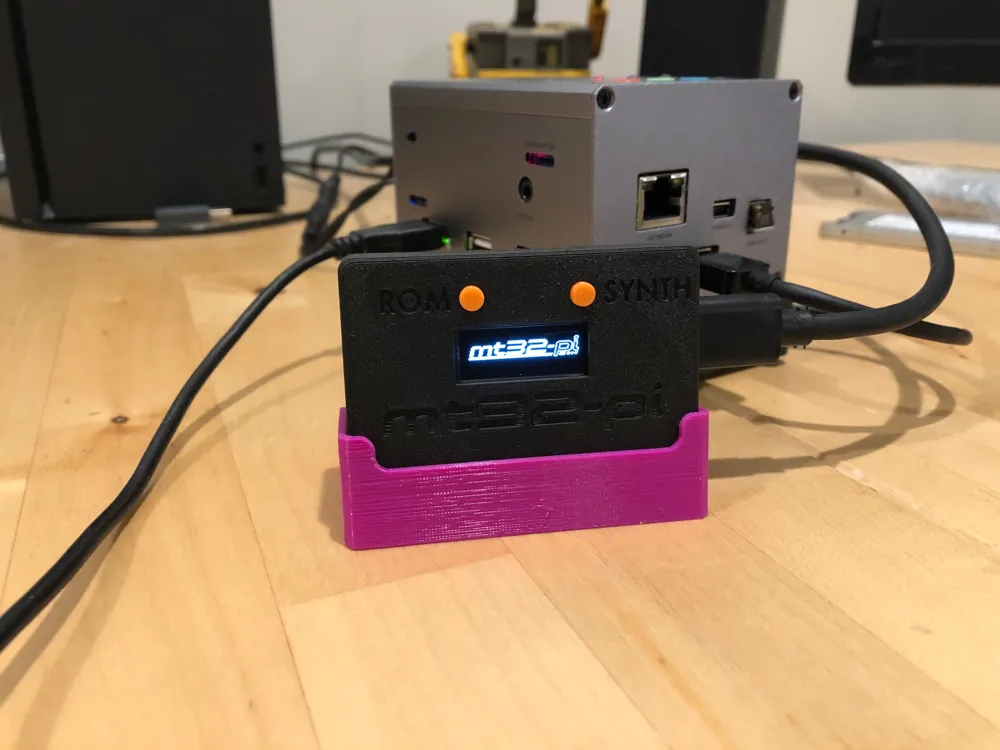

I have also included an optional table top stand for the mt32-pi that has a spot for a m3 x 10mm screw to attach them together. This help makes everything more stable and look nice.

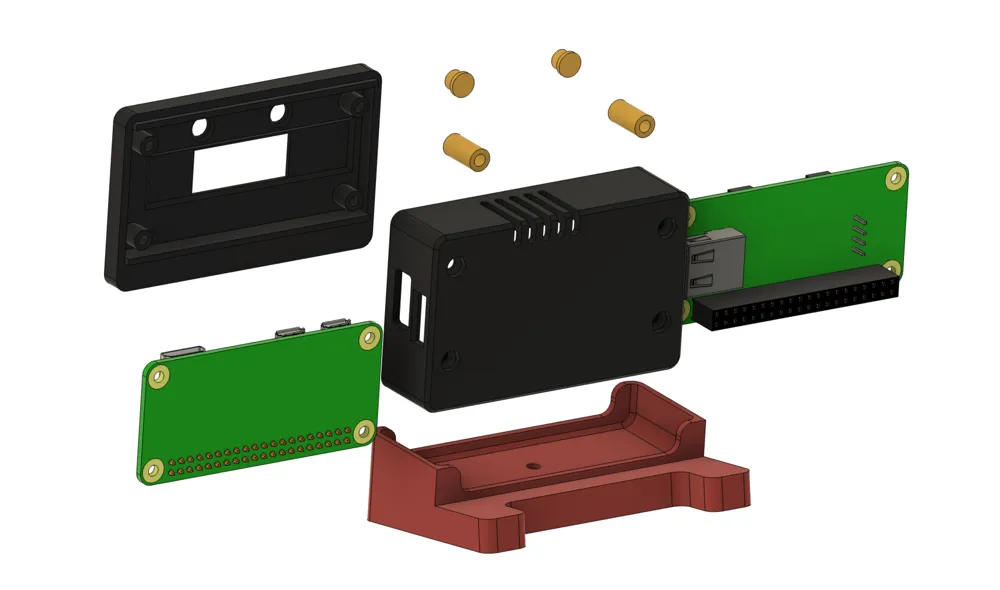

The tolerances are designed tight, but will print and function correctly on a Prusa. The 2x 11mm spacers are used between the Pi and the Hat at the top of the case to correctly space them apart. They aren't required at the bottom since that's where the headers between the Pi and Hat is at and correctly spaces everything.

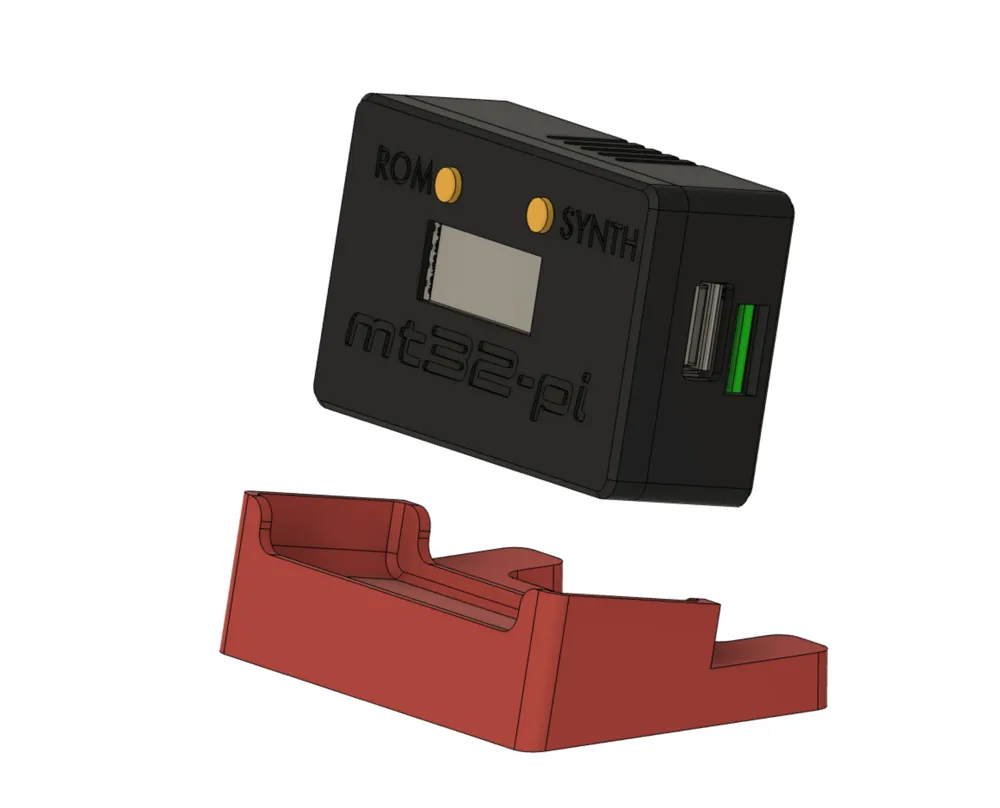

Assemble the case with 4 x m2.4 or m2.5 screws. 18 or 20mm long. The stand can optionally be attached to the bottom of the case with a m3 x 10mm screw. I added the screw mount to the bottom of the case so it can be possibly mounted in other sorts of ways or if you want to design your own mount/stand/base.

You can buy his mt32-pi hat from his store:

https://www.tindie.com/products/taviens/mt32pi-hat-for-zero-2w-model-raspberry-pi/

Learn more about mt32-pi here:

https://github.com/dwhinham/mt32-pi

I hope to eventually be able sell the case complete with Pi and hat at my shop:

https://retrofrog.net/
