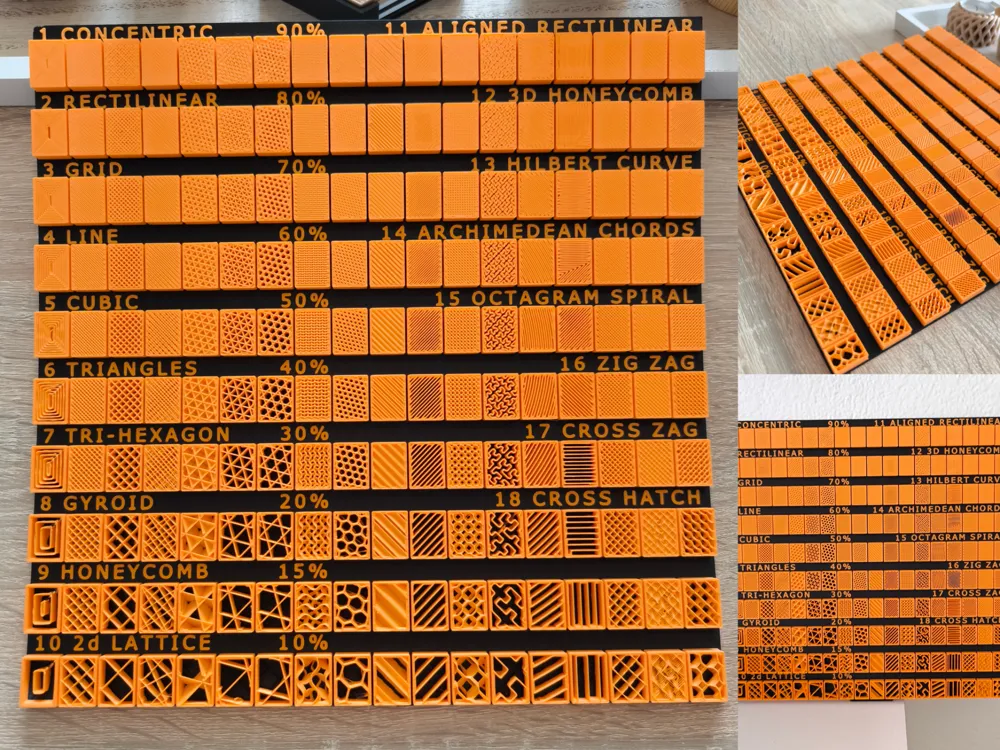

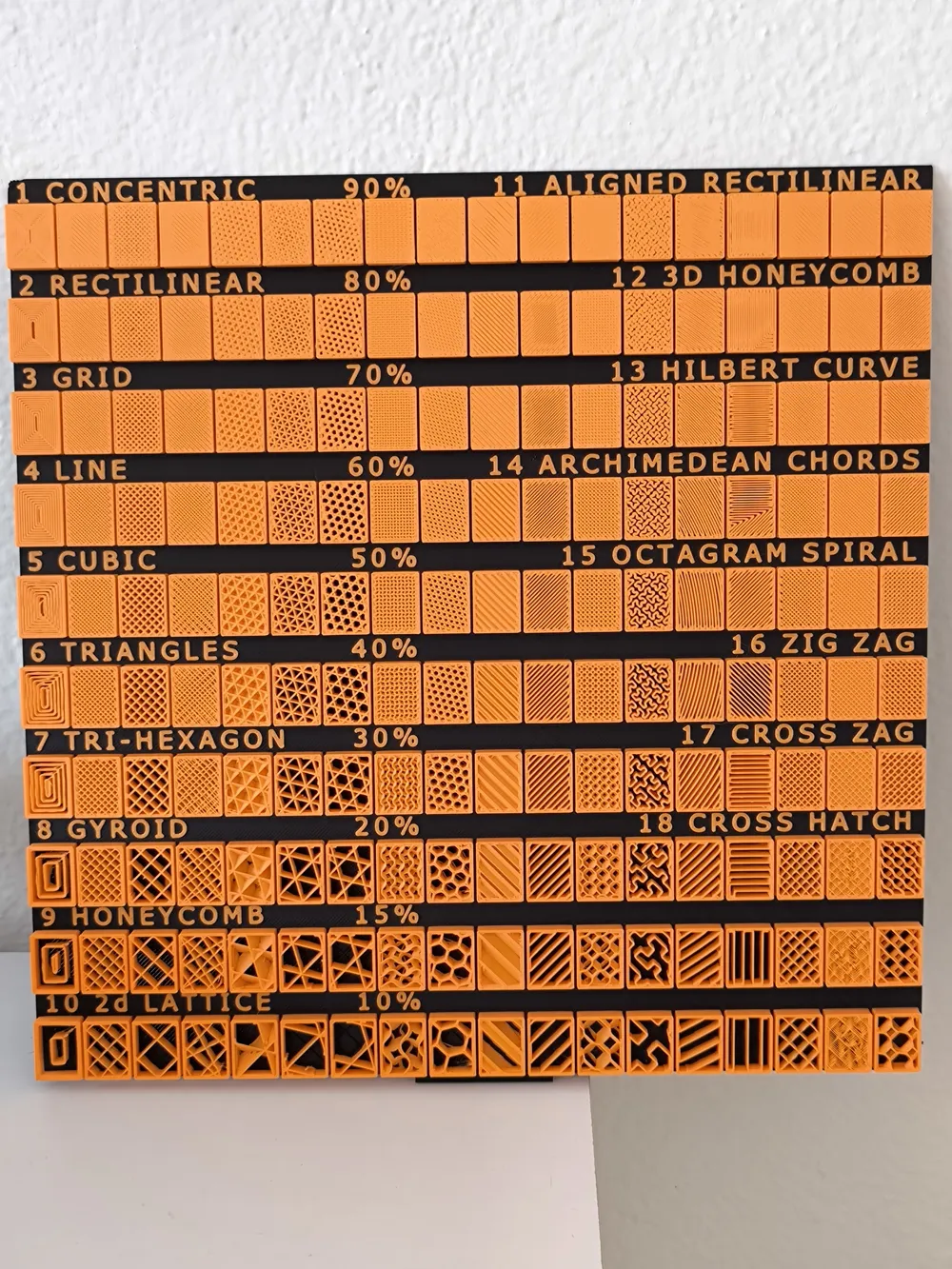

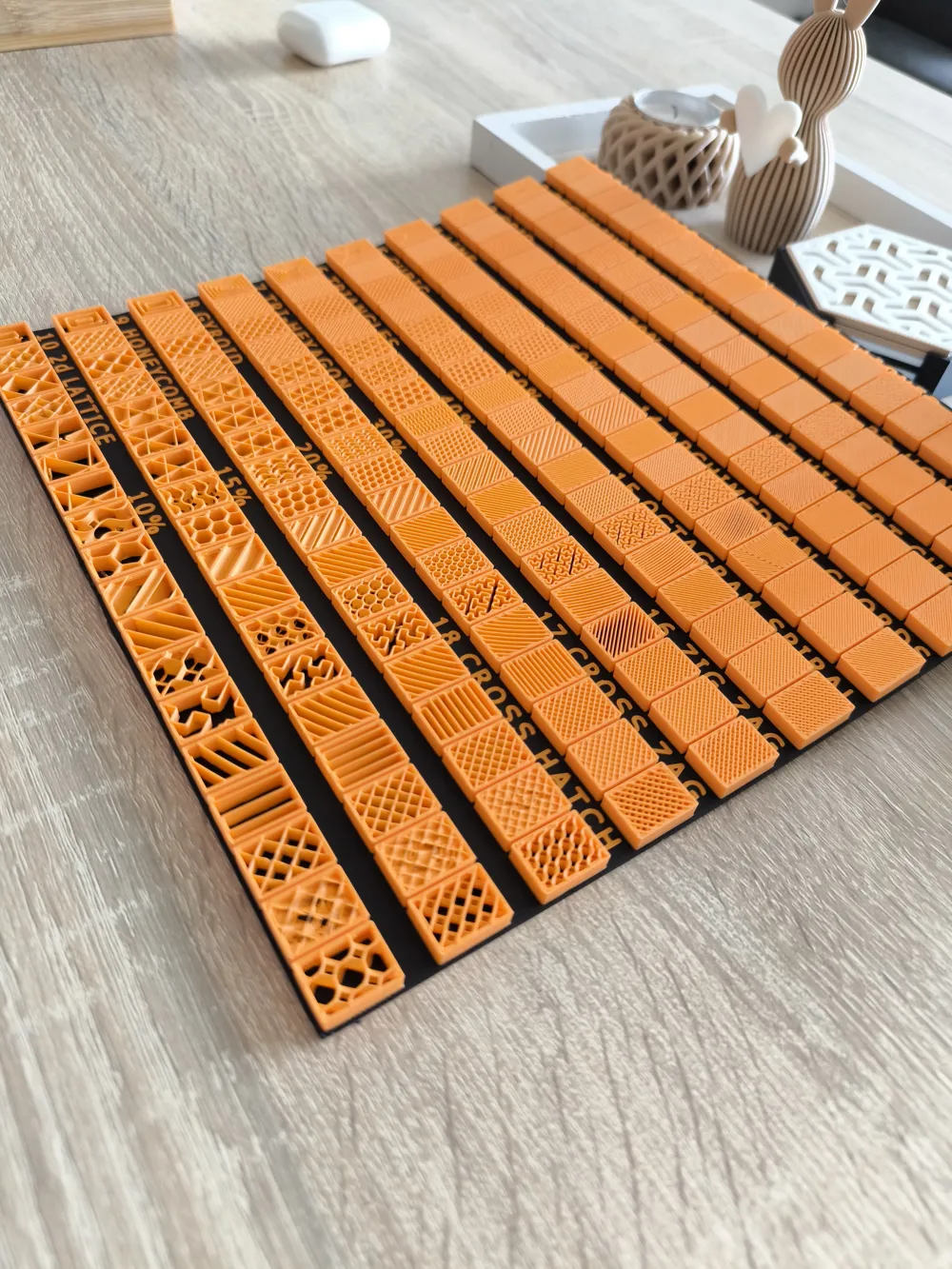

The Ultimate Infill Density & Pattern Test Map is a practical calibration tool designed to help you compare different infill patterns and infill densities in a single print.
This test plate shows how various infill patterns behave with different density settings, making it easier to choose the right combination for strength, material usage, and print time.
The density range goes from 90% down to 10%, including 15% infill density, which is commonly used as a default setting in many slicers.
All infill patterns are printed on a base layer, which allows flexible color options:
• Print the base layer in the same color for a single-color print
• Or use one color change to highlight the patterns and text
A useful tool for printer calibration, slicer tuning, and learning how infill patterns affect your prints.
If you like this test, you can also check the other ones :)

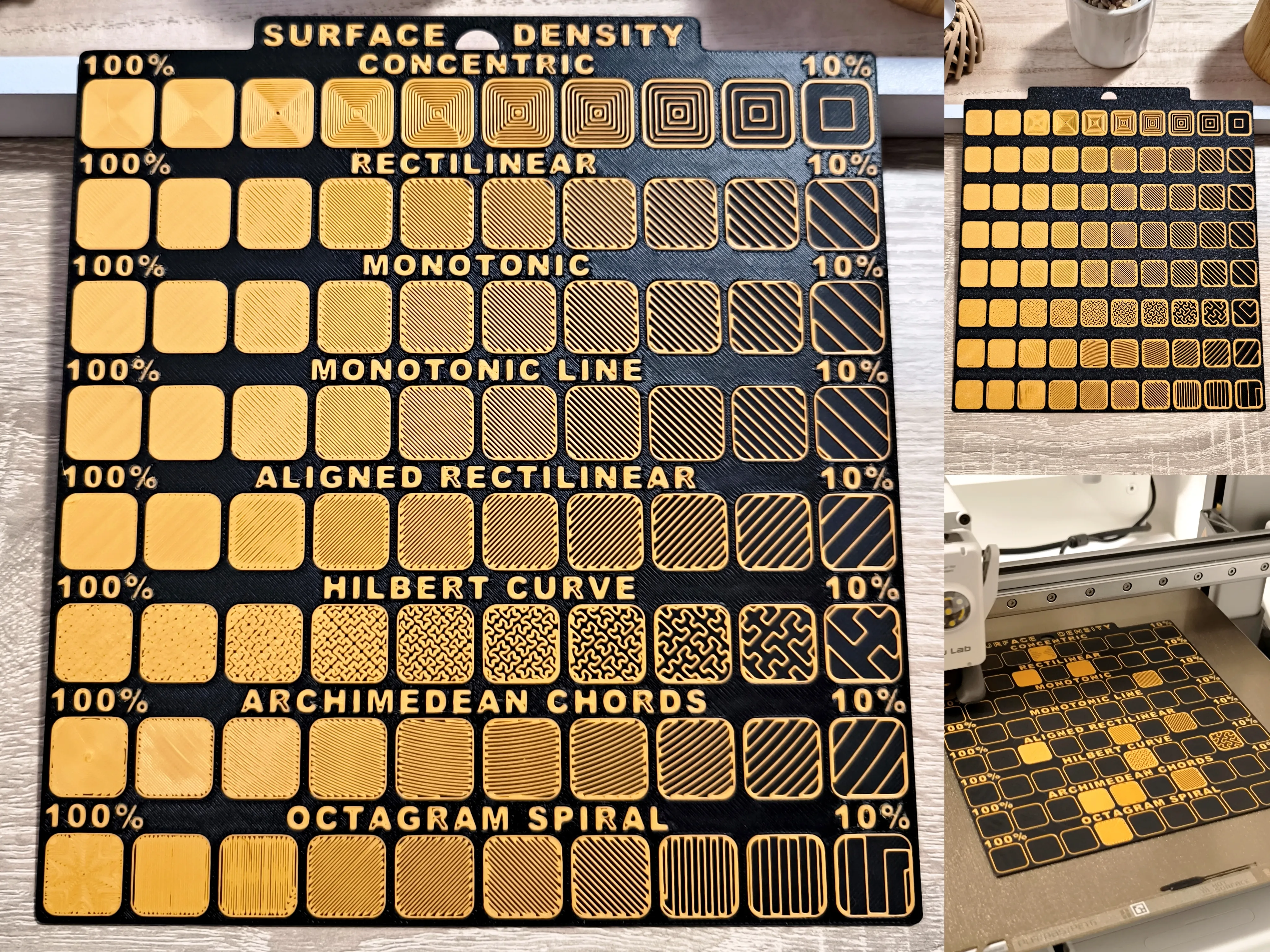

Ultimate Surface Density Test Map / Table
https://makerworld.com/en/models/2456375-ultimate-surface-density-test-map-table#profileId-2697059

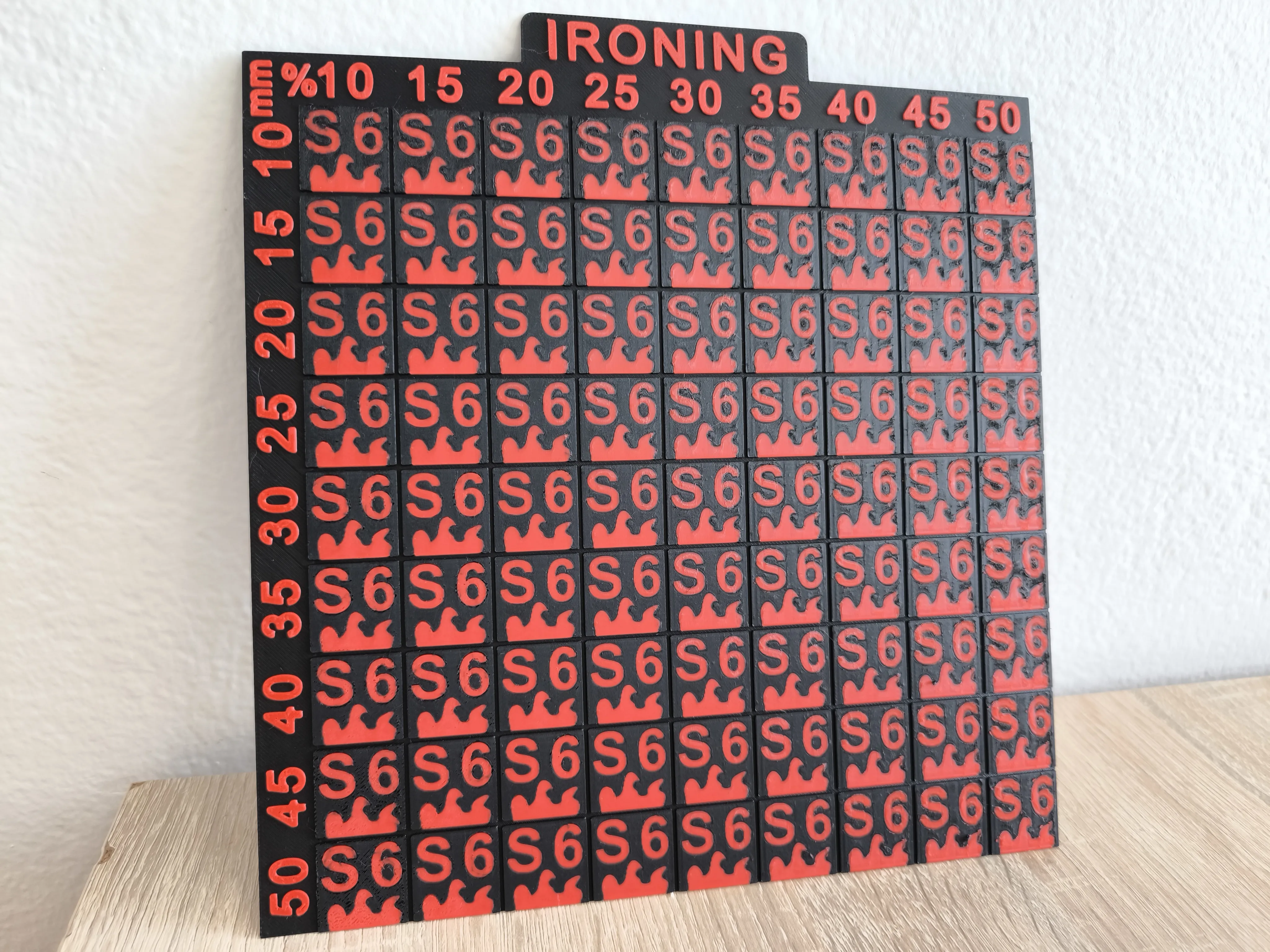

Ultimate Multi-Color Ironing Test (Text & Shapes)

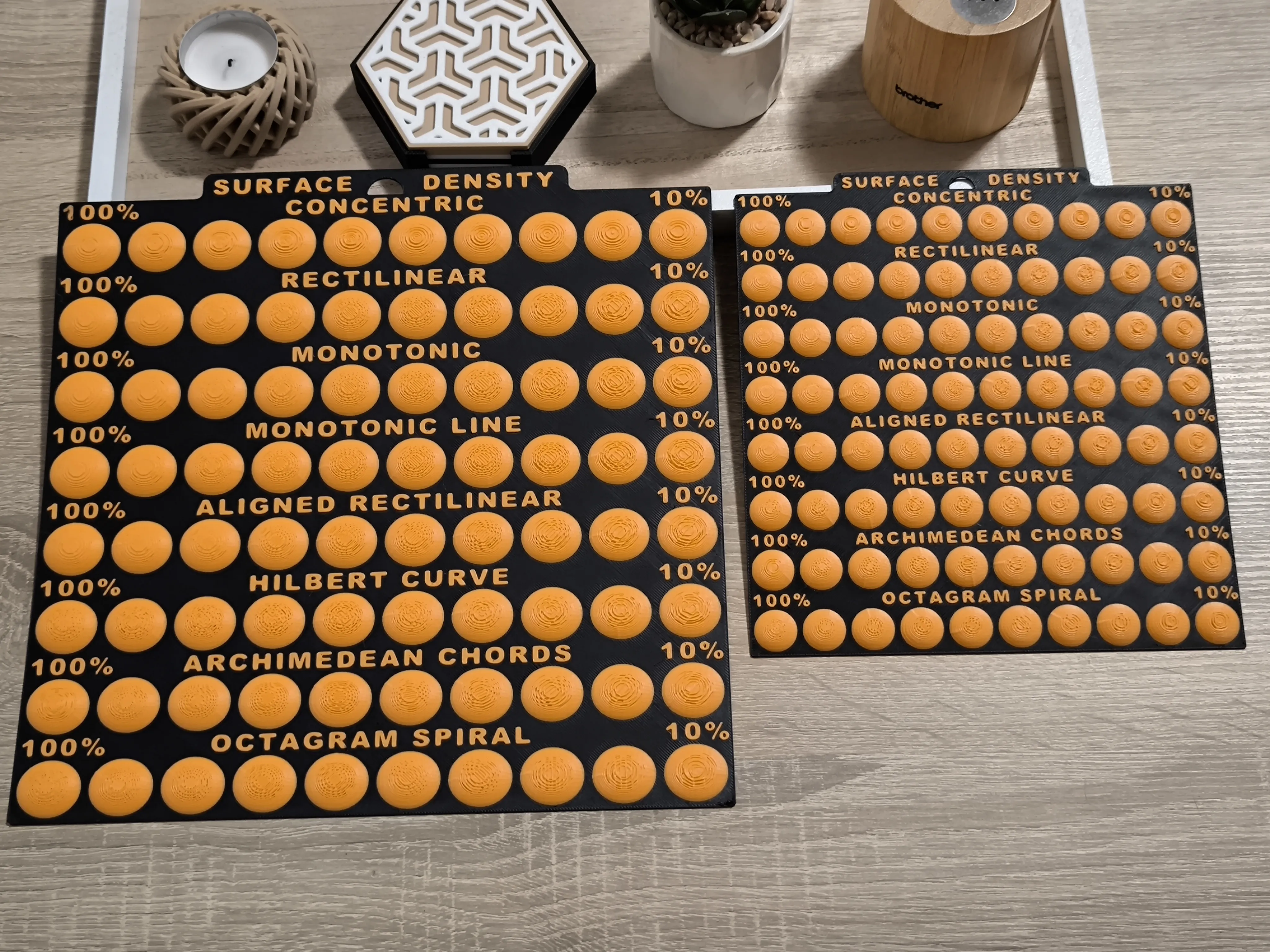

Ultimate Curved / Round Surface Density Test Map
https://makerworld.com/en/models/2473484-ultimate-curved-round-surface-density-test-map#profileId-2715959
