Description
~~UPDATE [5/30/26]~~ I've added many individual files beyond the main print profile, download the individually

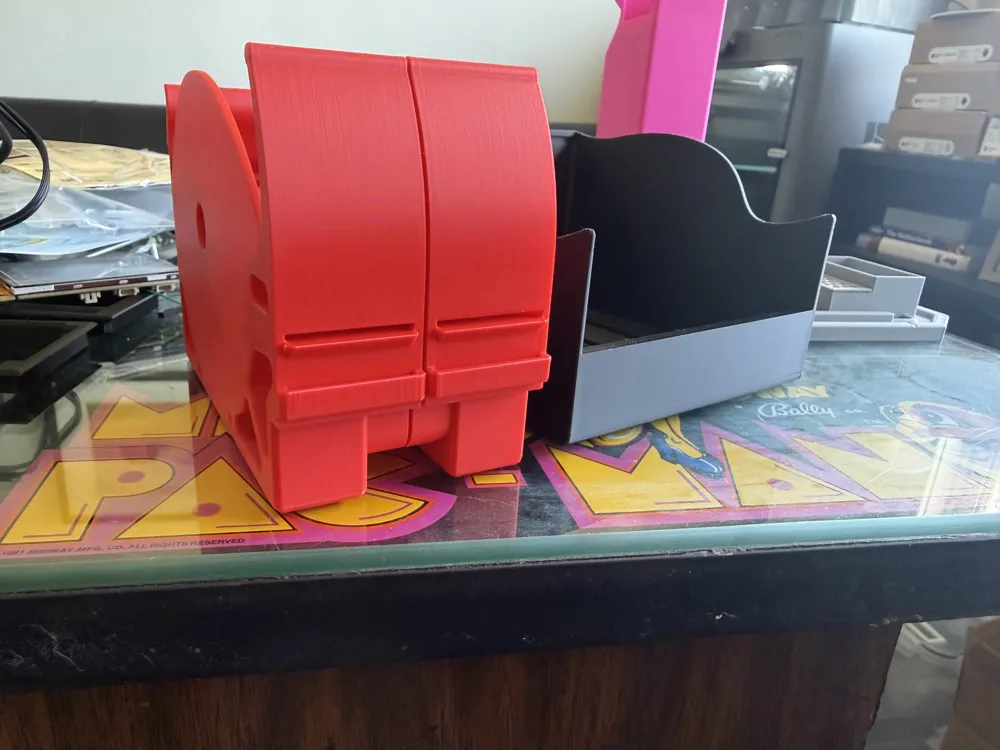

This was intended for only 1 size label. After a few requests I have added a double wide (2 space) cartridge and now 1-½ Space pair that occupies 3 spaces.
As well as bodies for holding 2 and up to 10 cartridges.
Opening width for the labels:
Single Cartridge (original) can take tapes up to 0.74" (18.8mm)
Double Wide Cartridge will do 1.65" (41.9mm)
1-½" Left/Right pair (3-Space) can each do 1.16" (29.4mm)
The wheels are optional, they are a bit snug. If you use the wheels run some sand paper through the center a few times, or don't use them.
~~~~~

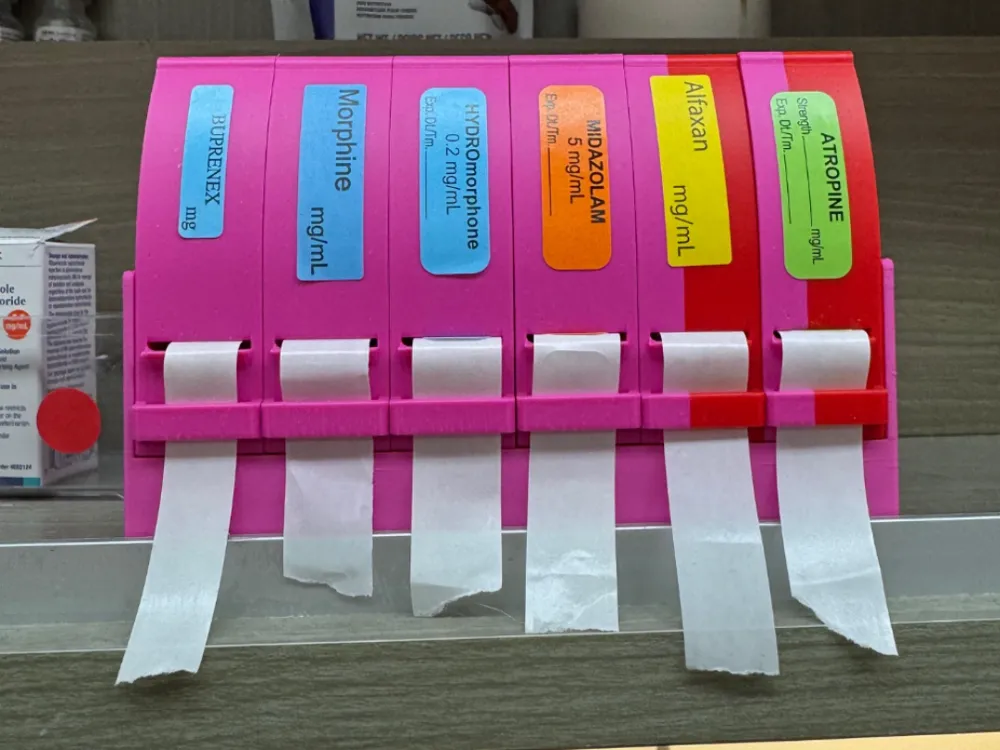

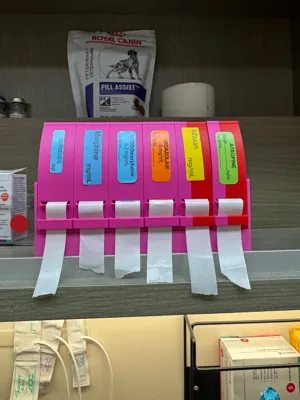

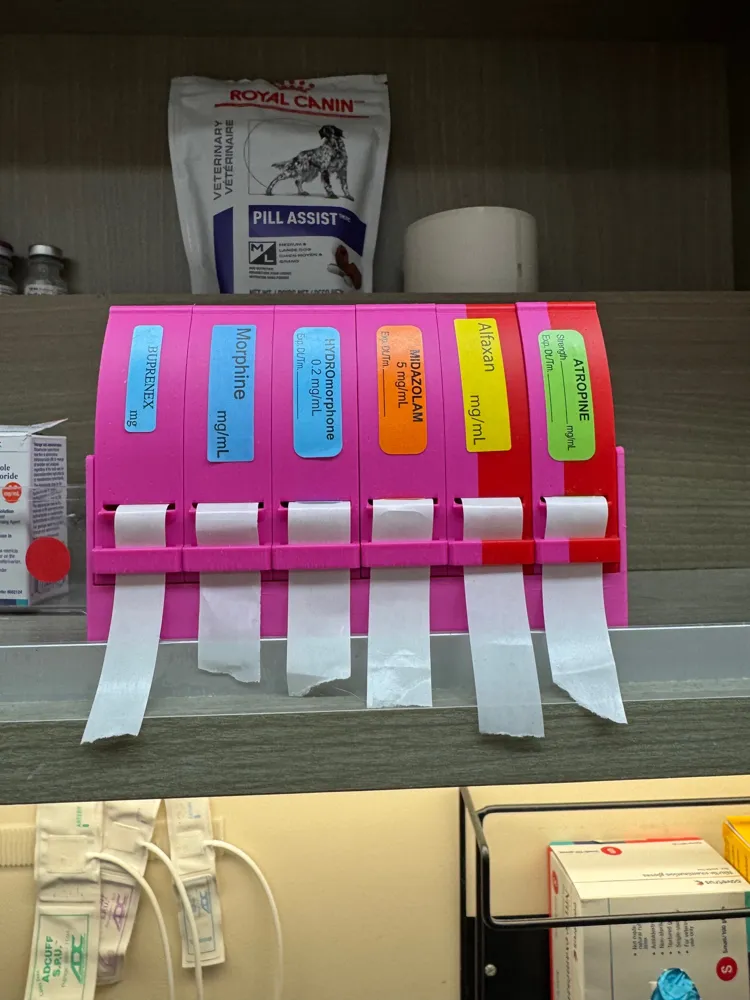

This is a cartridge base Anesthesia label holder for 2 through 6 cartridges. I tried some other models but the photos, video and actual files didn't match so I made my own. No hardware to by, 100% print. I added a wheel to keep the labels centered and spinning freely but they may need some clean up if you print on default settings to spin nicely and they are optional, not necessary at all.

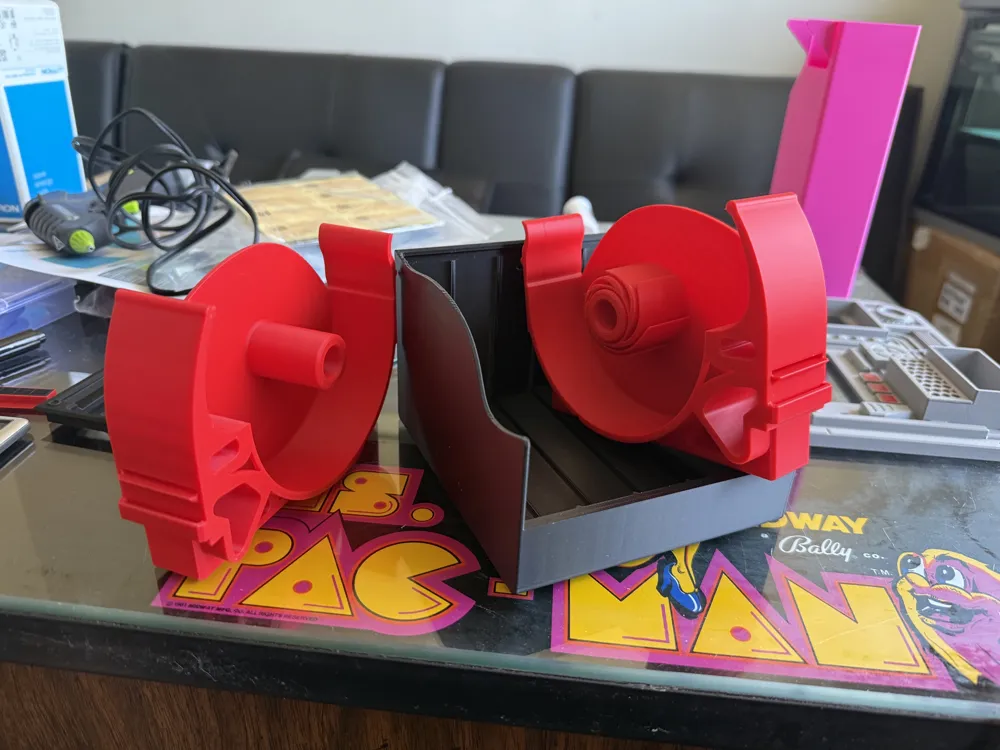

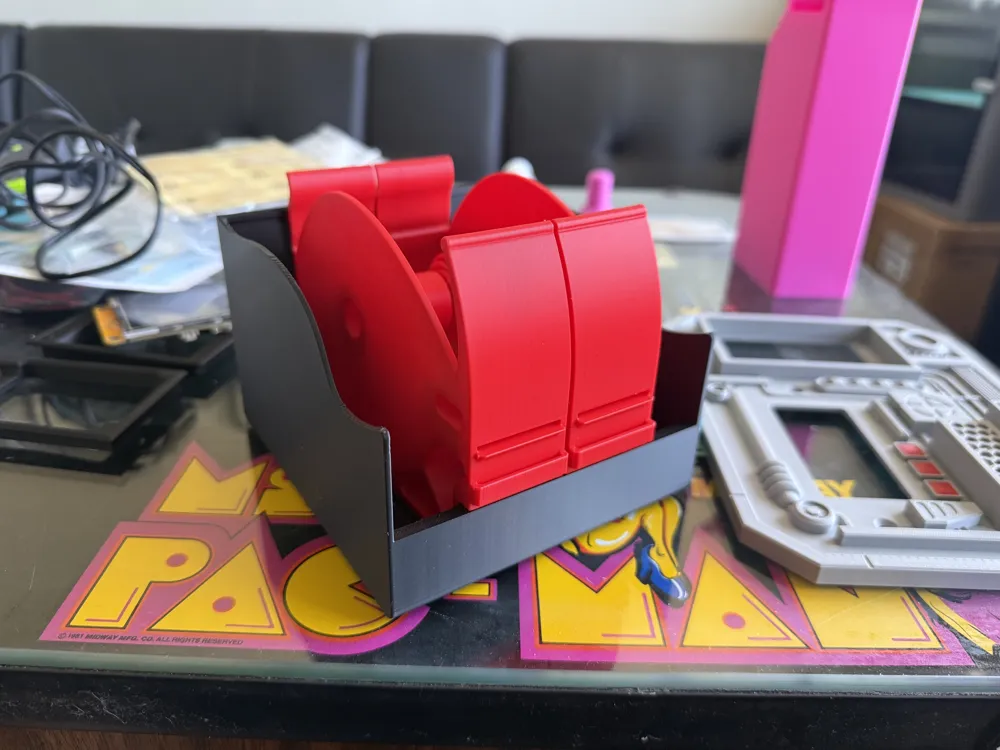

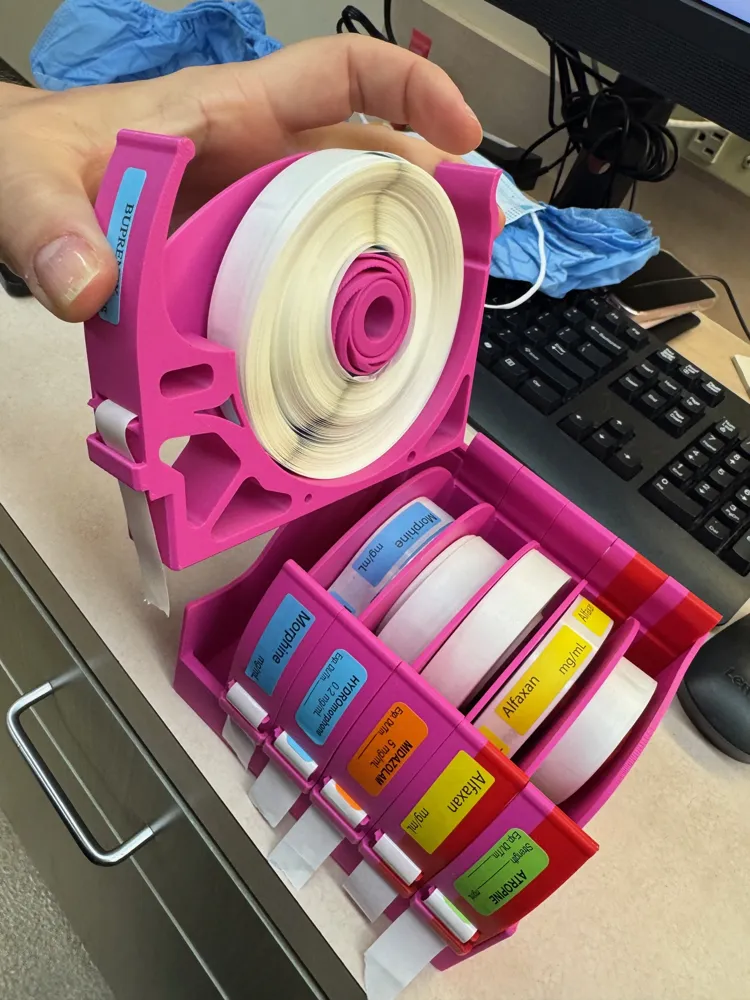

The other models that flipped out, always had something in the way. I toyed with that design for too long before I thought of this for independent label changes / resupplying. Cartridges gently snap in, and squeeze to release tab to pull out vertically.
If you need for more or less cartridges I may take requests. This fit well in my P2S and could probably get up to 8 position in 1pc.
