SCX24 - Land Rover Series 3 D110 Body

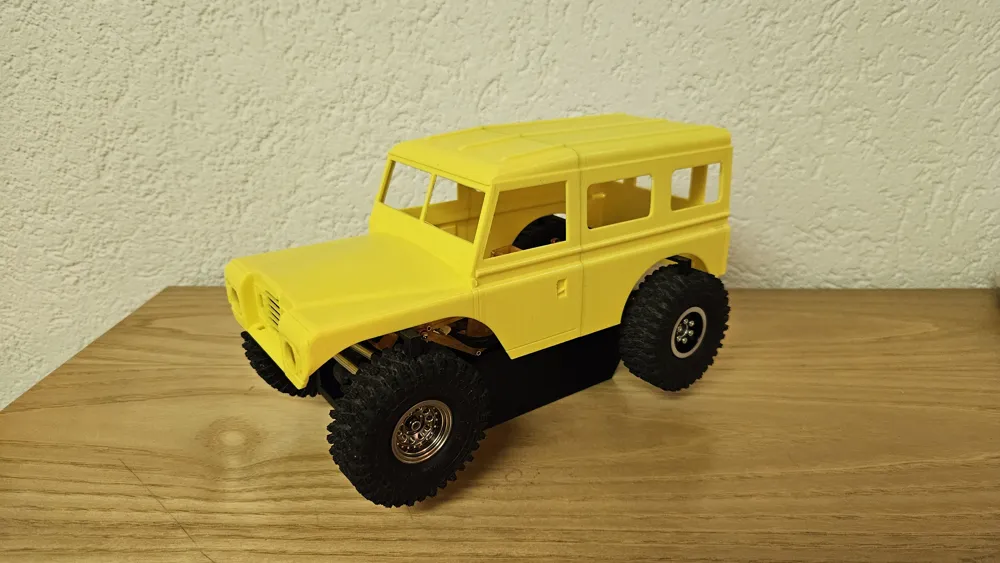

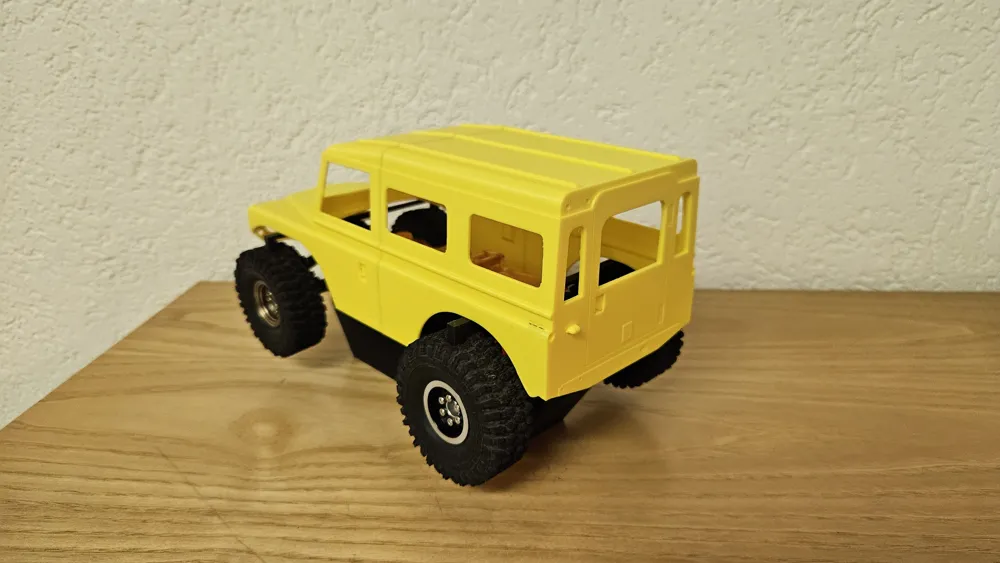

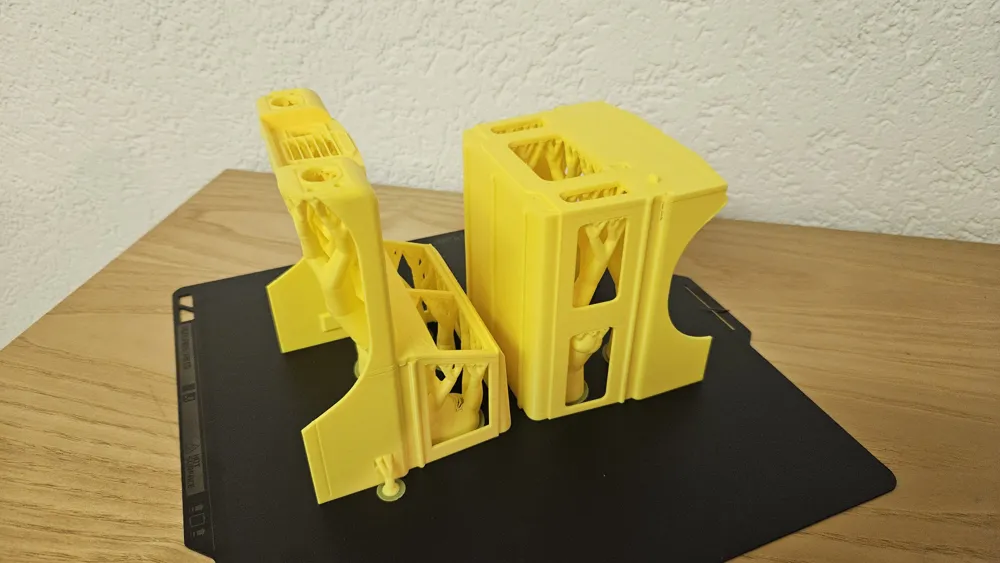

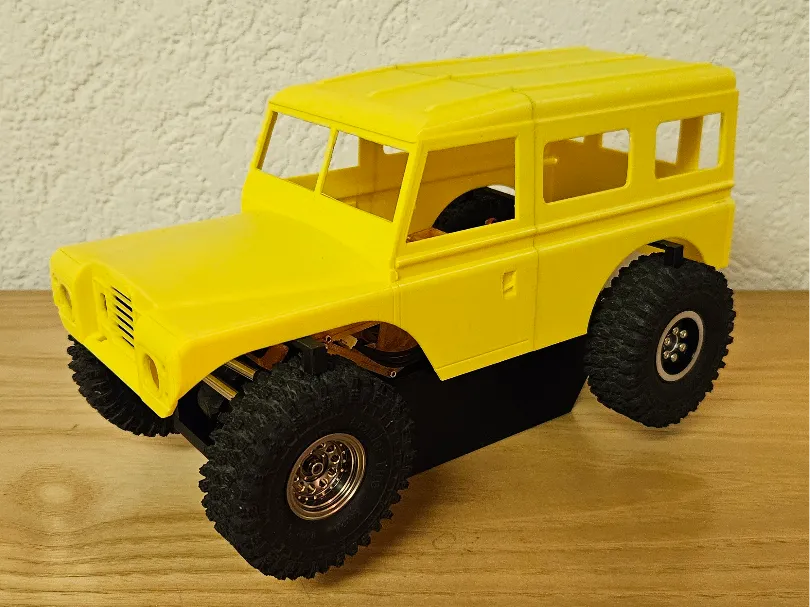

This is a Land Rover Series 3 D110 body for SCX24 and similar crawlers with a 155mm wheelbase. The body is printed in 2 parts and has to be glued together (using 2 adhesive strips to wrap around each sideskirt can make alignment a lot easier).

The original body came in many small parts as it was made for 1/10 scale. I've cleaned up all the parts, organized them in 3d space, connected them to make it printable and added wheel cutouts.

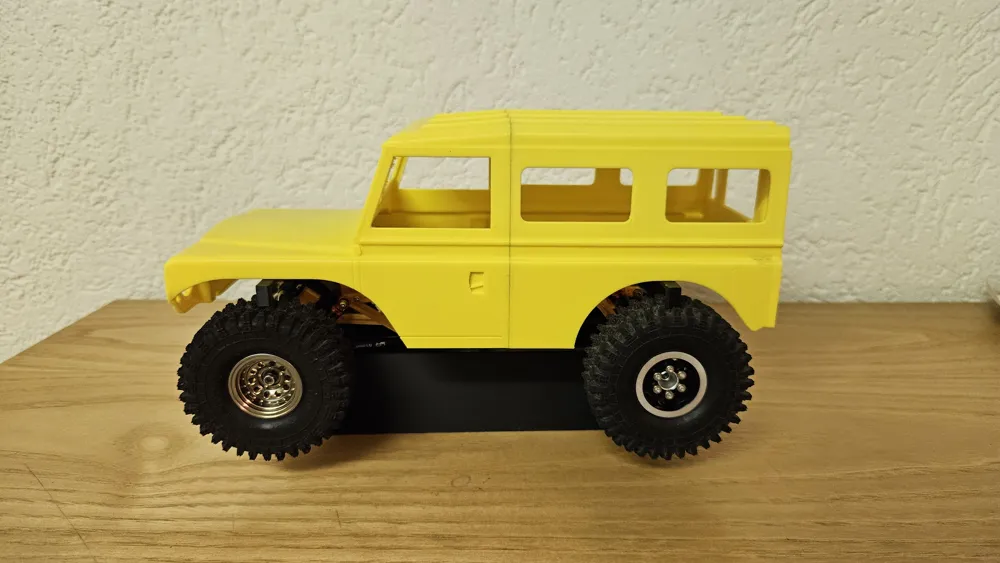

Body dimensions are 240mm * 98.8mm * 88.2mm and scaled to 53.31%. There are unscaled and uncut versions in stl and 3mf added. Weight of the body alone is 97g and the body is made for a 155mm wheelbase.
If you want to use it on a 133mm wheelbase you can scale the body to a lenght of around 205mm - 215mm depending on what look you like.

No mounting solutions provided  as every build requires a custom solution anyway depending on how your chassis is build, i've used a hinge mount in the rear and a little custom spacer for glueing magnets to the body for the front.

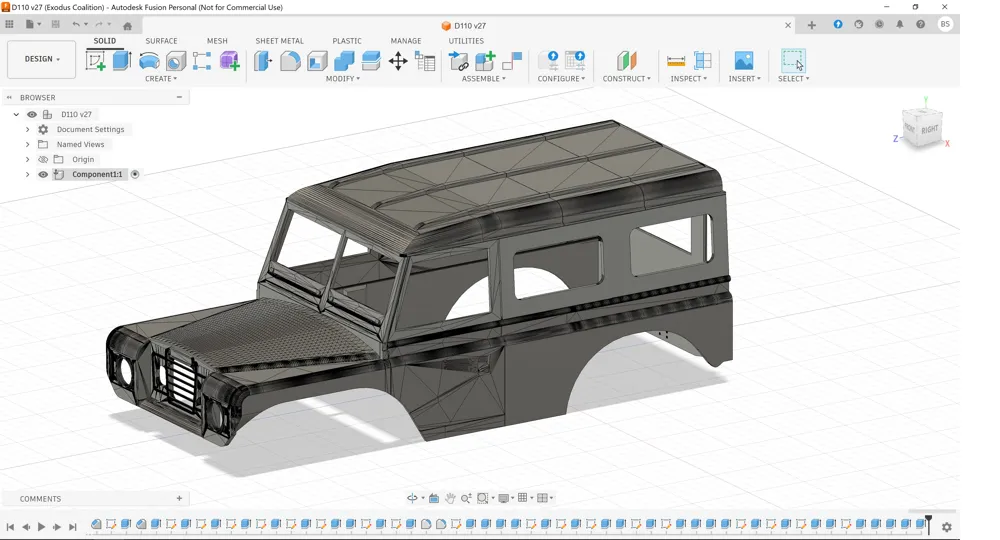

Added Fusion 360 files in case anyone wants to change something.

This is a remix of “przemo_m” and his “Land Rover Series 3” found here: https://www.thingiverse.com/thing:4658466

Print Settings

• Material: Bambulab PLA Tough+
• Nozzle Size: 0.4mm
• Layer Height: 0.2mm
• Walls: 3
• Top Layers: 5
• Bottom Layers: 5
• Infill: Gyroid, 15%
• Seam Position: Aligned
• Wall Generator: Arachne
• Supports: Yes, Tree
• Raft: No
