P2S Screen Angle Mount – 45° Down Tilt
Print Profile(1)
Description
Default issue on the first model that could cause the screen to disconnect when being set up; this has been corrected.

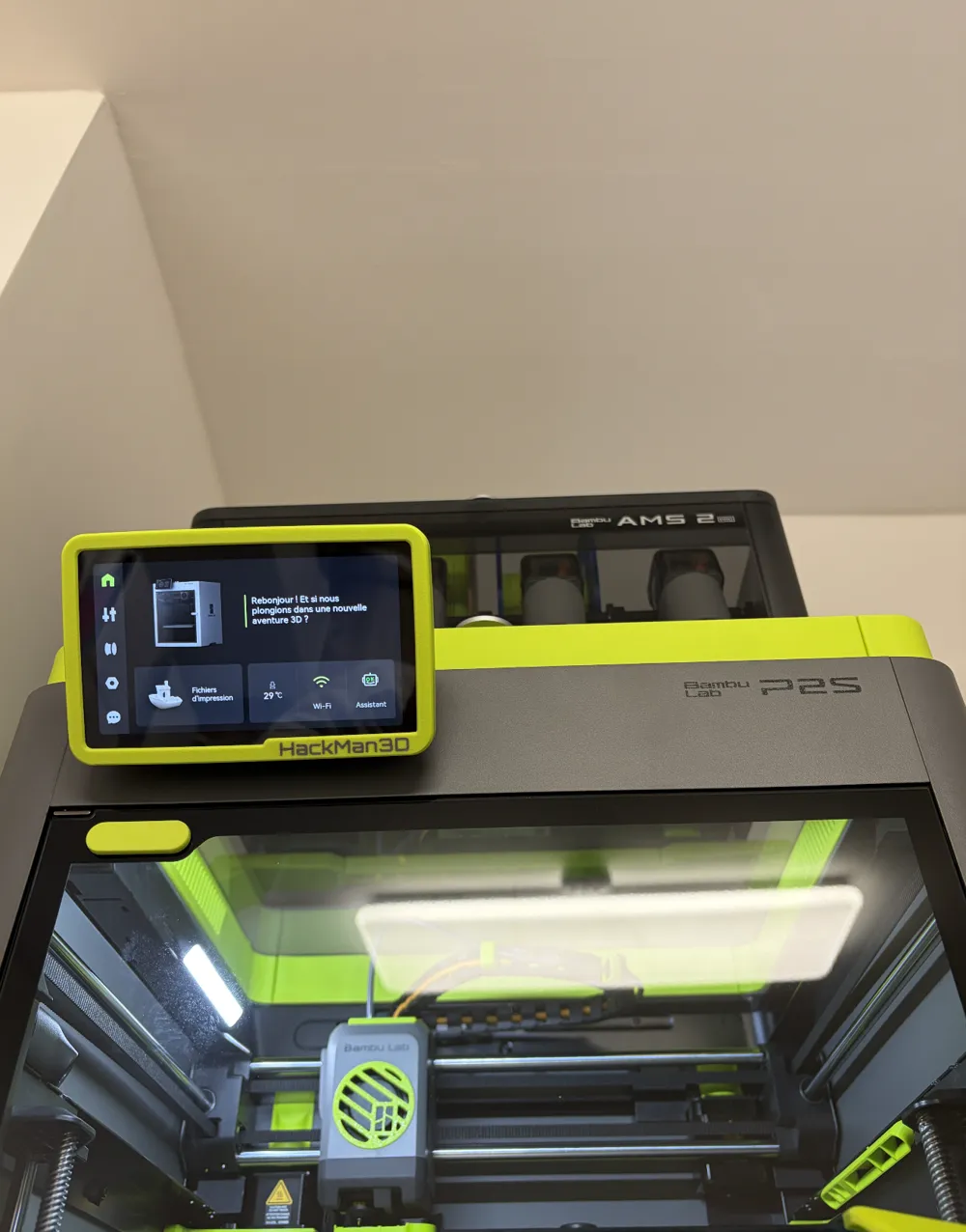

If your P2S printer is placed on a high shelf or rack, the screen becomes difficult to read because it only tilts upward.

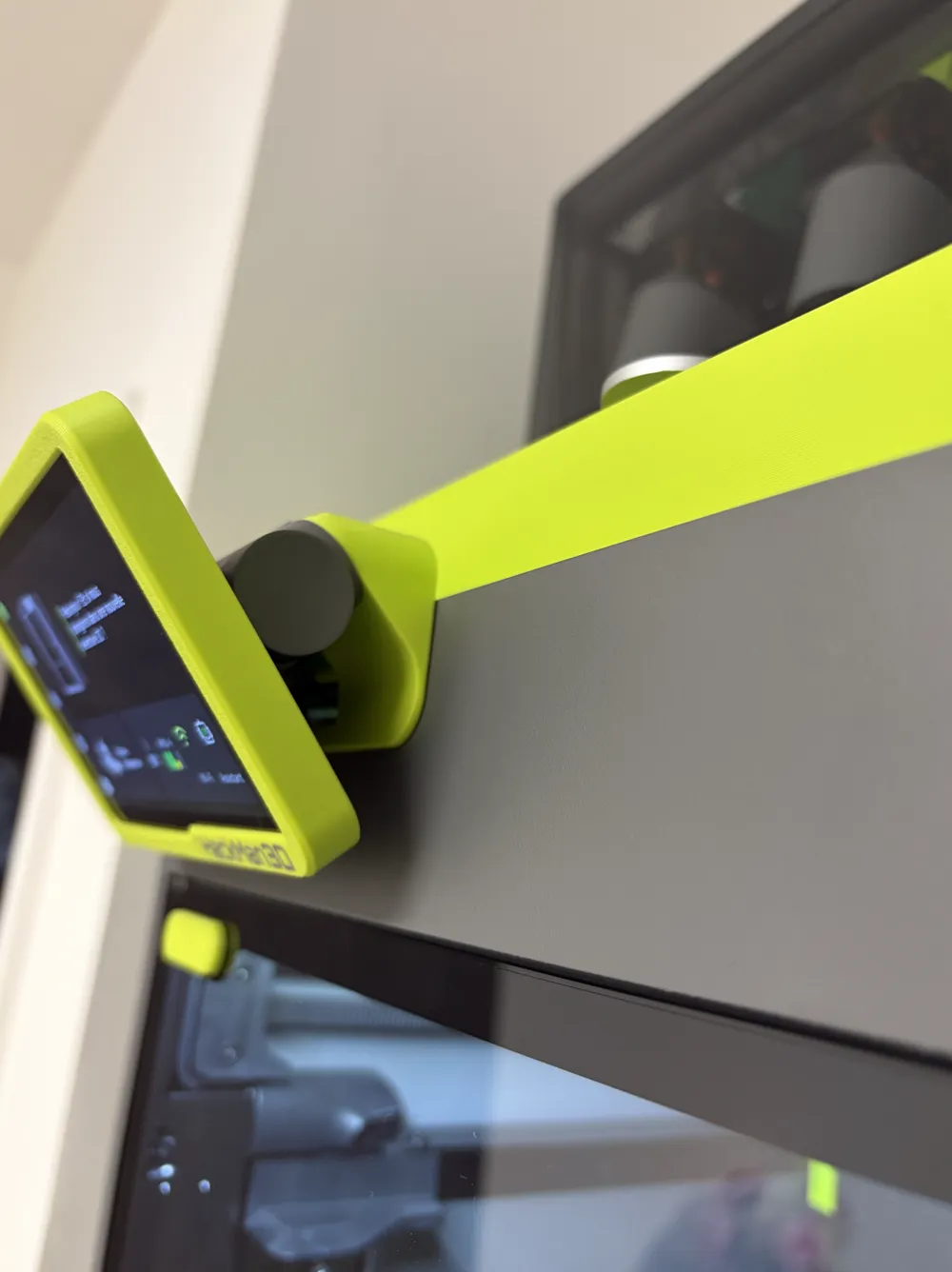

This P2S Screen Angle Mount solves the problem by tilting the screen 45° downward, making it much easier to see and use.
The mount installs between the printer and the screen, allowing the ribbon cable to pass through a dedicated opening.
The screen can then be reconnected and clipped back into place normally.
This is a simple and clean mod that greatly improves usability when your printer is positioned above eye level.
Designed by Hackman3D.
🔧 Installation
- Unclip the screen from the printer
- Disconnect the ribbon cable
- Insert the Screen Angle Mount between the screen and the printer
- Pass the ribbon cable through the hole
- Reconnect the ribbon cable
- Clip the screen back into place
No modification of the printer is required.
🖨️ Print Settings
- Material: PLA
- Supports: Yes
- Infill: 15–20%
- Layer height: 0.2 mm
- Walls: 2 or 3
PLA is sufficient because the part only supports the screen and does not experience mechanical stress.
⚠️ Disclaimer
Install at your own risk.
Be careful when disconnecting and reconnecting the ribbon cable.
