Ecowitt WS90 Wall Mount / Wall Mount
Print Profile(1)
Description
Description

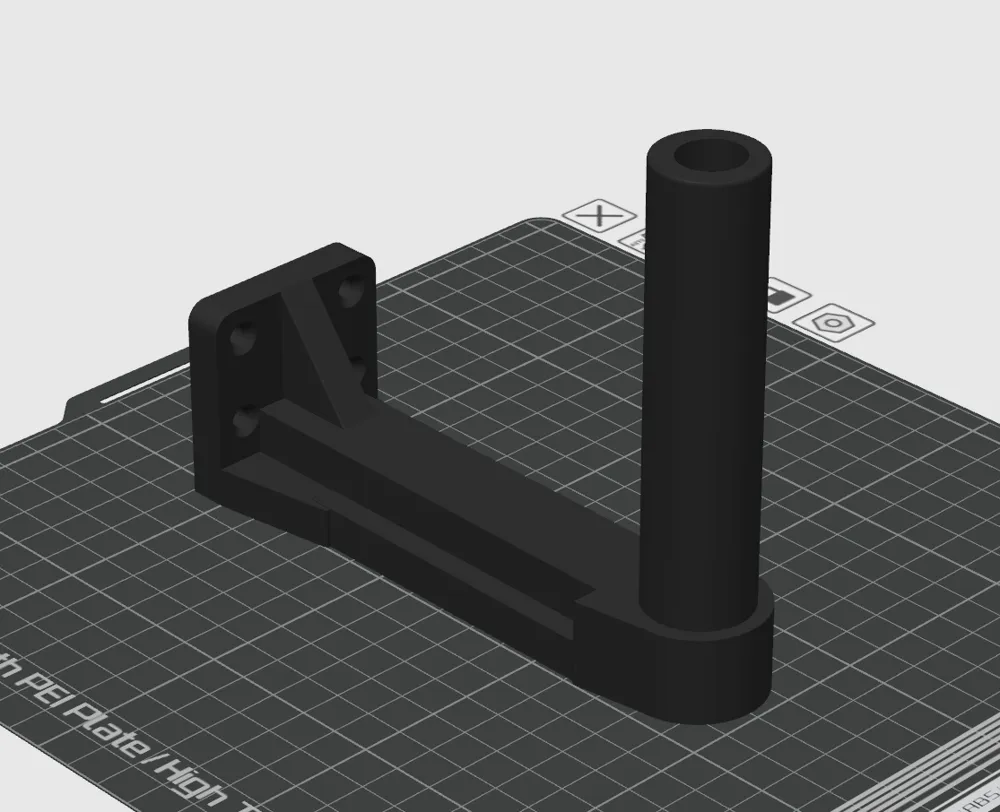

This wall mount allows for stable and weather-protected installation of the Ecowitt WS90 weather station on the wall. The design holds the weather station in an optimal position for precise measurements while also allowing for easy assembly and disassembly.
Key Features:
- Stable mounting arm for the WS90
- Wall mounting plate with screw fixings
- Compact design
- Weatherproof (when using suitable materials)
- Easy installation
Print Settings
Recommended Settings:
- Material: PETG or ASA (weather-resistant) / PLA for indoor use
- Layer Height: 0.2 mm
- Infill: 20-30%
- Walls: 3-4 Perimeter
- Supports: Yes, required
- Adhesion: Brim recommended
Estimated Print Time: approx. 3-4 hours (depending on printer) Material Consumption: approx. 50-80g
Assembly

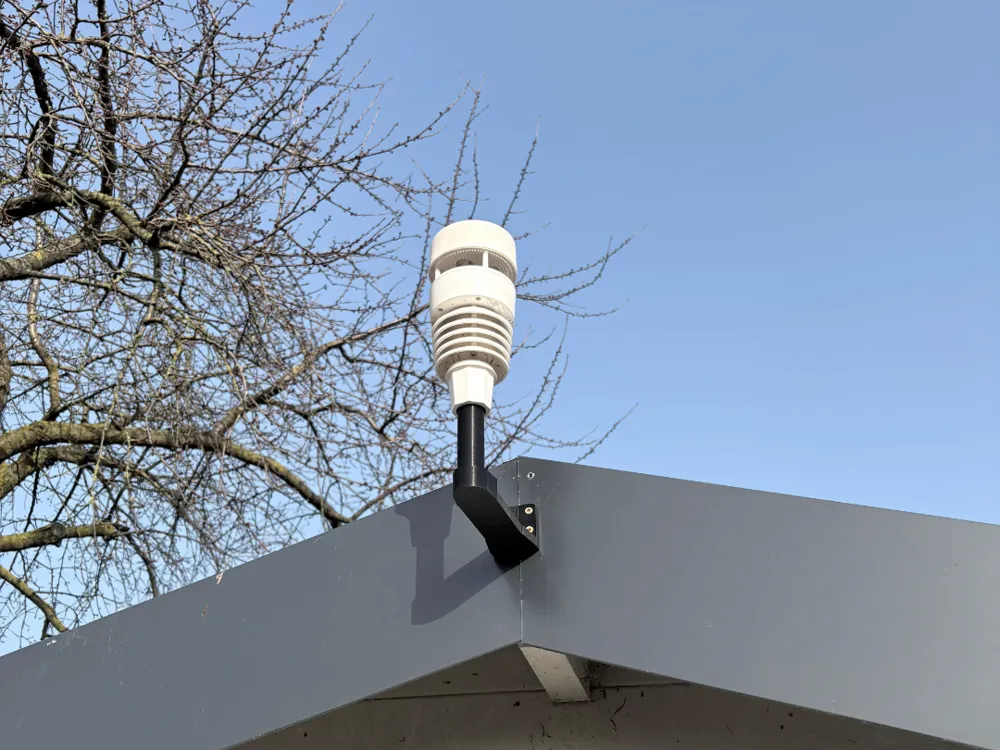

- Mount the wall bracket at the desired position using appropriate screws and anchors
- Insert the Ecowitt WS90 weather station into the bracket
- Secure with the lower clamp if necessary
- Check the orientation of the station
Notes
- For outdoor mounting, PETG or ASA is recommended (UV and weather resistant)
- Installation location should allow for free air circulation
- Avoid direct sunlight on the sensor
- Regularly check for a secure fit
Compatibility
Designed for: Ecowitt WS90 Weather Station Product Link: https://shop.ecowitt.com/de-de/products/ws90
