If you enjoy this design and want to see more of this industrial aesthetic, please consider giving it a Boost! It directly helps me design, prototype, and refine more parts for this collection.
[ X2D / P2S: MAGNETIC CABLE ROUTING ]

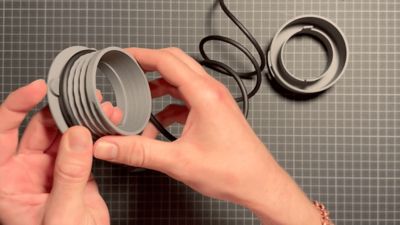

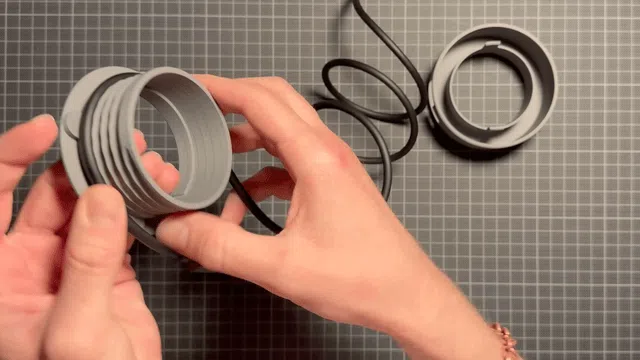

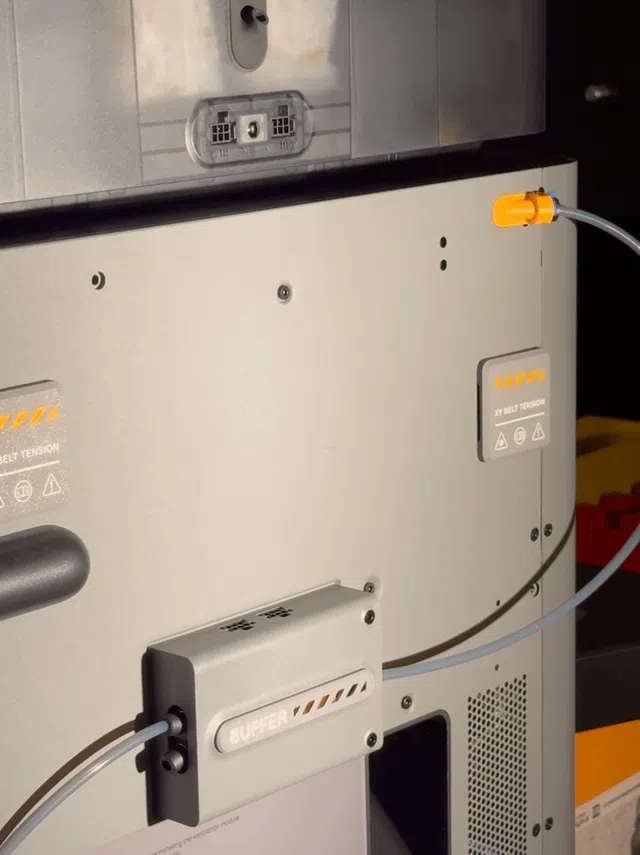

I designed this to fix the messy cable situation on the back of the printer. I wanted it to be simple, but still have some character. I went through multiple iterations of the closing mechanism of the two parts, and this latch mechanism worked the best so that it could be easily taken apart (although its not meant to be taken apart regularly). I feel like its not the overall best solution yet though, as the latches can easily break along the layer lines if flexed too much, so let me know if you have some ideas how it could be improved!

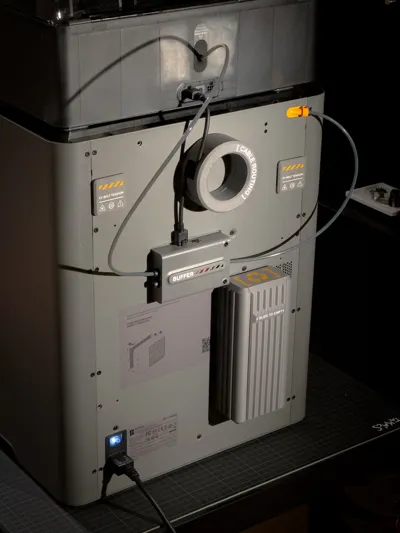

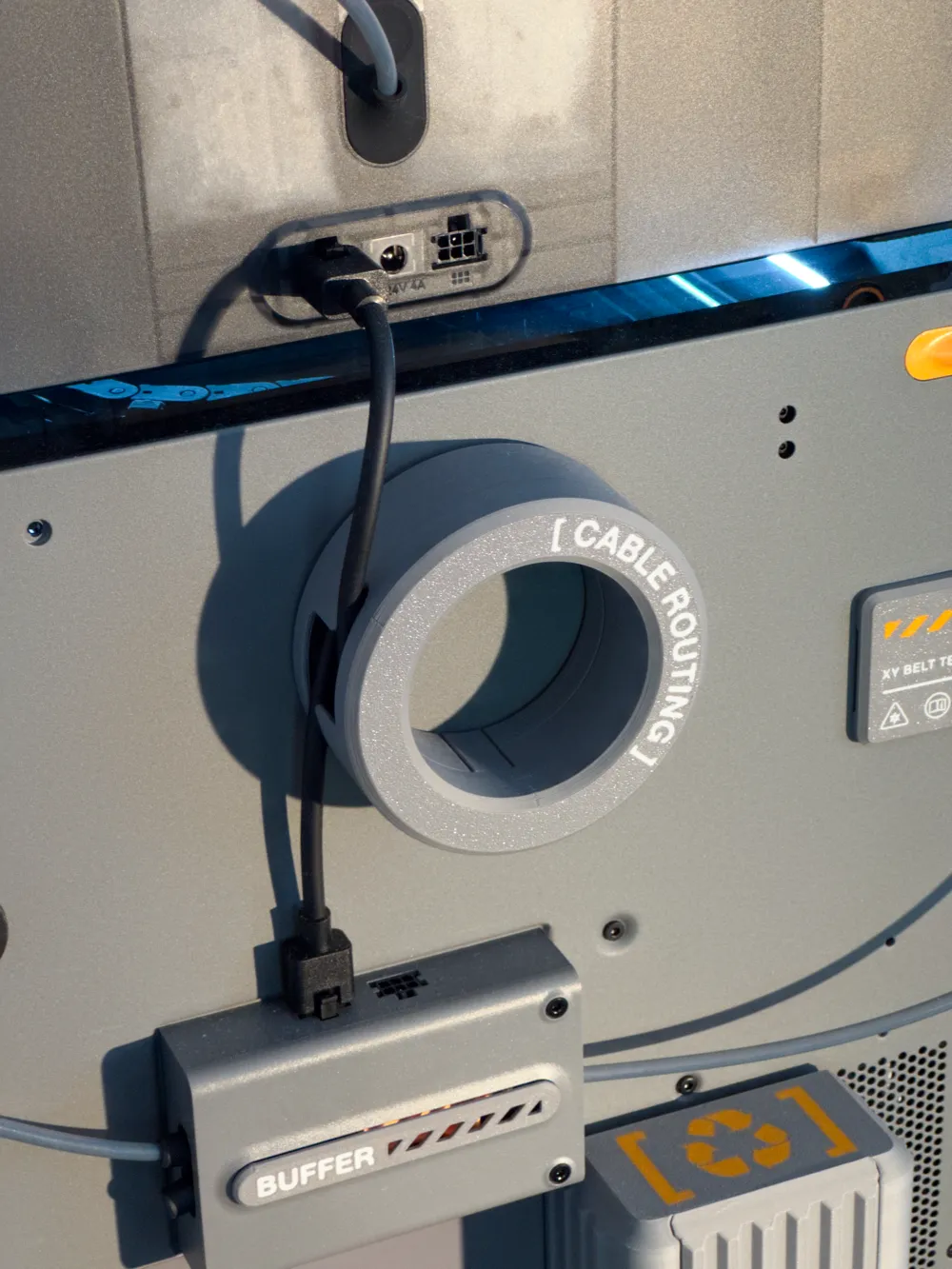

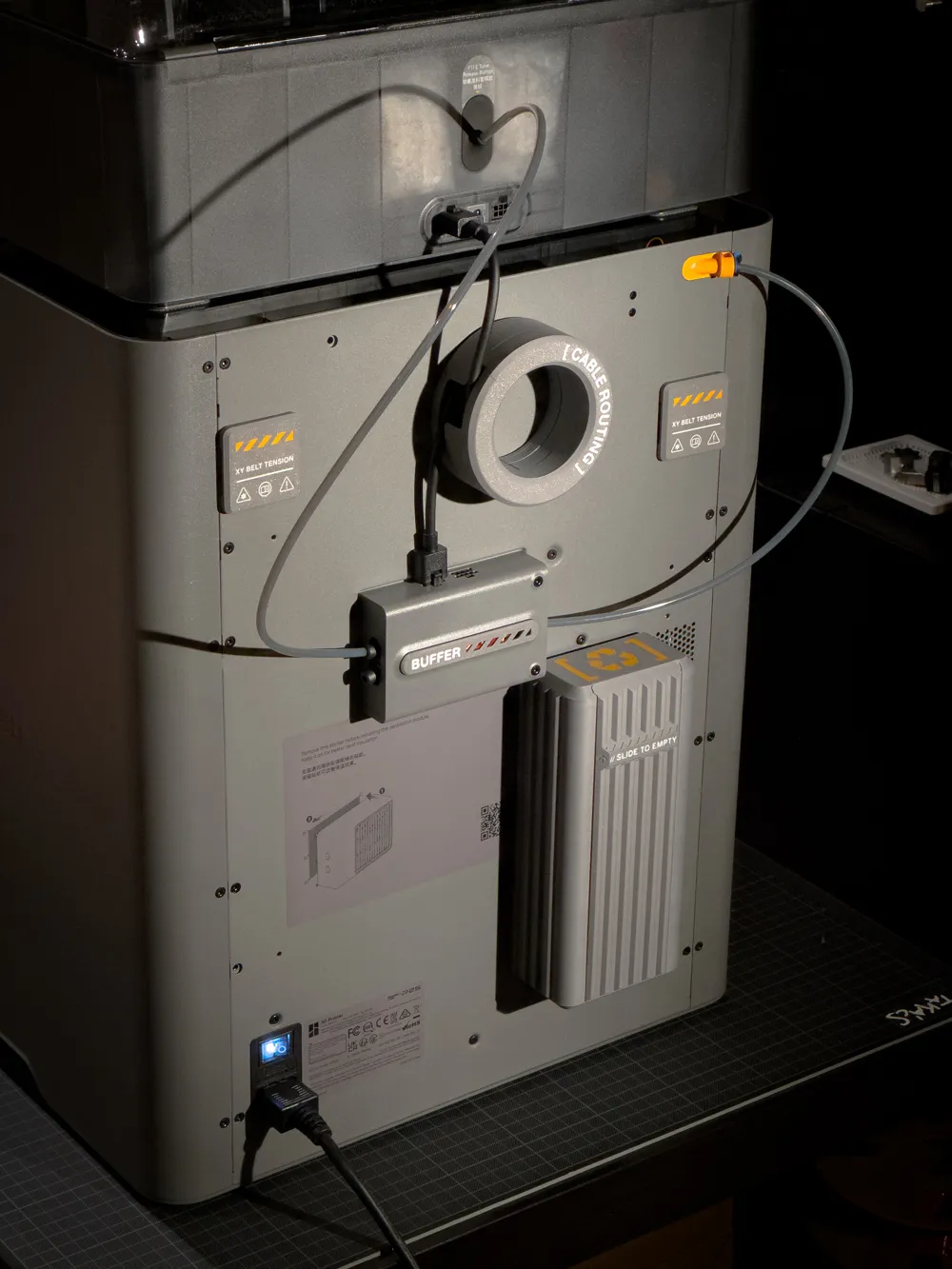

It organizes the AMS 6 Bus cable neatly, without slack in a closed circular drum. Just pick the plate that matches the magnets you already have.
// TECHNICAL DETAILS
- 50g of filament and 1.5 hours of print time
- Text prints flat on the build plate, just 2 layers of dual color, so not much poop
- Hardware Integration: Includes 5 plates for different magnets
- 10x3.5 mm
- 10x3 mm
- 10x2 mm
- 8x3 mm
- 8x2 mm
- Add a drop of CA glue to fix the magnets in place
// ADDITIONAL PROFILES ADDED BASED ON REQUESTS
- 6x4 mm
- 7x2 mm
Route the cables. Tidy your workspace.
