Scheppach Miter Saw Dust Extraction Adapter
Print Profile(1)
Description
Hello everyone,

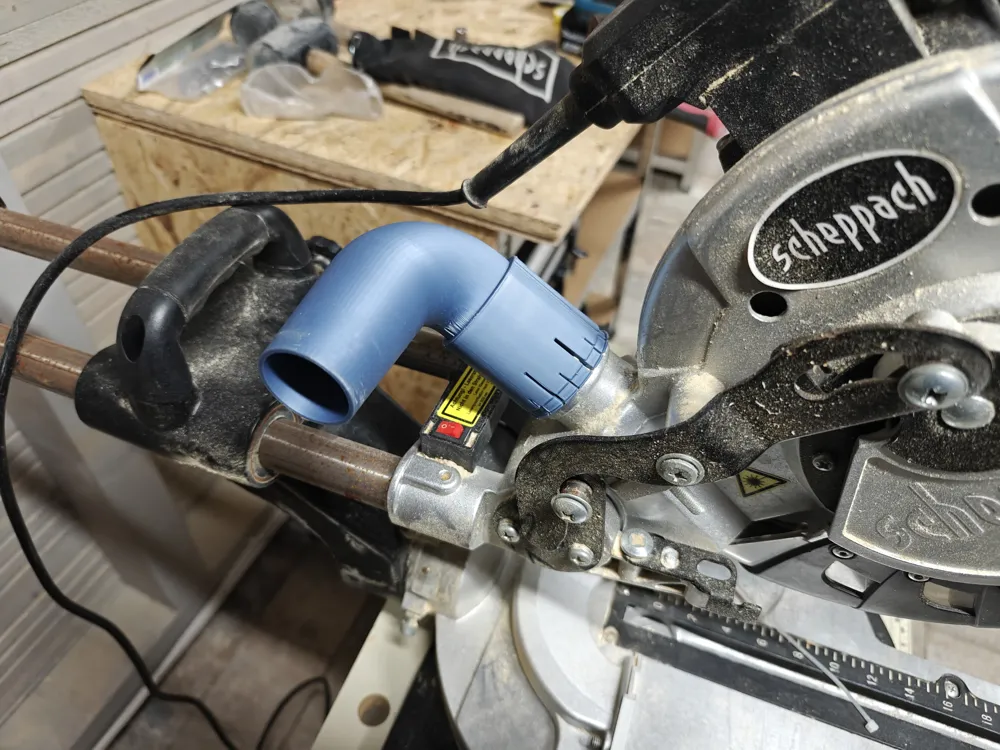

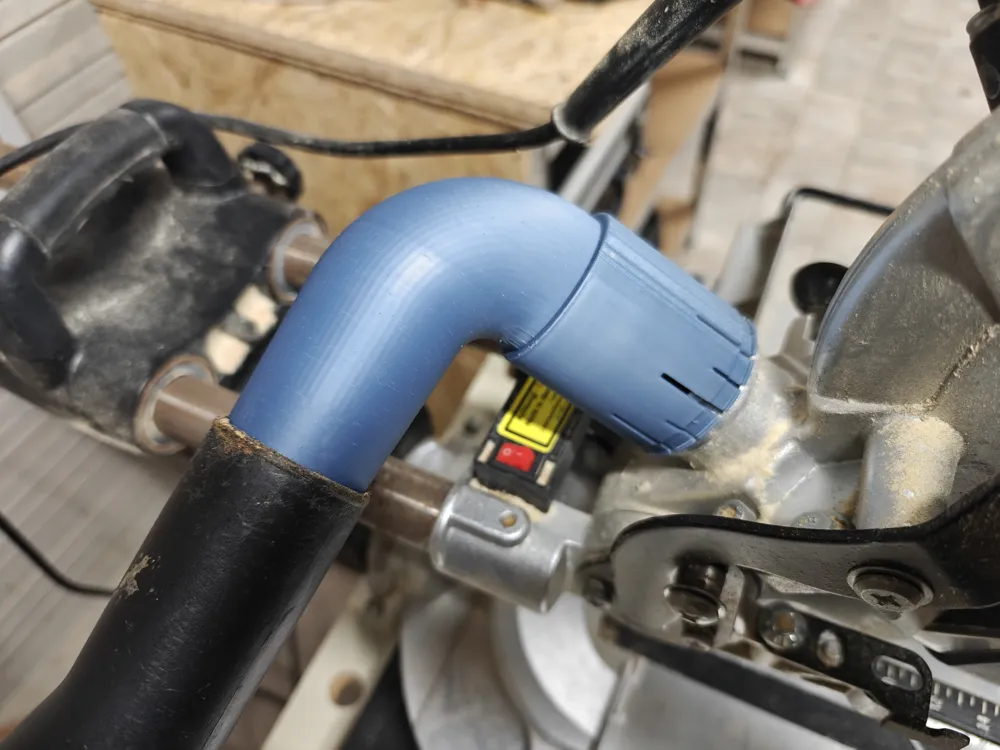

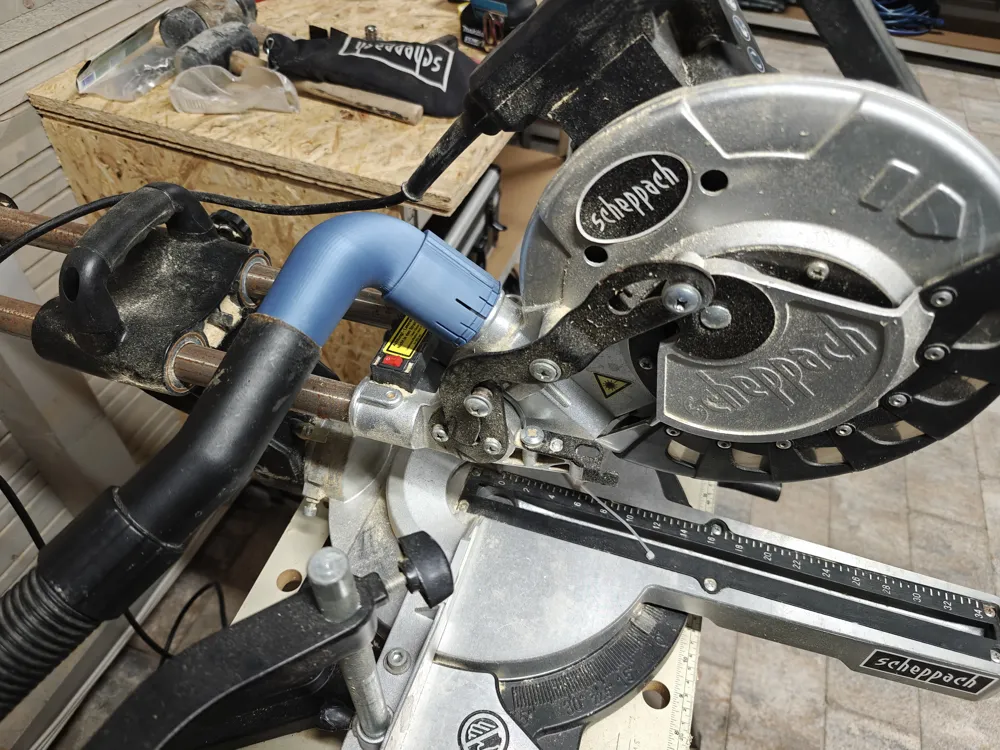

My next project is an adapter for dust extraction of the sawdust from my Scheppach miter/sliding miter saw. The adapter fits the connection where the dust collection bag normally attaches.

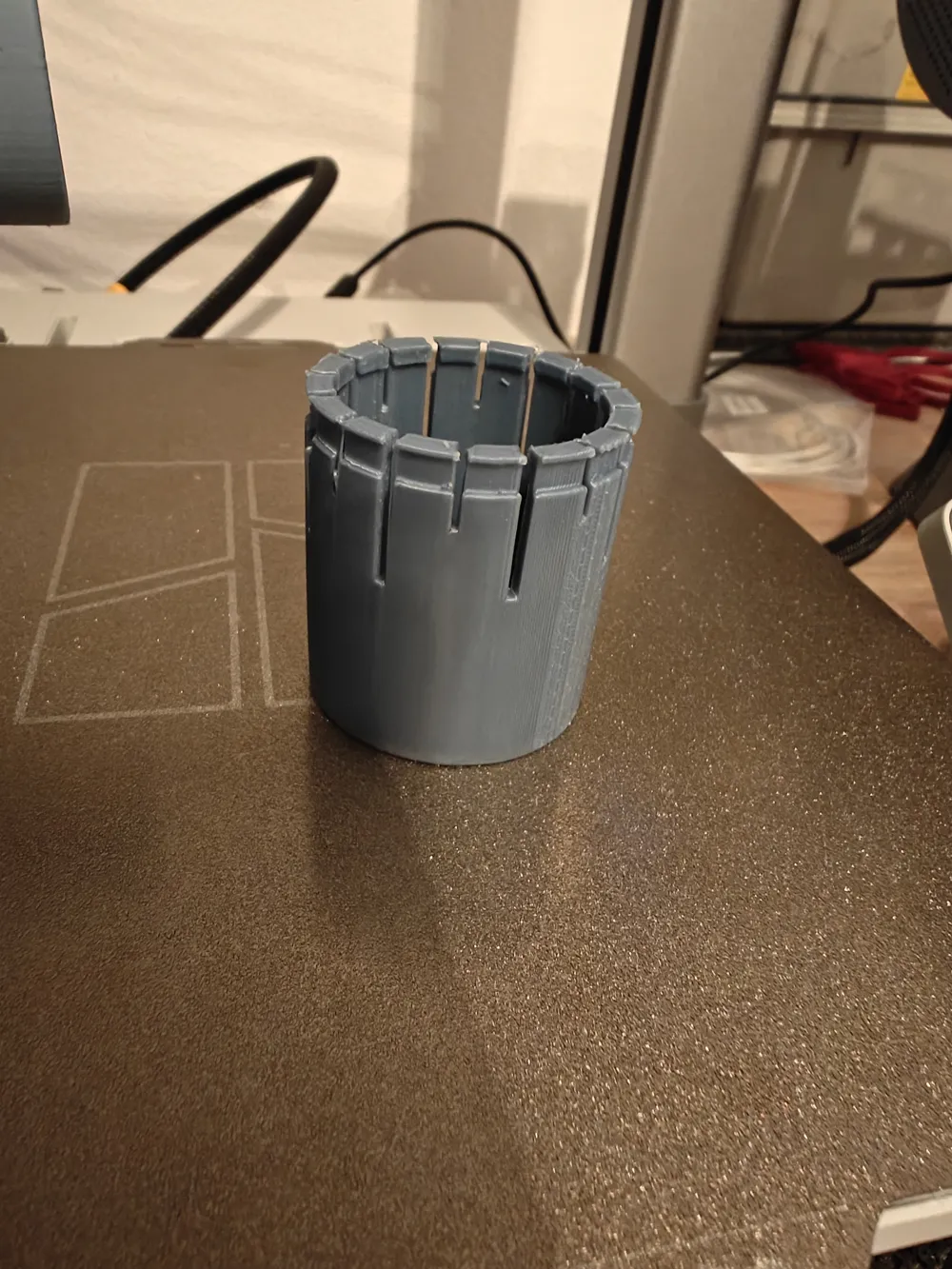

The inner diameter of the connector is 40mm. The vacuum cleaner connection has an outer diameter of approx. 35mm. The groove on the outside is intended for attachment to the saw with a cable tie.
I use an Einhell vacuum cleaner for dust extraction, but several brands will probably fit, as the connection is conically shaped.
I am always open to suggestions and improvements for my products.
Have fun with it;)
