Standard Servo Mounts - Horizontal and Vertical
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
54 min
1 plate
Open in Bambu Studio
Boost
31
55
0
0
129
91
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description

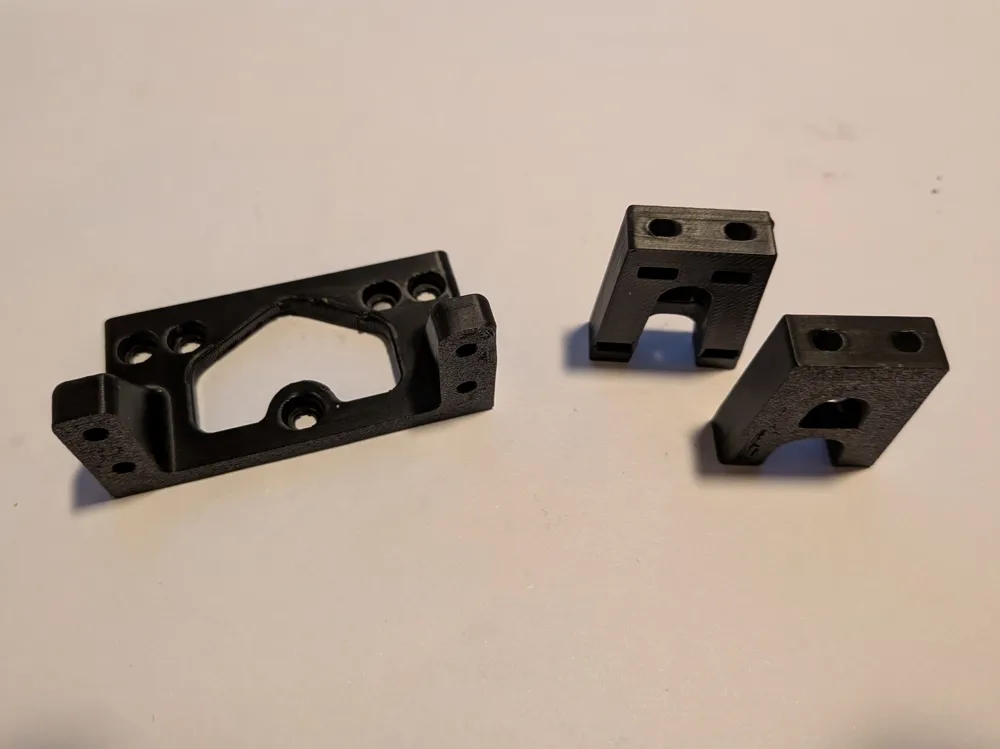

Two simple servo mounts typically used in rc cars and boats.

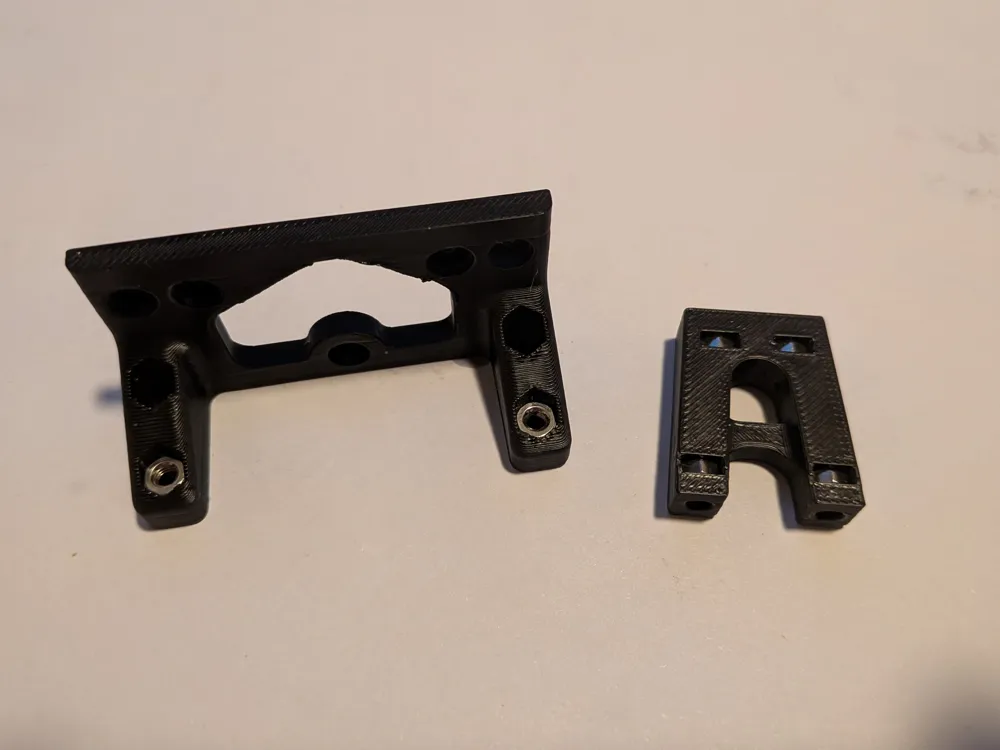

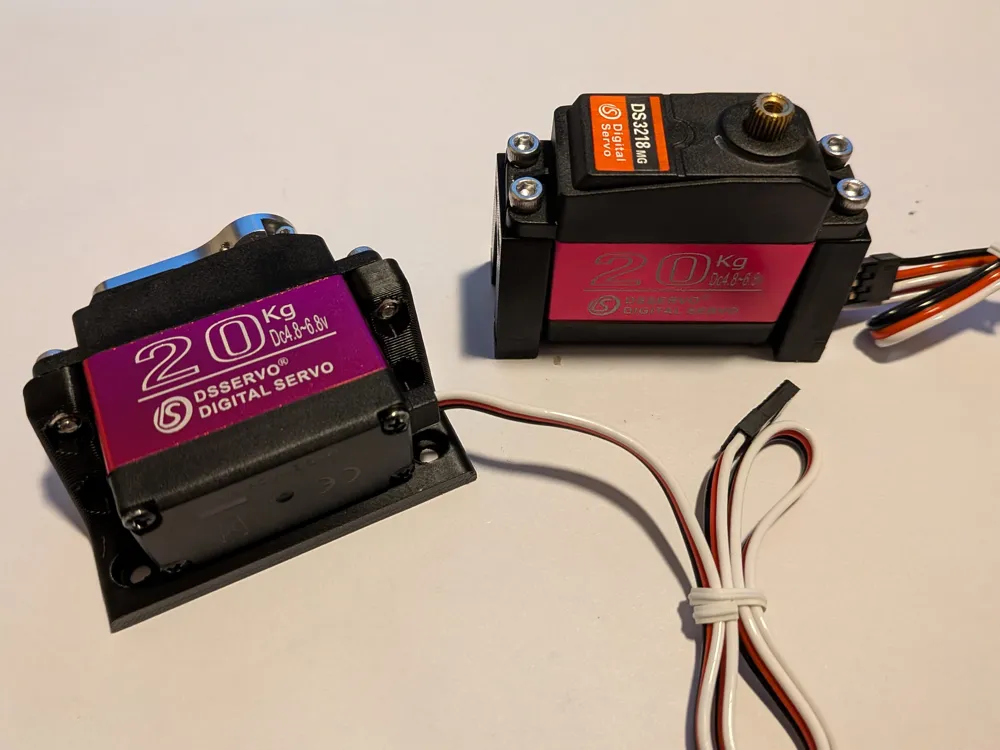

Horizontal servo mount for mounting servos on side, with output at 90deg. Includes 5x M3 flush securing options.

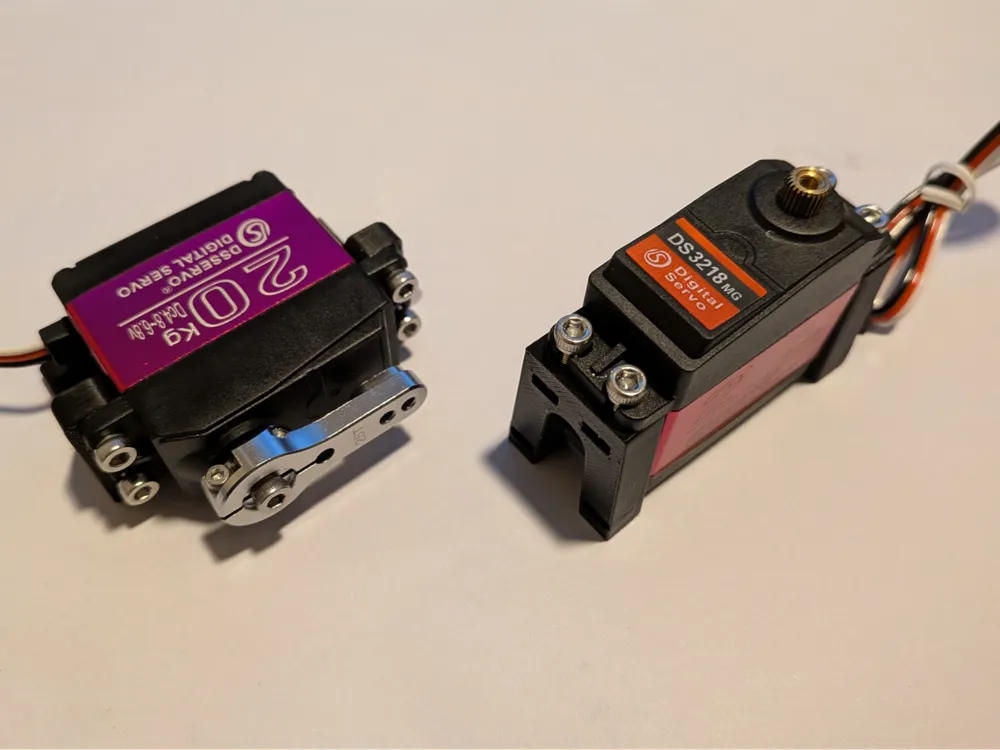

Vertical servo mount for mounting in normal position. Includes 2x M3 bottom entry securing bolts.
Both options use M3 nuts into inserts of model to secure servos.
