Linear Bearing Housing for Rexroth R067XX20xx
IP Report
Print Profile(1)
0.2mm layer, 5 walls, 30% infill
Designer
2 h
1 plate
Open in Bambu Studio
Boost
0
2
0
0
1
0
Released
Description
Linear Bearing Housing for Rexroth R067XX20xx (20mm Shaft)
This is a robust, 3D-printable housing designed specifically for Rexroth R067XX20xx linear bearings (or compatible 32mm OD bearings) on a 20mm shaft.

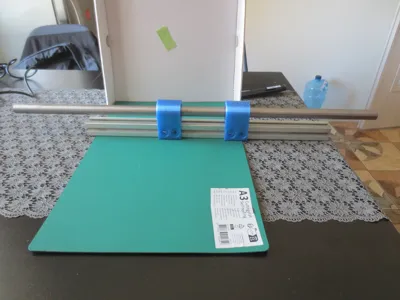

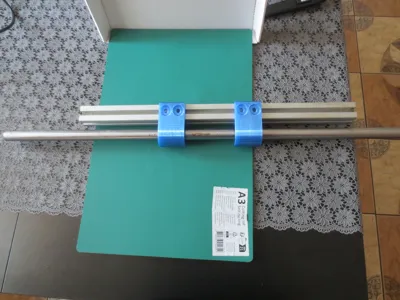

It is designed to be mounted directly onto a 30x30 mm aluminum profile, making it a perfect component for DIY CNC machines, plotters, or custom sliding frames.
Key Specifications:
- Inner Diameter (Housing): 32 mm (Press-fit design for a secure, tight hold).
- Length: 46 mm
- Compatibility: 20 mm Linear Shafts
- Mounting: Designed for 3030 Aluminum Profile
- Hardware: M6 Screws (Enlarged washers recommended to distribute the load).
Print Settings:
- Material: PETG (minimum) for durability and temperature resistance.
- Walls/Perimeters: 4 minimum.
- Infill: 30% Gyroid (provides great structural rigidity).
Download, print, and start building your next great project!
