Car safety accessory - window breaker

Design Concept

A small car safety accessory. If you don't have a window breaker in your car, you can make one to keep in it.

Purpose

Suitable for situations requiring emergency window breaking

Printing Suggestions

It is recommended to print with ABS or PETG, with 100% infill to ensure the strength of structural components

Assembly Instructions

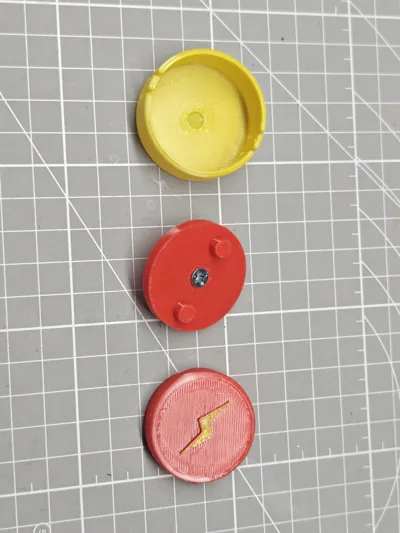

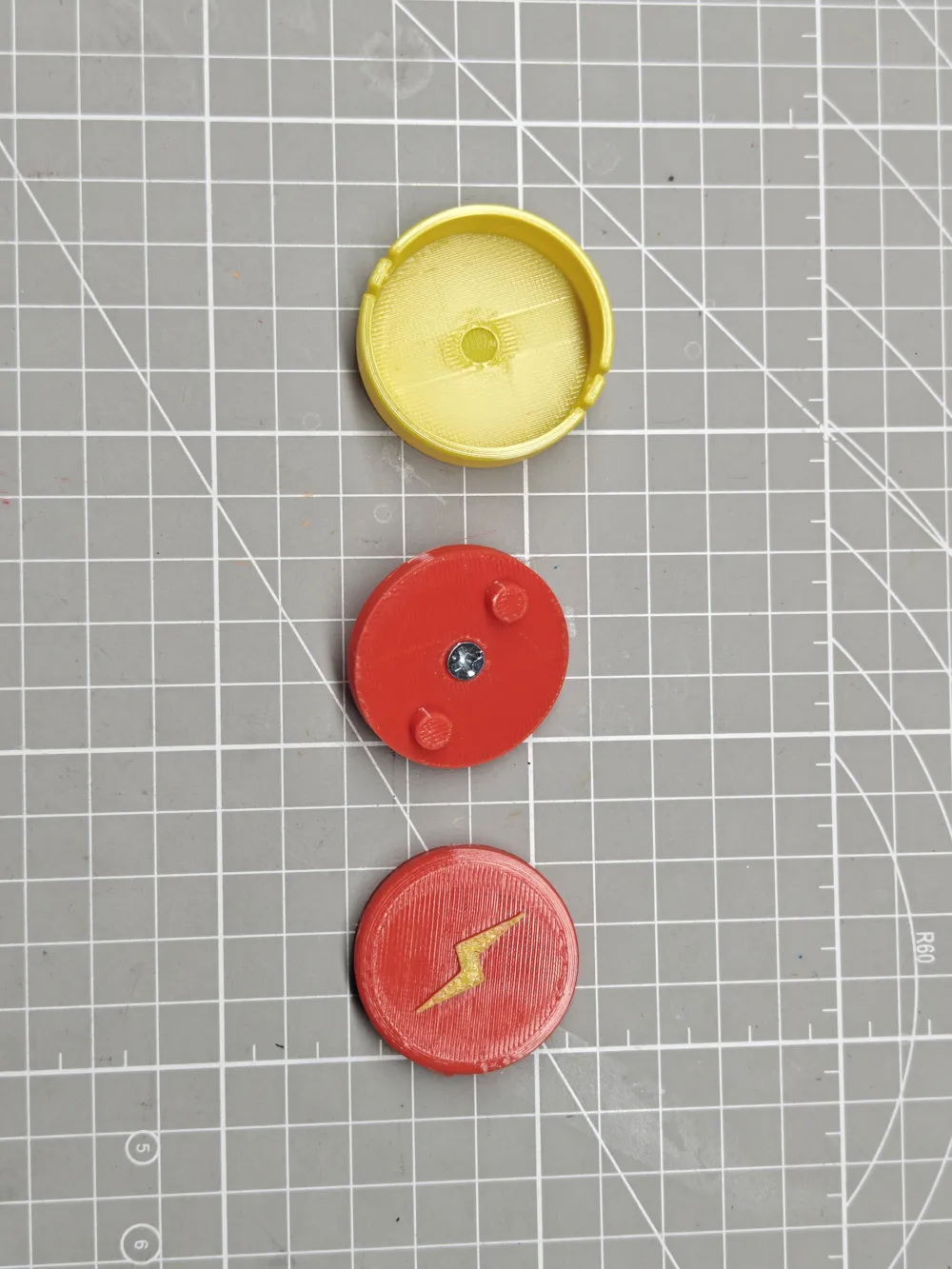

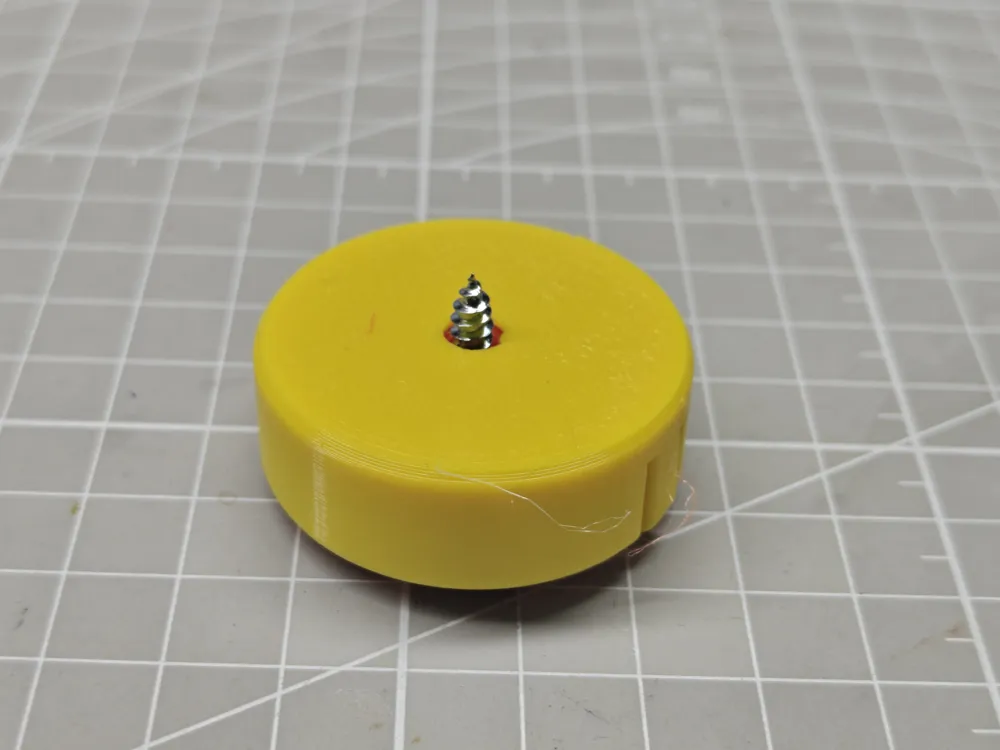

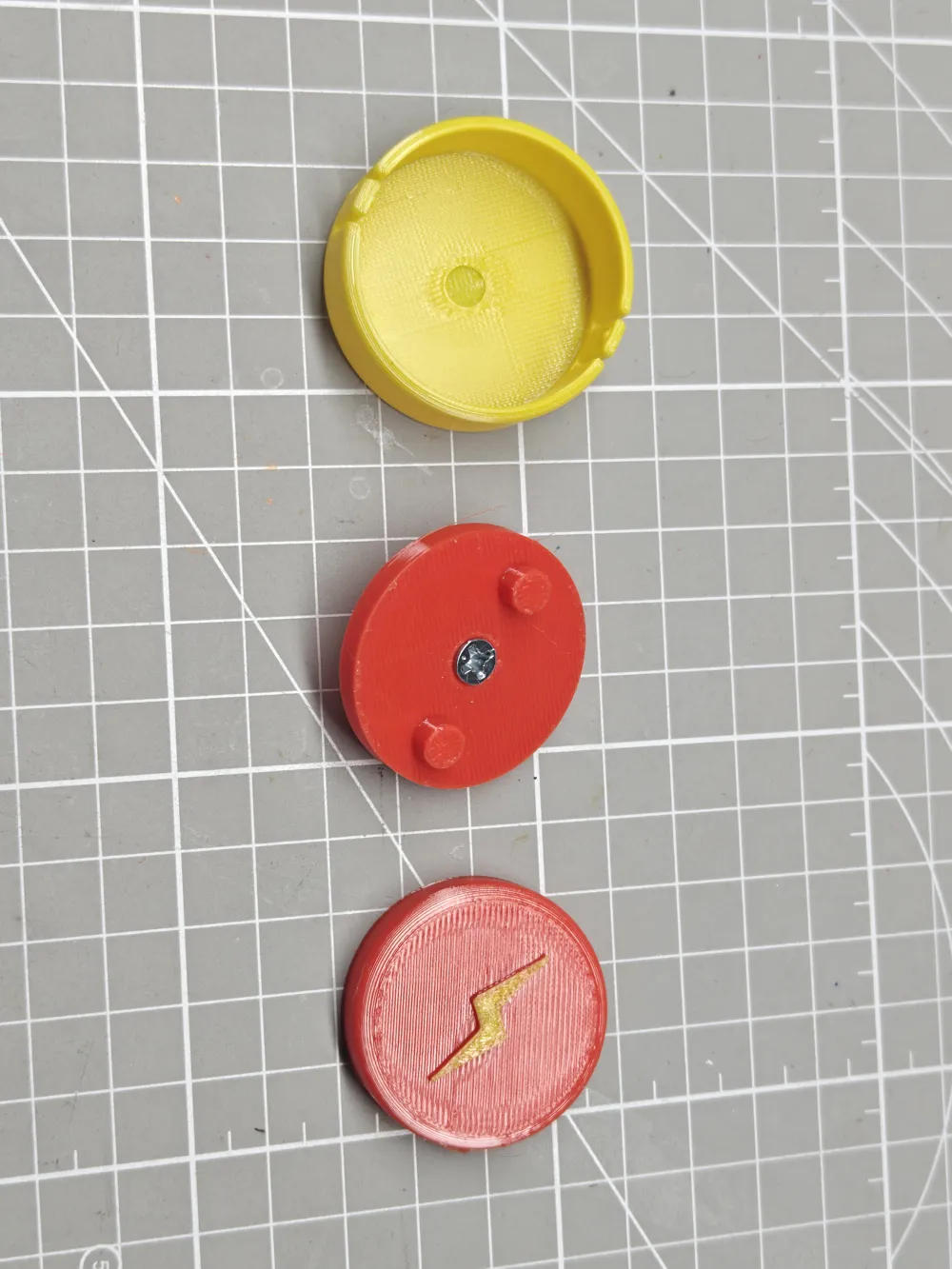

After printing, you need to first screw an M4*12 self-tapping screw into the bottom of the impact head, then cover it with the button part, and finally align the buckle and place it into the base. A 0.4mm thick printing film is left in the center of the base, which does not need to be removed, to prevent the sharp tip from exposing. To use it, press the bottom against the glass and strike the button with the heel of your palm or your fist. If you already have a window breaker, you can skip this.

Tips:

1 Due to differences in materials and printer types, print quality and tolerances may vary. After printing, if you find that the fit is too loose or too tight, you can scale parts of the model as needed.

2 If some connections are loose or fit too tightly, you can use some glue to secure them, or sand down the corresponding parts.

3 Due to variations in materials and printers, perfect compatibility with all models and materials cannot be guaranteed. We appreciate your understanding.
