FERM combination tool - Drill Press Adapter
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
3
5
0
0
7
0
Released
Description

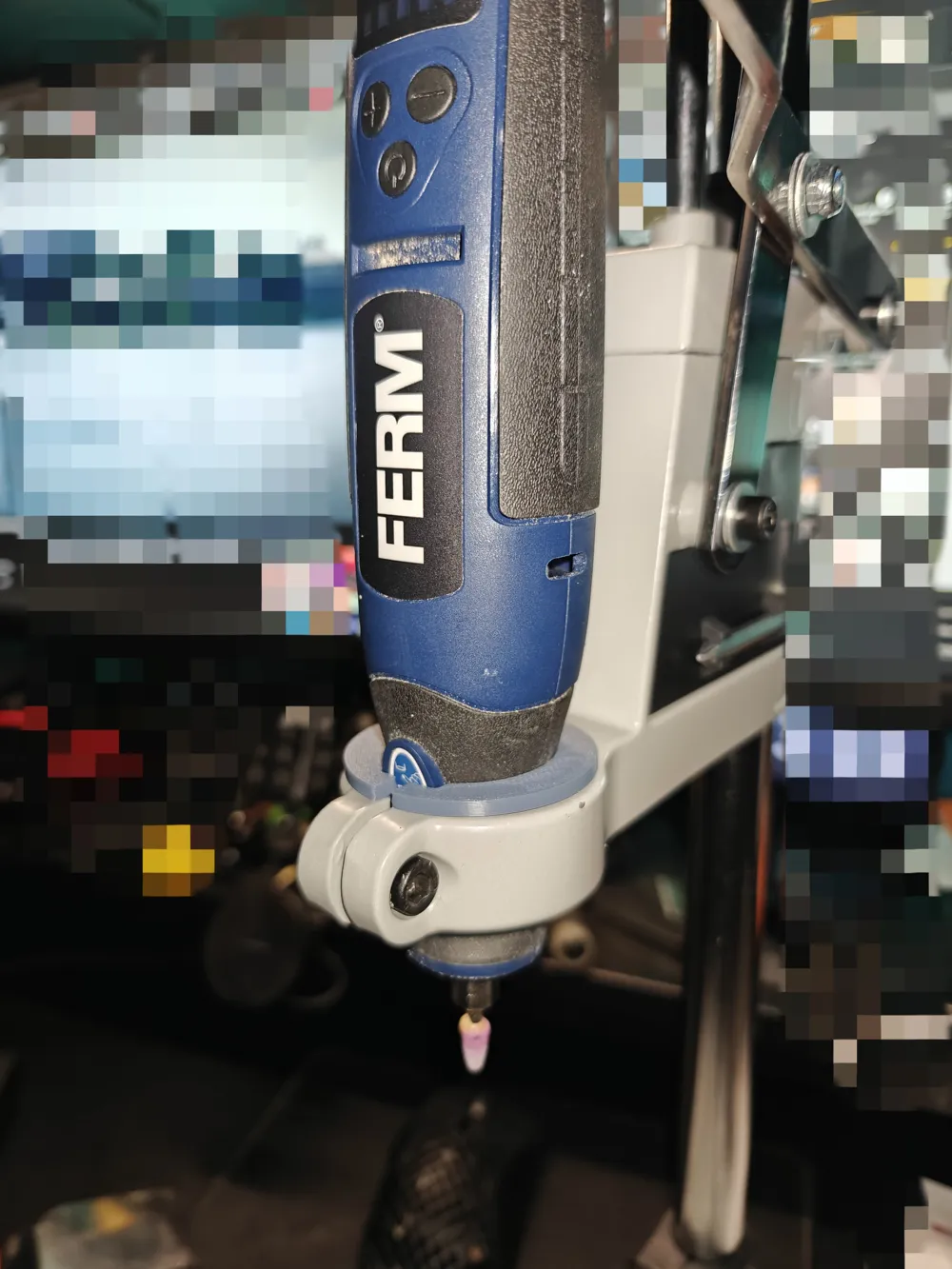

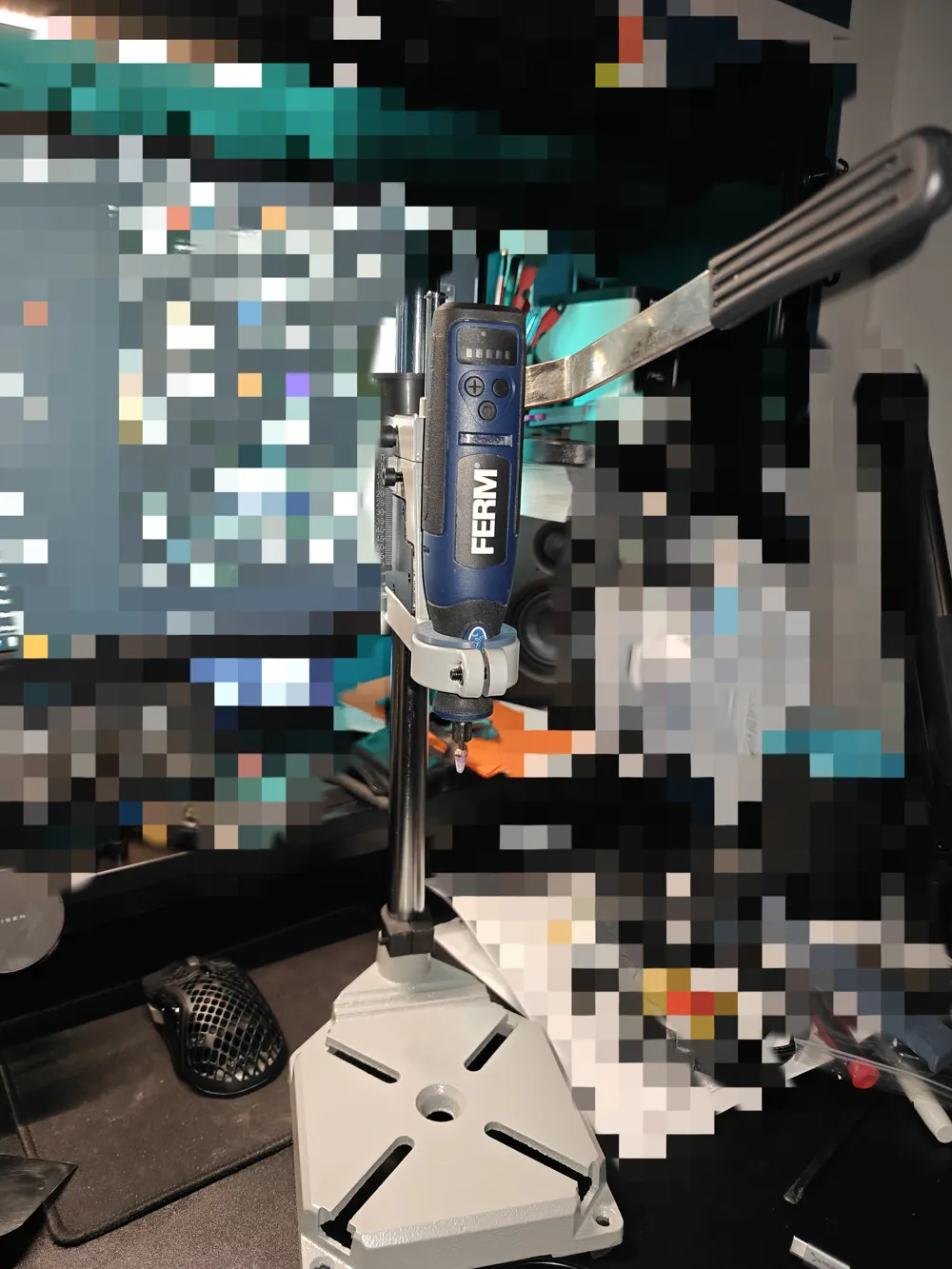

This 3D model allows you to mount your FERM combi-tool into any standard 43mm drill stand (like OBI or Wolfcraft).
I designed this rapidly in Fusion 360, utilizing an extract of the scanned 3D model.
OBI Drill Stand: https://www.obi.at/p/6828552/bohrstaender?wt_mc=ogs.local...&storeId=34
wolfcraft Drill Stand: https://amzn.eu/d/0hA05fTG

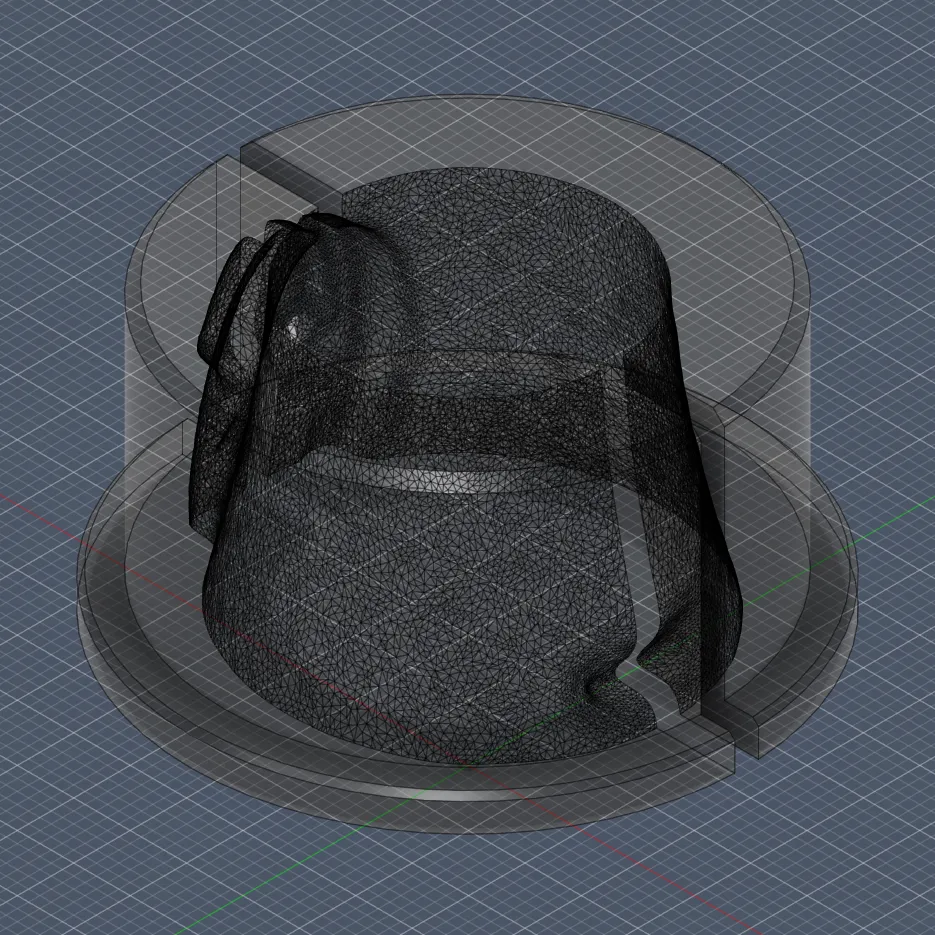

The contoured inner sleeve was created using a 3D scan, ensuring a precise fit.

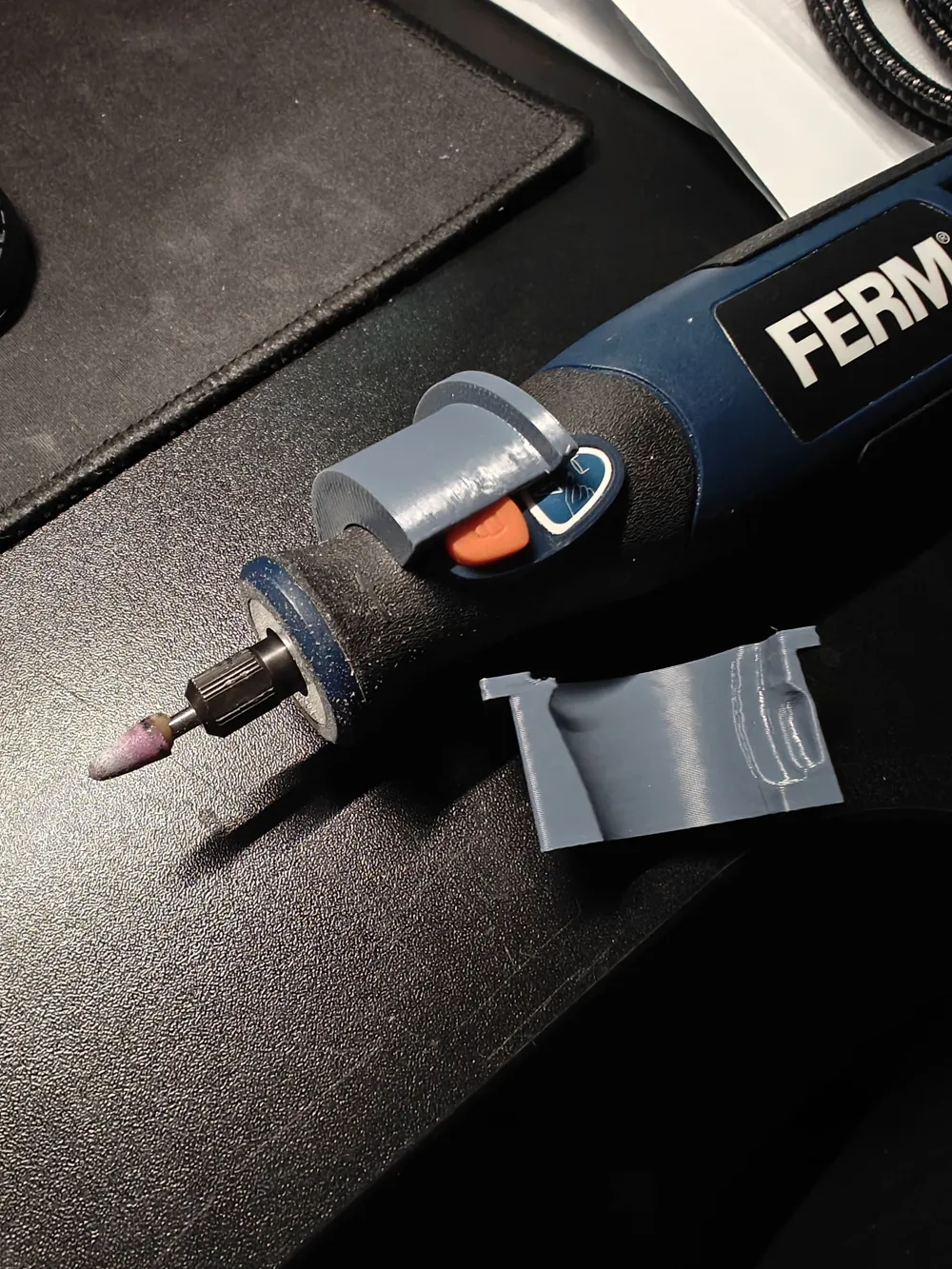

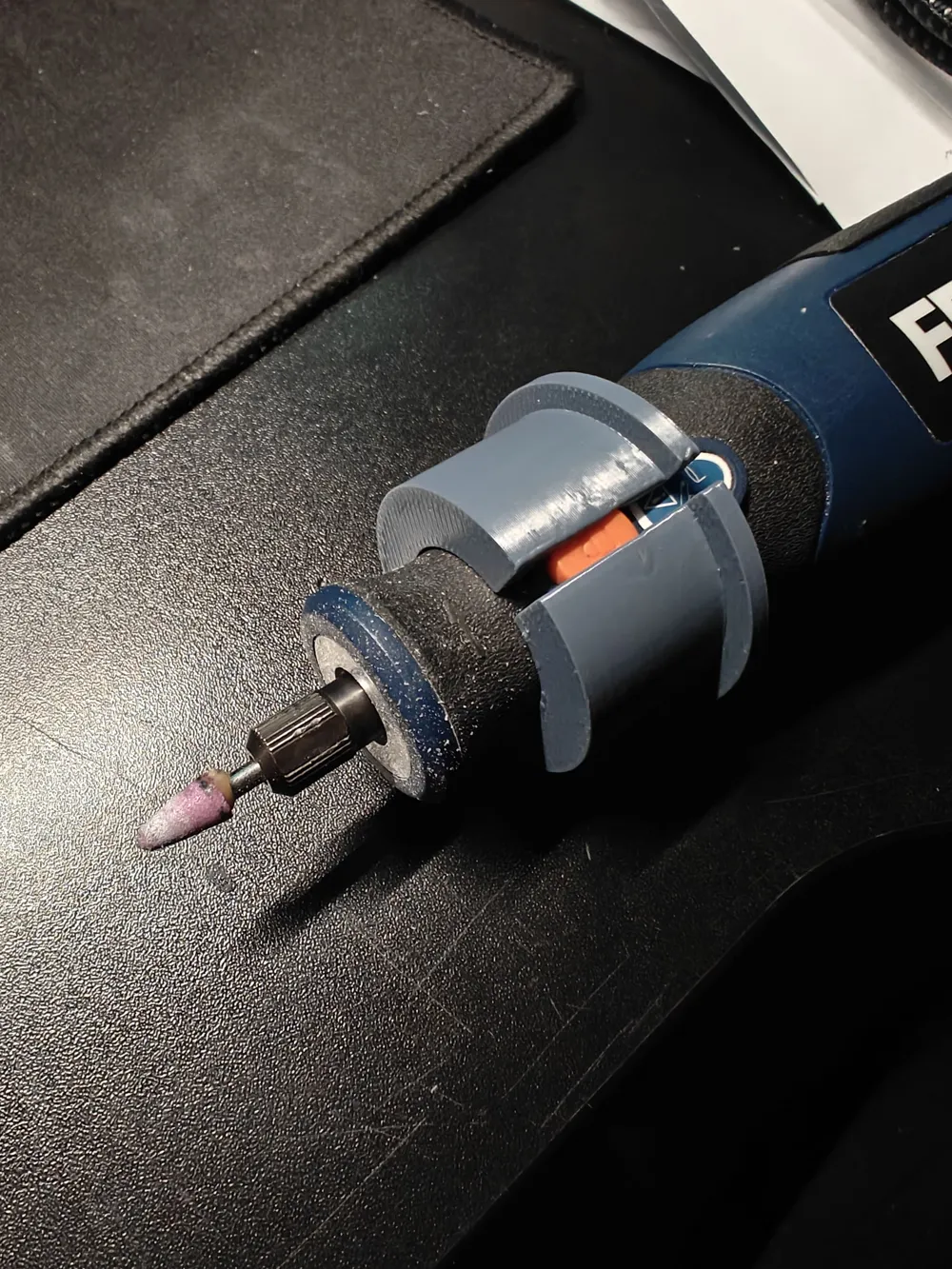

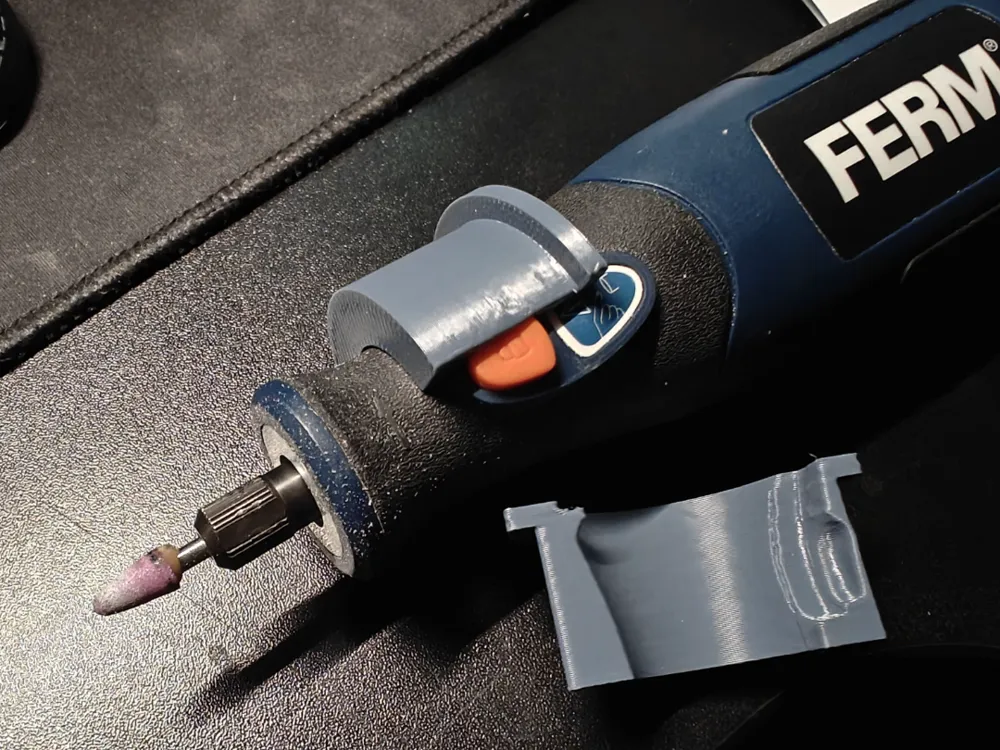

The adapter uses a split-collar design for a secure hold.

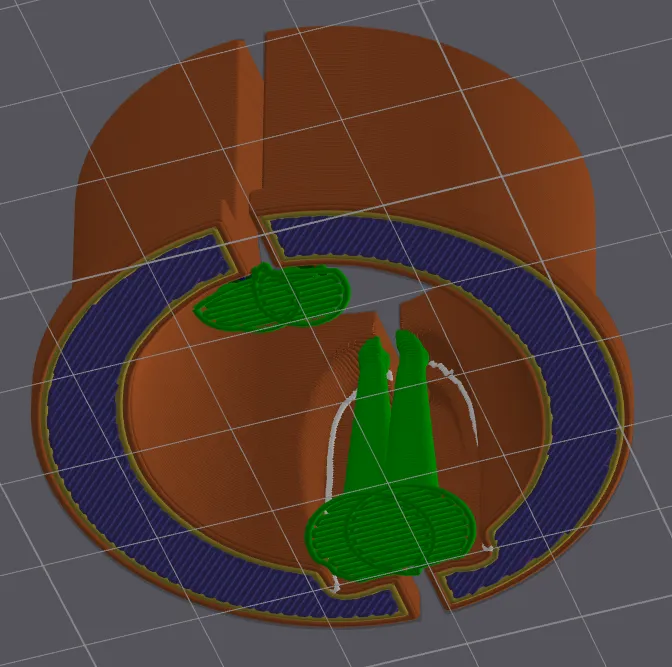

There are no special printing requirements, though you will need small support structures for the overhangs.
This model was printed using grey eSun ASA+.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
