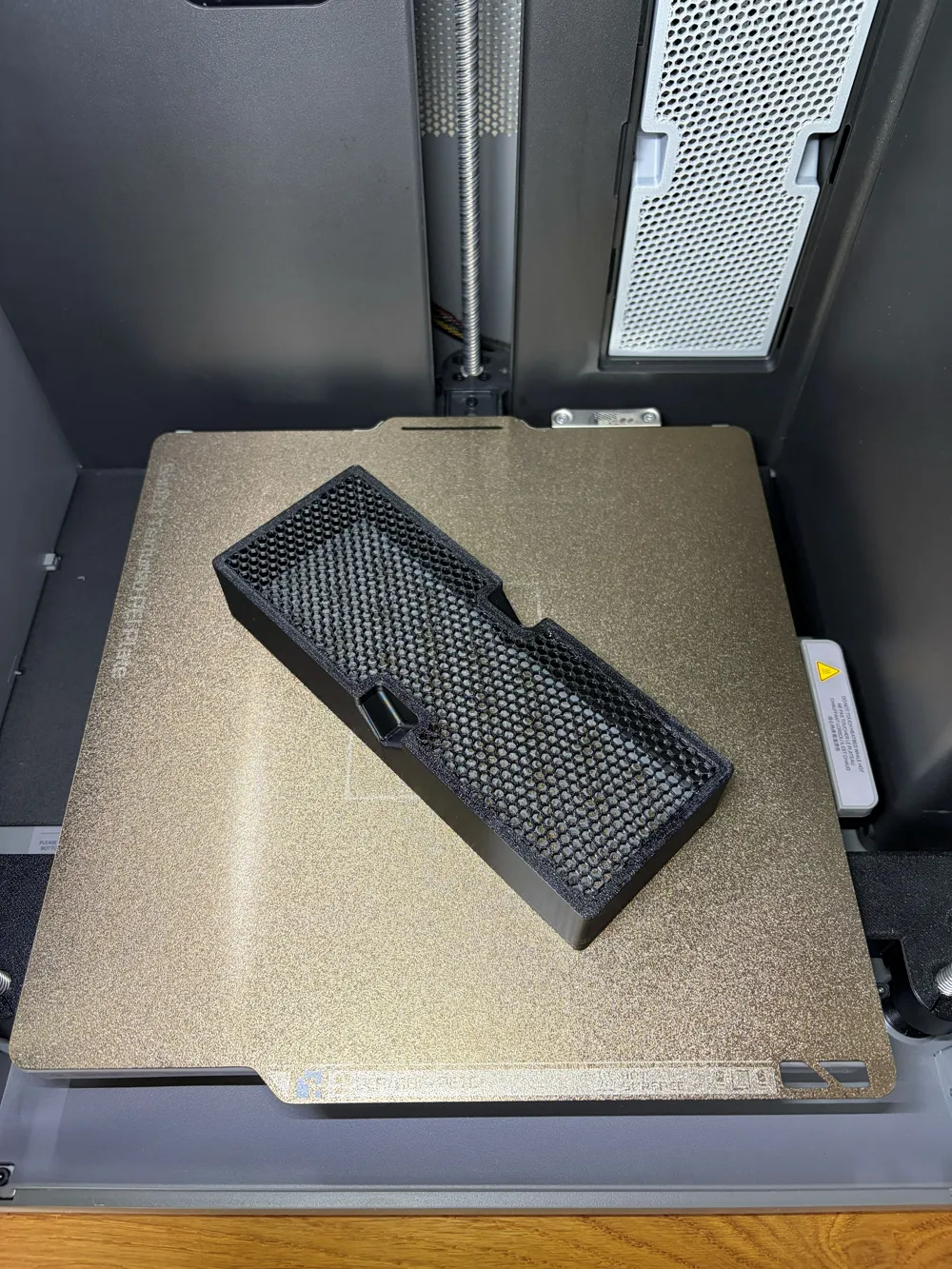

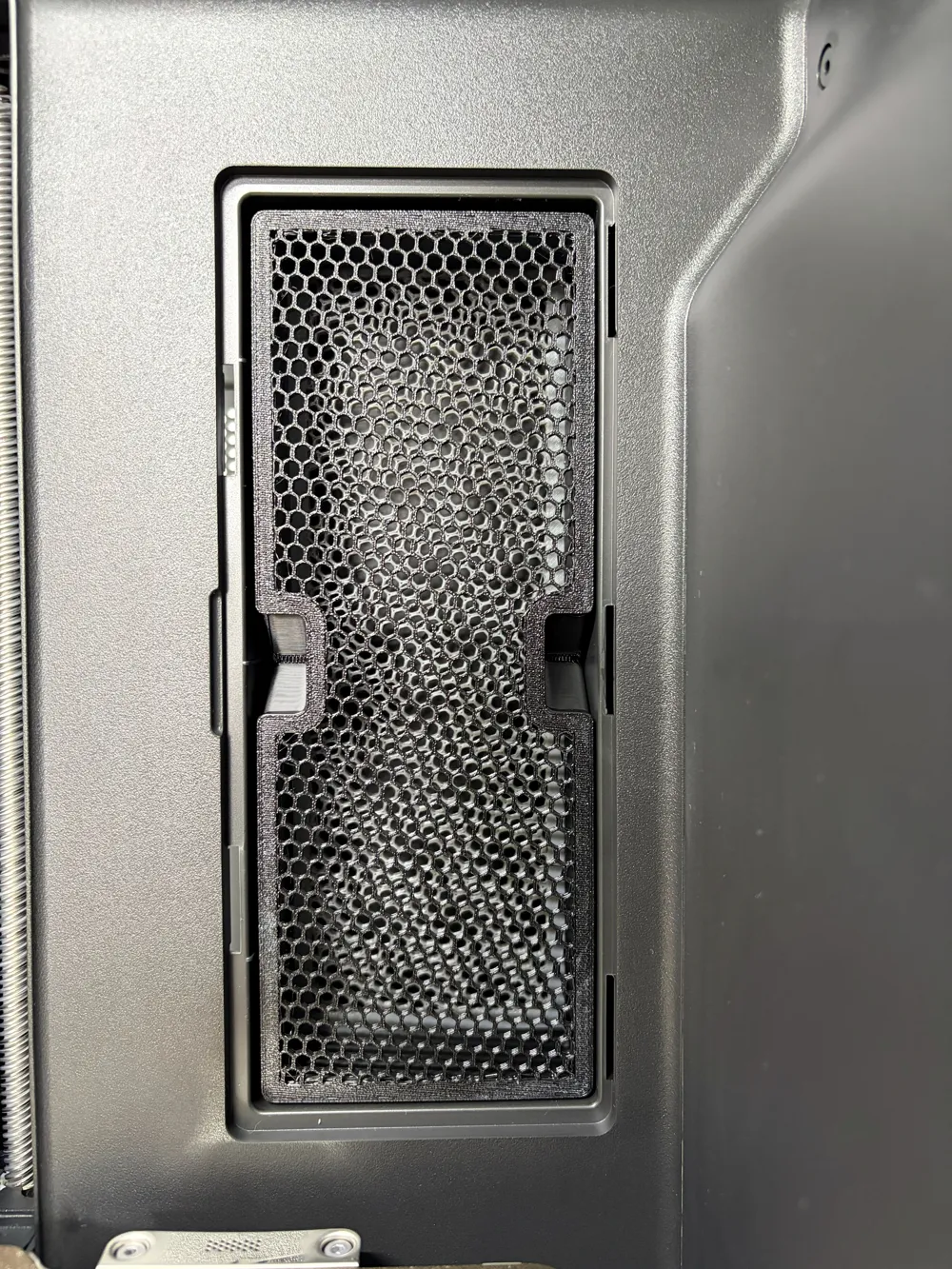

Replacement filter box for the P2S active carbon filter to replace the original filter
Approximately 150g of active carbon pellets fit in, and the airflow is slightly increased compared to the original
The box has recessed grips and can be filled through the generous opening without a funnel

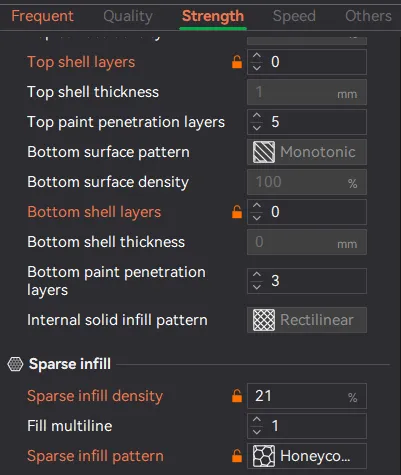

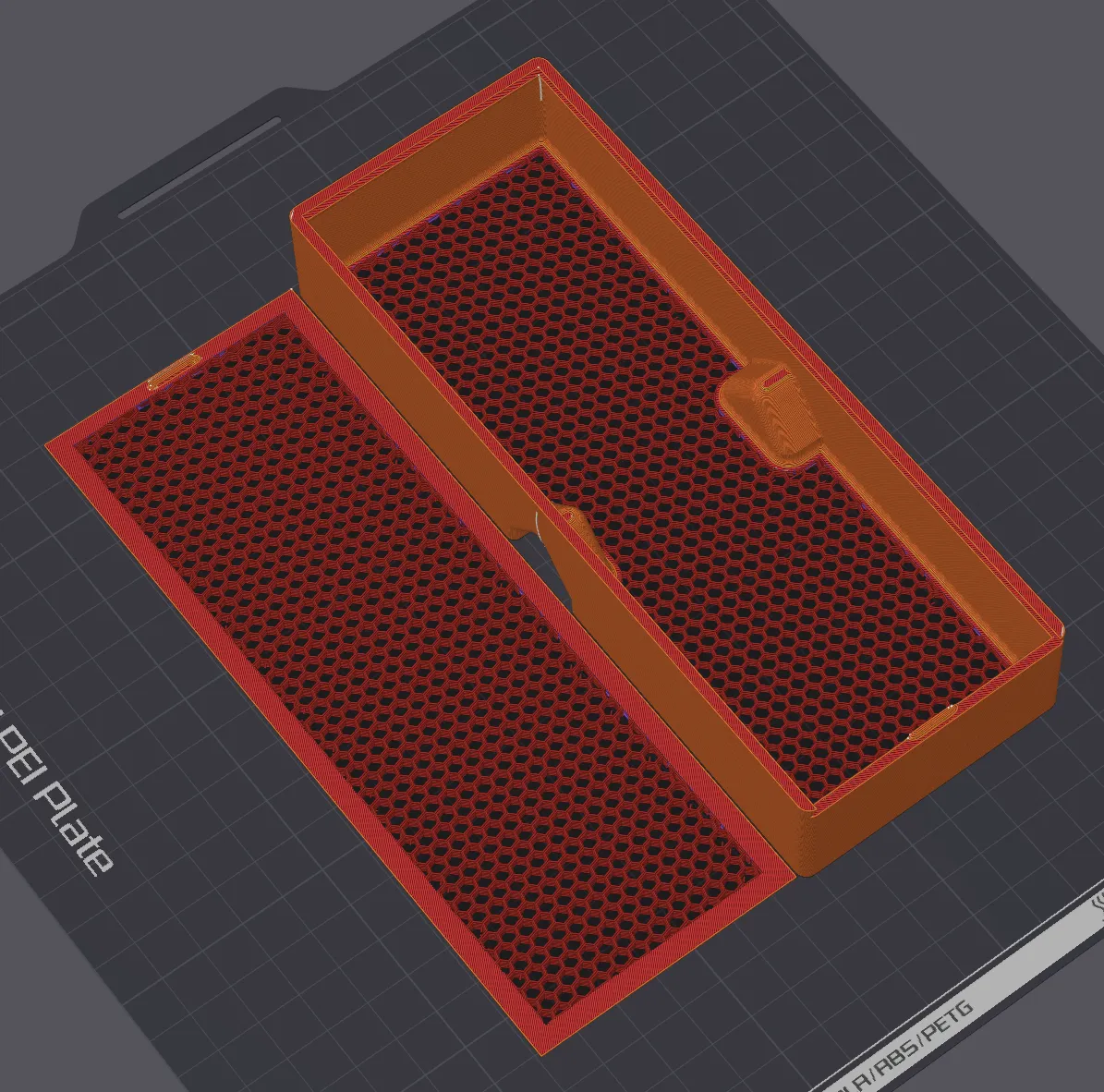

The pattern and size can be changed in the project via the infill. For this, modify Body.stl_2 & Filter.stl_2
I used 21% honeycomb
It is only important that top & bottom layers are set to 0
Handling

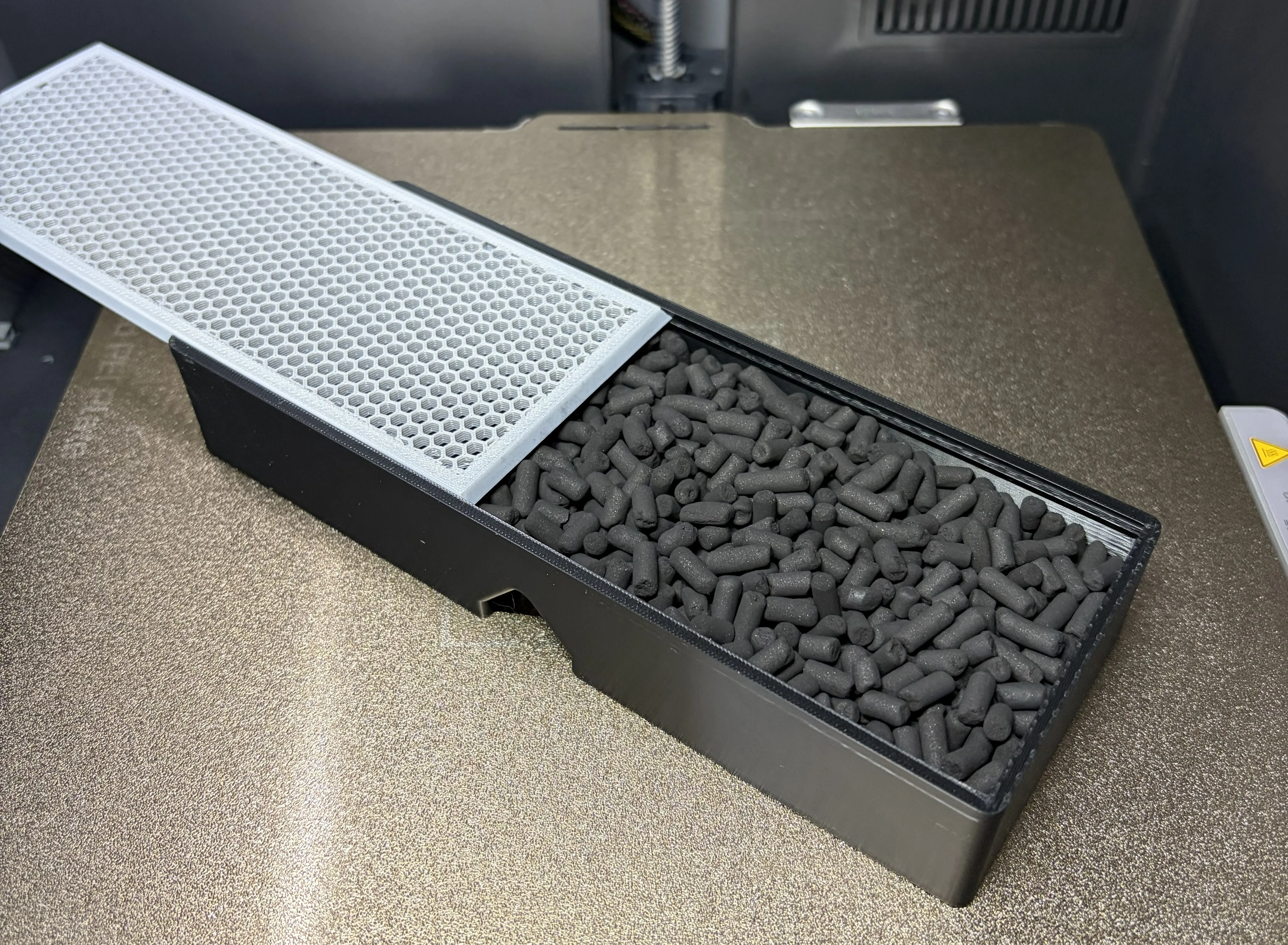

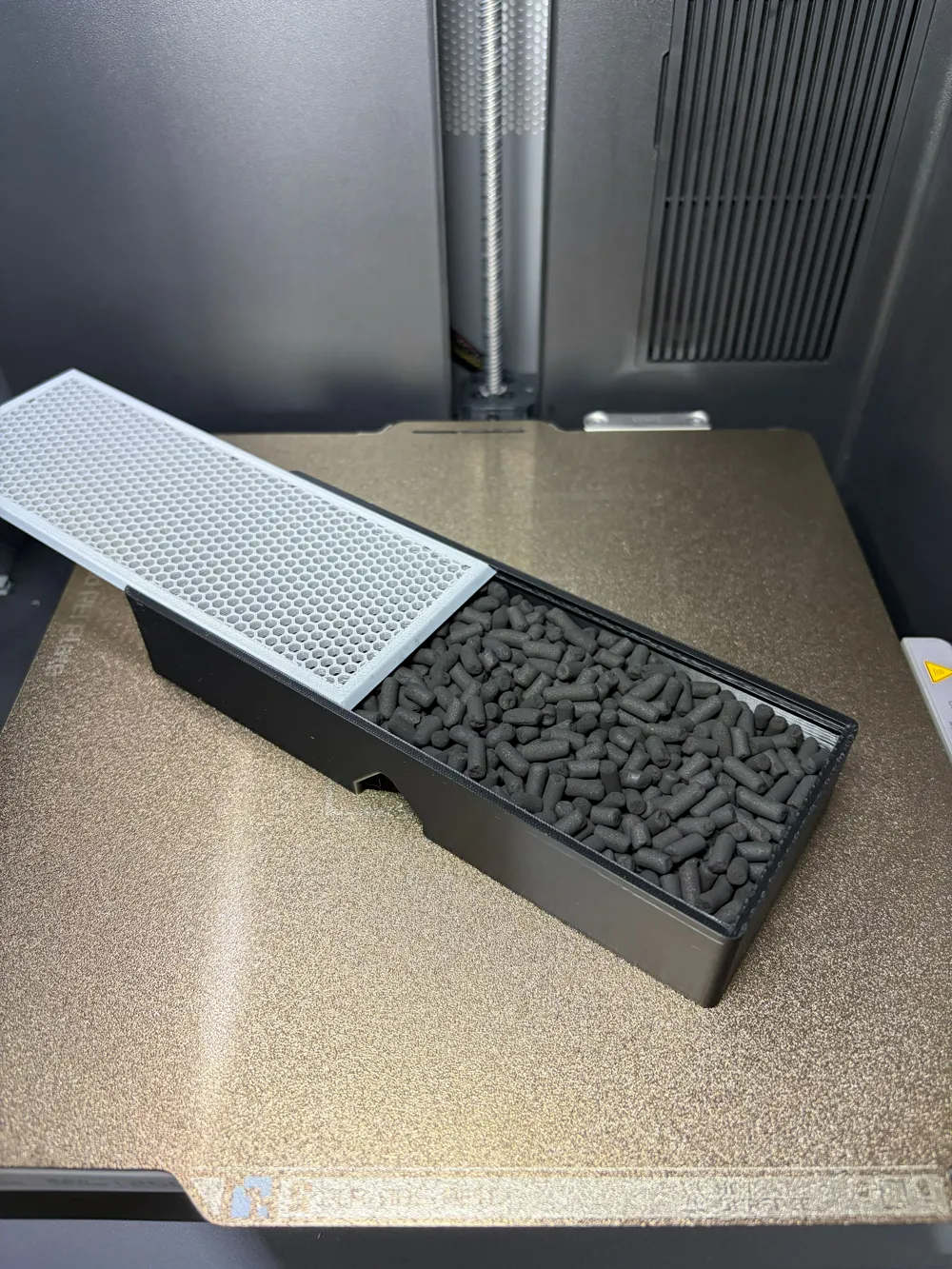

Before filling, I inserted a thin HEPA filter and almost filled the box with the pellets
A little space is still needed to close it

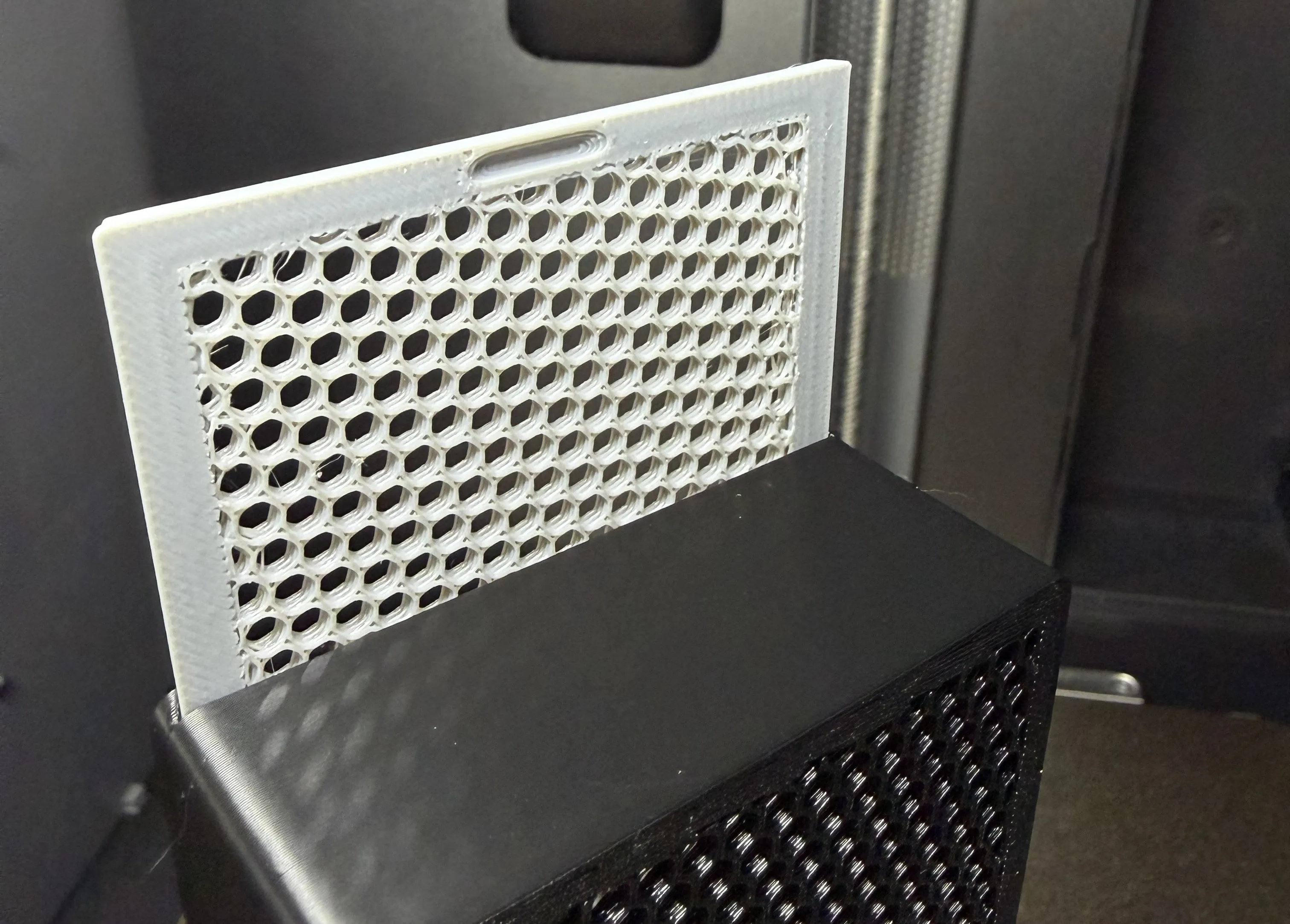

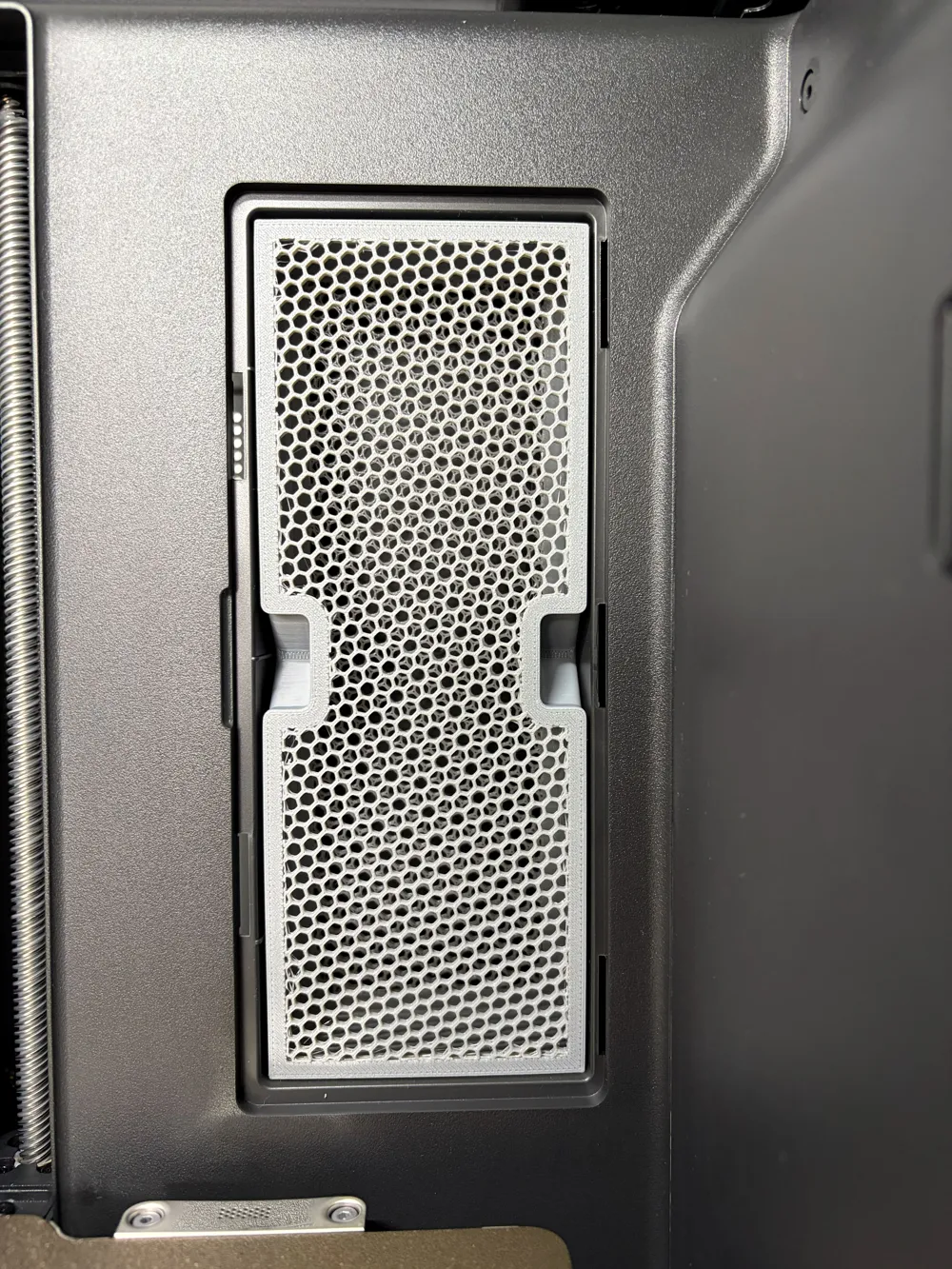

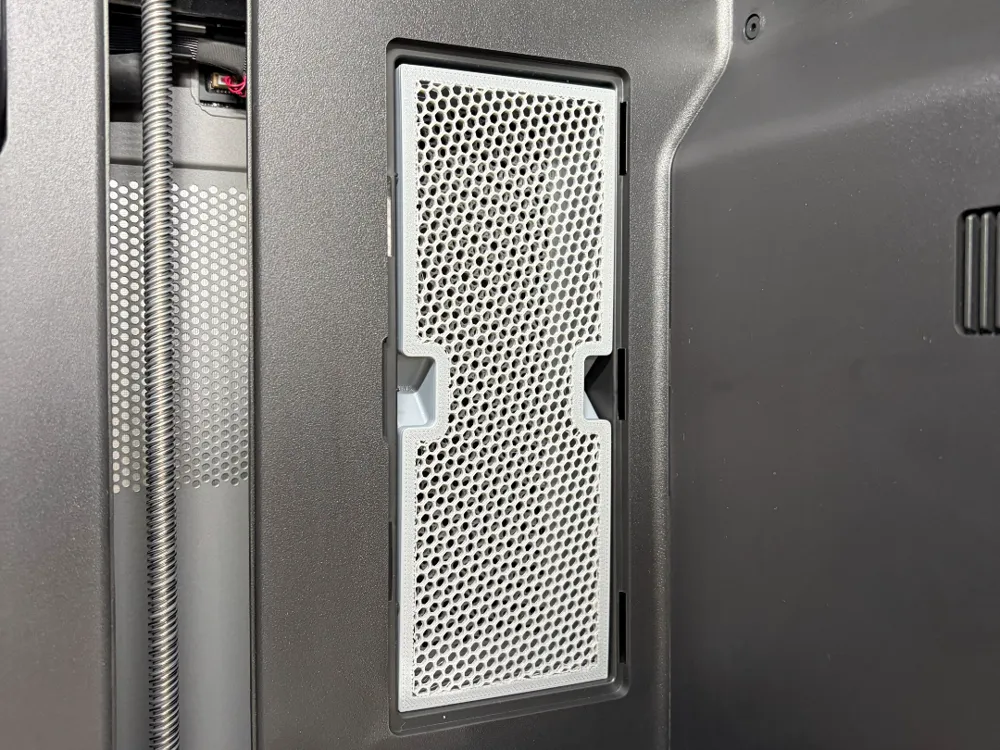

The lid has a notch and snaps firmly into place after insertion to prevent slipping
The carbon should be replaced regularly according to the manual
