Shadow Ghost 01 - Tactical series - NO AMS
Print Profile(1)
Description
Membership
Do you want to get a commercial license to sell my products? Sign up and choose the option that best suits your needs. Whether you sell online or in local markets, these licenses allow you to print and sell physical copies of my designs
Boost Me (for free)
⚠️ A BOOST is encouragement to create new projects. It is free for you, while it has great value for me. Thank you 🔝
IF YOU WANT TO SELL MY CREATIONS YOU MUST BUY THE MAKERWORLD COMMERCIAL LICENSE.
THIS WAY YOU HELP ME TO GROW WITHOUT MY DESIGNS BEING SOLD ILLEGALLY WITHOUT MY CONSENT.
💀 SHADOW GHOST
Shadow Tactical Series – Edition 01
Discover Shadow Ghost, the first character in the Shadow Tactical Series 🕶️
A collection of modular figures with a tactical/chibi style, designed for those who want to print in multi-color without using AMS
The idea is simple:
avoid complex filament changes, reduce waste ♻️ and allow anyone to choose their own colors with a single extruder printer
❌ No purge tower
❌ No mandatory multicolor system
✅ Separate parts
✅ Clean print
✅ Simple assembly
🎯 Concept
Each model in the series is designed to be:
• 🖨️ Easy to print
• 🧩 Easy to assemble
• 🎨 Fully customizable
• 🔄 Modular and expandable
Shadow Ghost combines compact proportions, iconic eyes 👁️ and a minimal silhouette for a bold and instantly recognizable look
New variants of the Shadow Tactical Series will be released regularly 🚀
Feel free to share your ideas and custom versions
I can't wait to see your prints 🔥
📦 Model Summary

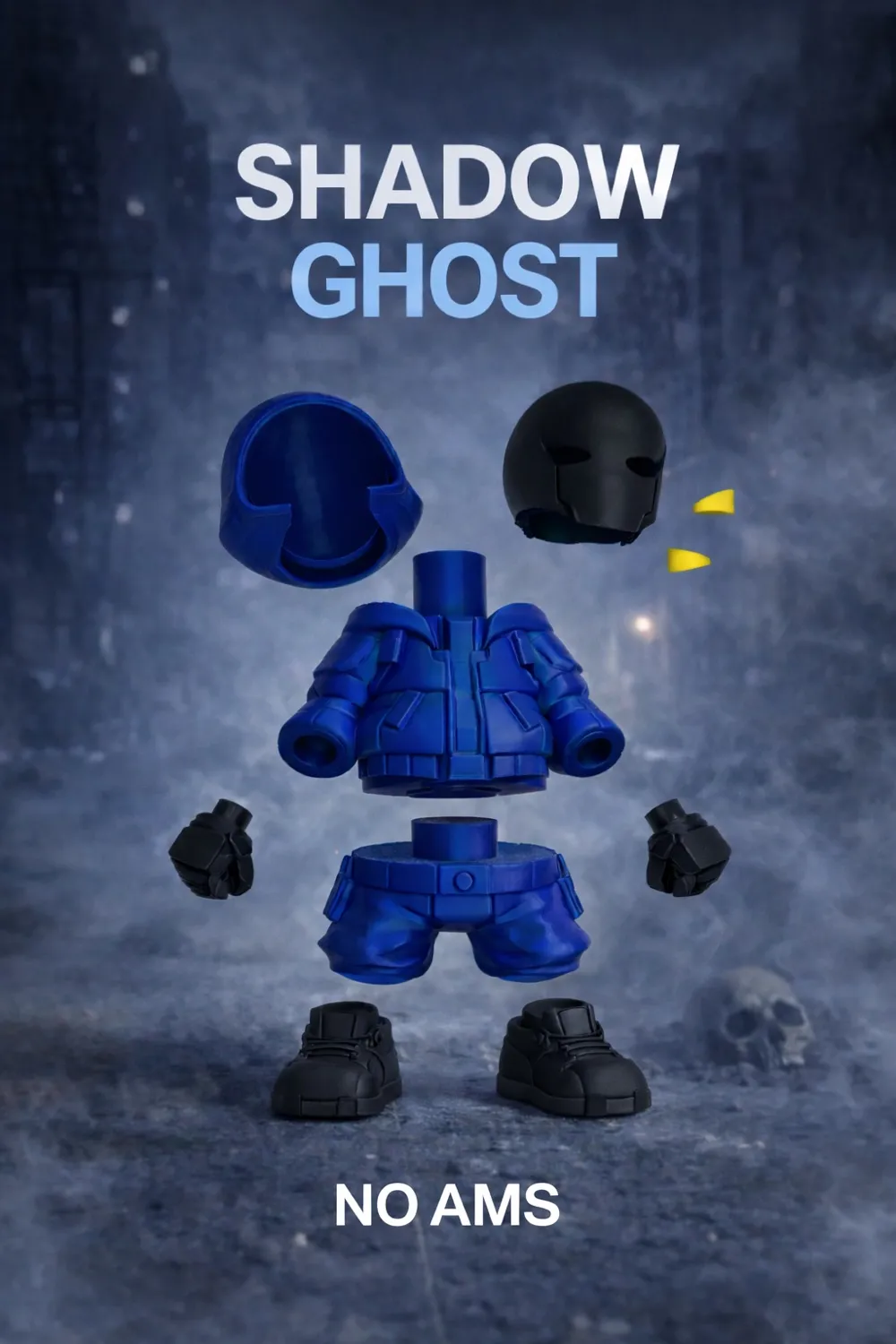

Model designed in multiple parts, assembled via friction-fit interlocking connectors
The parts fit correctly with a well-calibrated printer
Depending on the material used, a small amount of glue may be needed
The files include optimized orientations for printing and supports ⚙️
Do not reorient the parts unless you know exactly what you are doing
🖨️ Printing Instructions
Maintain the recommended parameters for the best result
If included, the slicing profiles are already tested for this model
📐 Orientation & Supports
The parts are already oriented to:
• Minimize supports
• Improve surface quality
• Reduce post-processing
Avoid rotating the pieces globally
If you modify the orientation, always check support generation
🔧 Assembly – Recommended Method
1️⃣ Dry Pre-assembly
Assemble all pieces without glue to check tolerances and alignment
2️⃣ Cleaning
Remove any burrs or imperfections with a fine file or light sandpaper
Adjustments:
• Too tight → sand lightly (200–400 grit)
• Too loose → add a small drop of glue
Optional gluing:
For a definitive version, use cyanoacrylate (CA) glue
It is recommended to glue:
• Eye inserts 👁️
• Small decorative details
⚙️ Recommended Print Settings
Layer height: 0.12–0.20 mm
(0.12 mm recommended for finer details)
Walls: 2–3
Infill: 10–20%
Top/bottom layers: 4
Supports: Use those generated with the provided orientation
Build plate adhesion: Skirt recommended
Temperatures: Adjust according to your filament
Shadow Ghost is the starting point
The Shadow Tactical Series is just getting started 🕶️🔥
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
