Ball Door Handle

🔵 Ball Door Handle

Modern ball-style door handle designed to fit onto a square rod up to 8.5 × 8.5 mm.
Simple, clean design that works well for furniture, cabinets, workshop doors, or custom builds.

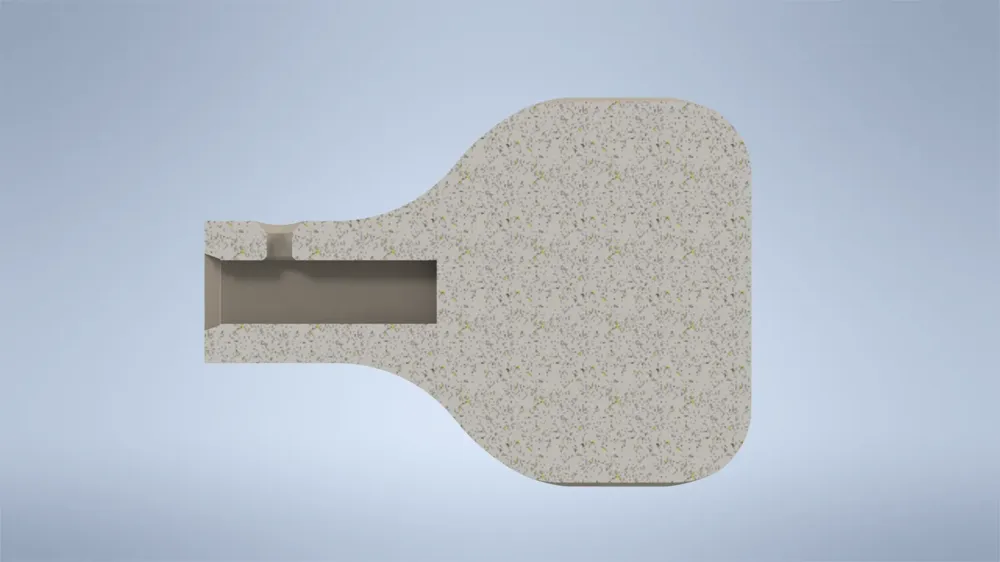

The handle is secured using a pointed set screw, which locks the handle firmly onto the rod.

The 3MF file includes multiple variants for easier printing:

• Smaller version
• Larger version
• Each size also includes a Fuzzy Skin variant for improved grip and texture

⚙️ Specifications

• Fits square rod up to 8.5 × 8.5 mm
• Secured with M4 pointed screw <- click here
• Compatible with:
  • M4×3
  • M4×6
• Minimalist ball grip design
• Easy installation

🧰 Assembly

1. Slide the handle onto the square rod (max 8.5 mm).
2. Insert the M4 pointed screw into the side hole.
3. Tighten until the screw tip presses into the rod and locks the handle in place.

🖨️ Printing Tips

• Recommended material: PETG / ASA

📌 Use Cases

• 🚪 Door handles
• 🔧 DIY projects
