+UPDATE+ 19.06.2026
Print profile with 22mm "hook" added
+++++
I was looking for a way to install a staircase/ladder on the fence for our cat.
Although I found similar holders here on MakerWorld, I preferred to design my own.
The holder is universally applicable, not just as a cat staircase

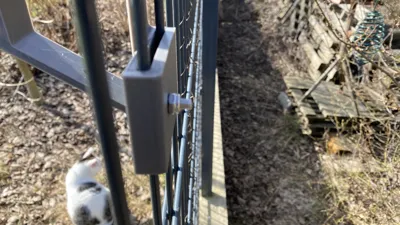

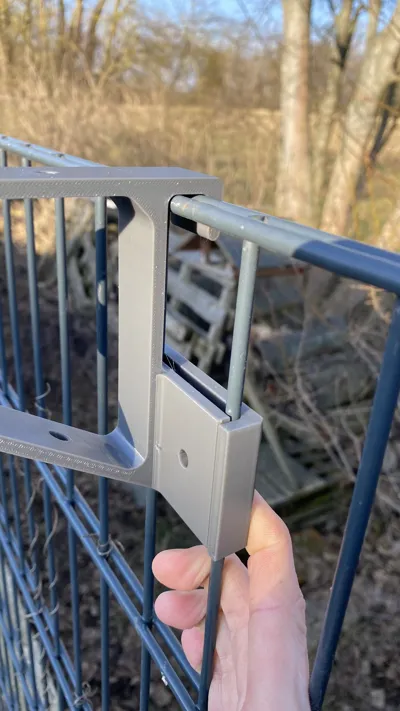

My holder can be fixedly mounted with a small counterpart on the other side of the fence and a suitable screw
This prevents wobbling or slipping
This was important to me for when my cat jumps up and down on it. (If she ever does. The installation is still new and has been ignored by her so far!)
The holder has 2 pre-drilled holes to screw a board on top, as I have used it

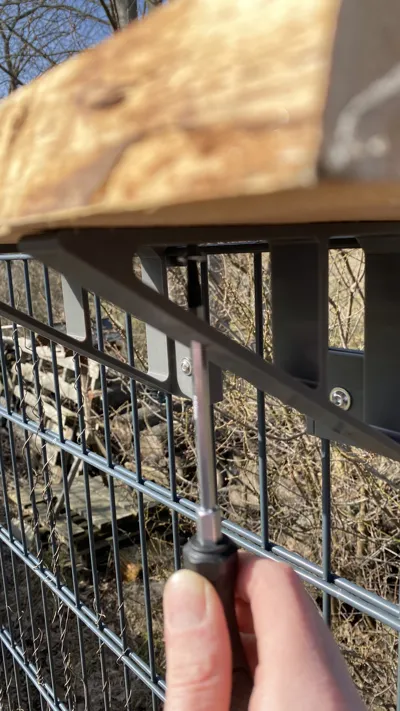

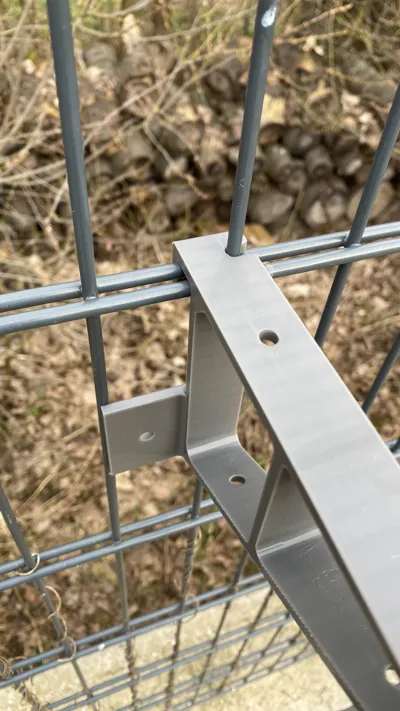

The slanted support also has pre-drilled holes that allow for easier use of a screwdriver (see photo)
Dimensions:
The contact surface is approximately 190mm x 25mm
The holder is designed with a thickness of 5mm
The holes have a diameter of 6mm

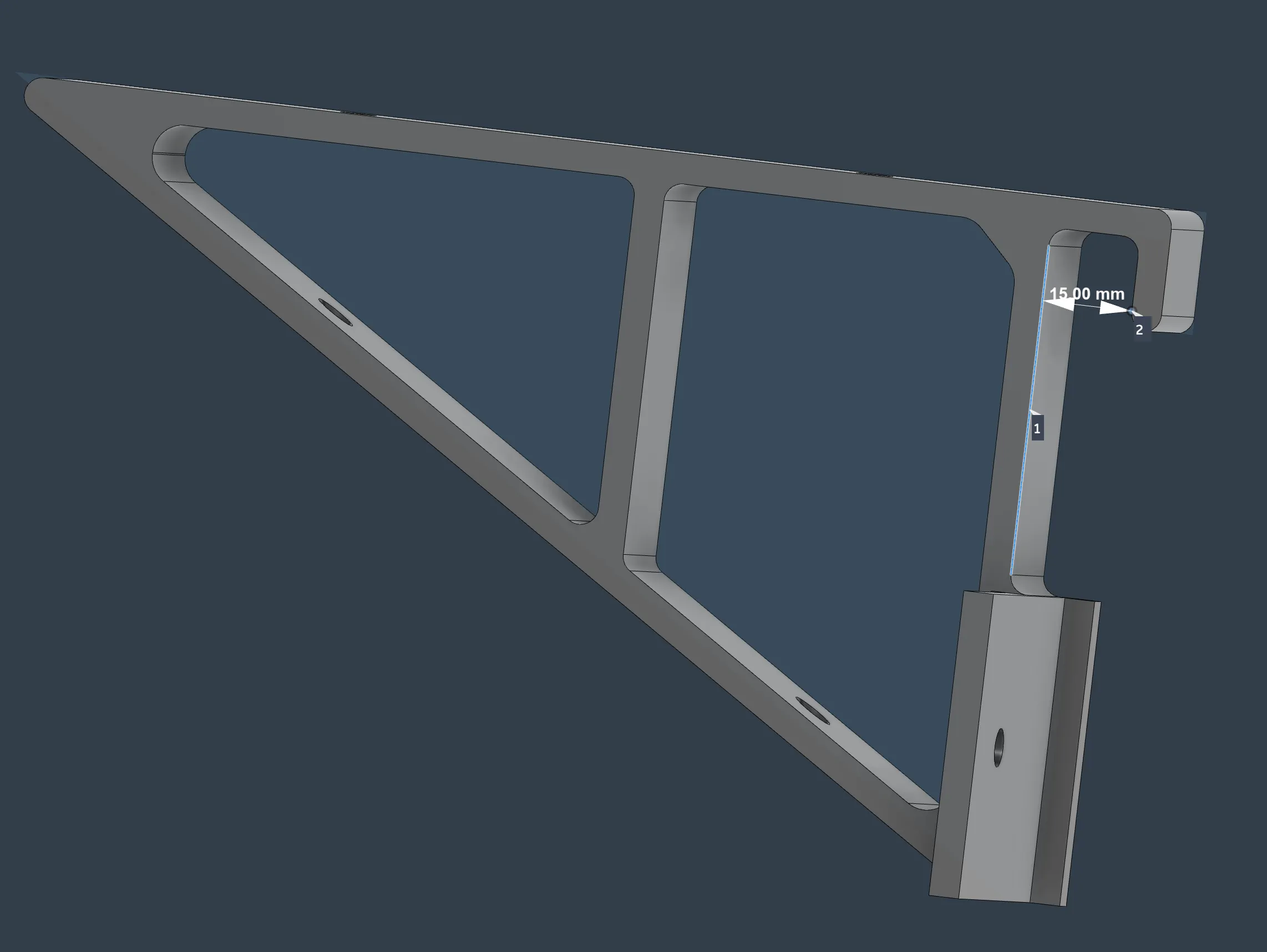

The gap of the "hook" is 15mm

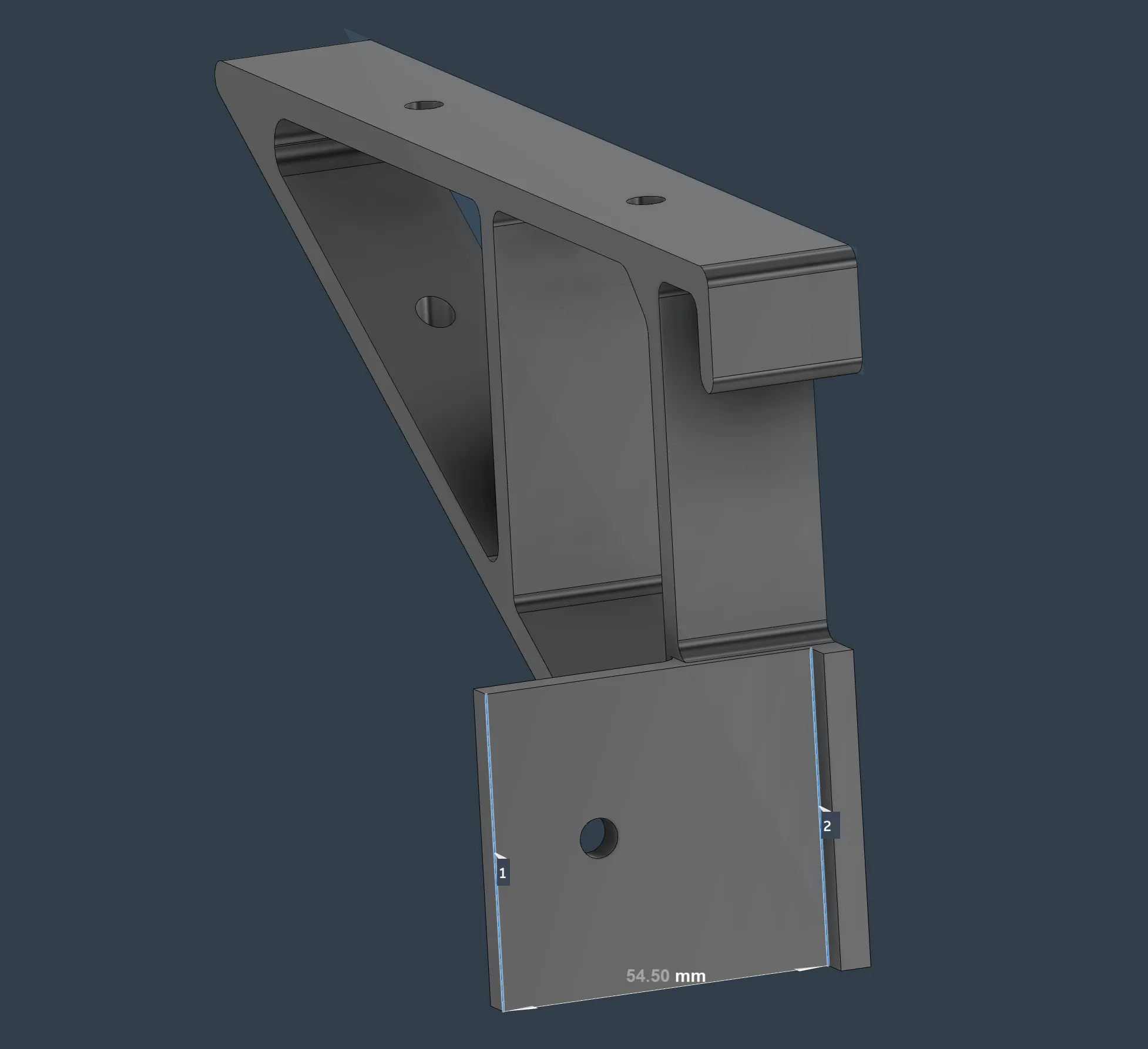

The support for the intermediate rods is for a rod spacing of 54.5mm

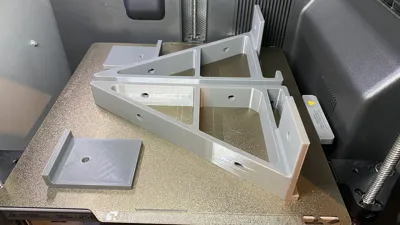

There are 2 holders in the download, whose use is clearly visible in the pictures:

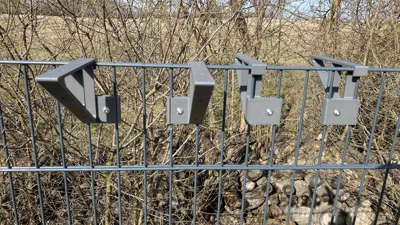

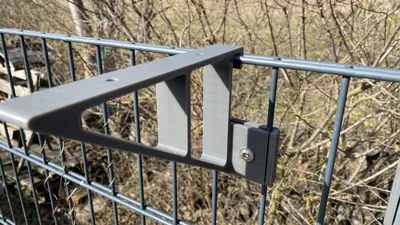

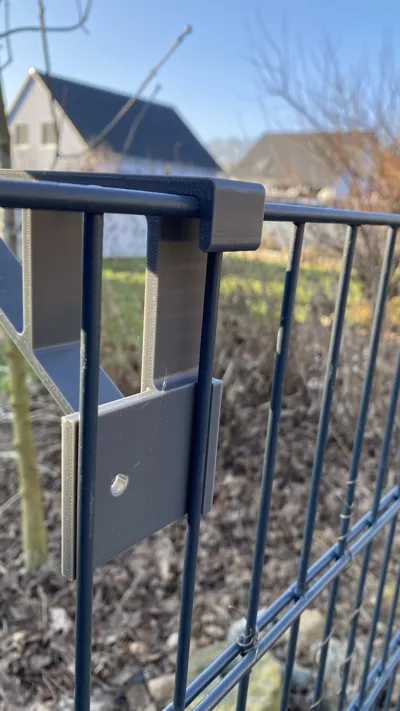

1. The holder for mounting on top of the fence ("Mesh Panel Holder Top")

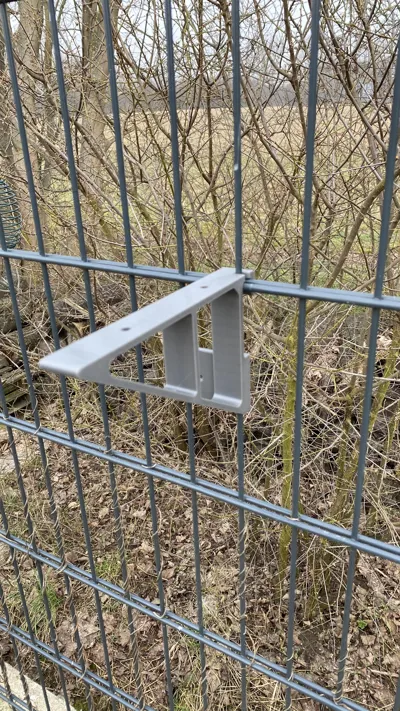

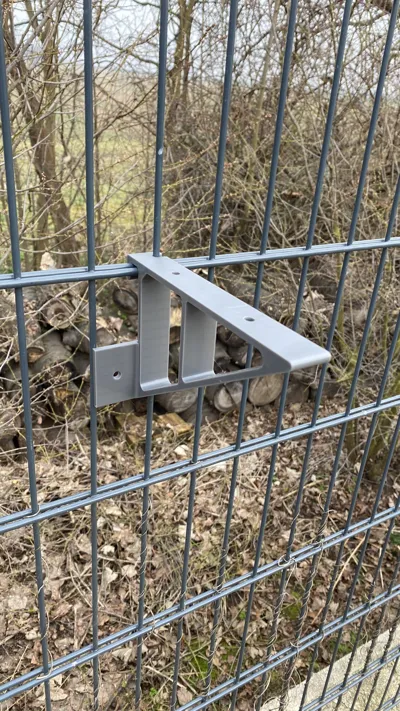

2. The holder for mounting in the middle of the fence panel. This one has a groove at the top for clamping the fence rod. ("Mesh Panel Holder Bottom")
I used the following parts for fastening:
Screws M6 x 12 x 25: https://www.amazon.de/dp/B0D5LYHMMH?ref=ppx_yo2ov_dt_b_fed_asin_title
Self-locking nuts M6: https://www.amazon.de/dp/B0BJZKZHRR?ref=ppx_yo2ov_dt_b_fed_asin_title
