Prototyping Base compatible with Arduino / ESP32
IP Report

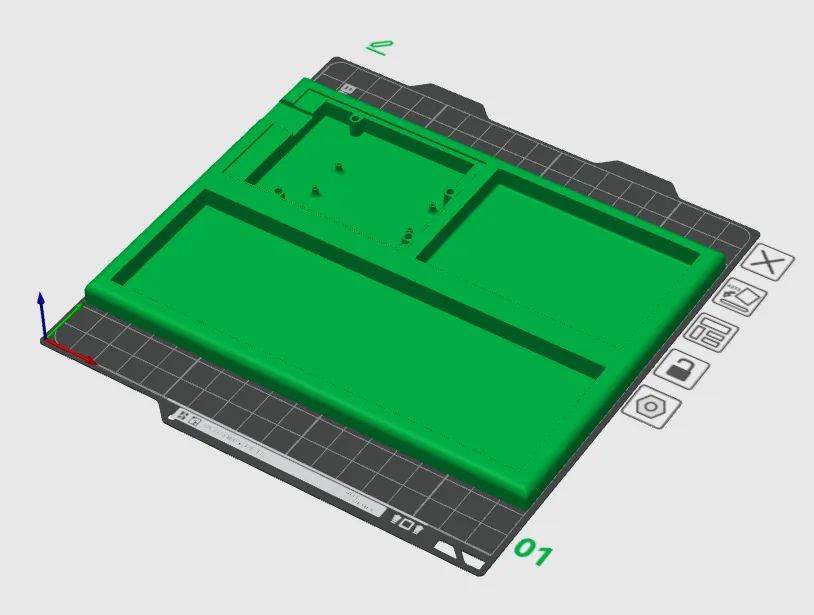

Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.4 h
1 plate
Open in Bambu Studio
Boost
7
11
1
0
19
6
Released
Description

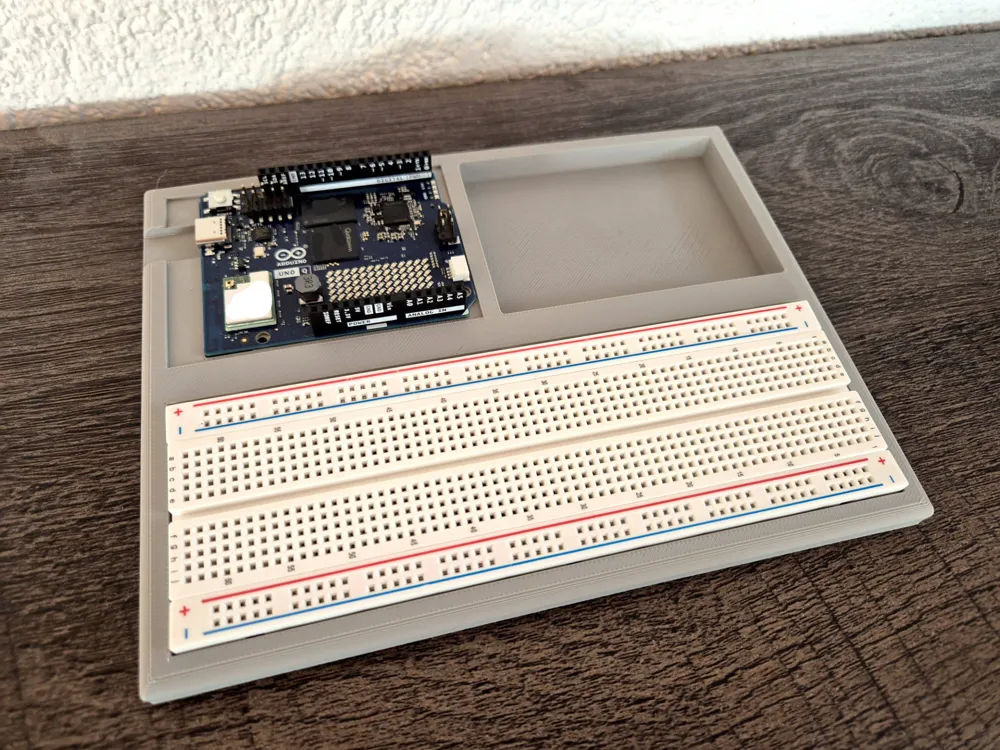

- Stable platform that keeps your components securely in place while you work.

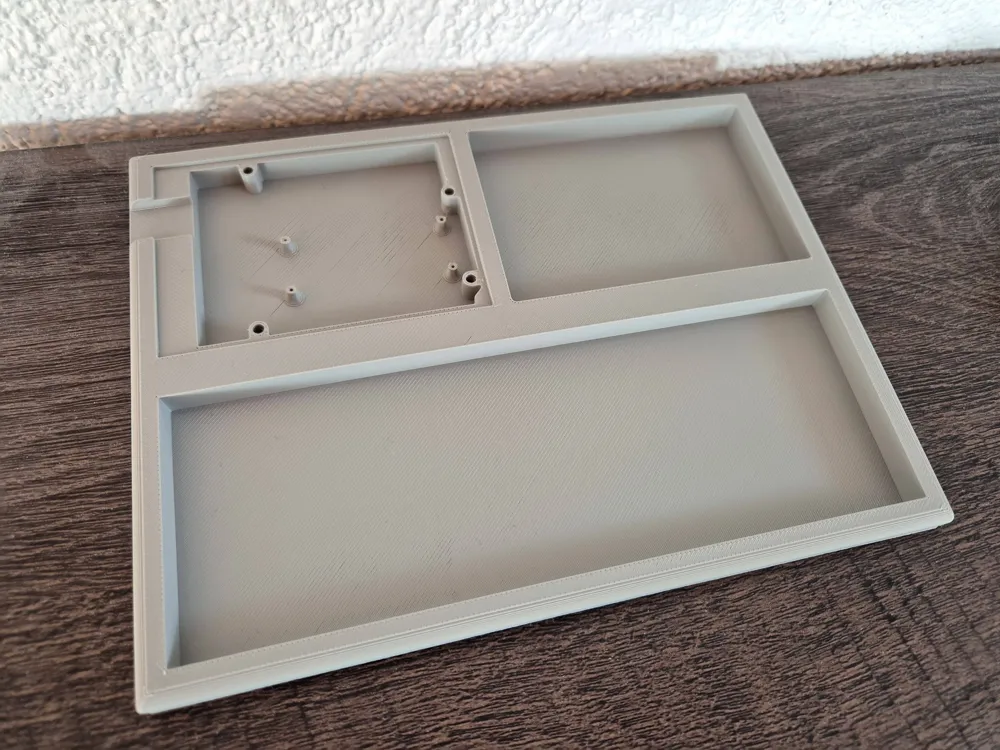

- Extra storage compartment for jump wires, sensors, LEDs, small tools, or even a second microcontroller.
- Designed for Arduino UNO boards, but also compatible with some ESP32 models (see screenshots for hole dimensions to check compatibility).

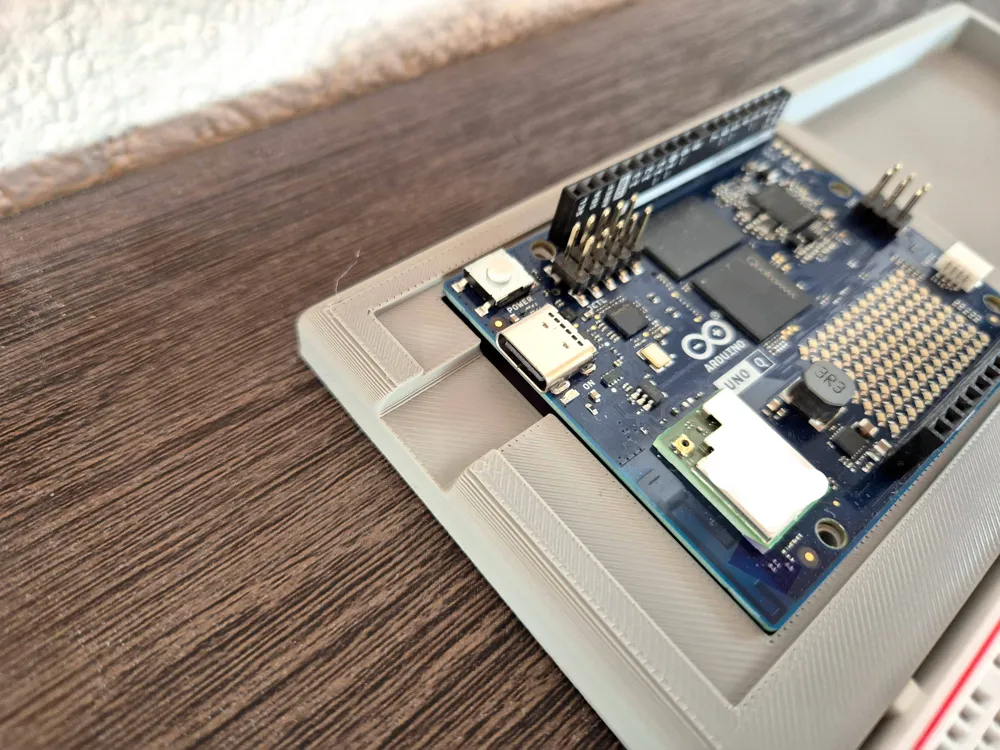

- Works with both the classic Arduino UNO with USB‑B and, thanks to the left-side opening, also with the newer USB‑C models.
- Possible to print with A1-Mini!!
- Print in just 90 minutes using less than 60g of material!
