Snapmaker U1 Display Winkel Adapter Plug and Play!

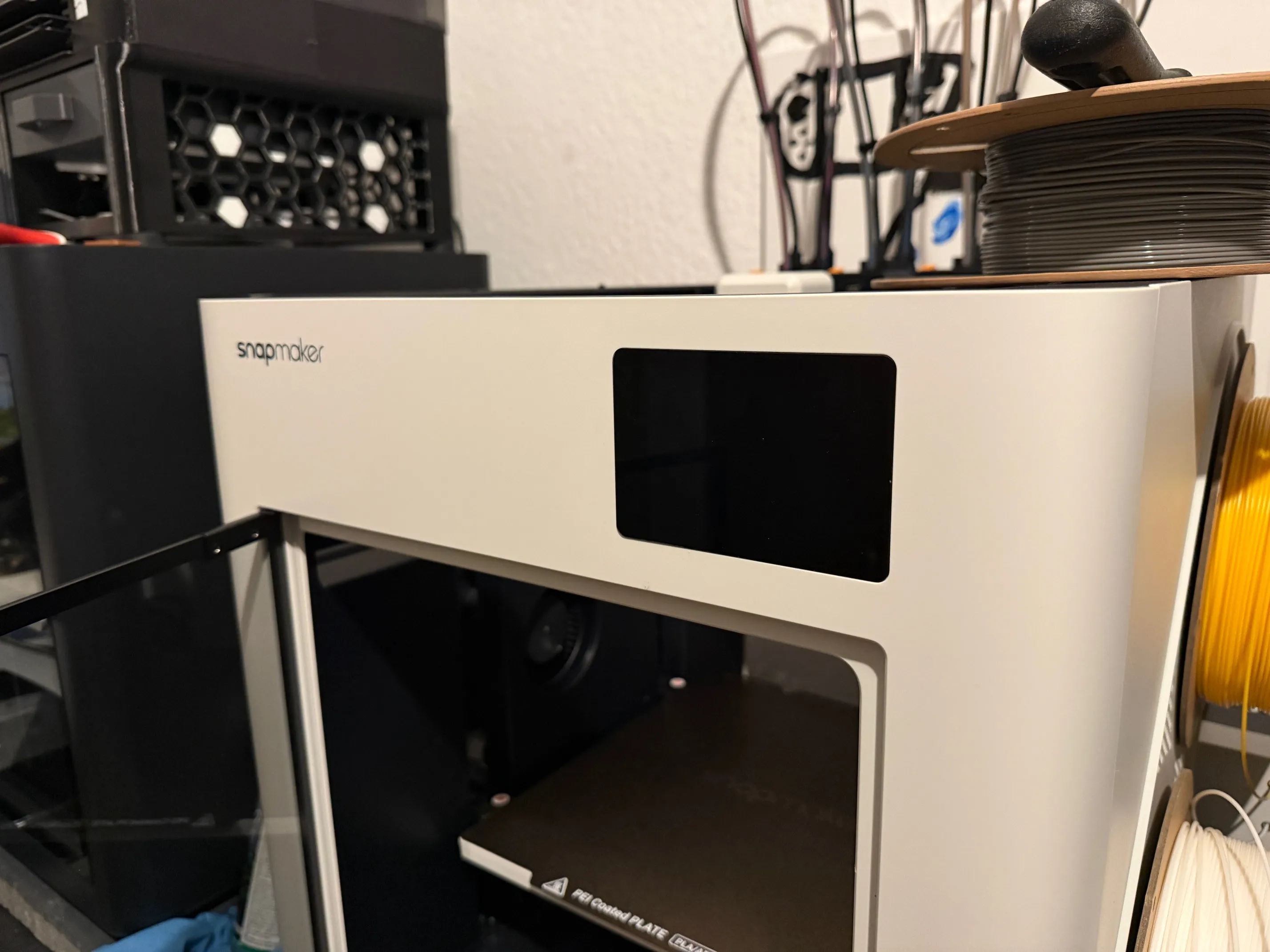

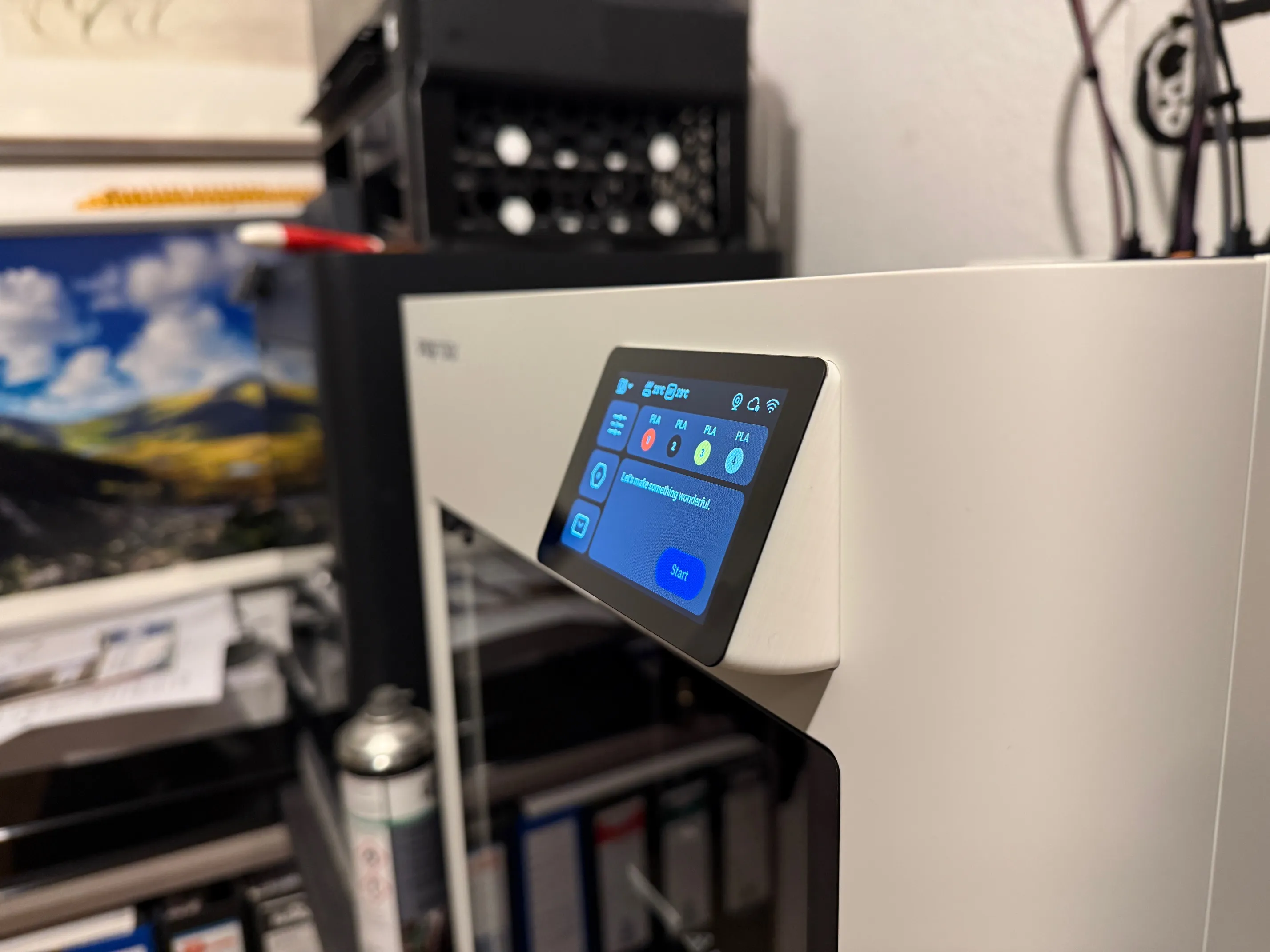

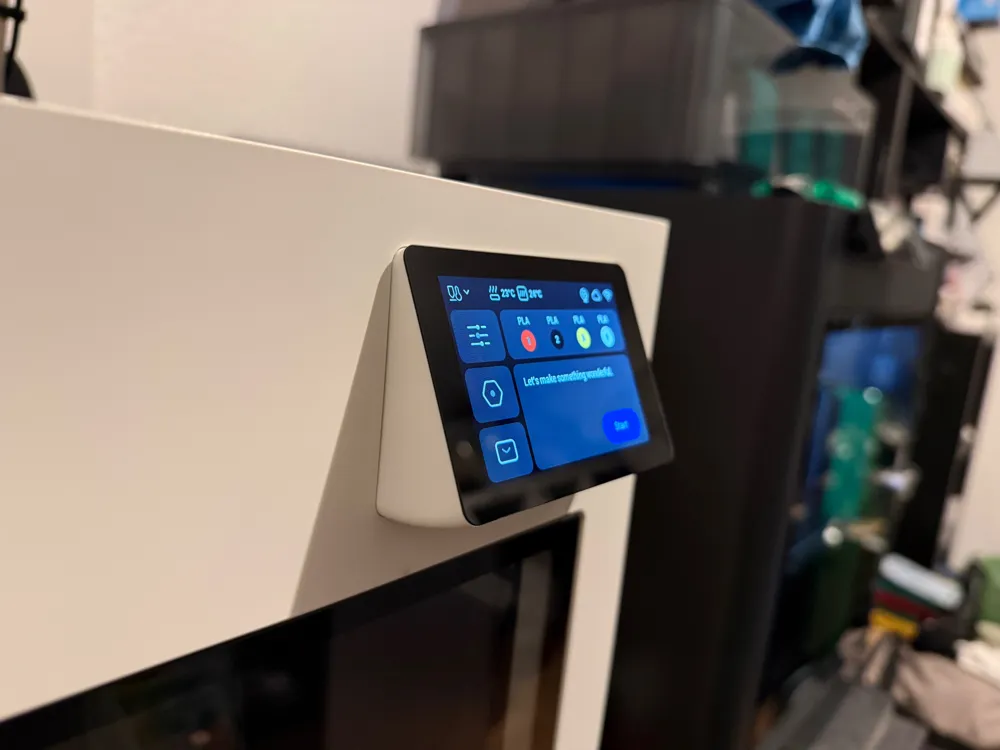

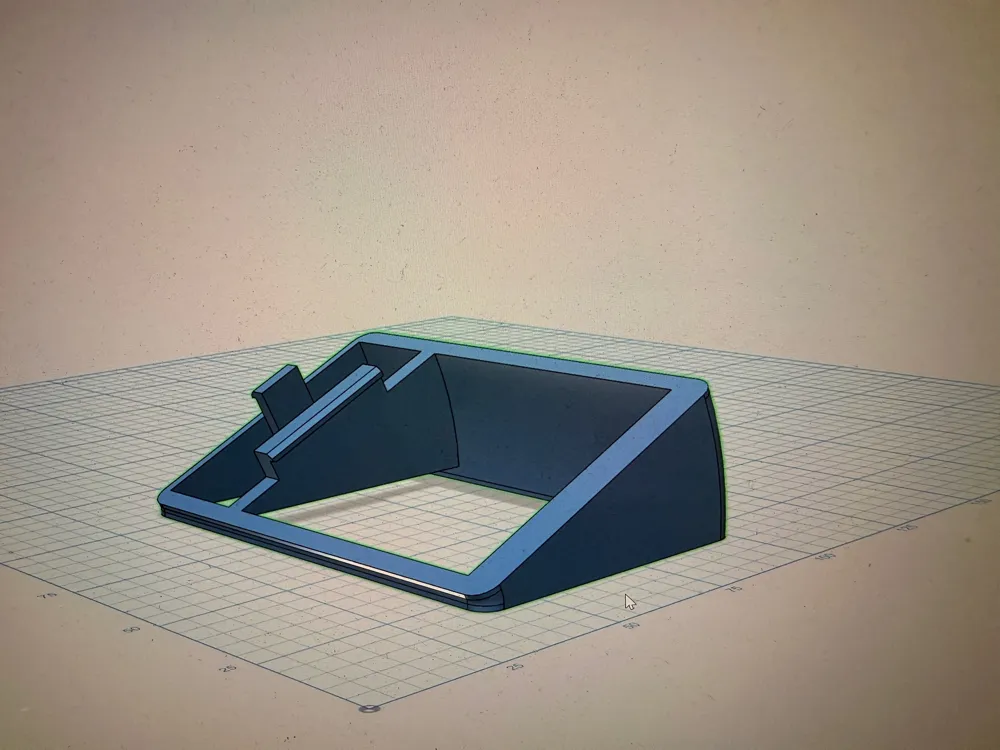

The flat-mounted display of the Snapmaker bothered me a bit, and I wanted the display at the same angle as my Bambu Lab printers. Since previous designs didn't convince me because they required additional accessories, I designed my own solution that works without any accessories

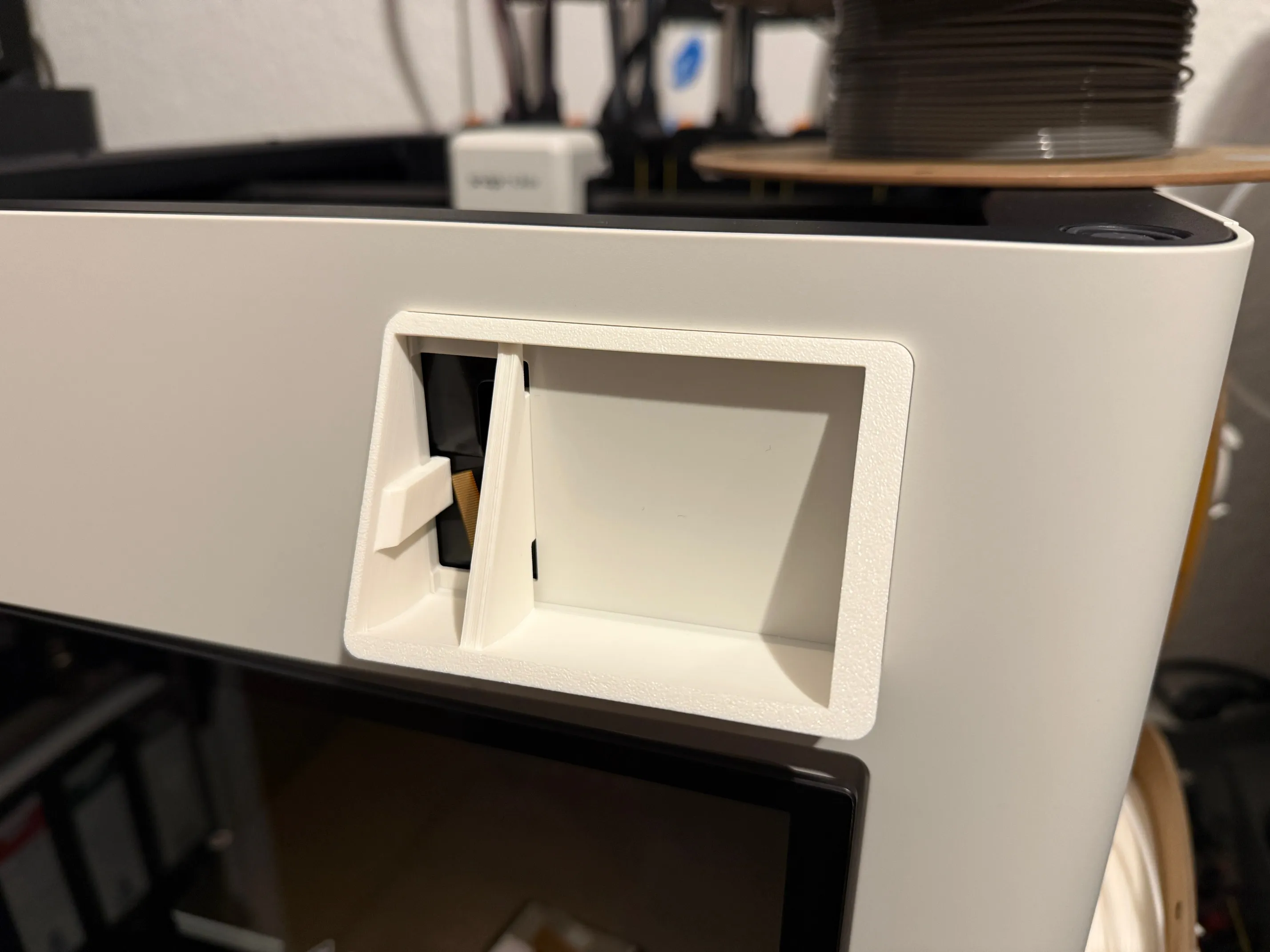

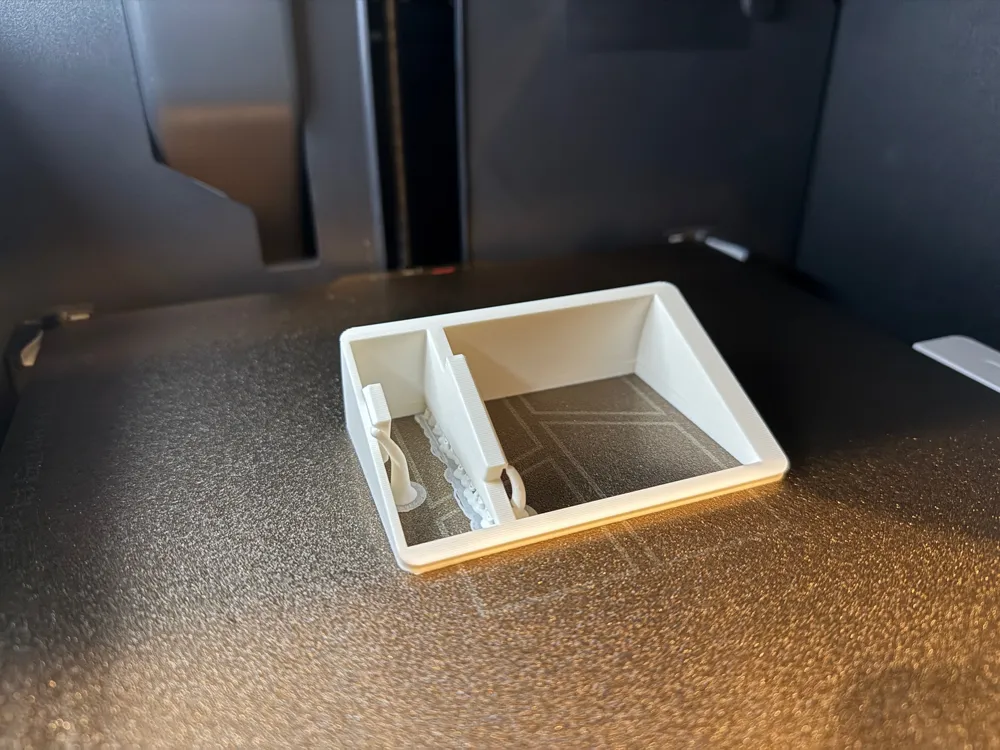

The frame simply and perfectly clicks into position. The display must be disconnected from the ribbon cable for this, which is not difficult. Assembling it with the ribbon cable is a bit fiddly, but I managed it without assistance

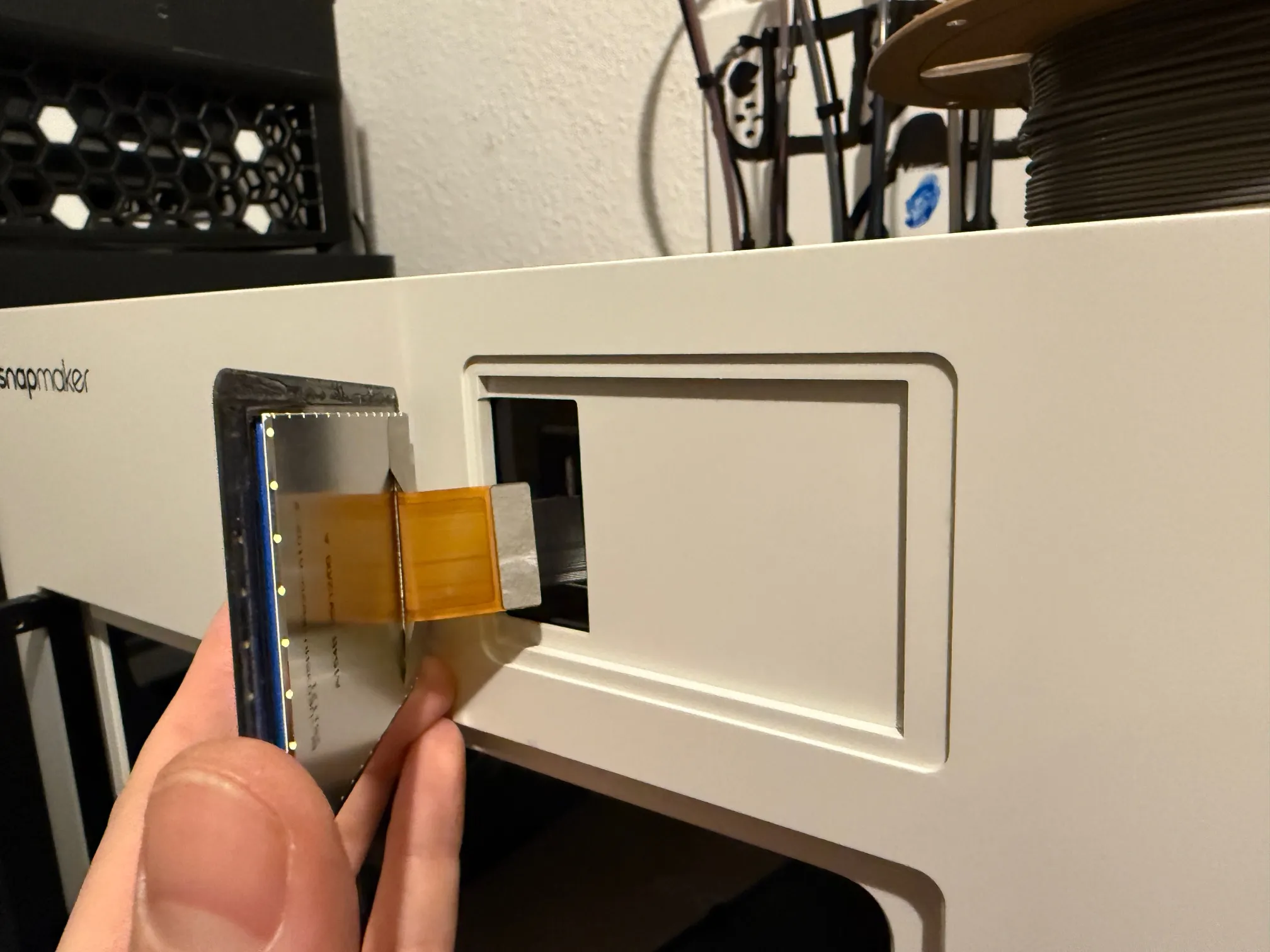

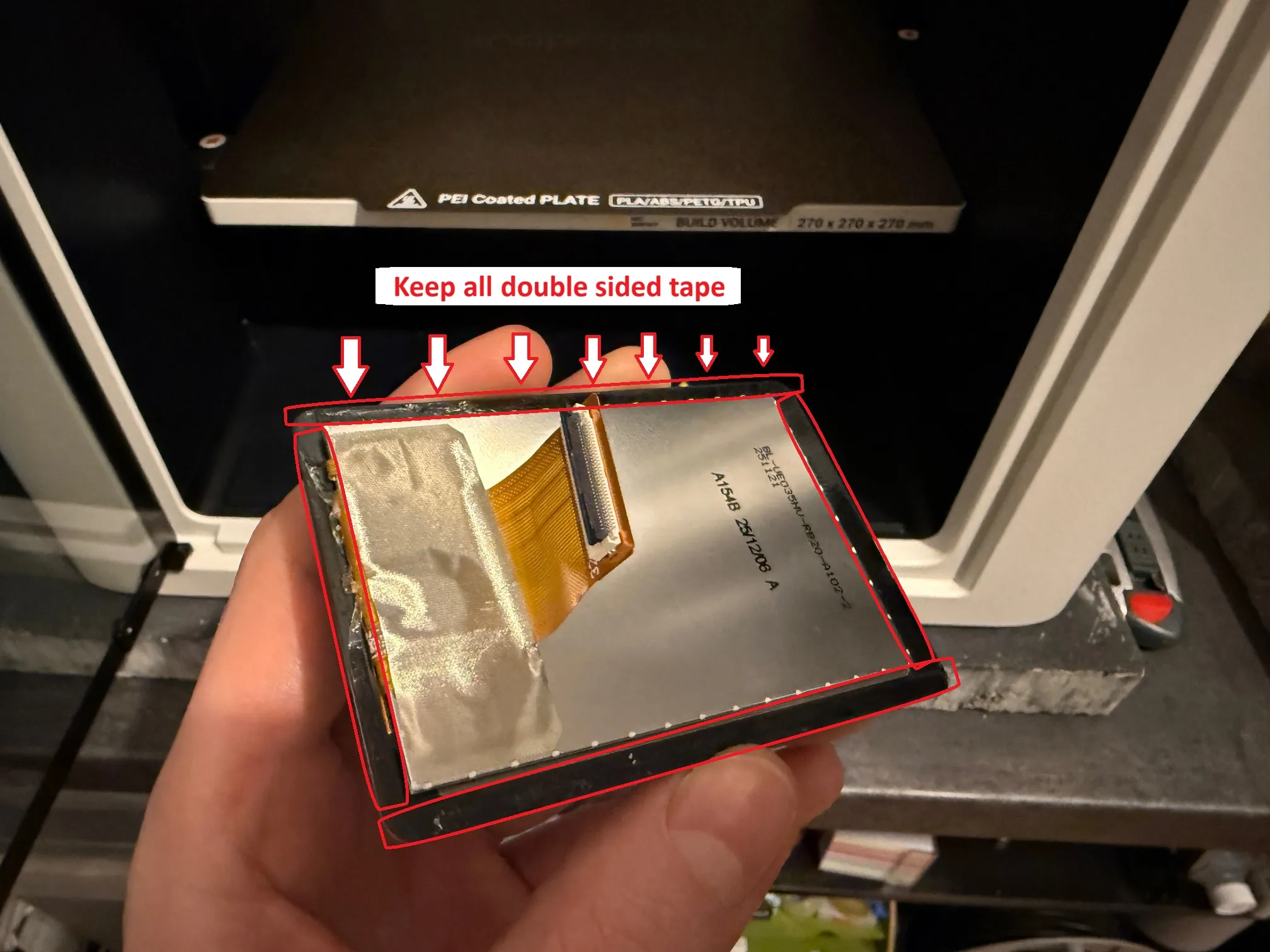

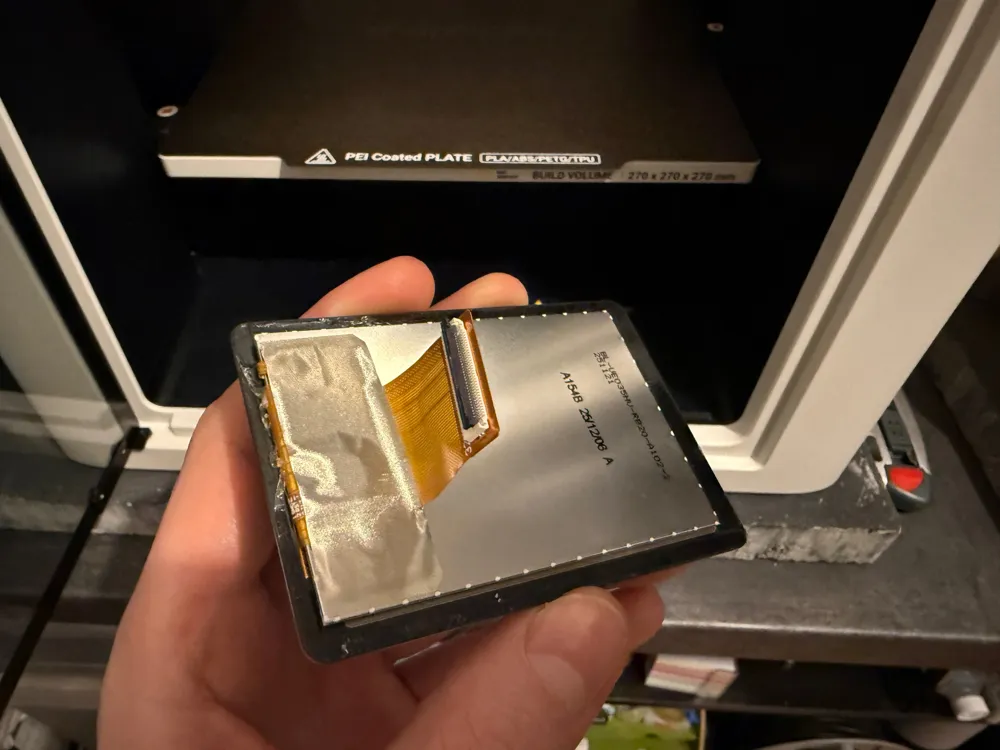

The display is only glued into the plastic frame with narrow strips of double-sided adhesive tape and can be easily pushed out of the frame with a little patience or pried out from the front with a flat lever (a flat metal spatula worked well for me). If you want to push the display out, you need to loosen a panel from the inside of the printer, which is only clicked into position. Just be a little careful, and it will work

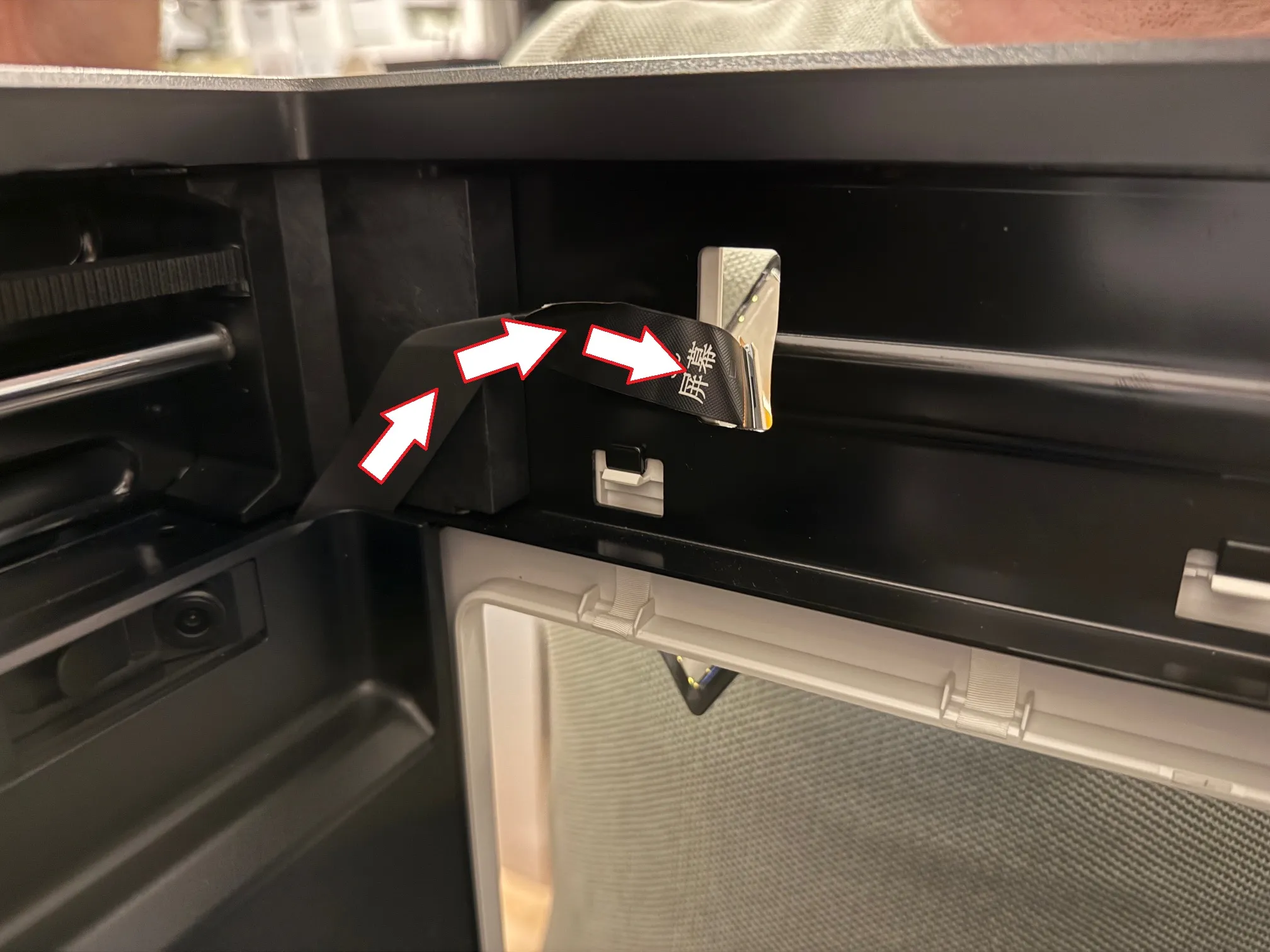

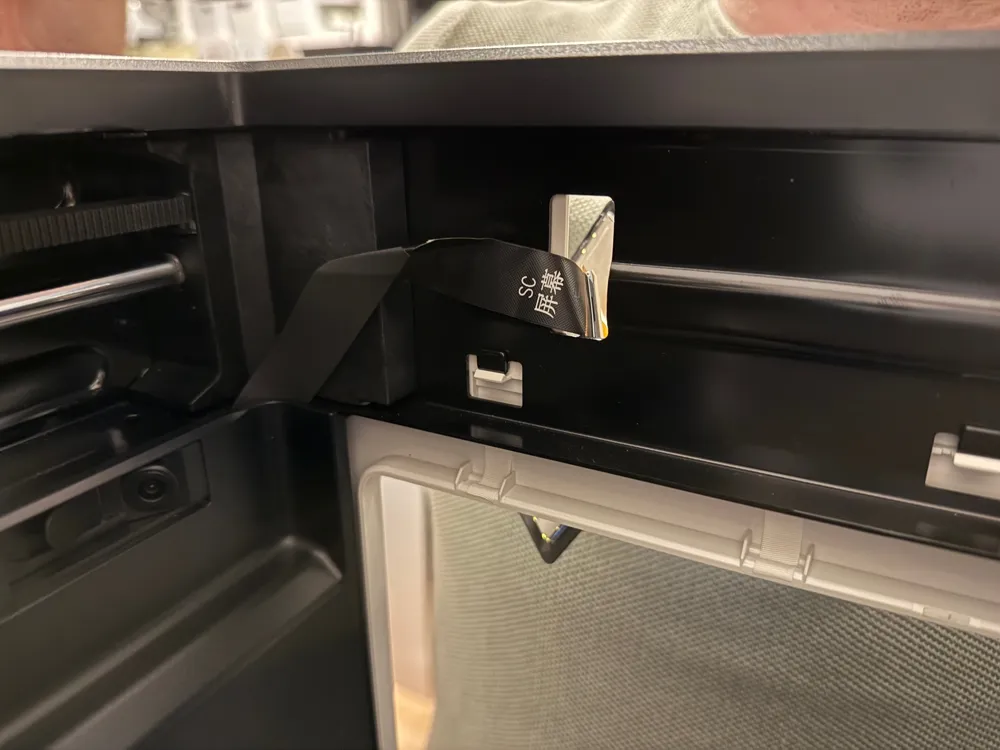

The ribbon cable can be pulled a bit further out of the hole without any problems (see pictures). If you are unsure, remove the upper panel on the inside of the printer and pull the then visible ribbon cable in the right, front corner of the printer a bit vertically upwards. That worked great for me. Don't pull too hard, the cable should not be damaged

Have fun with the design, I hope it works as well for you as it did for me

PS: I assume no liability for damage to the device due to excessive force or similar. Installation at your own risk
