Description

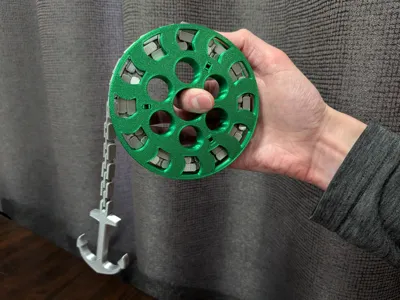

I was fidgeting with a printed chain and thought it would be fun to wrap it around something. The idea of a boat's chain and anchor system inspired me to create this model. Prints with minimal supports and no added hardware. No brim was necessary for me, but do make sure your build plate is clean. Printed with PLA Silk+, normal PLA Silks are not recommended. PLA Basic would also work well.

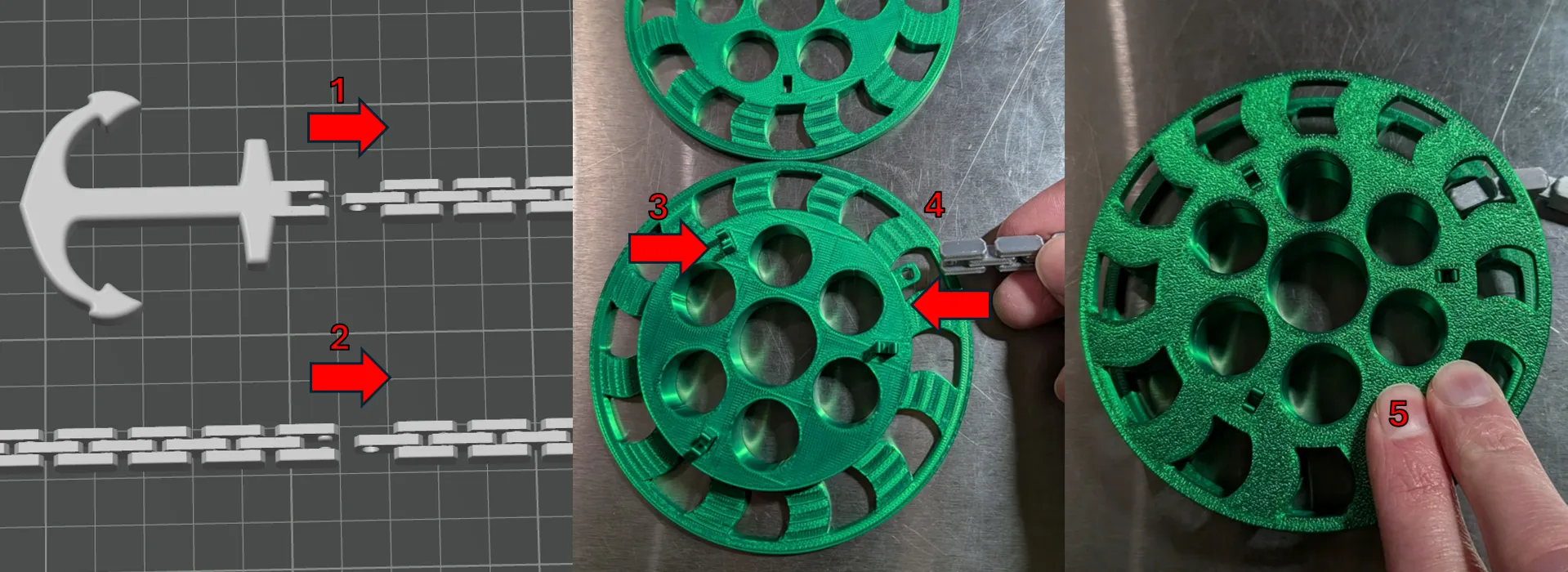

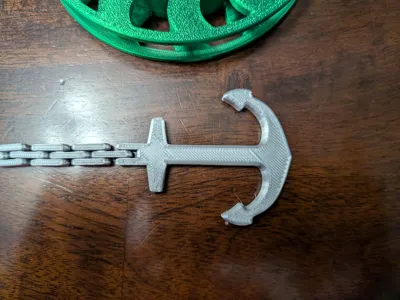

  1. Snap the chain onto the anchor

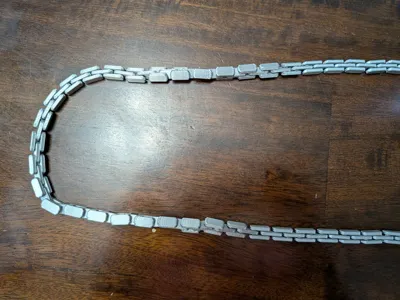

  2. Snap the other lengths of chain together

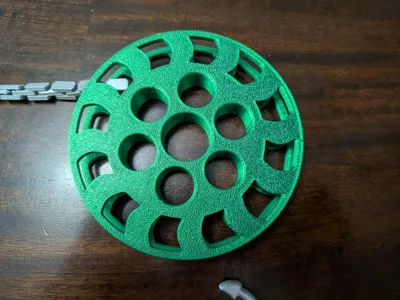

  3. Insert the H connectors into the body of the windlass pulley
  4. Attach the end of the chain to the connection point on the windlass pulley
  5. Press the other half of the windlass pulley onto the main section, aligning the holes to the H connectors

Then you're ready to enjoy!
