Exhaust Elbow cutting Jig
IP Report
Print Profile(5)
3" elbow NO AMS
Designer
14.3 h
2 plates
2" elbow NO AMS
Designer
5.4 h
2 plates
2.5" elbow AMS
Designer
9.4 h
2 plates
3" elbow AMS
Designer
14.6 h
2 plates
Click to see more
Open in Bambu Studio
Boost
173
613
8
4
239
109
Released
Description

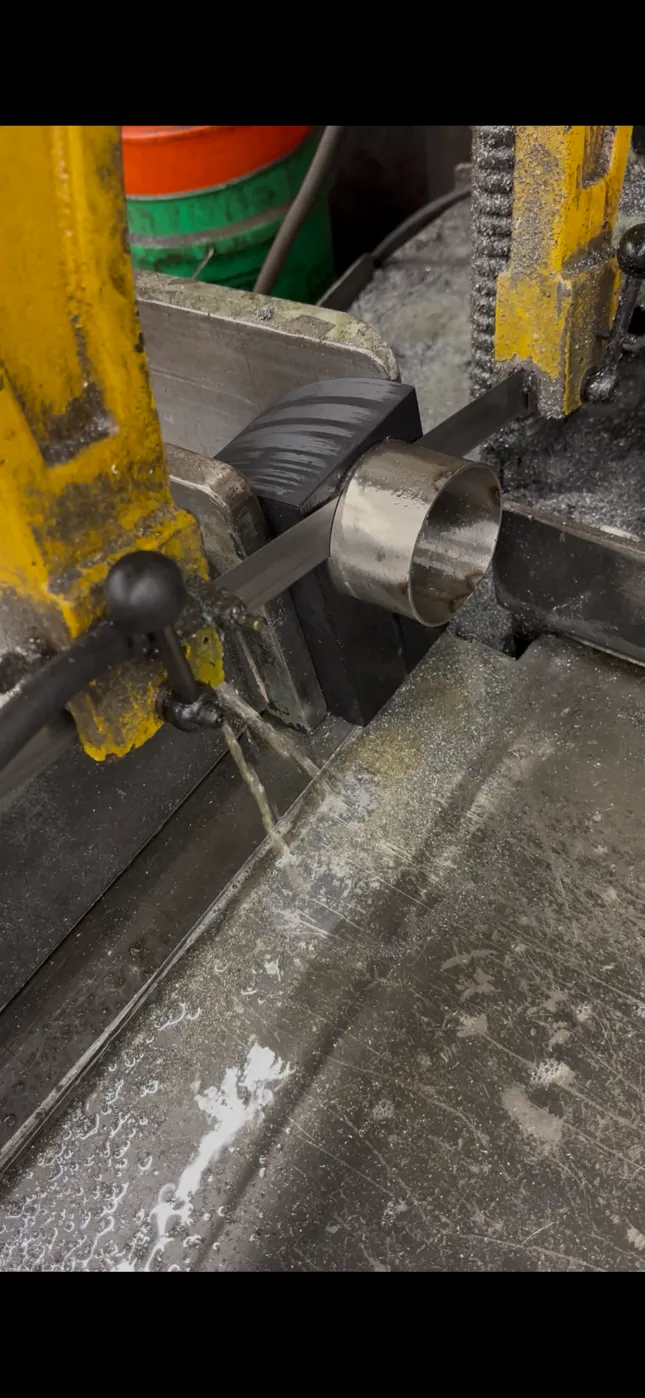

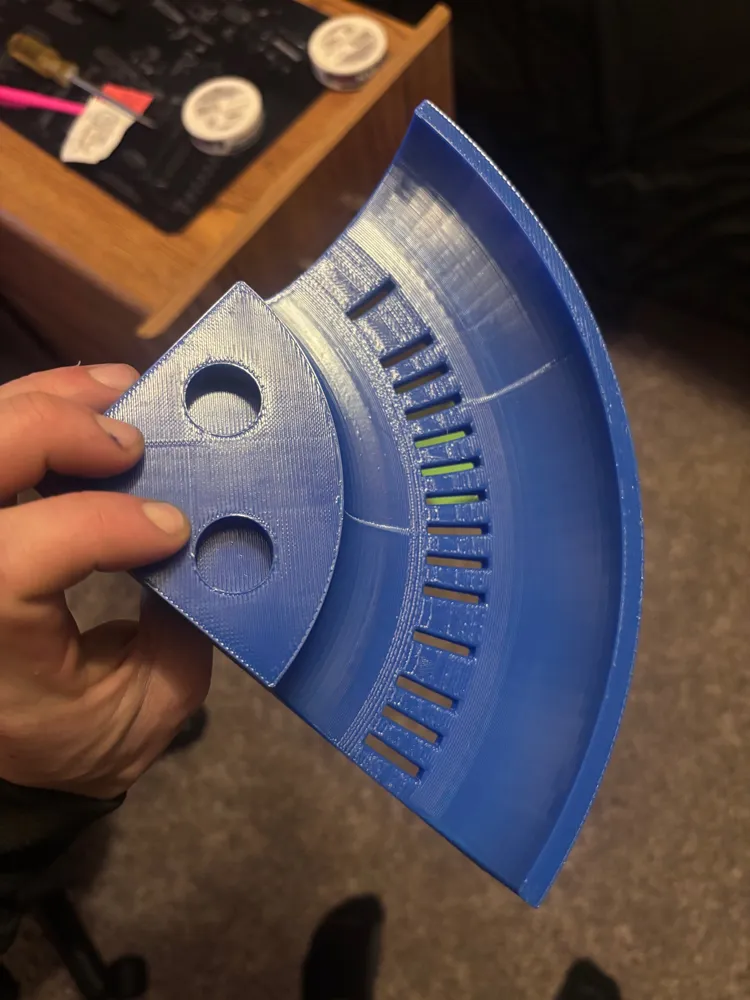

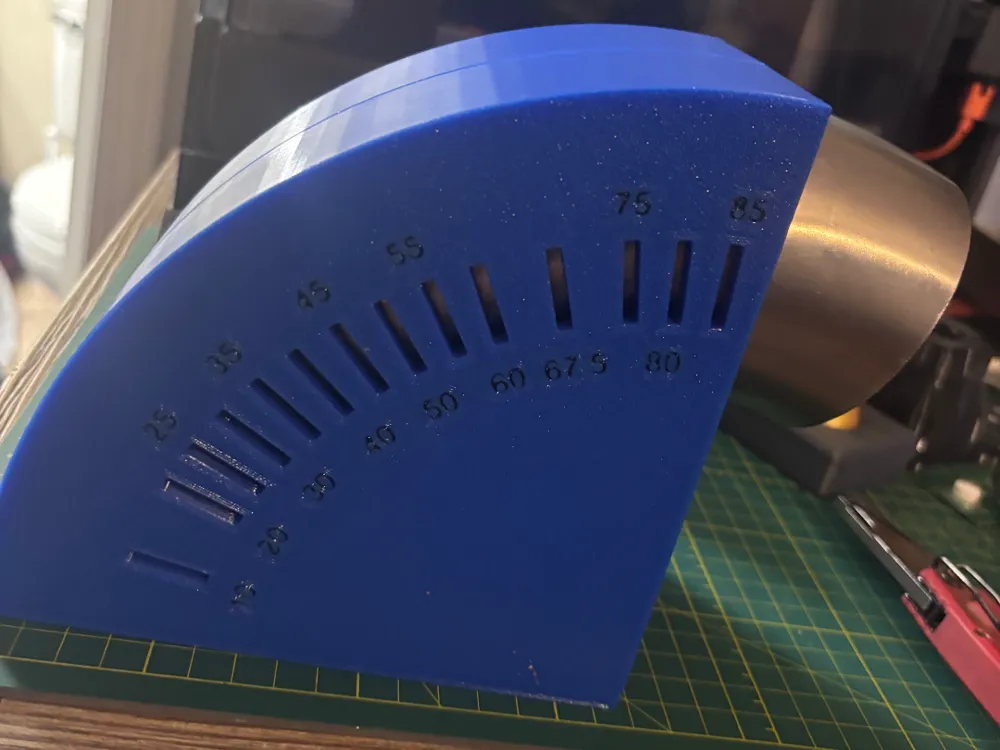

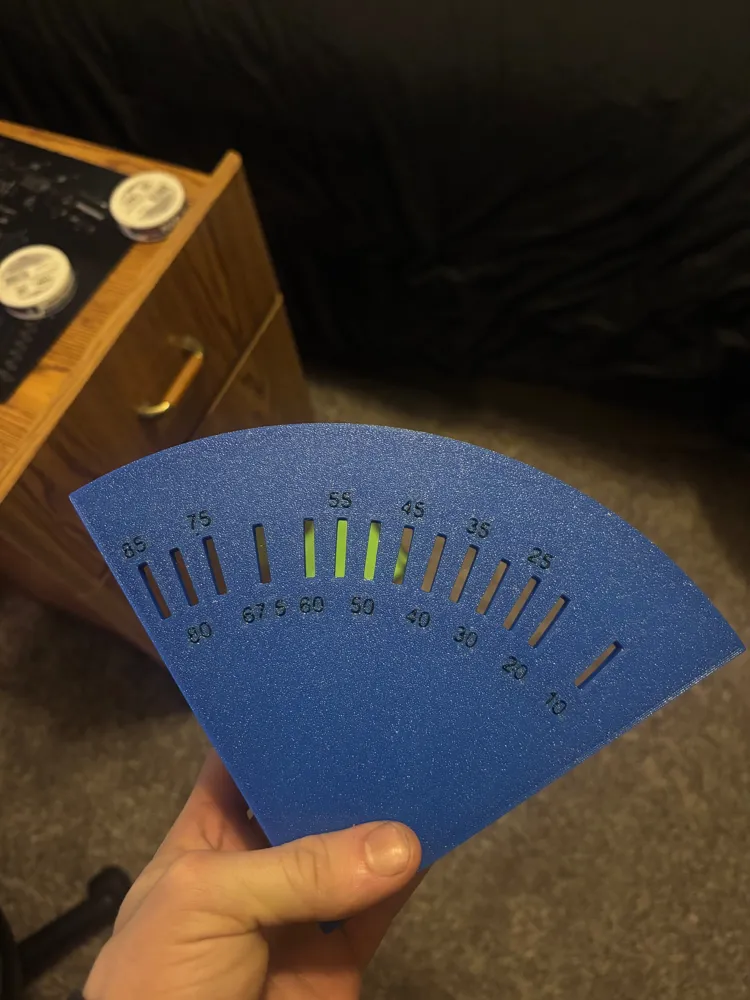

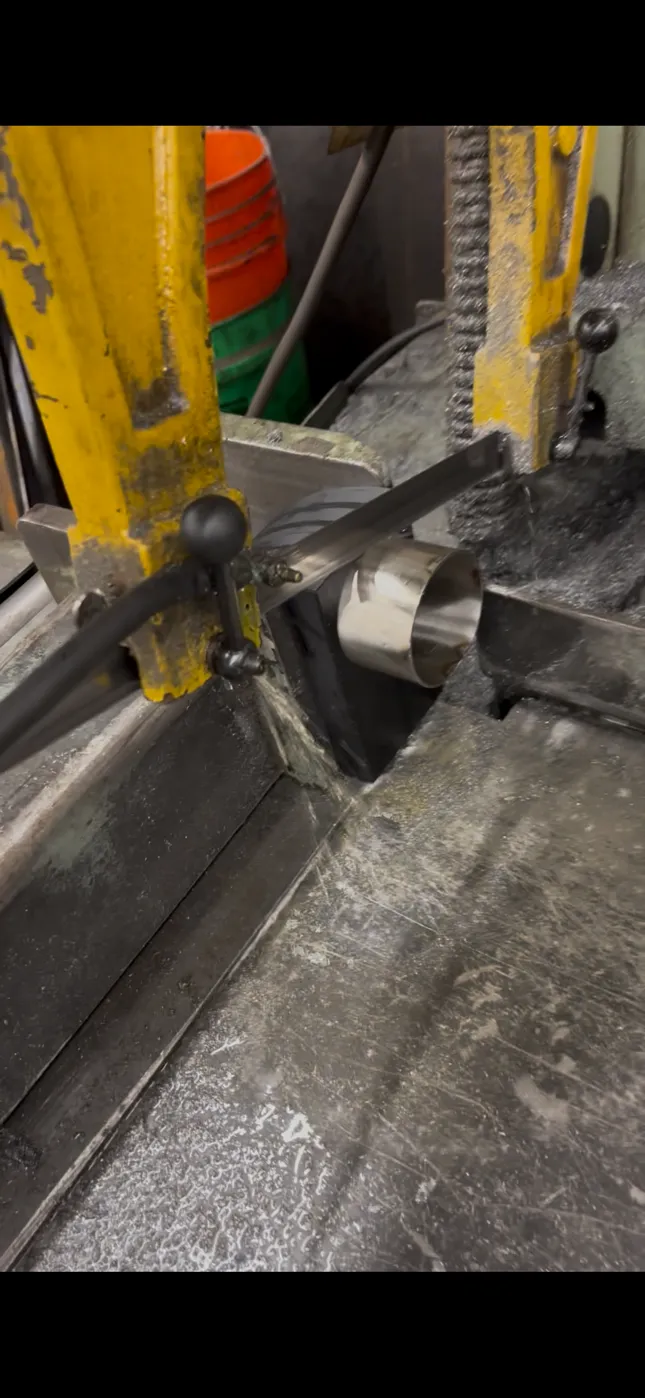

My first 3d printed fusion model. I'm a millwright and fabricator learning fusion for fun. Use this to fixture a standard 3" 90 degree tube elbow in the vice of a saw to create other angles needed for whatever I guess. Tested in PLA and PETG. Recommend PETG for resistance to chemicals and heat. Light sanding is required on seams of alignment pins. Boosts likes and comments appreciated will help with anything I can.
model has been tested to scale on 2.5" should work on all other sizes. Scale models from original 3" upload.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
Comment & Rating (8)
