Window frame for fly screen
Print Profile(5)
Description
Boost Me (for free)

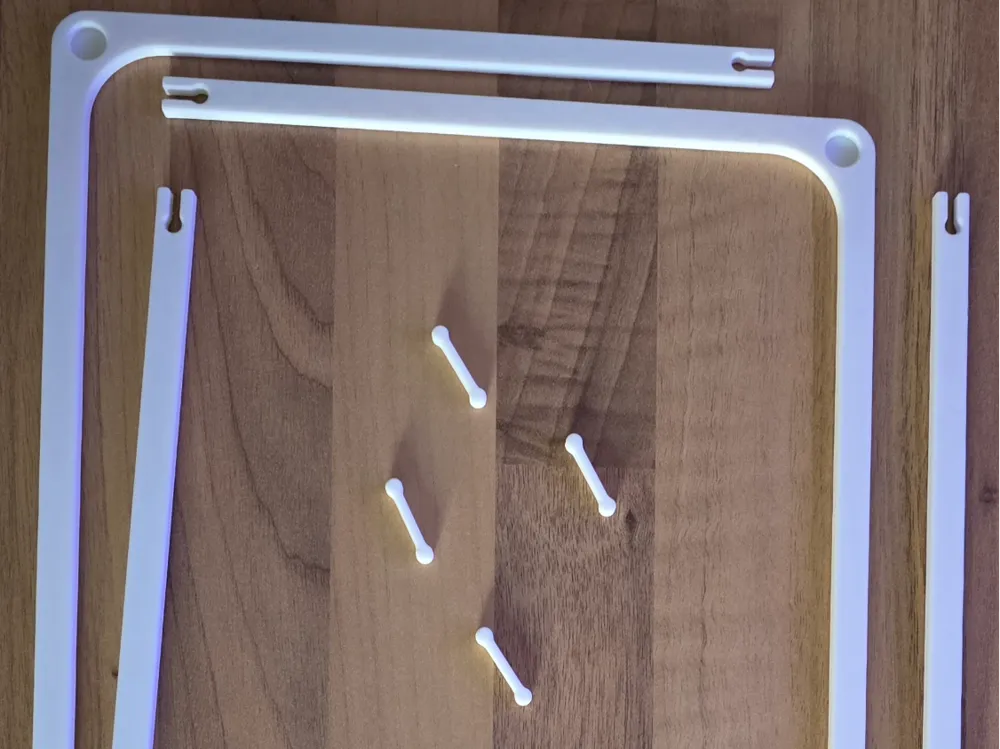

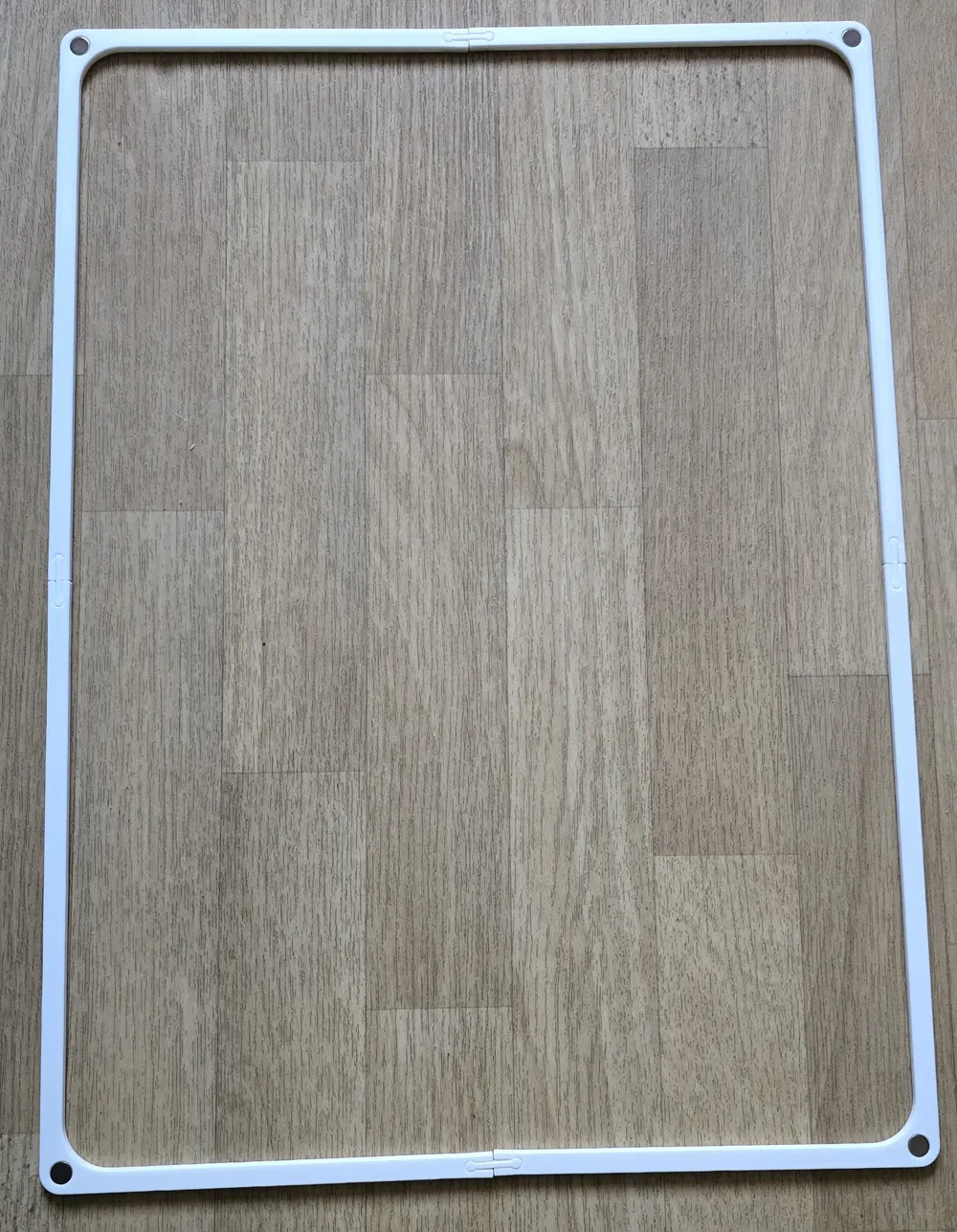

This frame is simply plugged together and glued if necessary

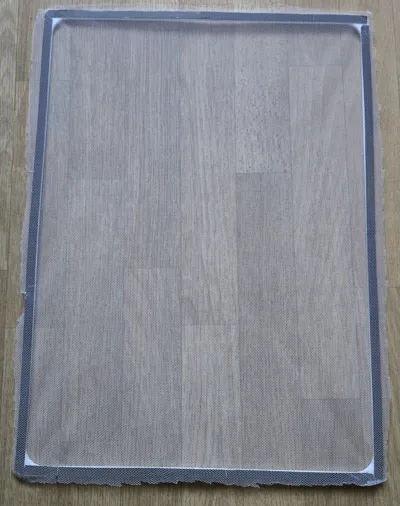

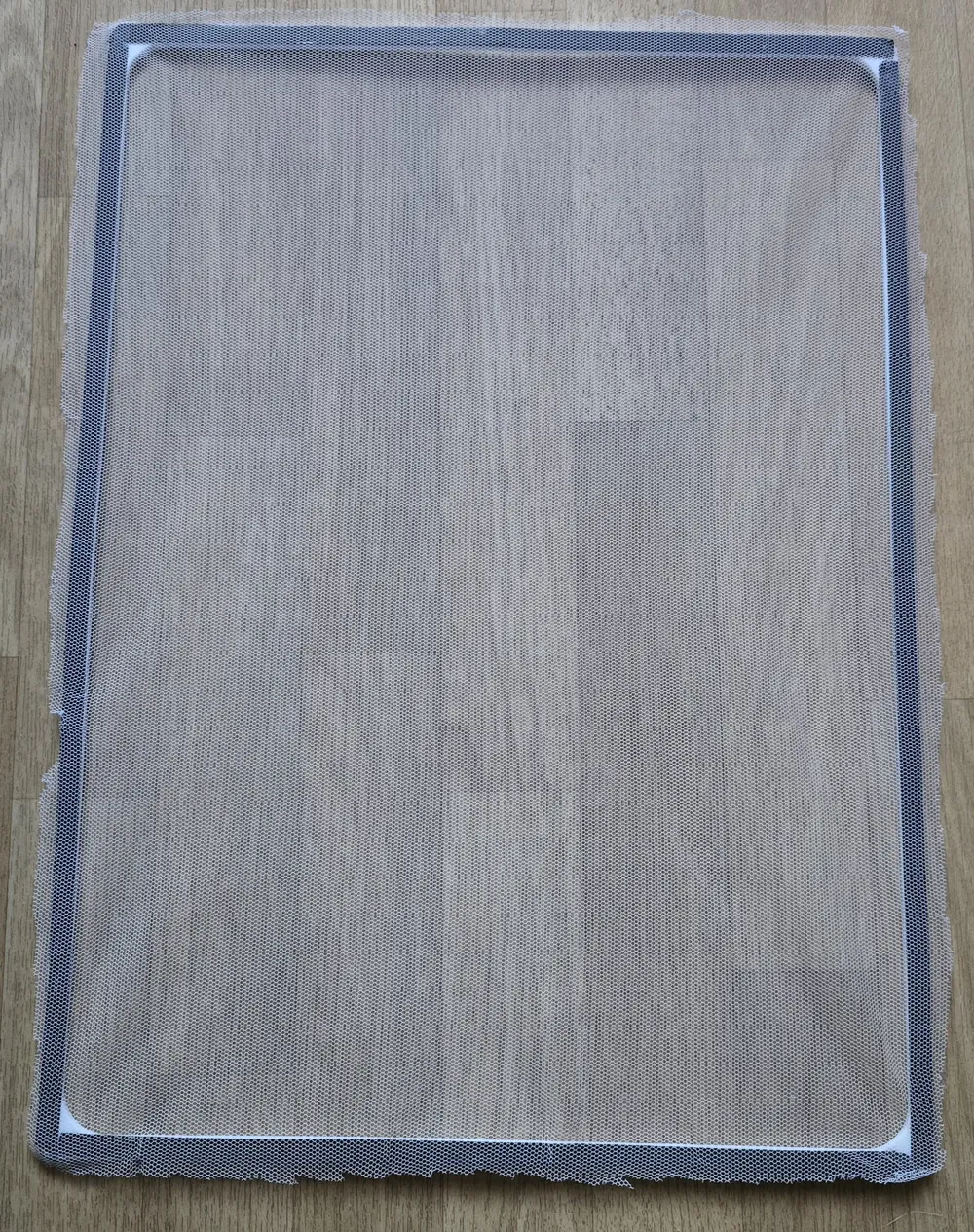

The fly screen mesh is applied with double-sided tape
Magnets (4 pcs. 10mm x 3mm) can be inserted at the corners

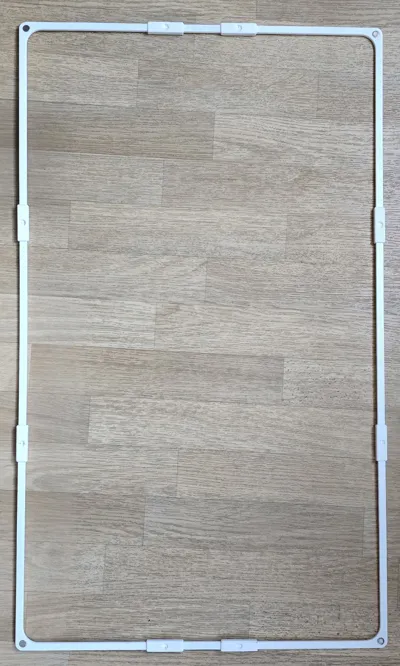

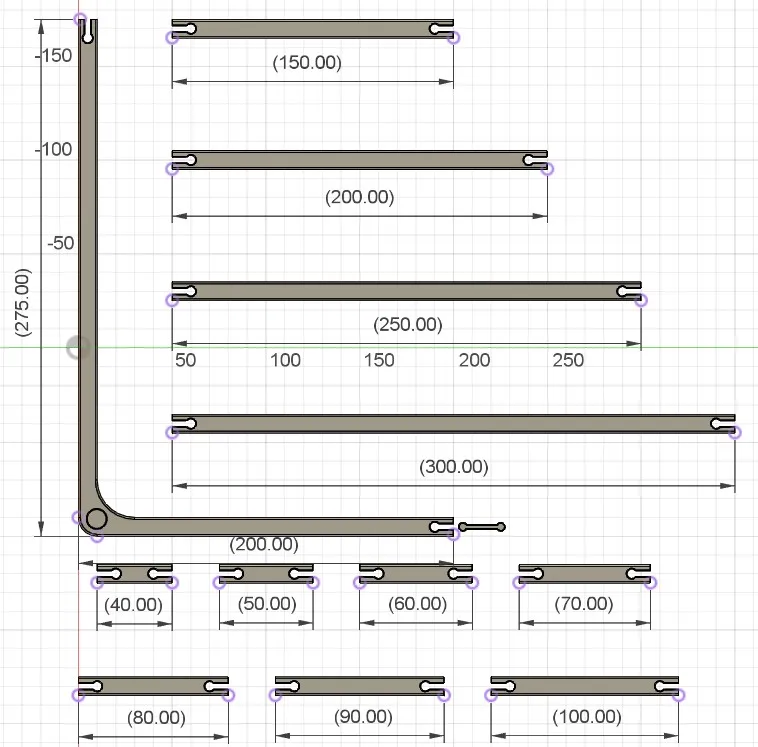

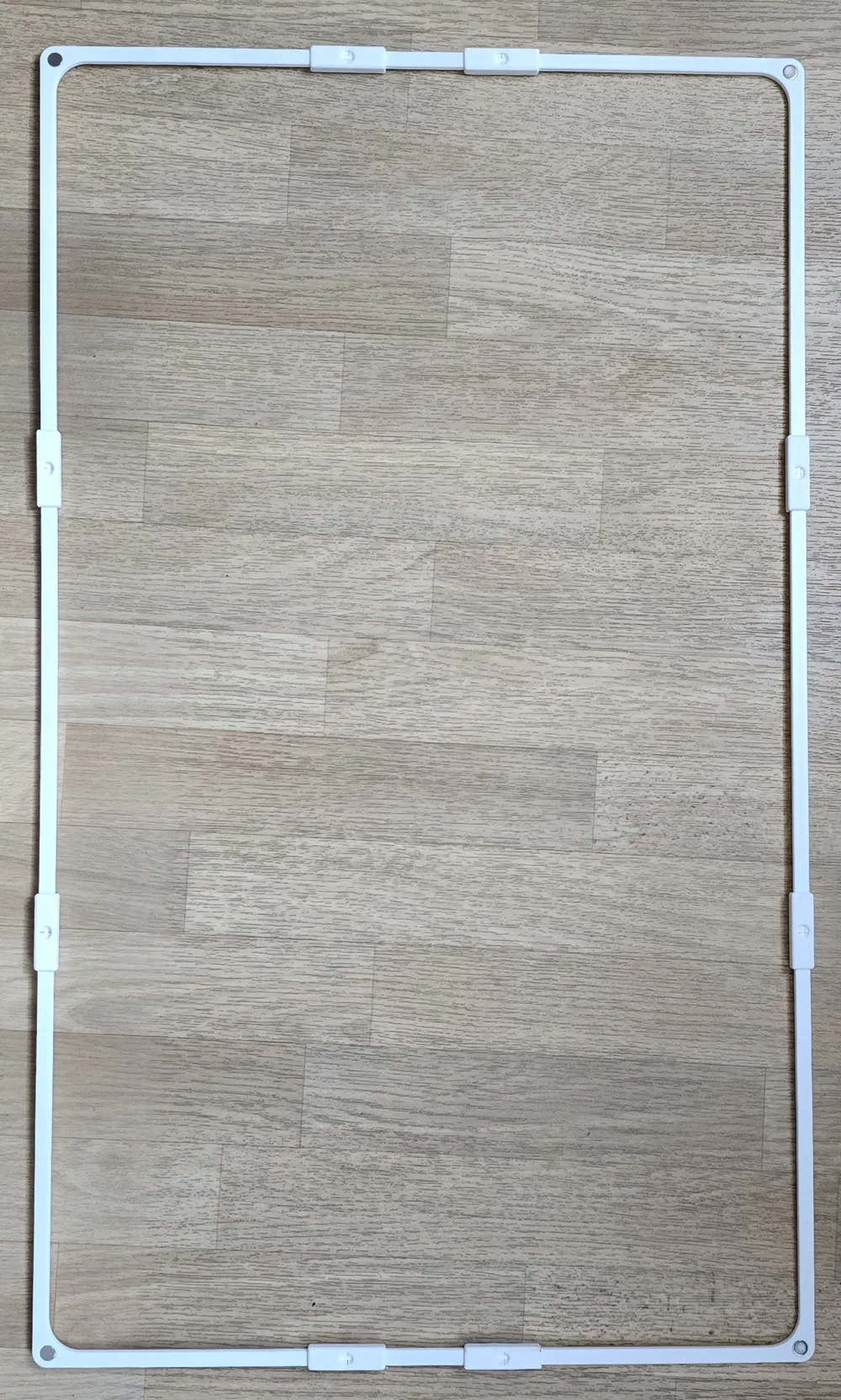

With the extensions, the frame can also be attached to larger windows. Use as few connectors as possible to keep the frame stable

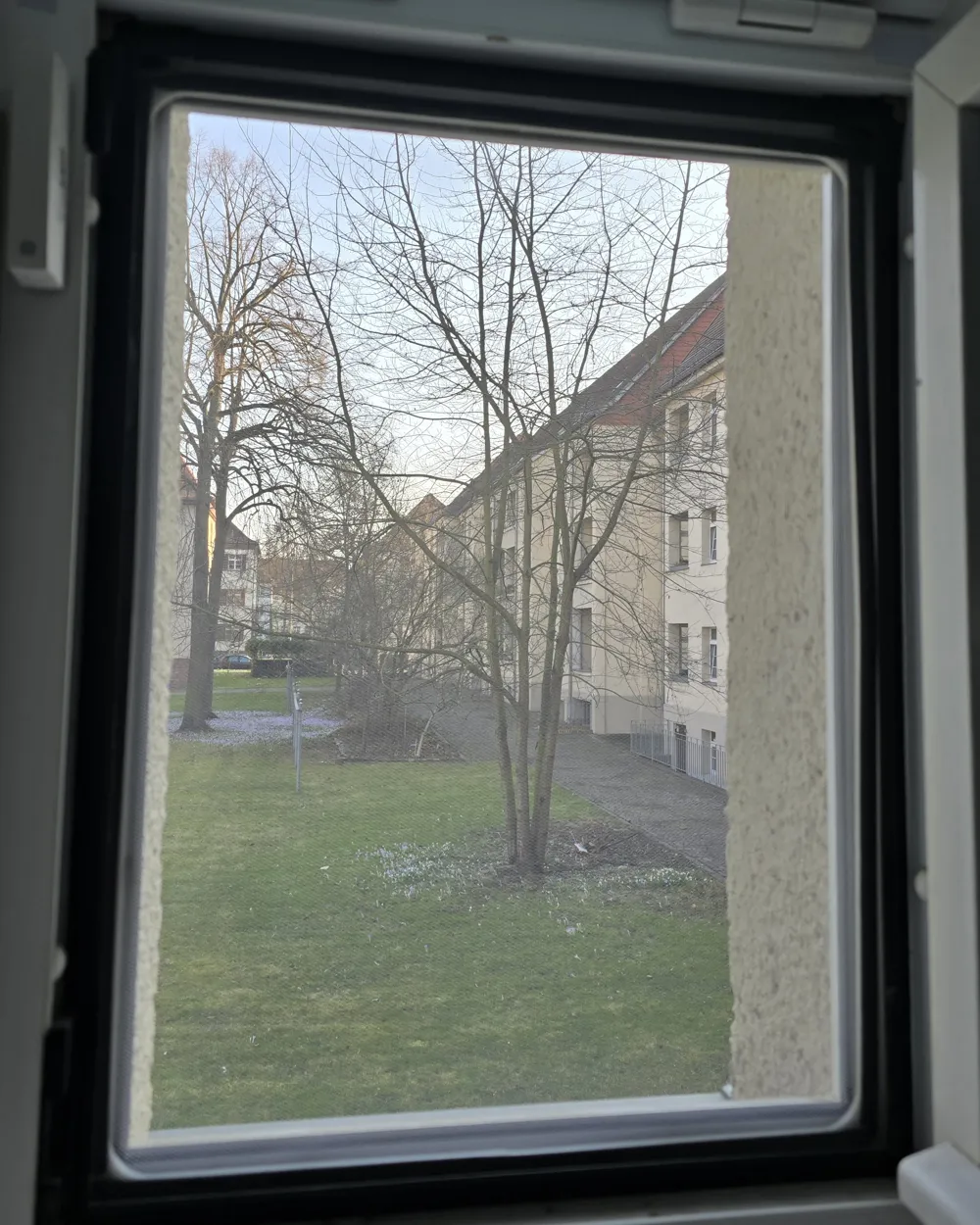

In my case, I have to push the frame slightly through the seal, but it holds well and is easier to remove (due to the seal's shape)
I have added a profile to print the frame also with the A1, P-series and X-series
Now you can assemble the model individually
The print profile for the H-series includes the frame for at least 550mm x 400mm window size
The print profile for the A1, P-series and X-series includes the frame for at least 430mm x 400mm window size
NEW:
Sleeve to stabilize the connection point. It fits snugly and is just pushed on. You can see through the hole when the sleeve is centered
ASSEMBLY INSTRUCTIONS:
First put on the sleeves and then insert the connectors. (The connectors push the tabs in the frame outwards, making it difficult to assemble the sleeve). Afterwards, the sleeves can be slid tightly over the connection point, and everything sits securely
