Plate 1



0.2mm layer, 2 walls, 15% infill


You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

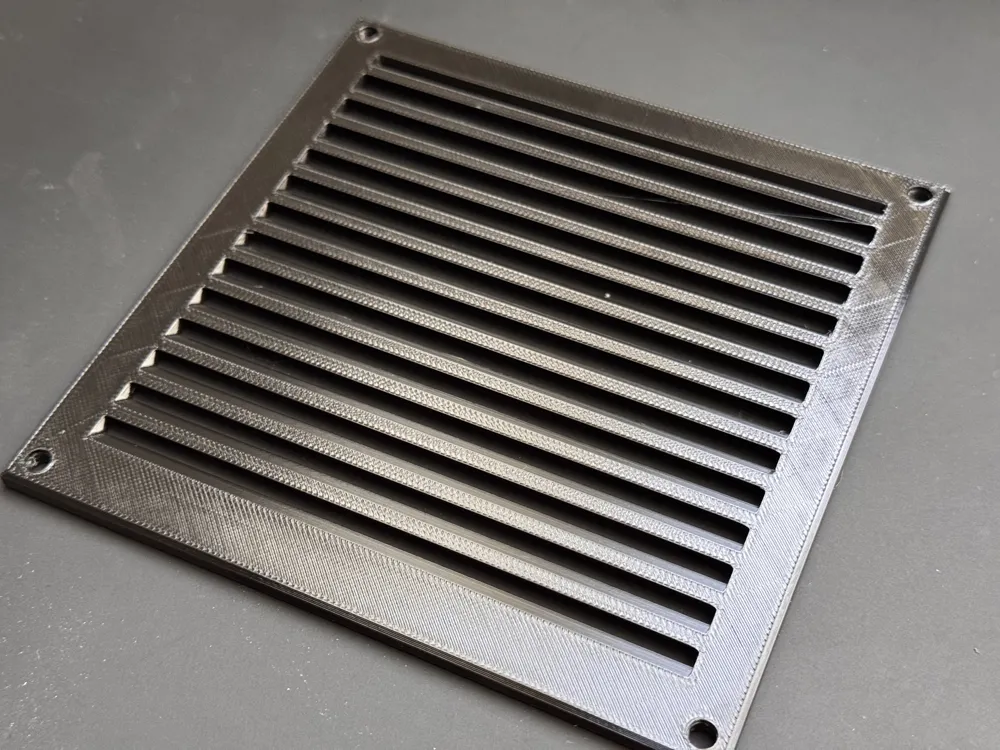

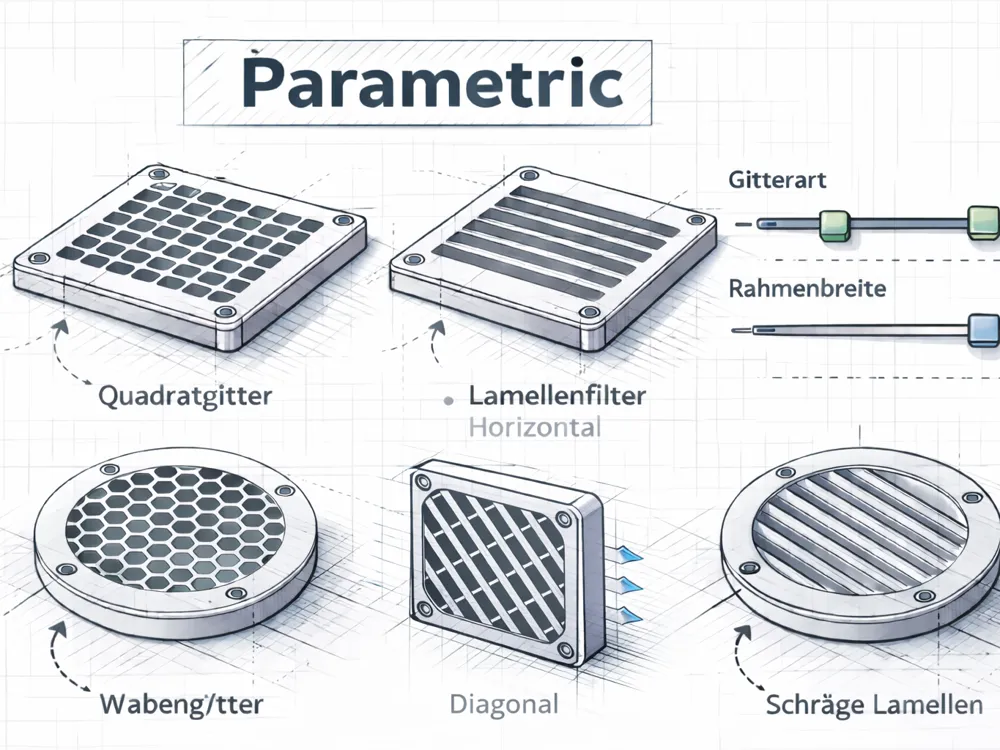

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Thanks :)</boostcontent></boostme>&nbsp;<h2>Parametric Ventilation / Filter Grid</h2>A fully parametric ventilation and filter grid designed for wall outlets, fans or air ducts. All important dimensions can be adjusted directly in OpenSCAD, allowing you to generate the exact size and grid type you need.The model automatically generates the frame around the mounting holes and keeps the grid evenly distributed.Perfect for:<ul><li>Wall ventilation outlets</li><li>Fan covers</li><li>Dust filters</li><li>Air intake protection</li><li>Drain / weather grids</li></ul><h2>Features</h2><ul><li>Fully parametric design</li><li>Adjustable mounting hole distance</li><li>Multiple grid types</li><li>Optional round or rectangular design</li><li>Symmetrical grid distribution</li><li>Automatic frame generation</li><li>Optional 45° drainage louvers for outdoor vents</li><li>Chamfered edges and screw holes</li></ul><h2>Available Grid Types</h2><ul><li>Square Grid</li><li>Diagonal Grid</li><li>Honeycomb Grid</li><li>Horizontal Louvers</li><li>Vertical Louvers</li><li>45° Drain Louvers (for wall outlets and water drainage)</li></ul><h2>Parameters</h2><h2>Mounting</h2>filter_breite Distance between screw hole centers (X axis)filter_hoehe Distance between screw hole centers (Y axis)schraubloch_durchmesser Diameter of the mounting holes<h2>Frame</h2>rahmenbreite Width of the frame around the mounting holes. The screw hole is centered within this width.Example:rahmenbreite = 10&nbsp;<ul><li>5 mm toward the grid</li><li>5 mm toward the outer edge</li></ul><h2>Grid</h2>gitter_typOptions:Quadratisch Diagonal Waben Lamellen_X Lamellen_Y Filter_45&nbsp;stegbreite Thickness of the grid barszellenweite Distance between grid elements<h2>Shape</h2>formOptions:Eckig Rund&nbsp;eckenradiusCorner radius when using rectangular shape.<h2>Thickness</h2>rahmen_dickeTotal thickness of the model.<h2>Chamfer</h2>phaseAdds a chamfer to:<ul><li>outer top edges</li><li>screw holes</li></ul><h2>Additional Options</h2>aussen_zugabeExtra outer margin outside the frame.verbindungsstegExtra reinforcement between frame and grid.<h2>Printing</h2>Recommended settings:Layer height 0.2 mmWalls 3–4 perimetersInfill 15–25%Supports Not requiredMaterial PLA / PETG / ASAFor outdoor vents PETG or ASA is recommended.<h2>Notes</h2><ul><li>The grid is automatically centered and evenly distributed.</li><li>Remaining space is split symmetrically to avoid uneven cells.</li><li>The Filter_45 option creates angled louvers for water drainage in wall outlets.</li></ul>

Parametric Ventilation / Filter Grid - OpenSCAD

ASIA

Print Profile(2)

Description

Parametric Ventilation / Filter Grid

Features

Available Grid Types

Parameters

Mounting

Frame

Grid

Shape

Thickness

Chamfer

Additional Options

Printing

Notes
