OWB Holster for S&W M&P w/ Streamlight

AuxArc Presents a Safariland Patterned OWB Holster for the Smith and Wesson M&P Doublestack Handguns equipped with a Streamlight TLR-1.  Or, like most of you guys are probably running, the Harbor Freight Braun light.

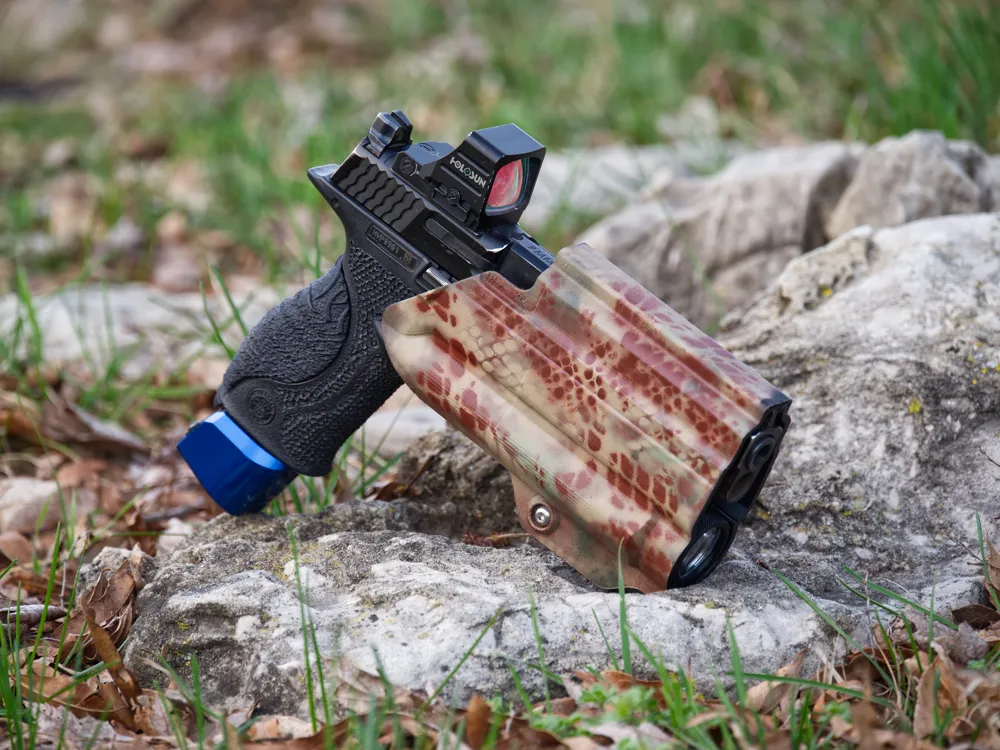

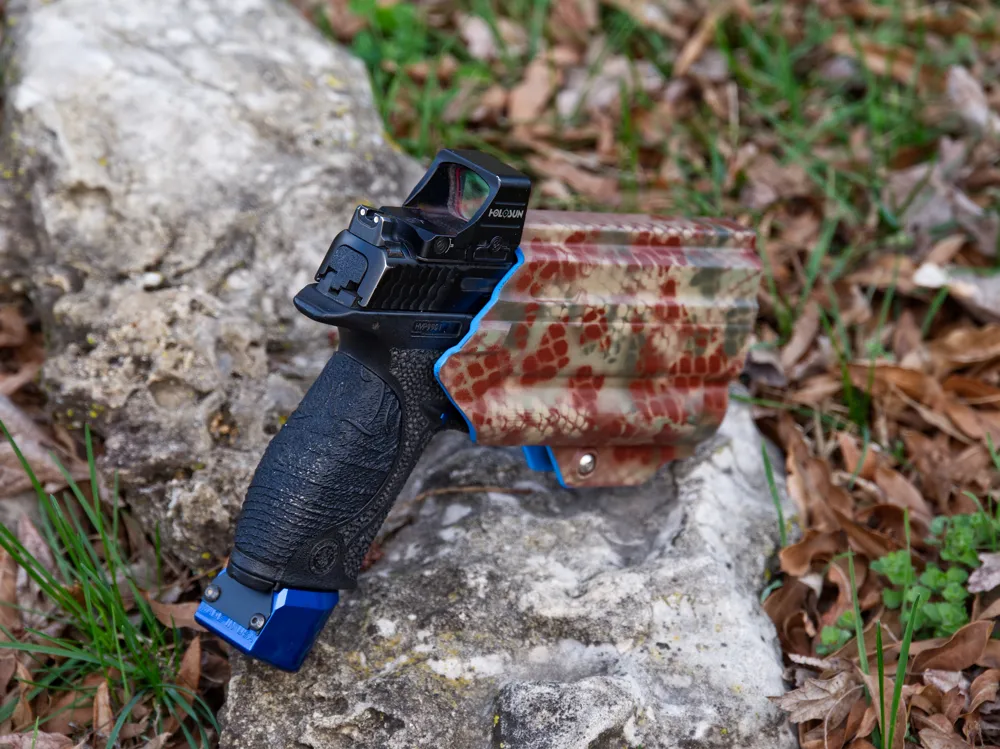

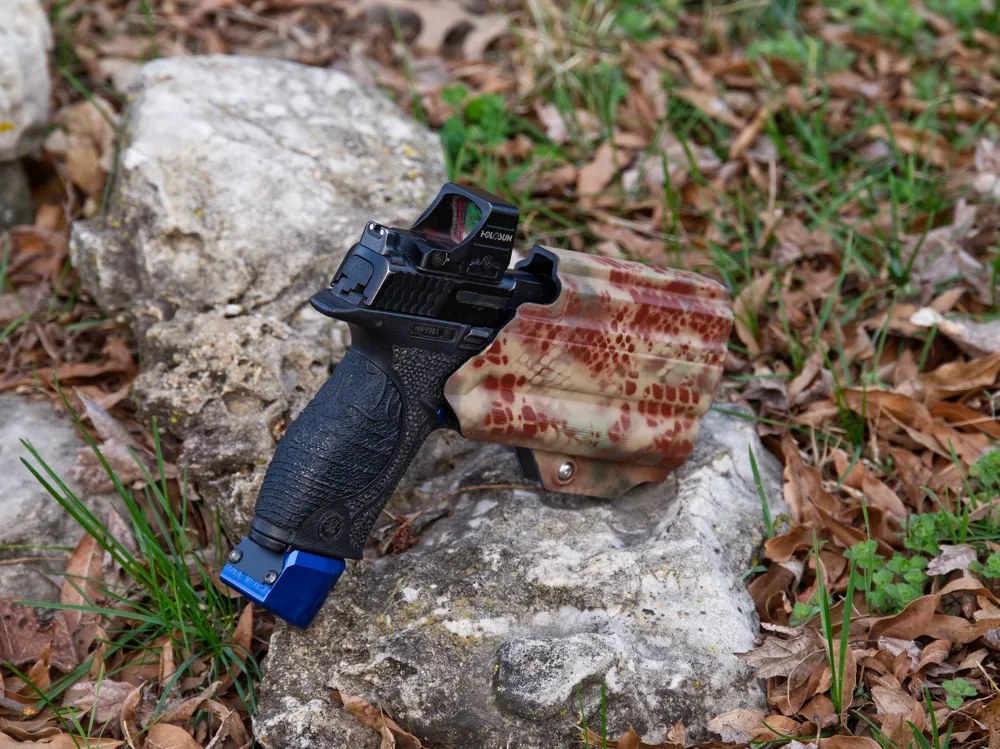

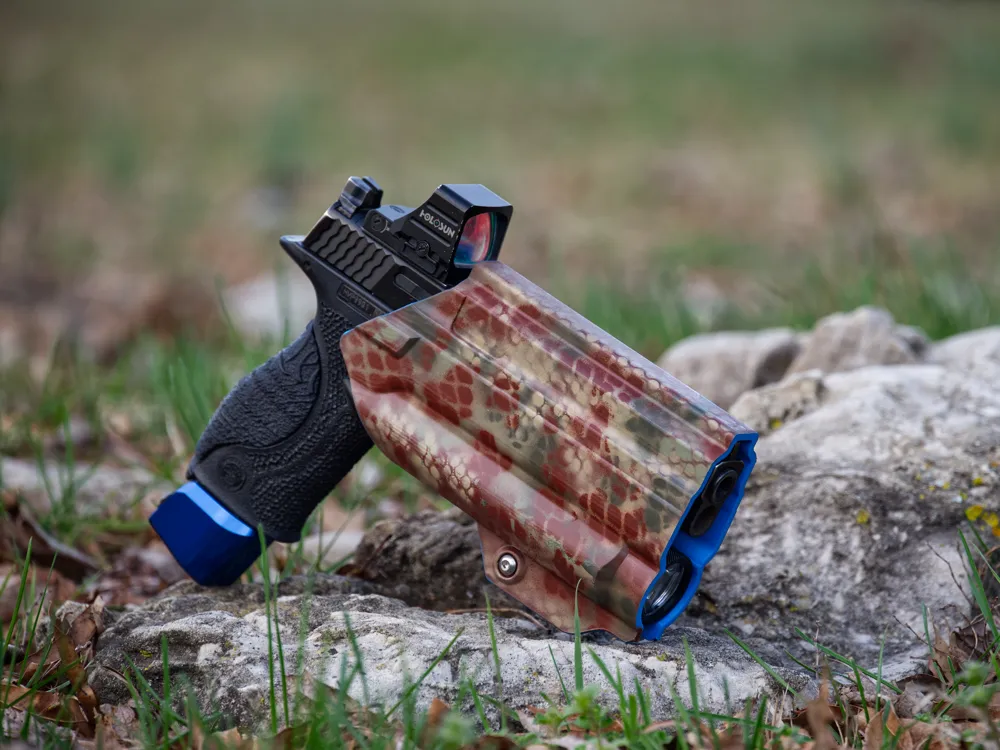

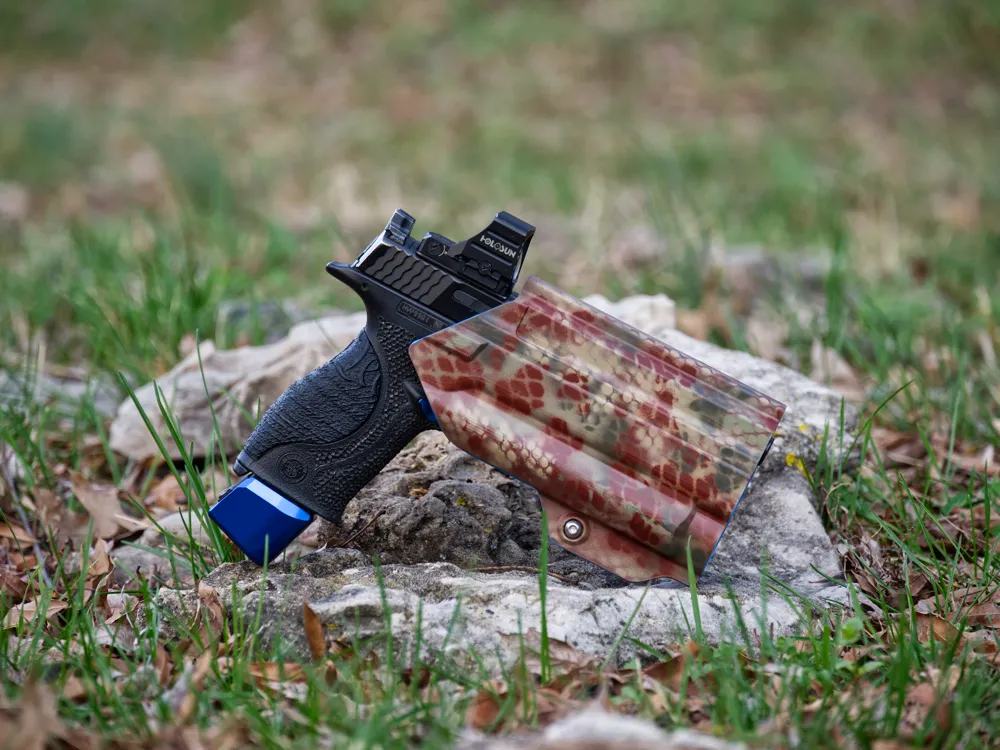

 This is an OWB holster for the M&P Doublestack series of handguns, including the 5" model and steel frames, that are equipped with Streamlight TLR-1s or the very similar Braun Weaponlight from Harbor Freight.  Compact M&Ps will work in them but will have a gap at the end, but I didn't want to cut support around the light.  The holster has a Safariland bolt pattern to be attached to all compatible platforms.  This includes my parametric holster hanger setup that I also already have published and my belt mount.

  There are eight profiles.

4.25" Standard Right Hand

4.25" Low Cut Competition for Right Hand.

5" Standard Right Hand.

5" Low Cut Competition for Right Hand.

4.25" Standard Left Hand

4.25" Low Cut Competition for Left Hand.

5" Standard Left Hand.

5" Low Cut Competition for Left Hand.

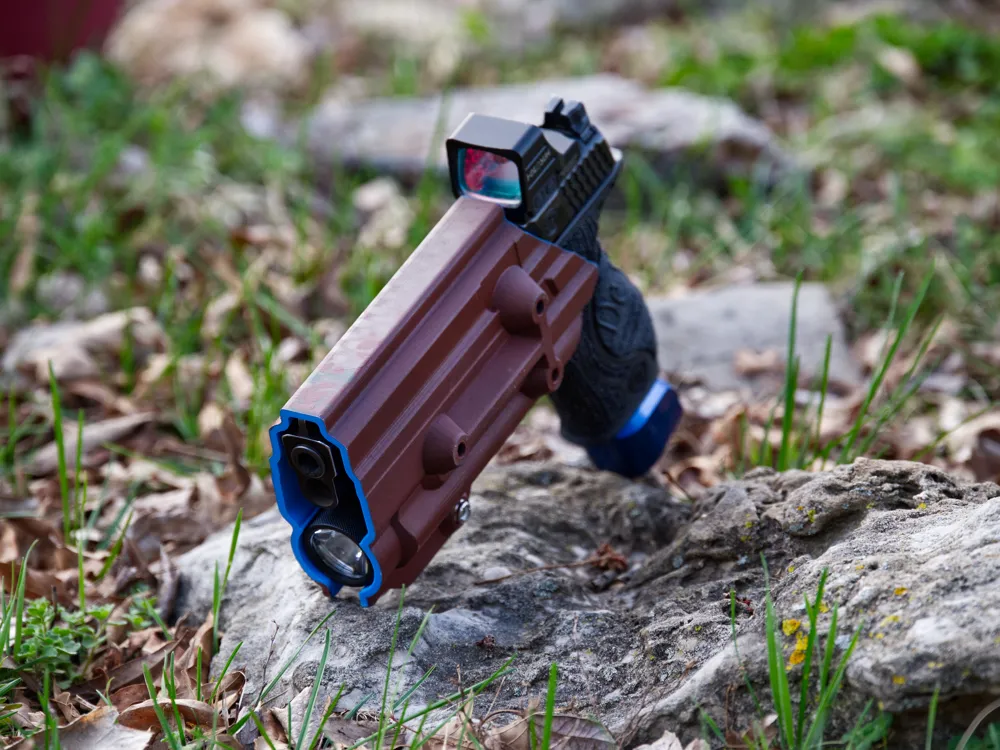

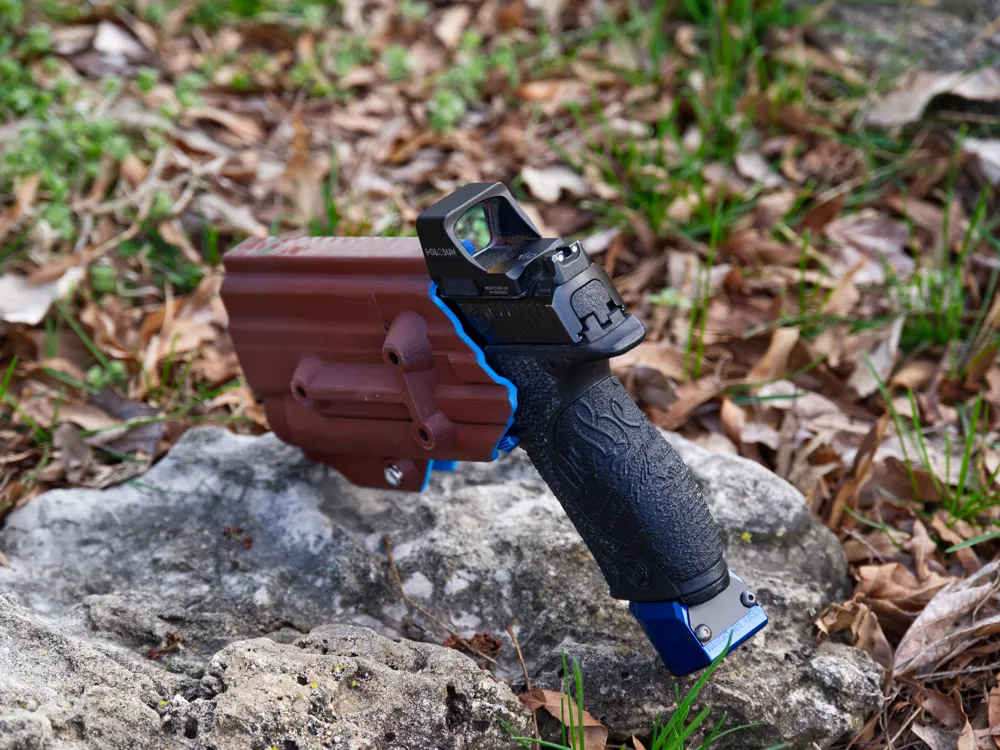

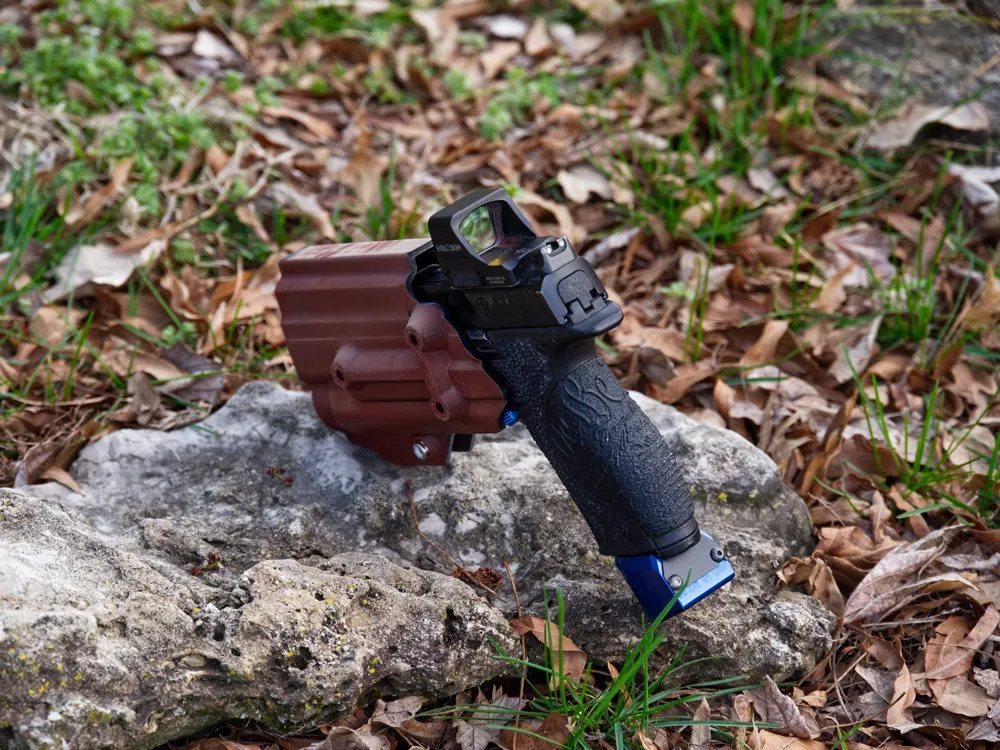

  To assemble, use #8-32 hardware, same as Safariland.  Lengths will vary depending on what you are mounting the holster to.  The holster is designed for you to be able to press the appropriate nut into the recess, and be held there.  You will need:

3x regular #8-32 nuts

1x nylock #8-32 nut.  This is for the tension.

3x #8-32 screws, either hex, button head, whatever.  This depends on what you are attaching to.

1x martini or button head #8-32 screw.  This is for the tension.

  To assemble, press the 3 regular nuts into the recesses inside the holster.  You can then use the 3 screws to attach the holster to whatever.  Be sure that the lengths are correct, so that the threads of the screws are not extending into the holster and inhibiting your gun or scratching it.  Take the remaining nylock nut and martini screw.  Press the nut into the hex recess of the tensioner and thread the screw in.  It's best for you to place the unloaded handgun and light into the holster and tension until desired tightness is achieved.

  Print in PETG for best results in outdoor work.

  This will soon have an IWB EDC version.  Thanks for all the support.  Feel free to offer comments, critique, etc.  Follow the youtube channel or follow me on X for updates and other nonsense.
