Vintage Ship Lamp
Print Profile(1)
Bill of Materials

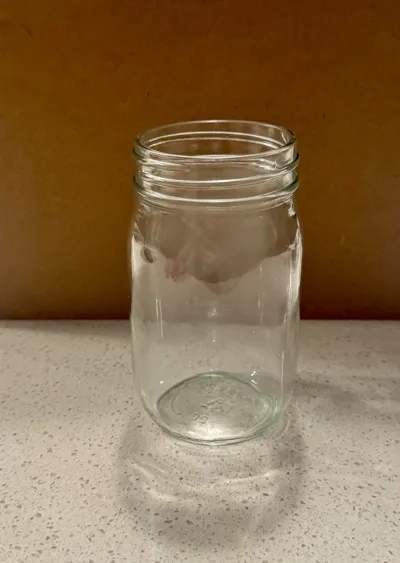

- 16 oz, regular mouth mason jar x 1:
Description

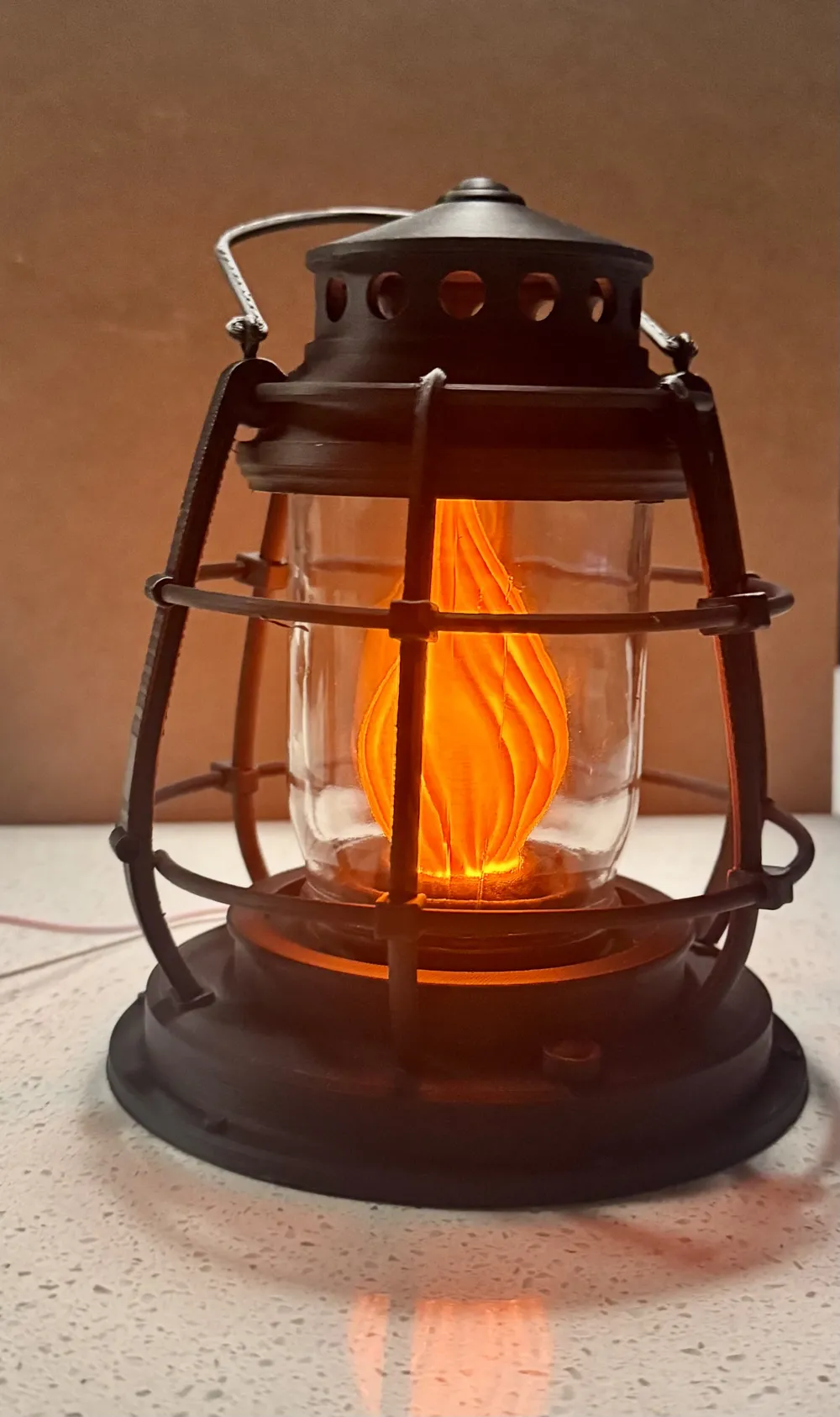

Vintage Ship Lantern Lamp
A compact lantern-style lamp designed to use common off-the-shelf parts for easy assembly.
Specifications
- Height: 7.4 in
- Diameter: 6 in
Required Components

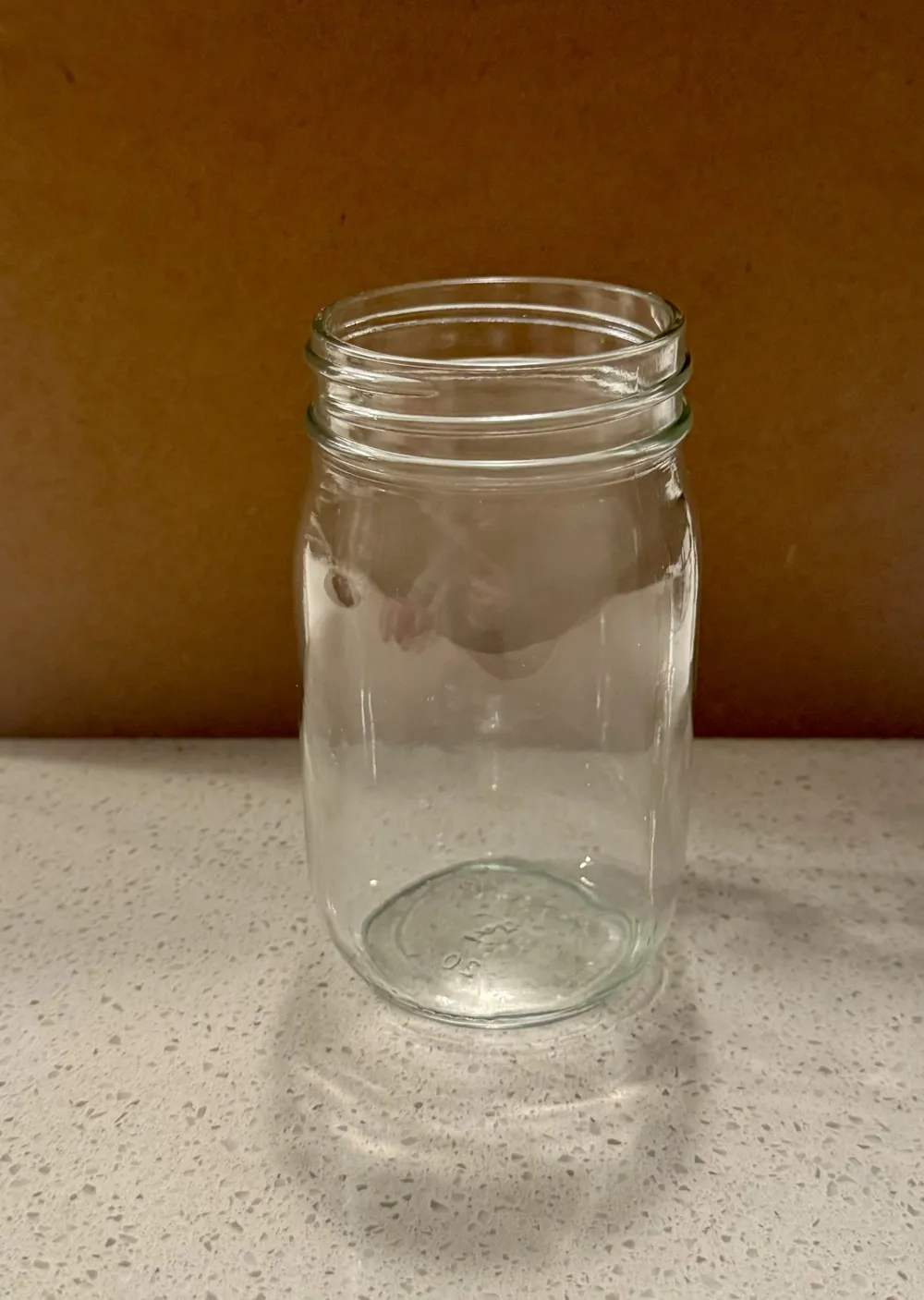

- 1 × 16 oz regular-mouth mason jar (used as the glass enclosure; screws directly into the base)
- 1 × Bambu Lab LED Lamp Kit
Optional Hardware
- 4 × M3 × 6 mm self-tapping screws
- These can be used to secure the cage to the base.
- A small amount of glue can also be used instead of screws if preferred.
LED Lamp Kit Modifications
- The top portion of the Bambu Lab LED lamp kit must be unscrewed/removed.

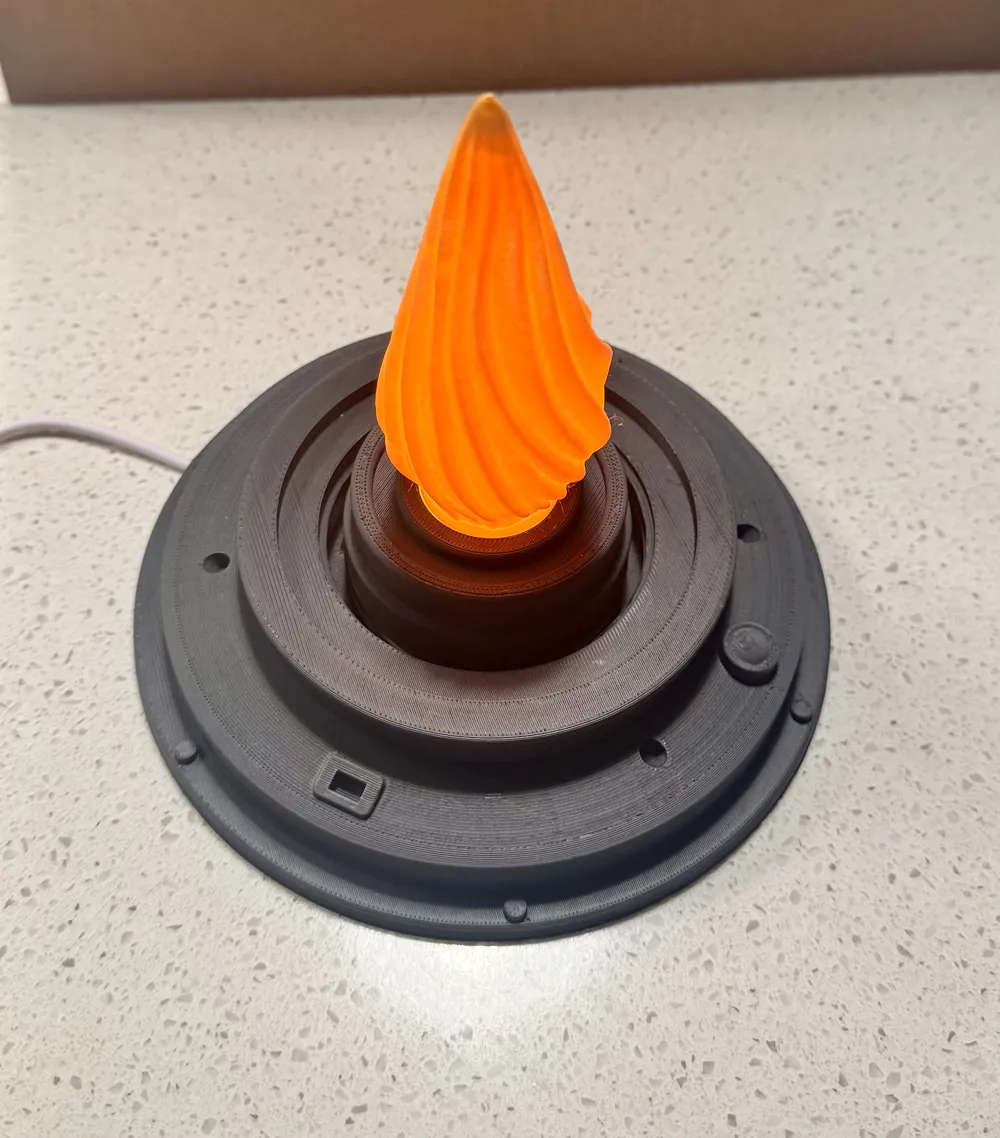

- This allows the printed oil-flame piece and base to thread onto the remaining lamp assembly.
Notes

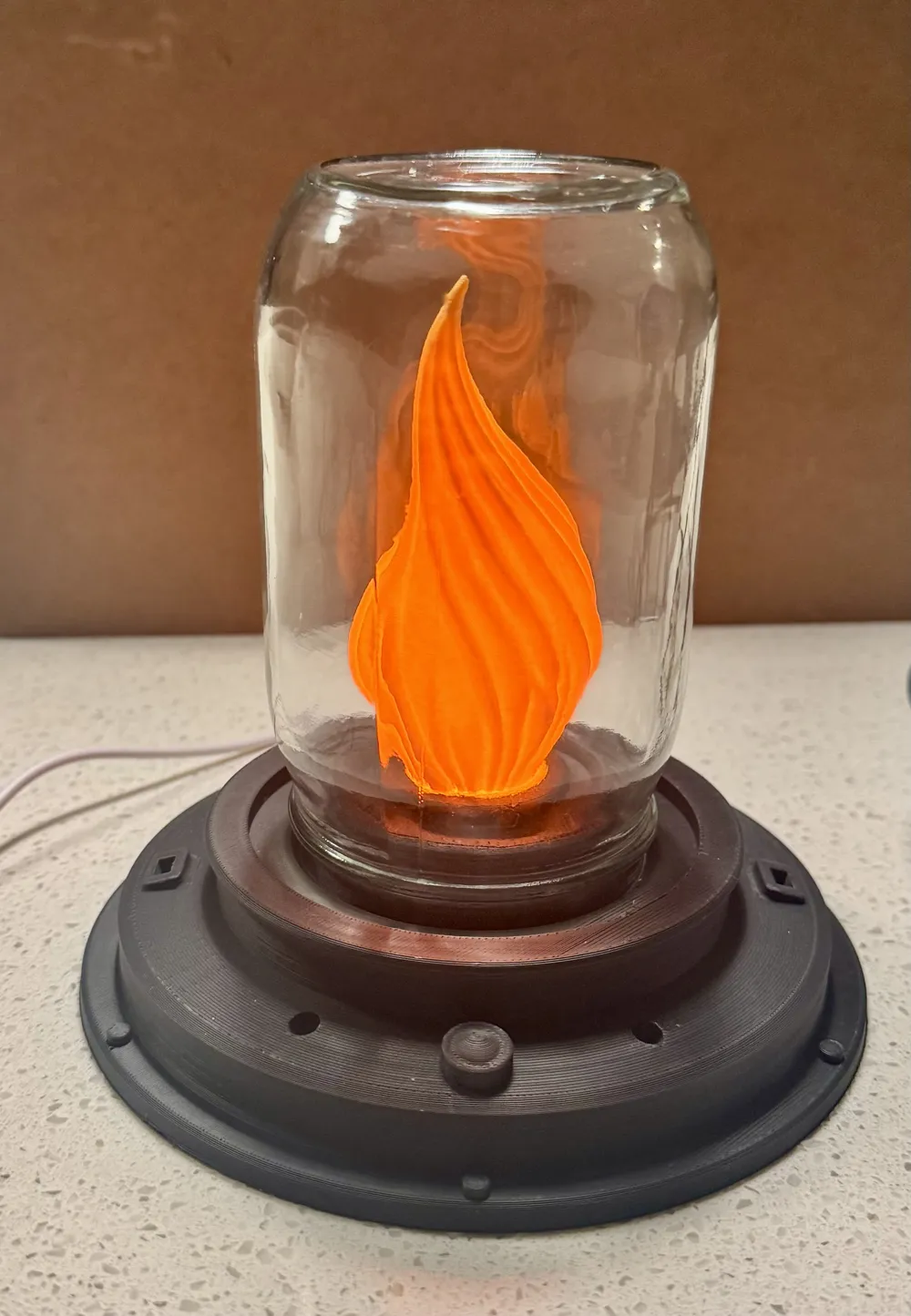

- Designed around a standard 16 oz regular-mouth mason jar thread.
Assembly tips
This was designed to be used without the cover of the LED kit so the flame base can screw onto the housing instead.

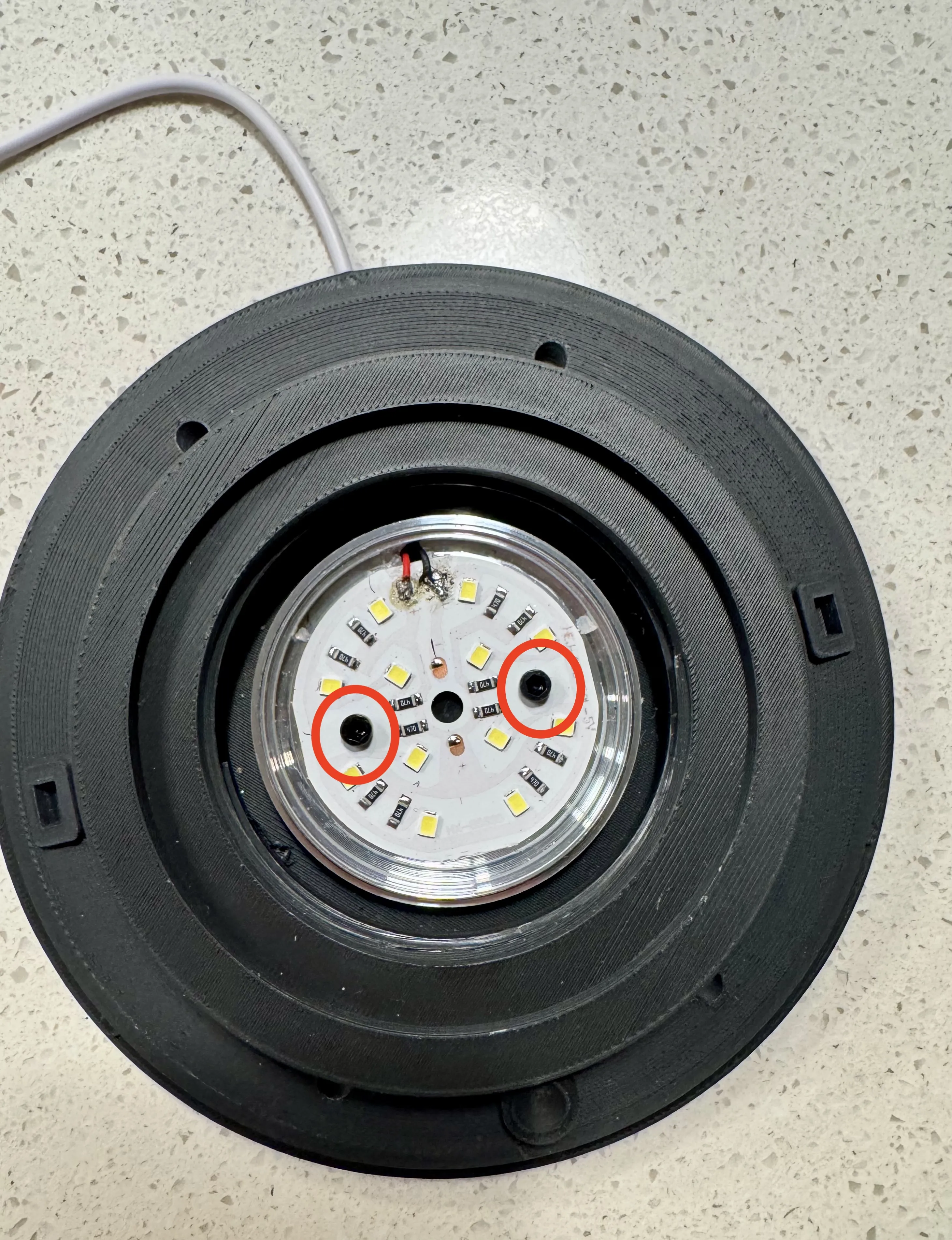

2 M3 self-tapping screws are used to secure the LED to the base. The included double sided adhesive could also be used
- 2 self-tapping M3 screws are also used to secure the 2 main side rails to the top. A small amount of glue could be used instead.
