18650 battery holder for 1S FPV whoop or toothpick

Print Profile(1)

All
P2S
H2S
A1
H2D Pro
A1 mini
H2D
P1S
X1 Carbon
X1
H2C
X1E
P1P
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
42 min
1 plate

Open in Bambu Studio
Boost
13
15
0
0
14
9
Released

Description

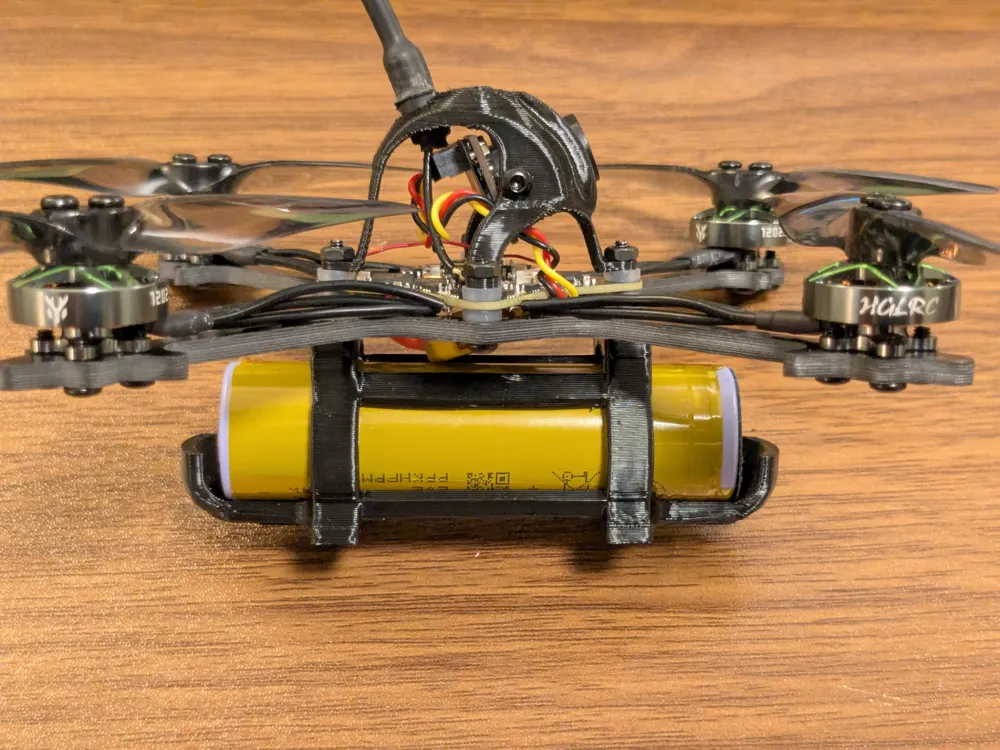

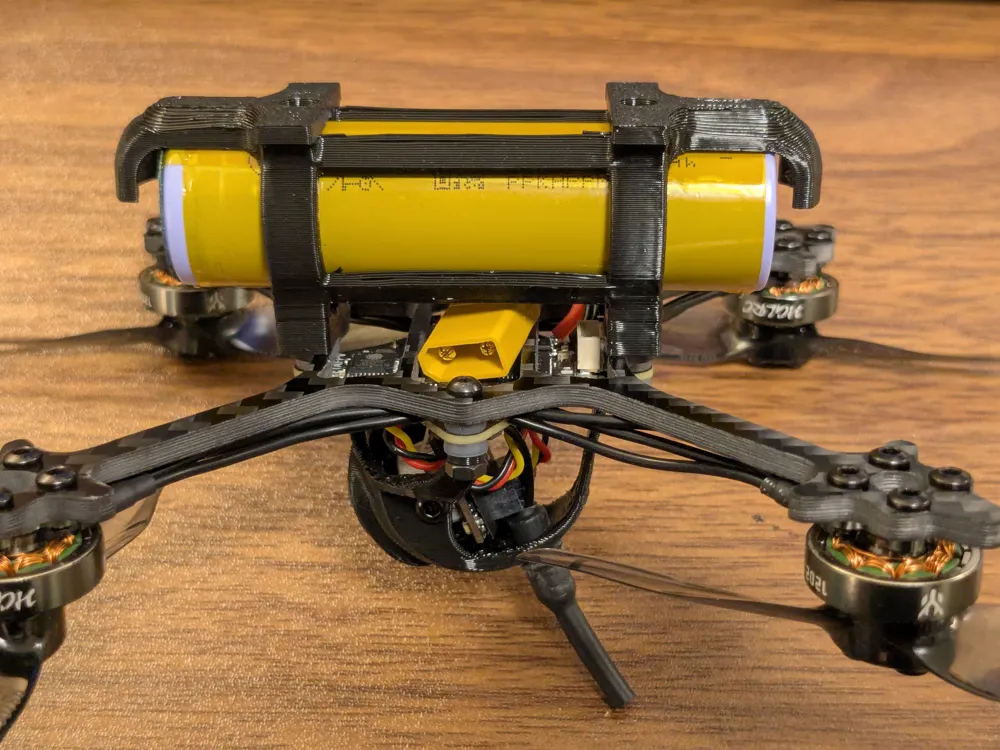

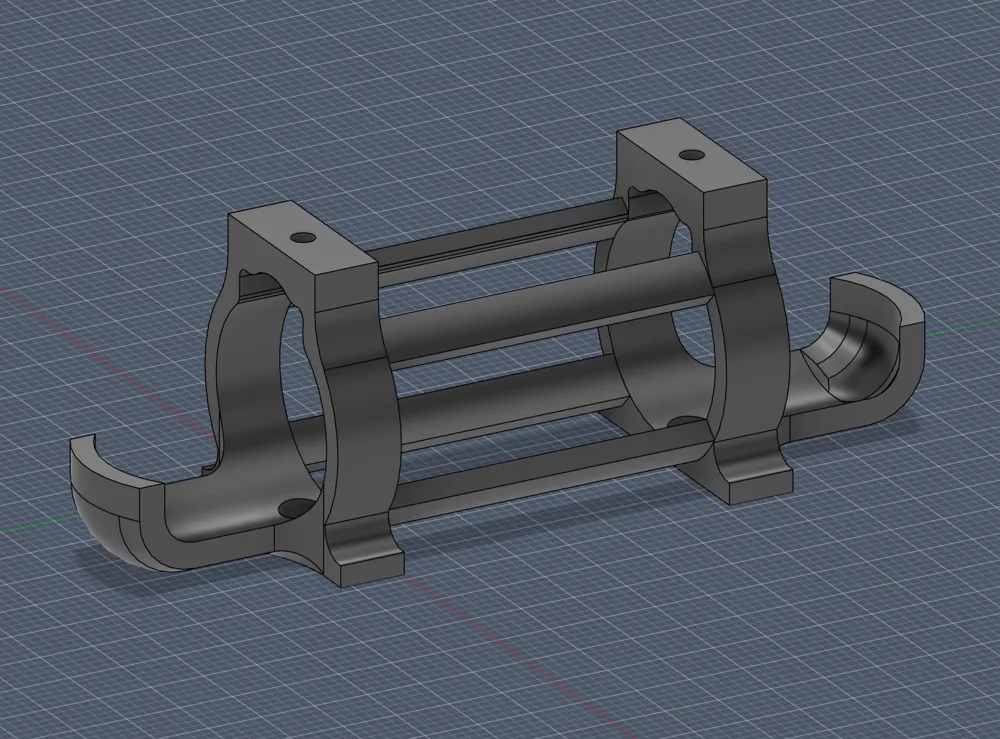

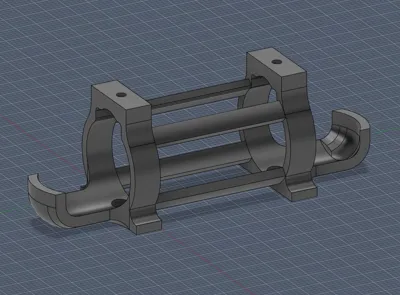

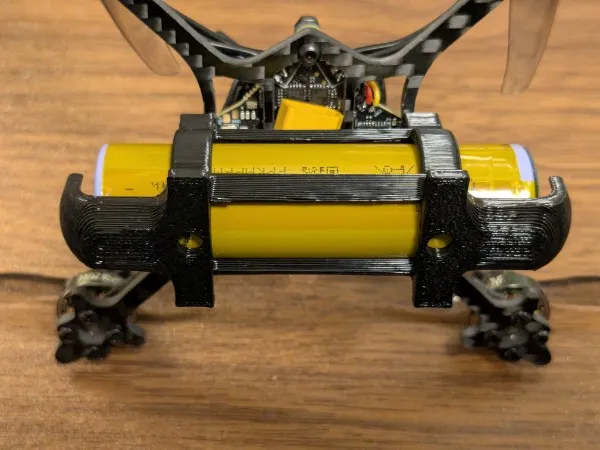

This is a bridged version of Mediocre Nerd's 18650 battery holders. The original design relies on a single mounting point for each side, resulting in rotation and potential loosening of the screws over time. I came up with this solution which bridges the two halves into one rigid piece, eliminating rotation while adding minimal weight. Mounting holes are positioned exactly 36.77mm apart for use on 26x26mm FCs like the BetaFPV Matrix. I recommend printing in 64d TPU for added rigidity while still have enough flex to insert and remove batteries. This is my first Fusion project so it might not have been done 100% perfectly, but so far it prints and functions as intended. Original build from Mediocre Nerd, with link to his model in the description:
