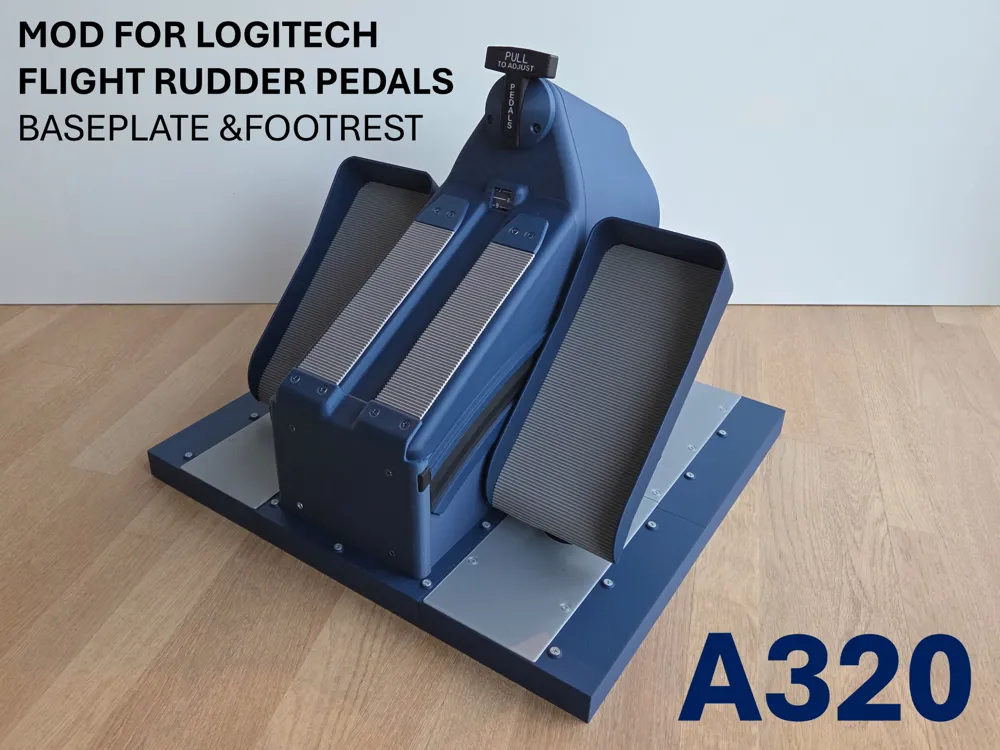

A320 Rudder Pedal Footrest for Logitech/Saitek
Print Profile(14)
Bill of Materials
- Countersunk Screw M4x20 (ISO 7046/DIN 965) x 26: optionally painted
- Screw M3x10 x 2:
- Super Glue x 1:
- Spray Paint (RAL 5008) x 1: optionally
- Heat Inserts M4 x 20: I used ruthex M4 inserts (https://www.ruthex.de/products/ruthex-gewindeeinsatz-m4-50-stuck-rx-m4x8-1-messing-gewindebuchsen?_pos=4&_sid=6896846a4&_ss=r)
Description

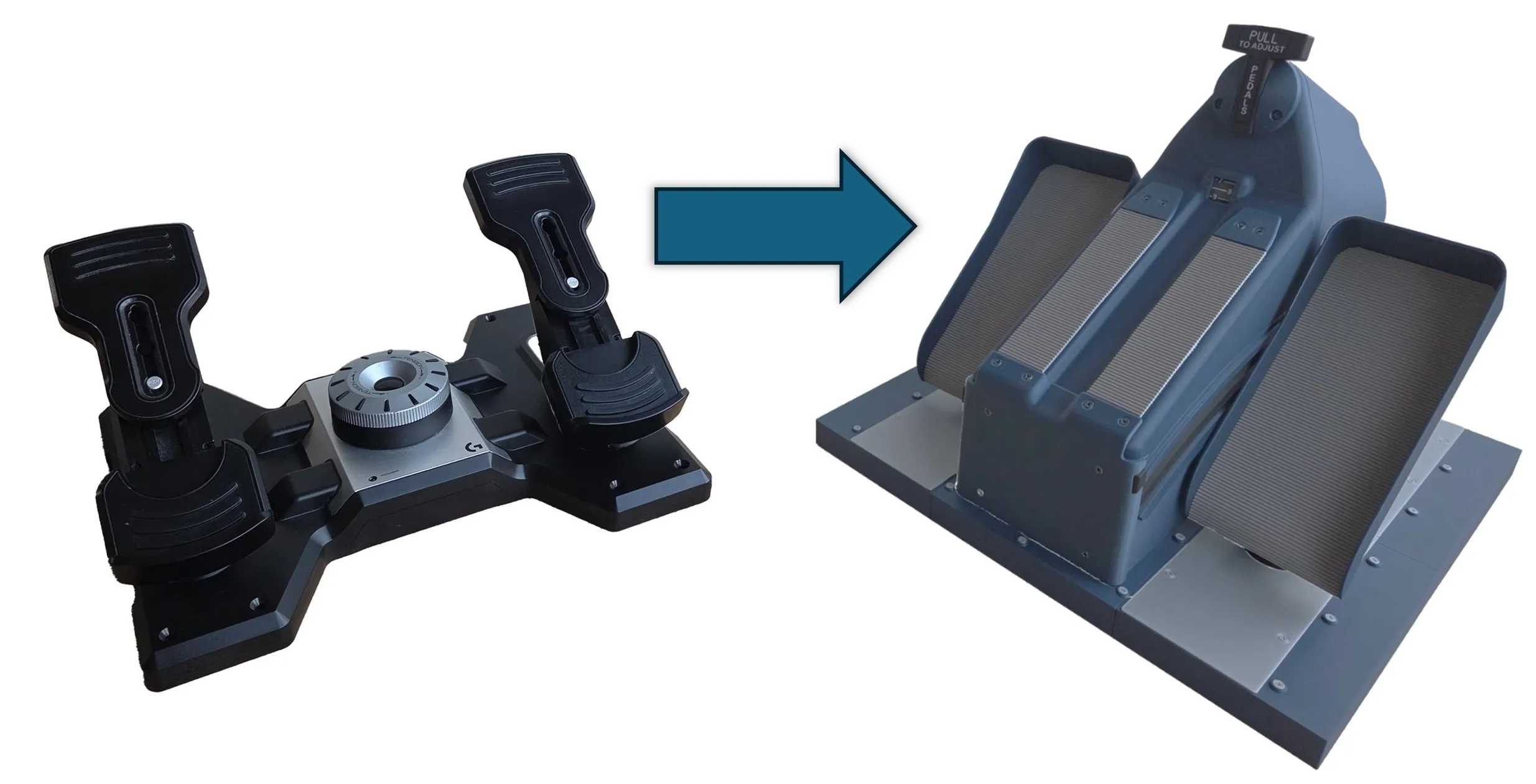

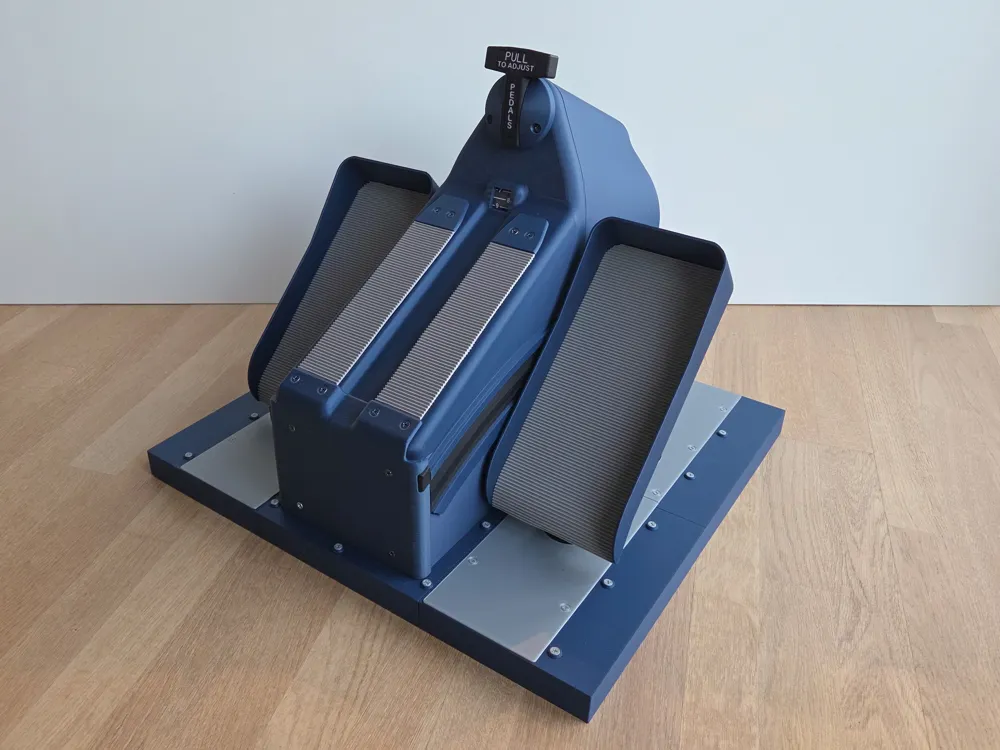

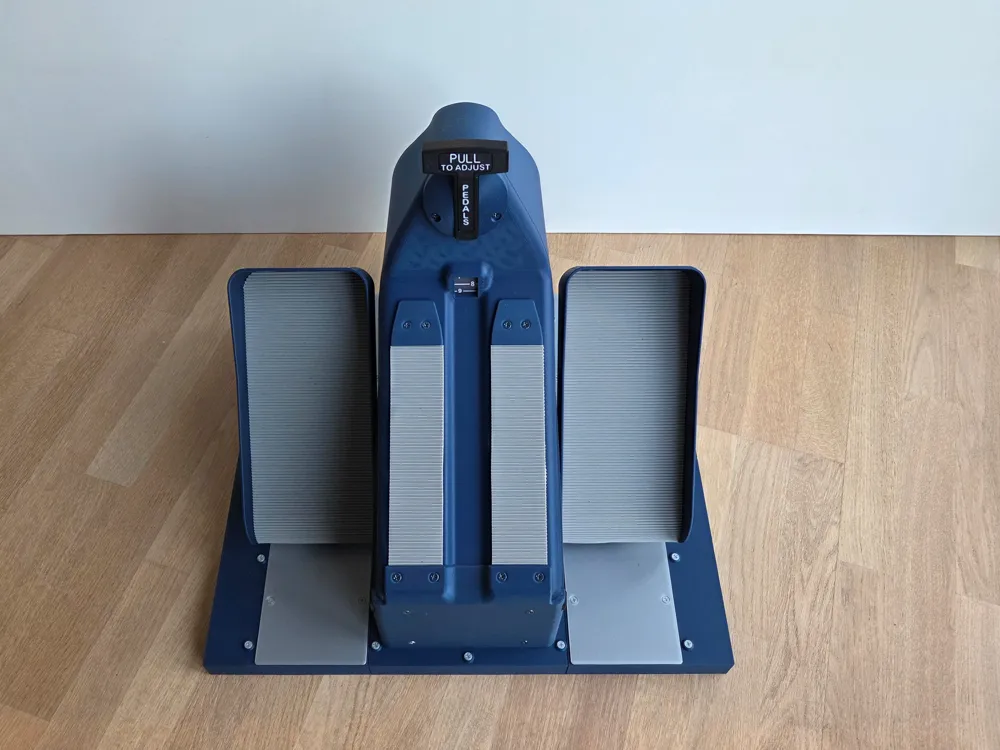

This mod is meant to make your Logitech G Saitek Pro Flight Rudder Pedals look like the one you find in the Airbus A320 family. It is near 1:1 scale, I only had to make minor changes in the width to make everything fit. It will also fit into the SimGuy MIP (https://www.patreon.com/cw/320diy)
The mod is split into two parts:
- Baseplate and Footrest (this model)
- Pedals (https://makerworld.com/en/models/2316635-a320-rudder-pedal-mod-for-logitech-saitek#profileId-2529753)
You will find print profiles for H2D, H2C, H2S, P2S, P1S/P1P, X1C and A1 printers.
The padding for the pedals can be made in three different ways:
- print padding in soft TPU (TPU for AMS)
- print padding in PLA
- use a rubber runner carpet like I did (https://floordirekt.com/products/gummi-matte?variant=37405530882220)
All the corresponding files can be found in the print profile. See assembly instructions on how to assemble the parts.
If you choose to print this model I would appreciate a picture of your build in the comment. Many happy landings!
Boost Me (for free)
If you like the model and want to support me in my future contributions I would really appreciate a boost. Thanks!
Disclaimer:
You modify your hardware at your own risk. Opening the device may limit or completely void the manufacturer’s warranty. You are solely responsible for any damage that may occur during the modification process.
