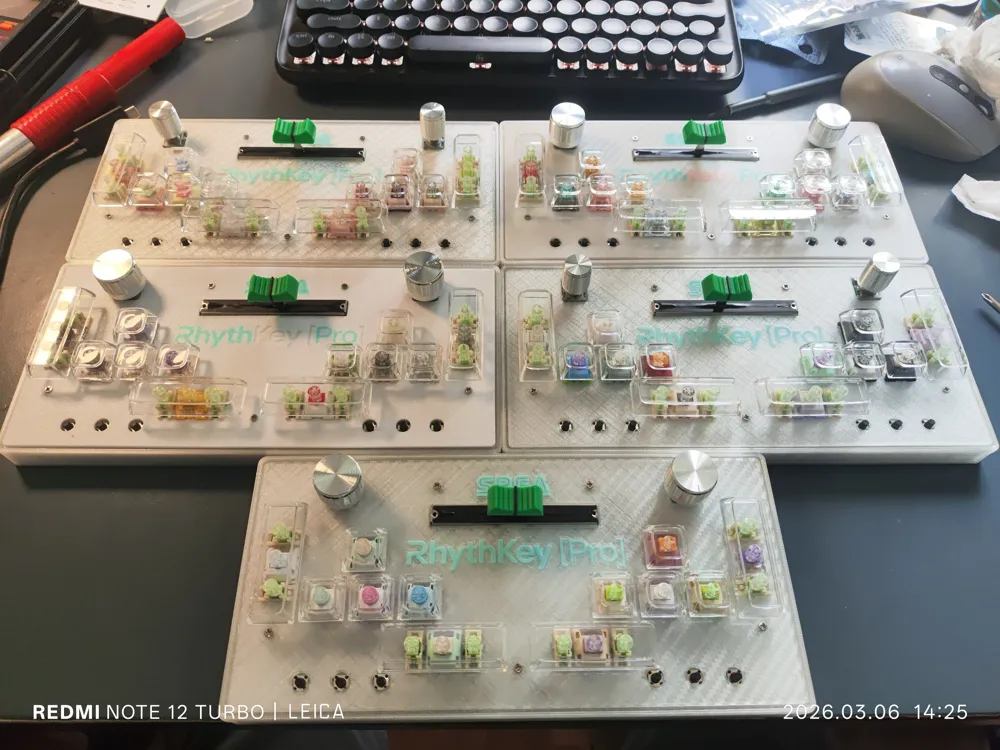

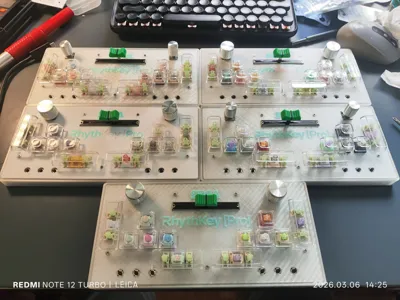

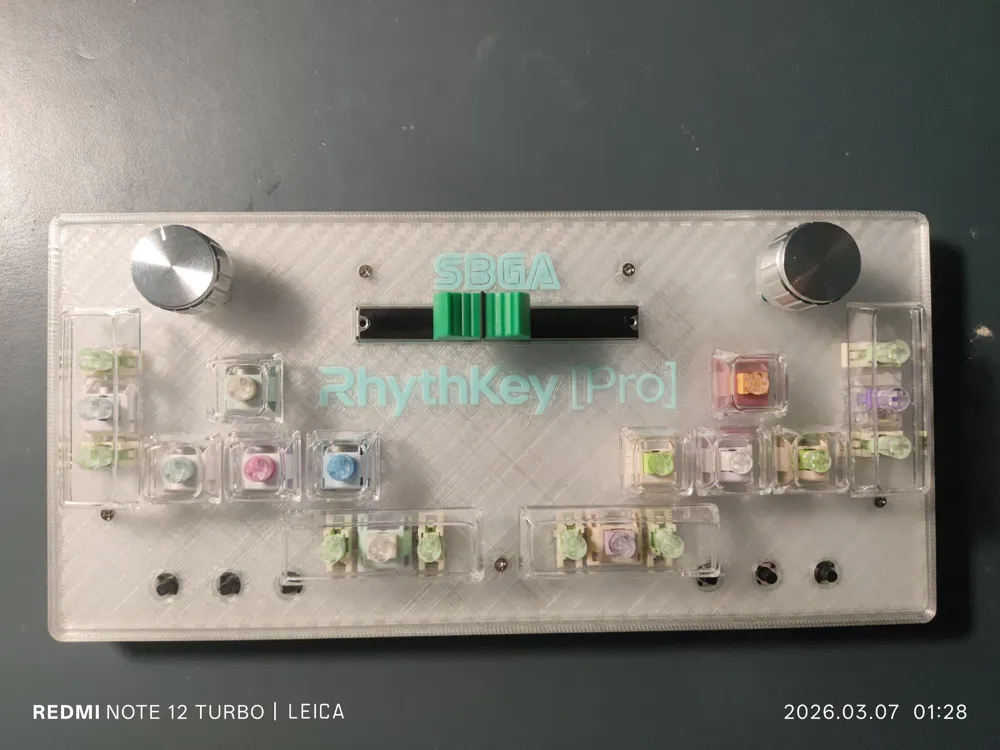

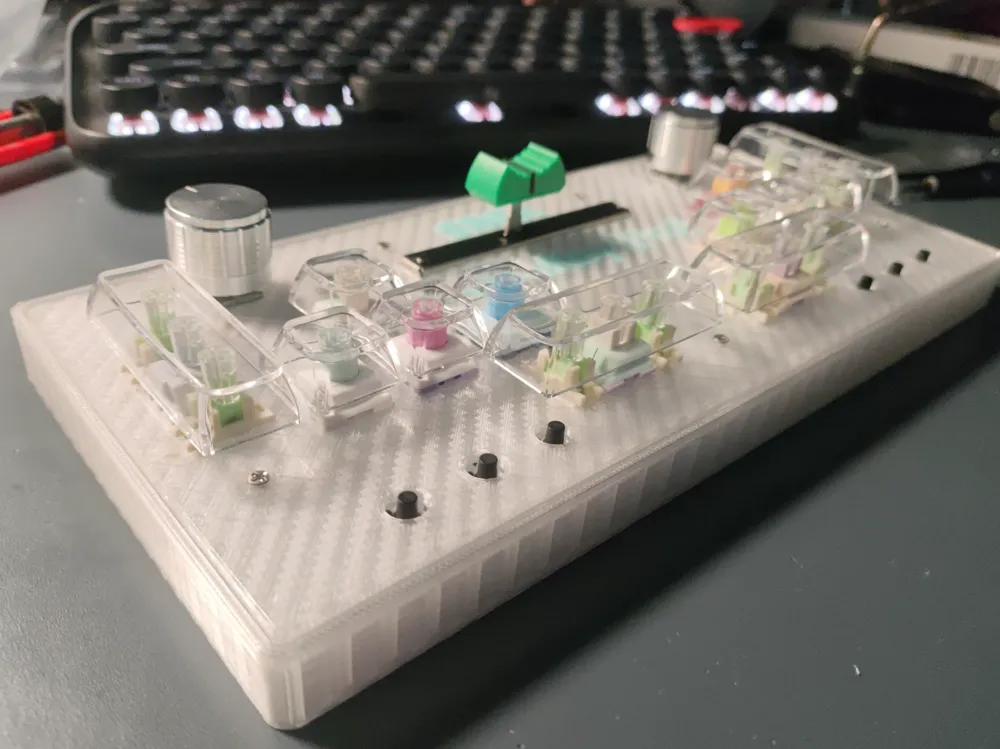

RhythKey Pro Case | A mini portable DIY music game controller

Project Link

https://github.com/pStrikeZ/RhythKeyPro

This page provides only the 3D model for the case for easy printing, for specific PCB files, BOM list, assembly guide, and other content, please refer to the link above

Introduction

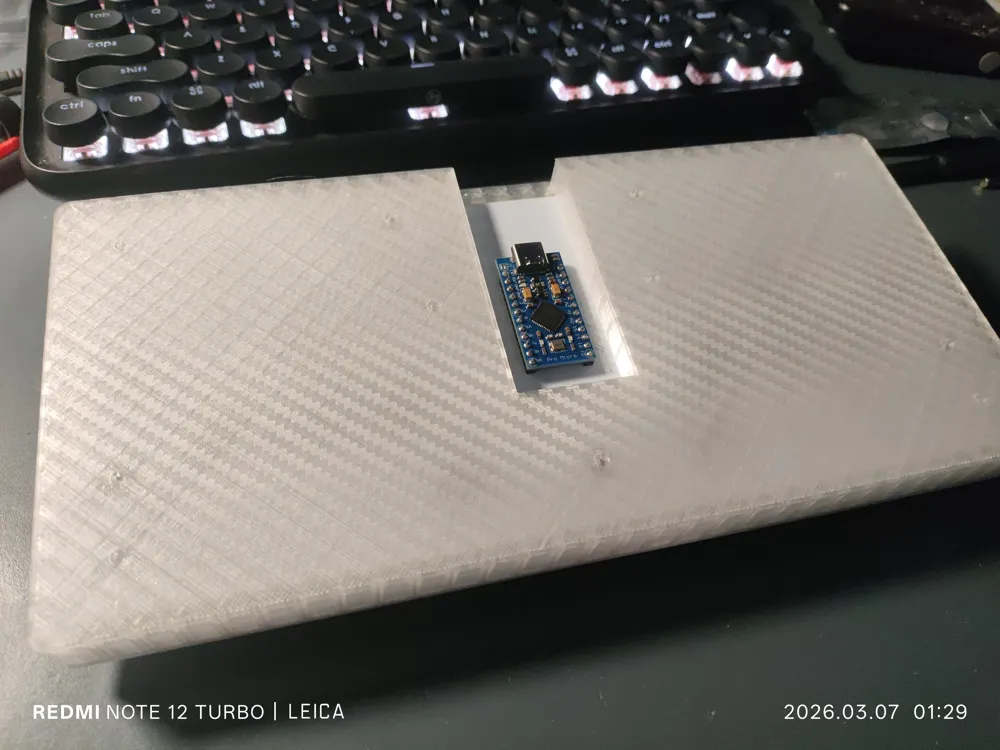

This is a mini portable DIY music game controller. It controls music games by simulating an Xbox 360 gamepad via an ATmega32U4-based Arduino module.

List of supported music games:

• ONGEKI
  RGB lighting effects are even supported to sync with in-game actions
• SOUND VOLTEX
• DJMAX RESPECT V
• osu!mania
• In Falsus Demo

There are also some untested but theoretically playable games, such as other osu! modes, Hatsune Miku: Project DIVA, etc.

Acknowledgments / Project Origin

This project is a thoroughly refactored and upgraded version of Rhythkey_V1. We express our deep respect and gratitude for the excellent work of the original author TheSiriusS233. If you are interested in the original version, please visit its official repository.

License

This project uses a mixed licensing model:

• Case part (including all 3D models and other files located in the /case directory)
  uses the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) license.
• PCB part (including all EDA files, schematics, PCB layouts, and other files located in the /pcb directory)
  uses the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) license.
• Software part (including all Arduino source code located in the /firmware directory)
  uses the GNU General Public License v3.0 (GPLv3) license.

In short, you are welcome to learn from, modify, and share this project for non-commercial purposes. However, it is strictly forbidden to use the hardware design of this project directly for production and sales for any commercial purpose.
Please also do not use this project for manufacturing by accepting commissions from others and profiting from it, as this also violates our terms.
