FritzBox wall holders with mounting helper caps
Print Profile(1)
Description

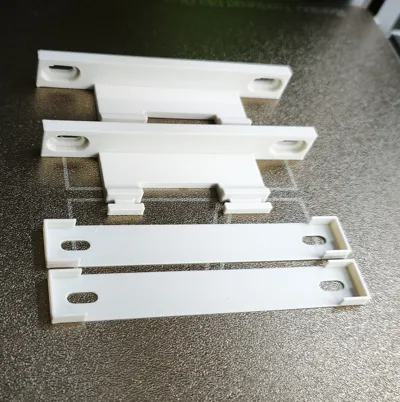

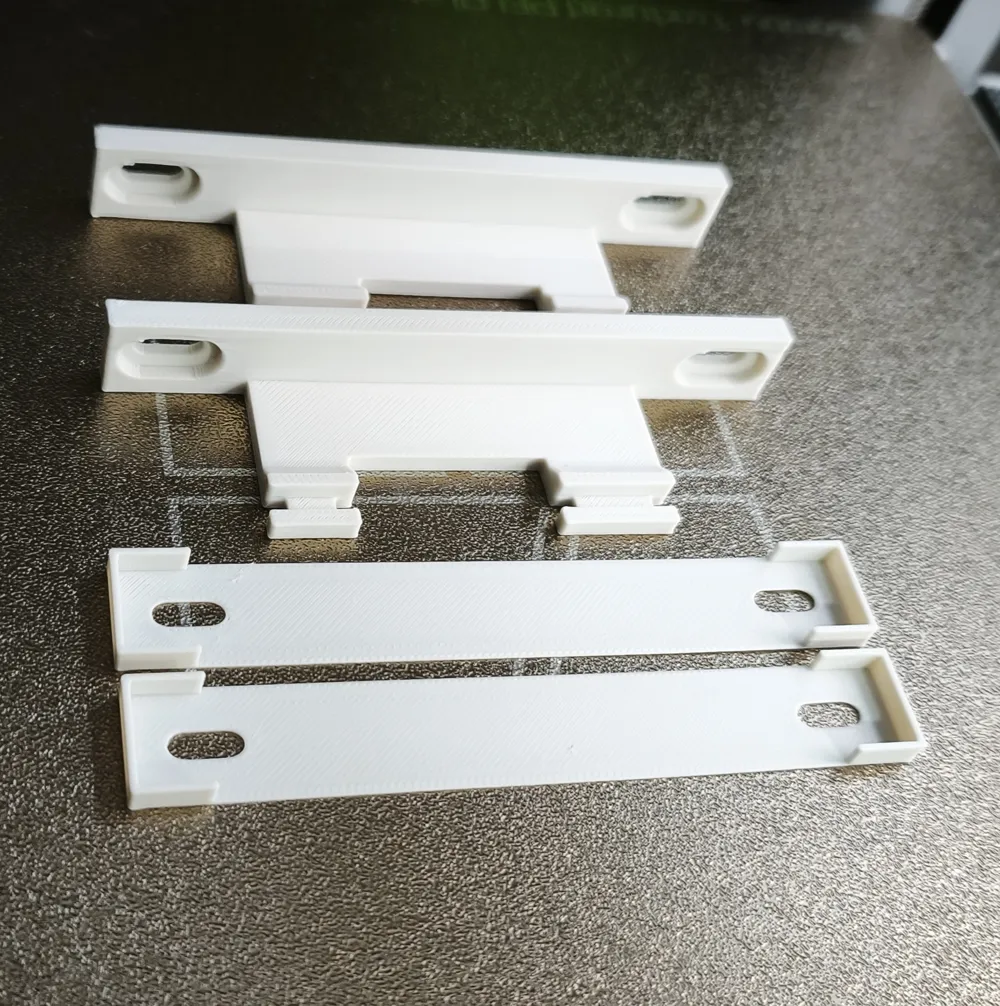

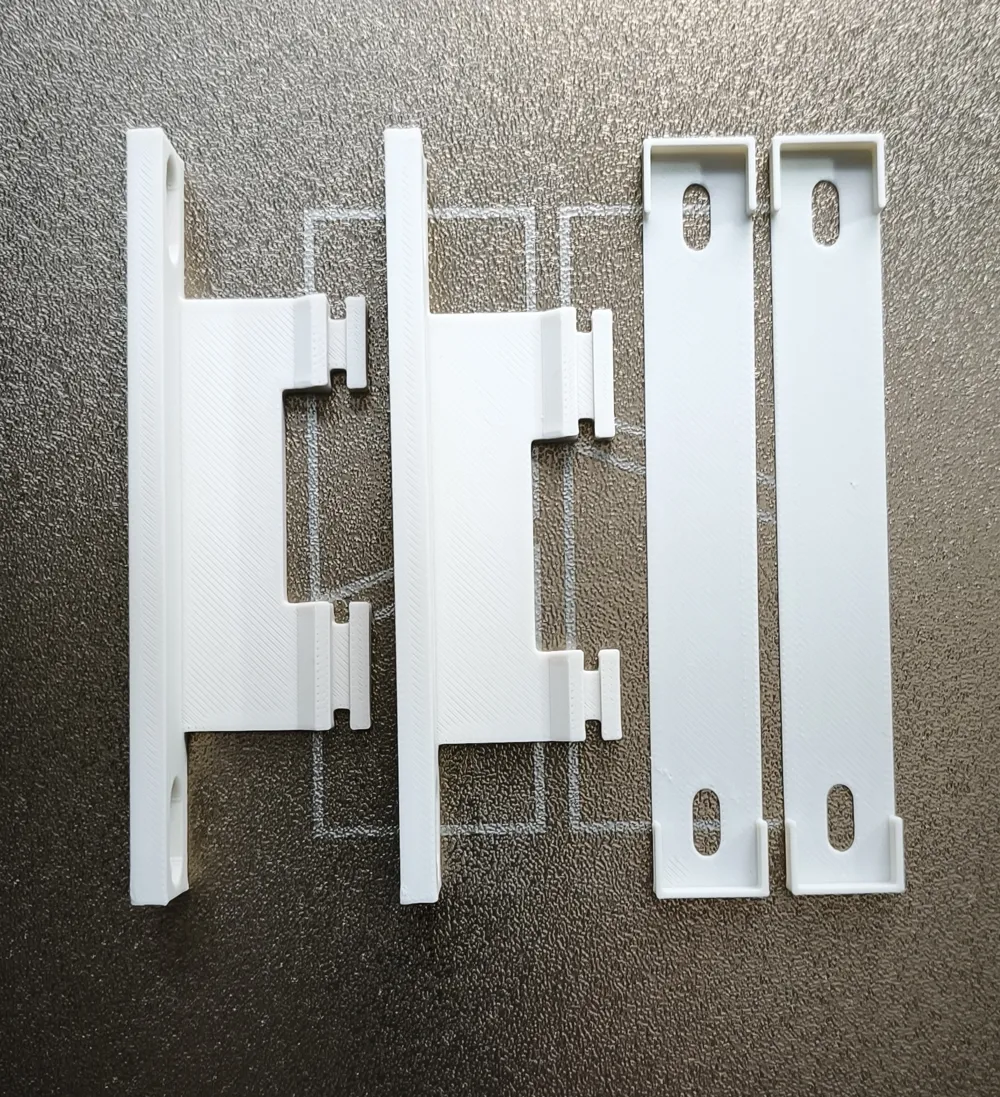

A simple aid for wall mounting using spacers for some FritzBox models. For easier installation, auxiliary caps are also included, which can be used to mark the drill holes. These do not need to be printed and are purely optional.
These mounts should work with the following models:
Fritzbox 7690, 7590 AX, 7530, 7510, 5590, 5530, 6660, 6890, 6850

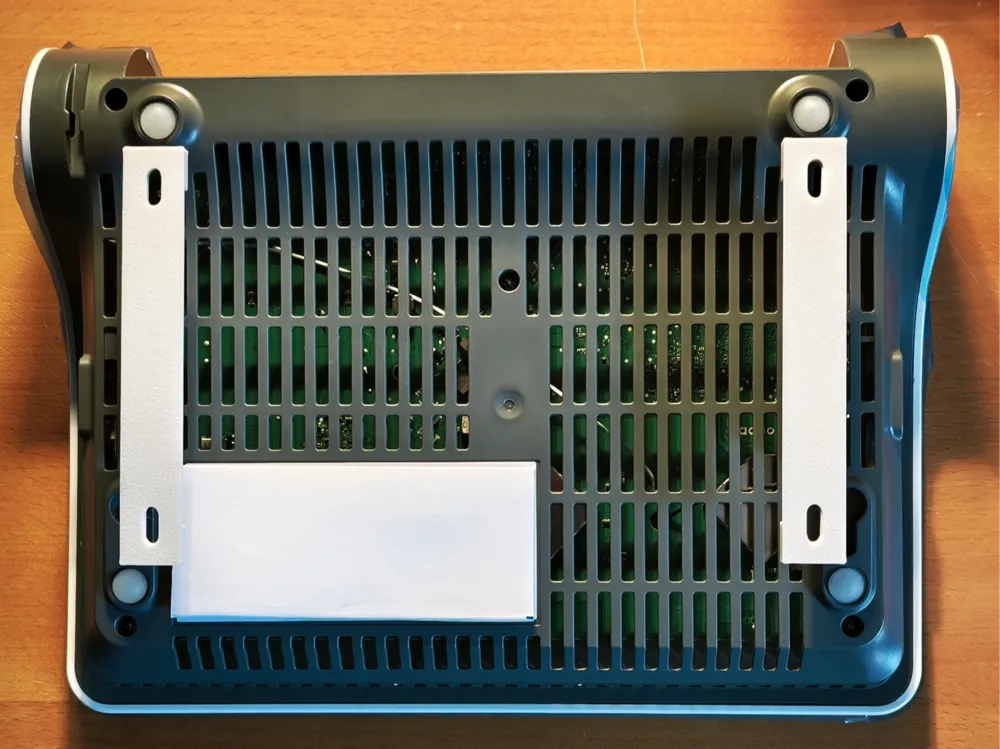

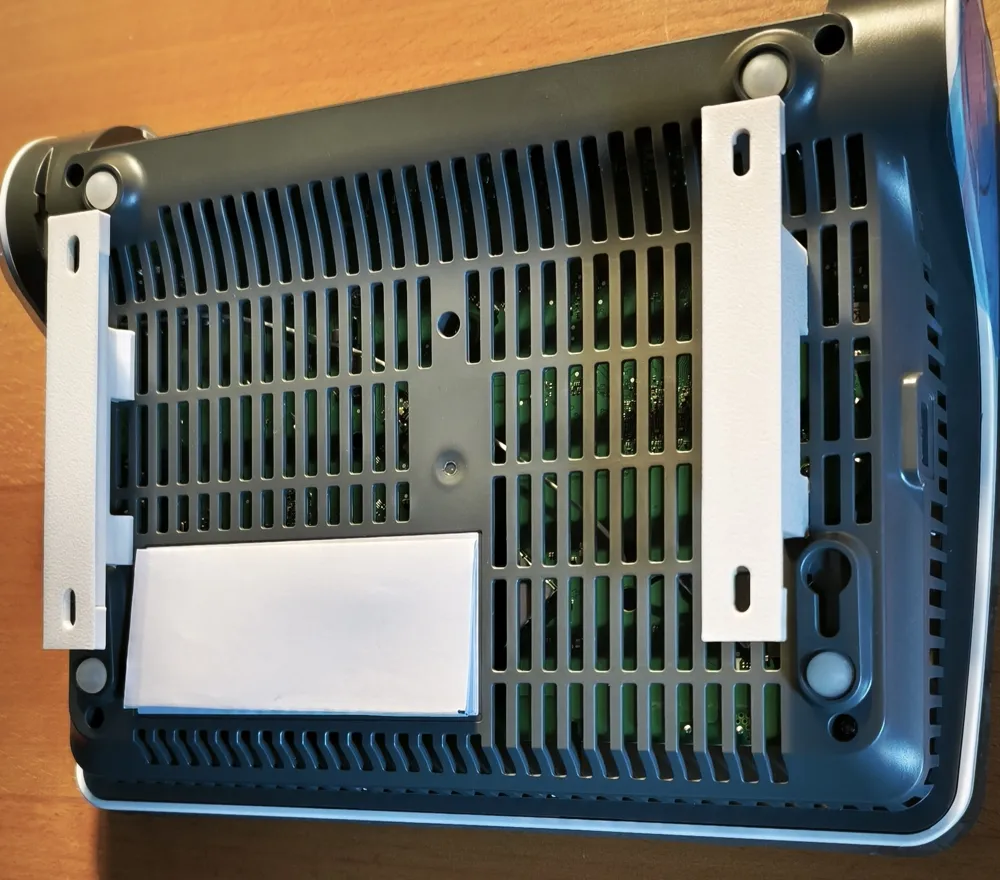

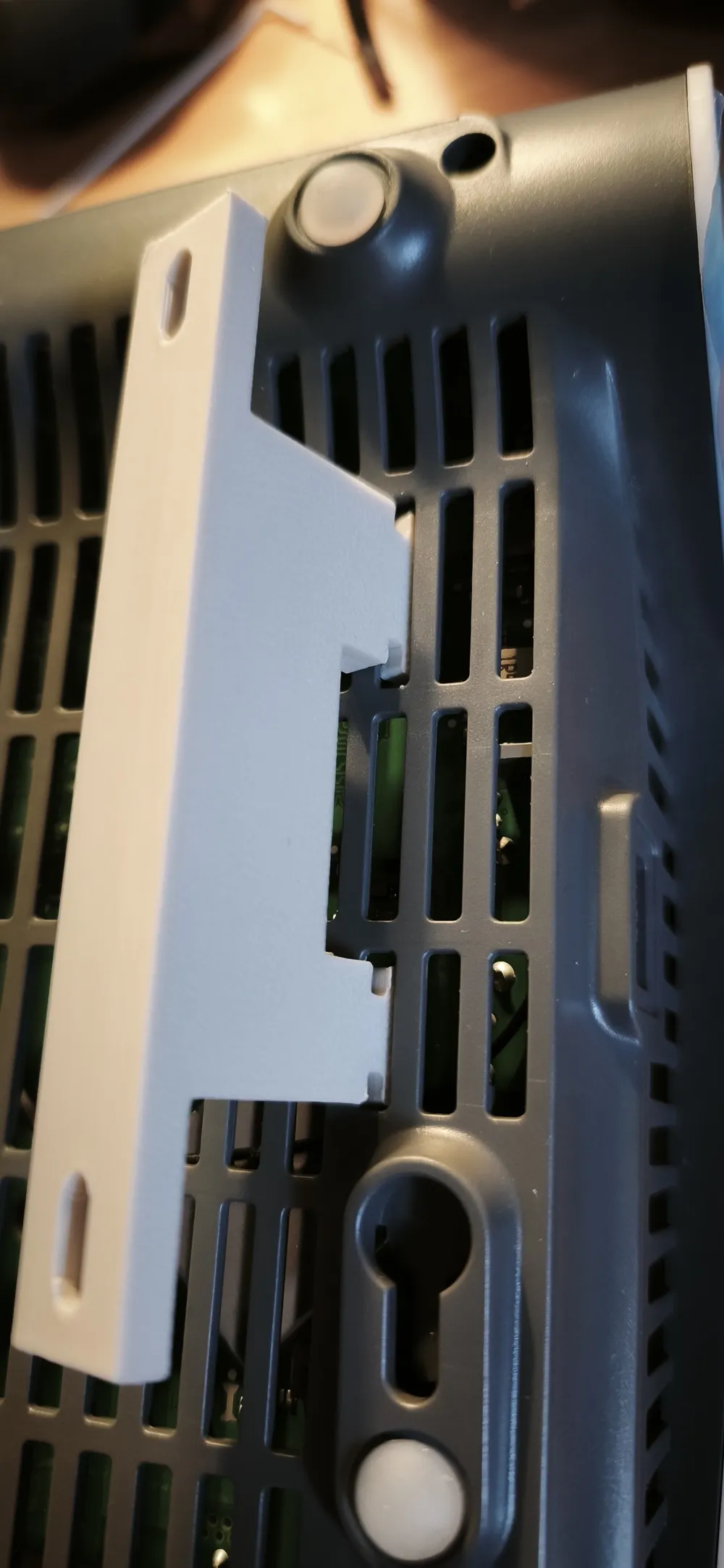

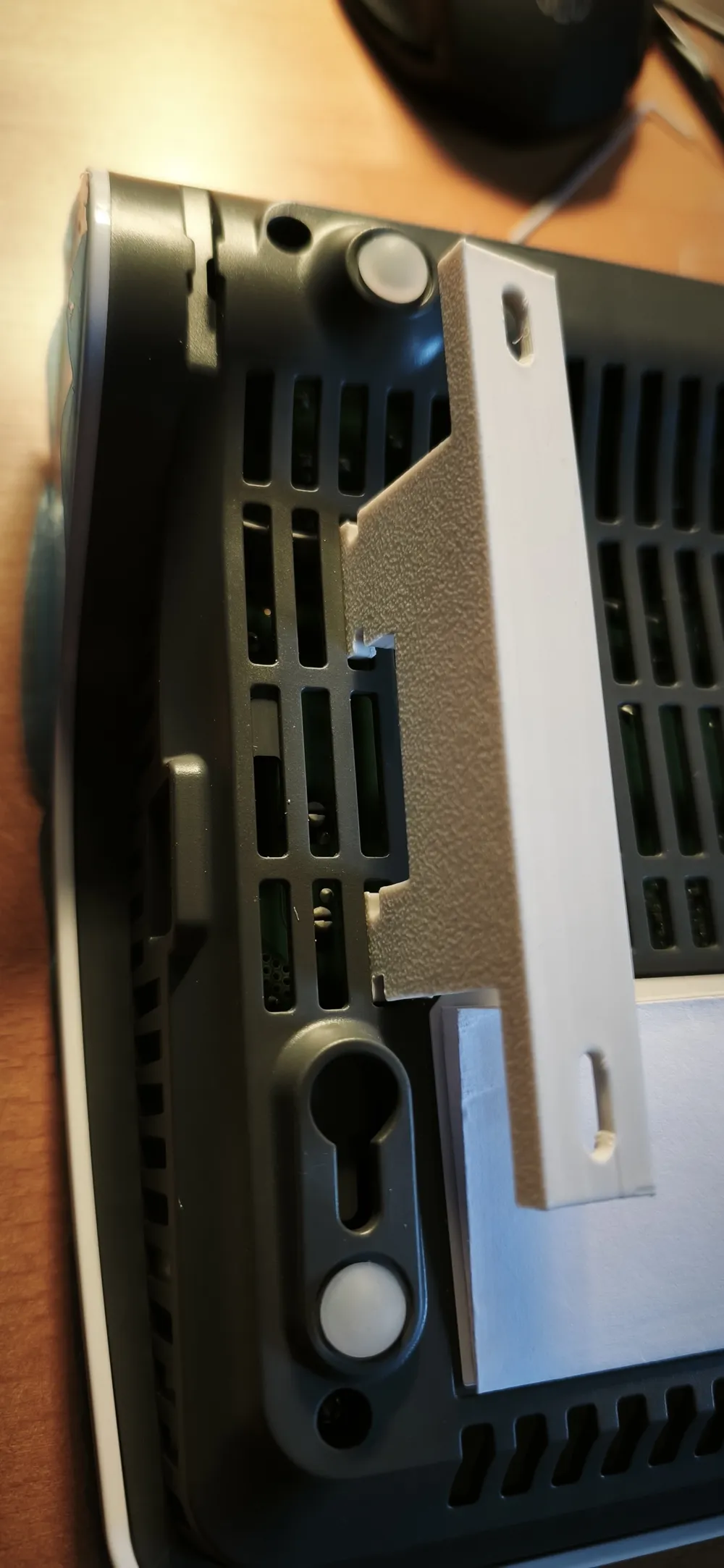

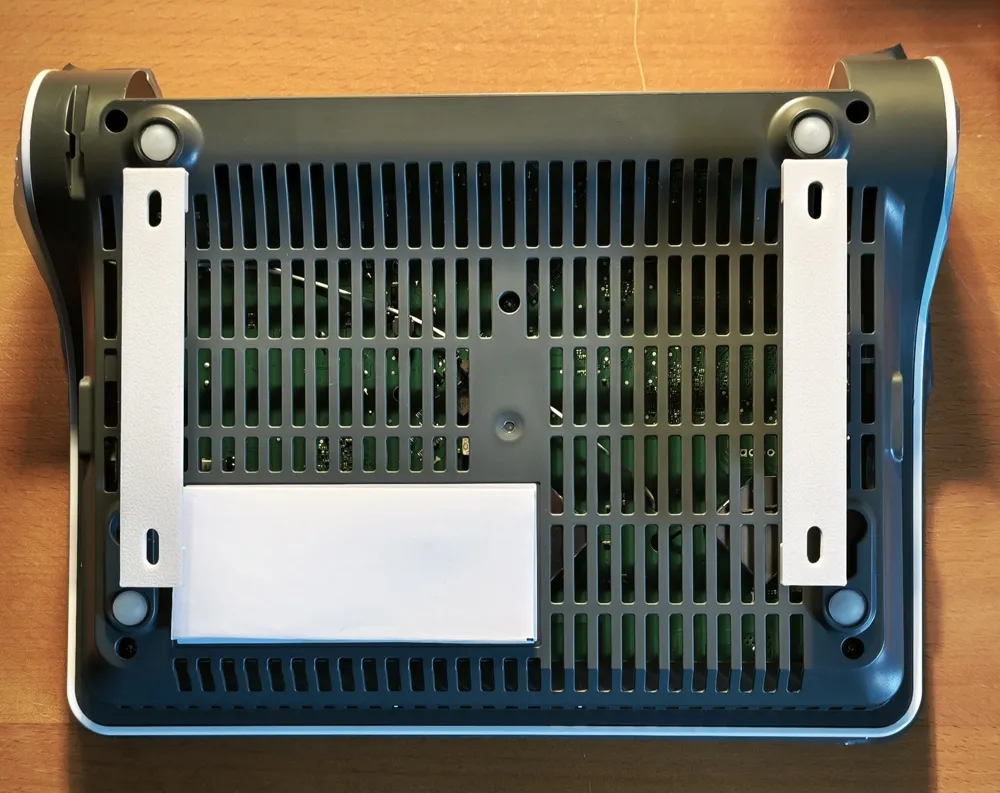

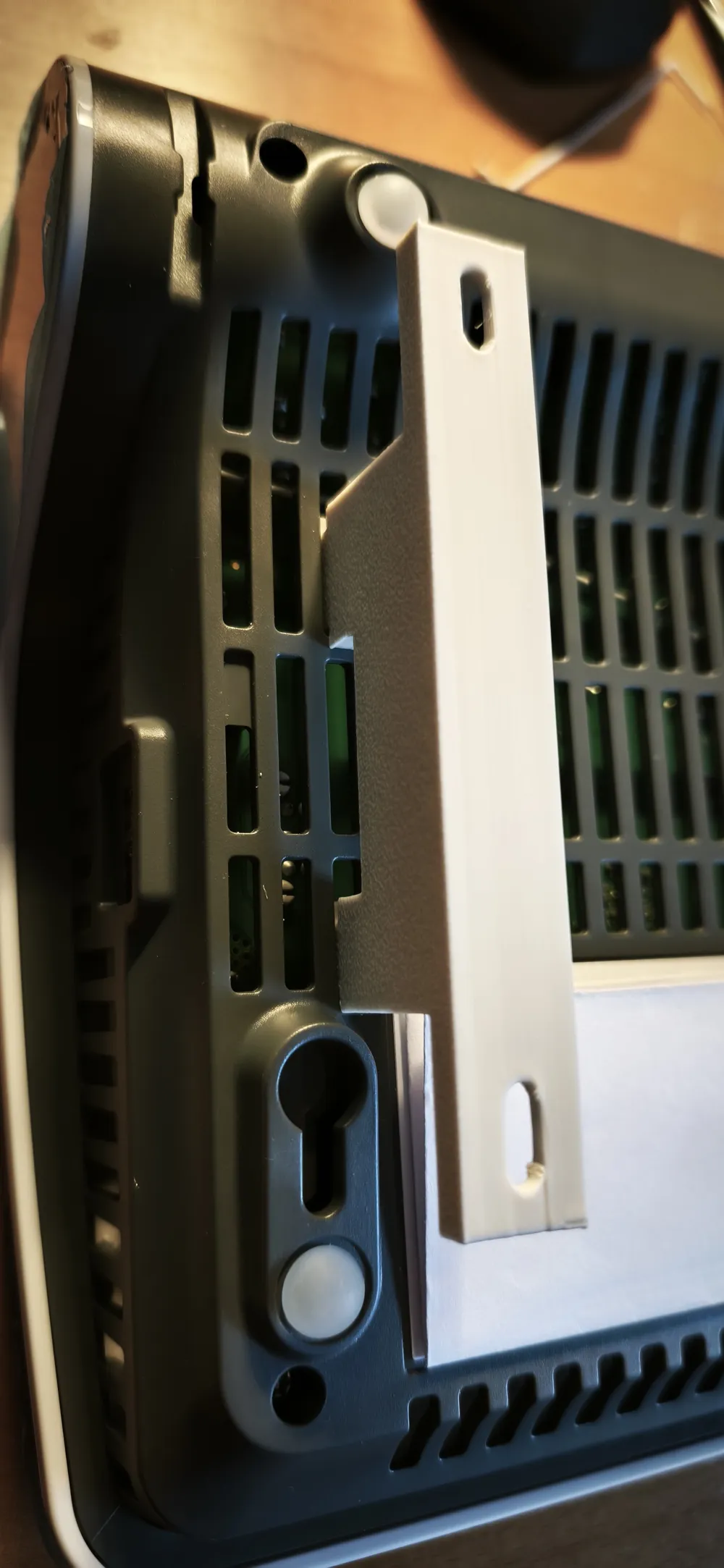

The photos were taken with a 5590 Fiber.
Installation

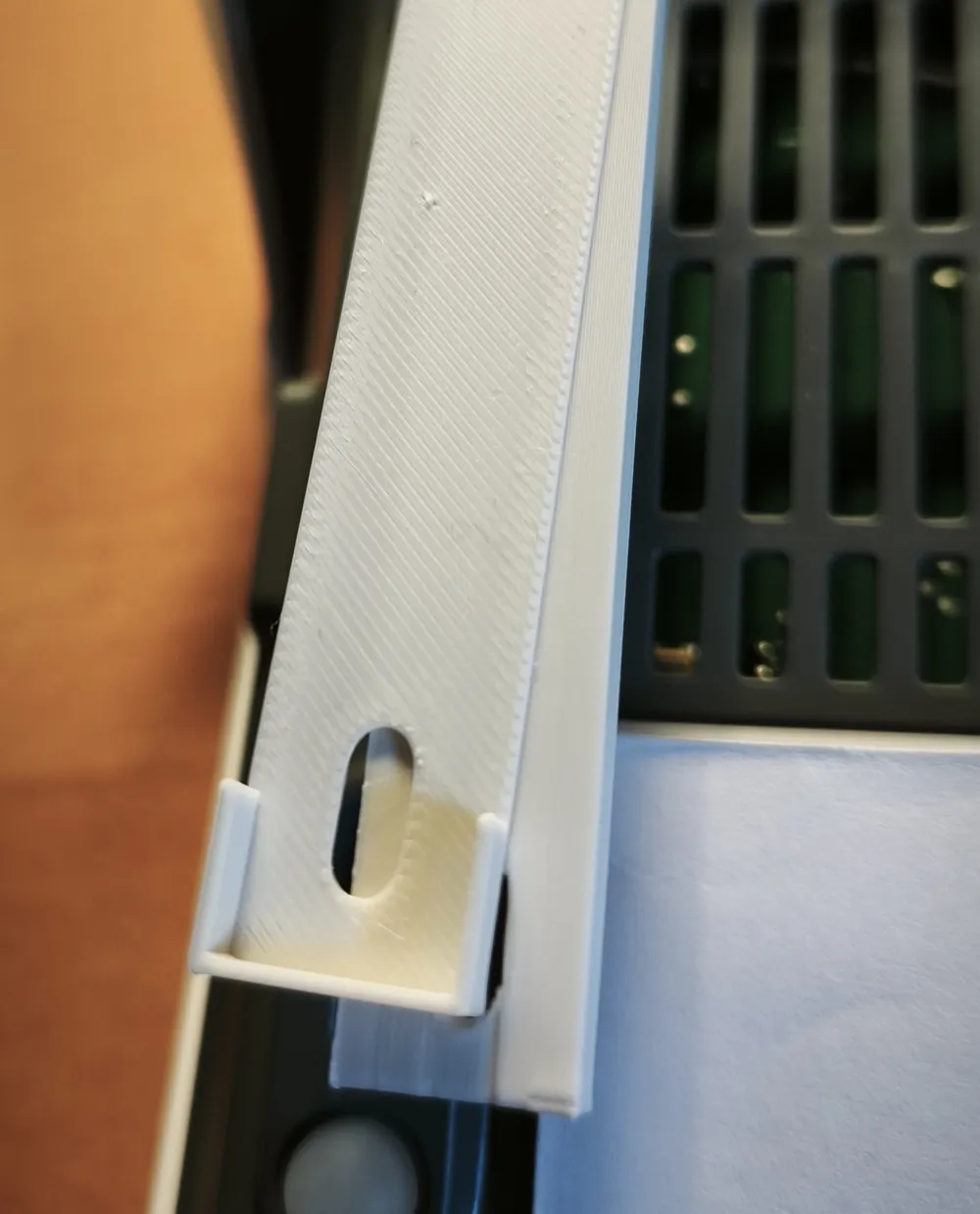

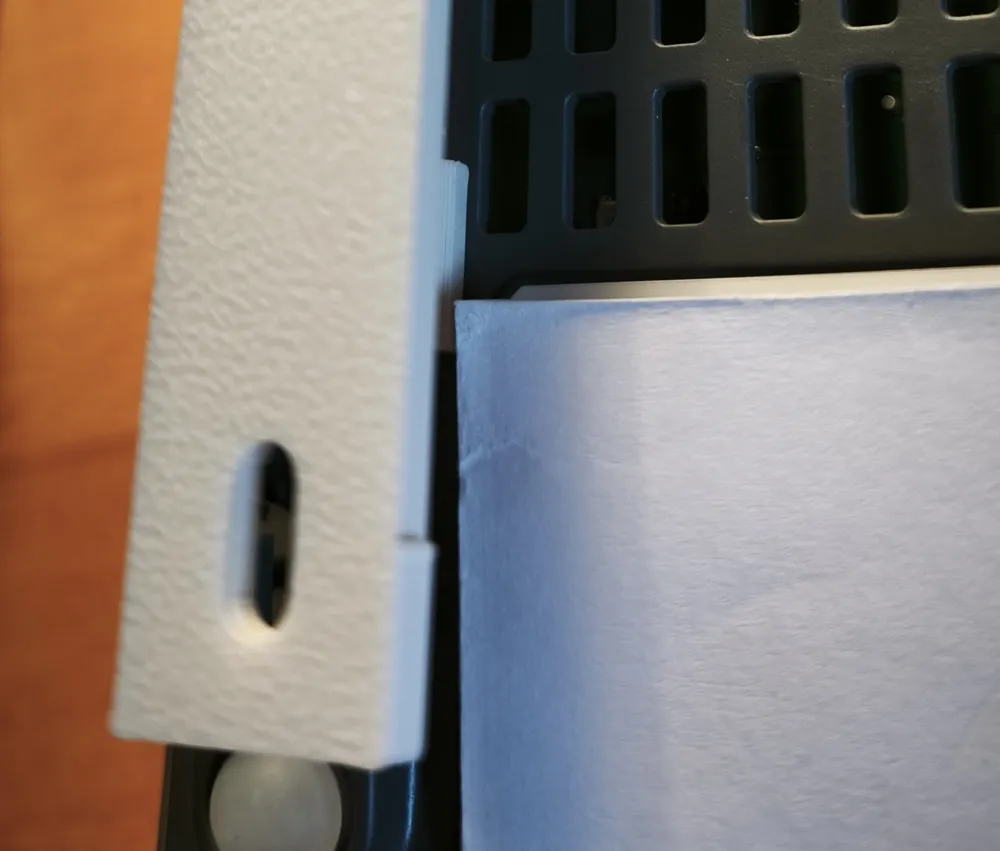

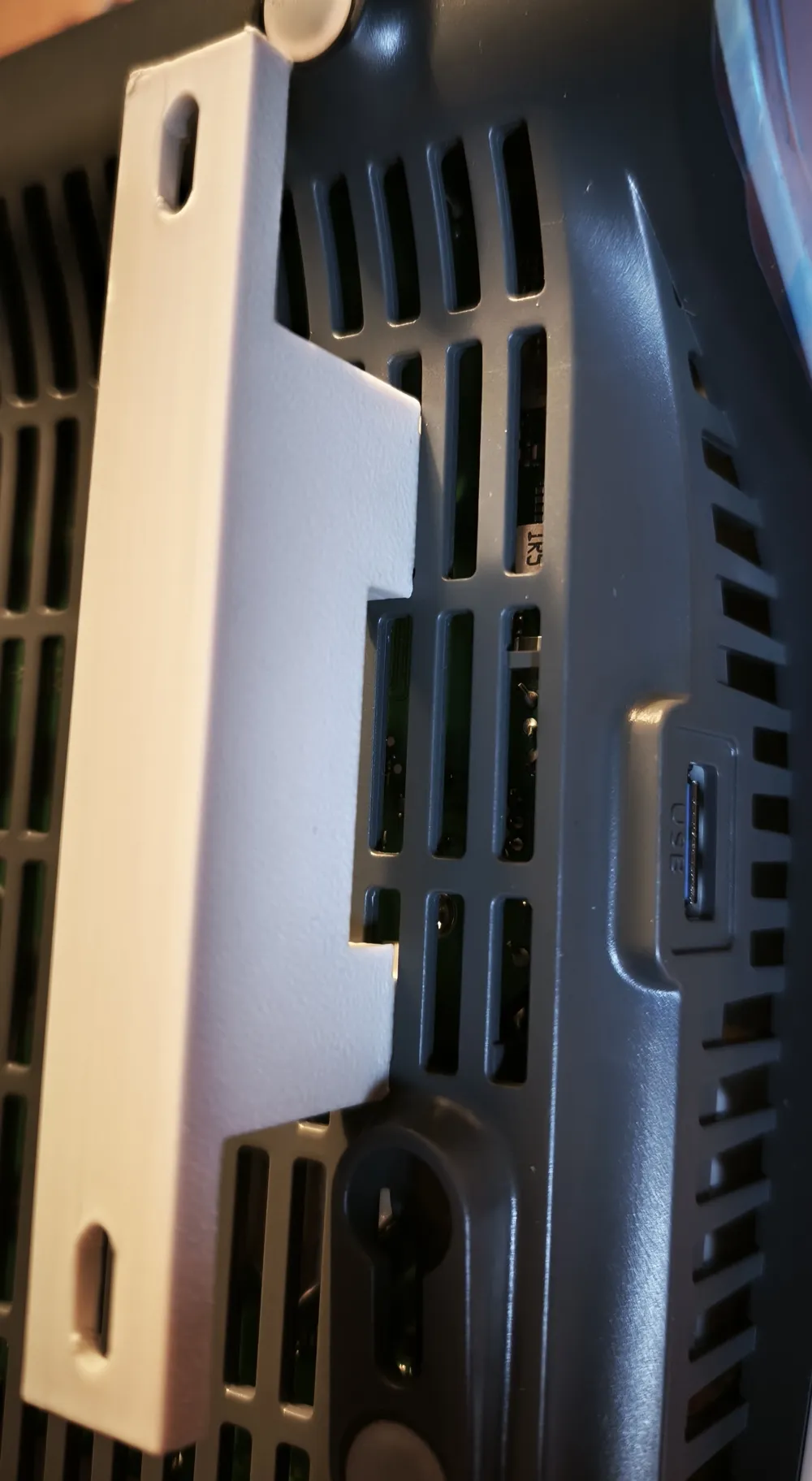

To do this, simply attach the brackets to the FritzBox first, then put on the mounting caps and attach some small double-sided adhesive tape to the outside of the mounting caps.
The next step is to press the FritzBox against the wall where it will later be located.
Now the second side of the adhesive tape also sticks, and when you remove the FritzBox, the two mounting caps remain in the correct position on the wall.
Now mark the holes through the mounting caps and then the mounting caps can be removed from the wall.
Drill, dowel, and screw in the two brackets -> attach the Fritzbox and you're done.
