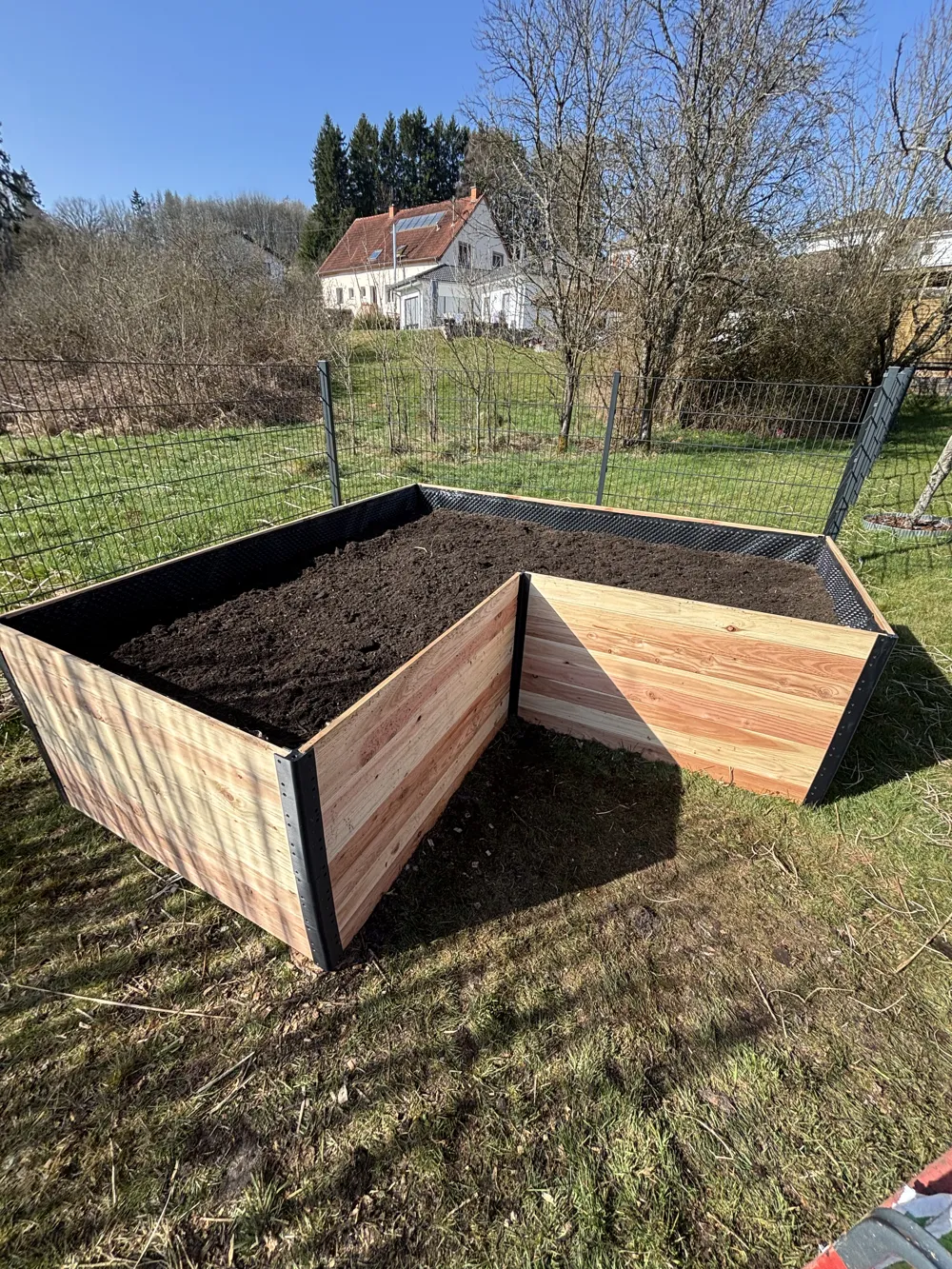

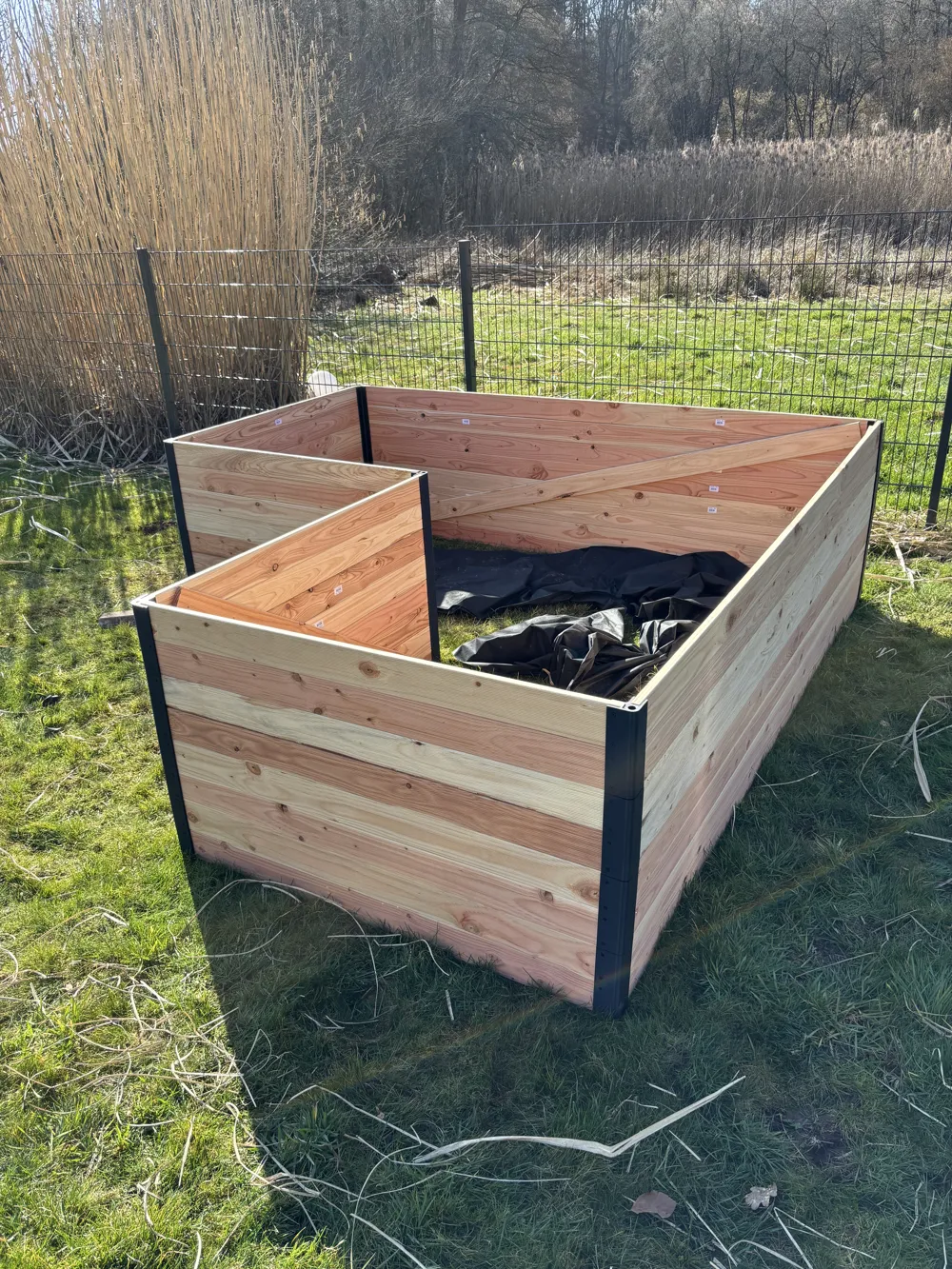

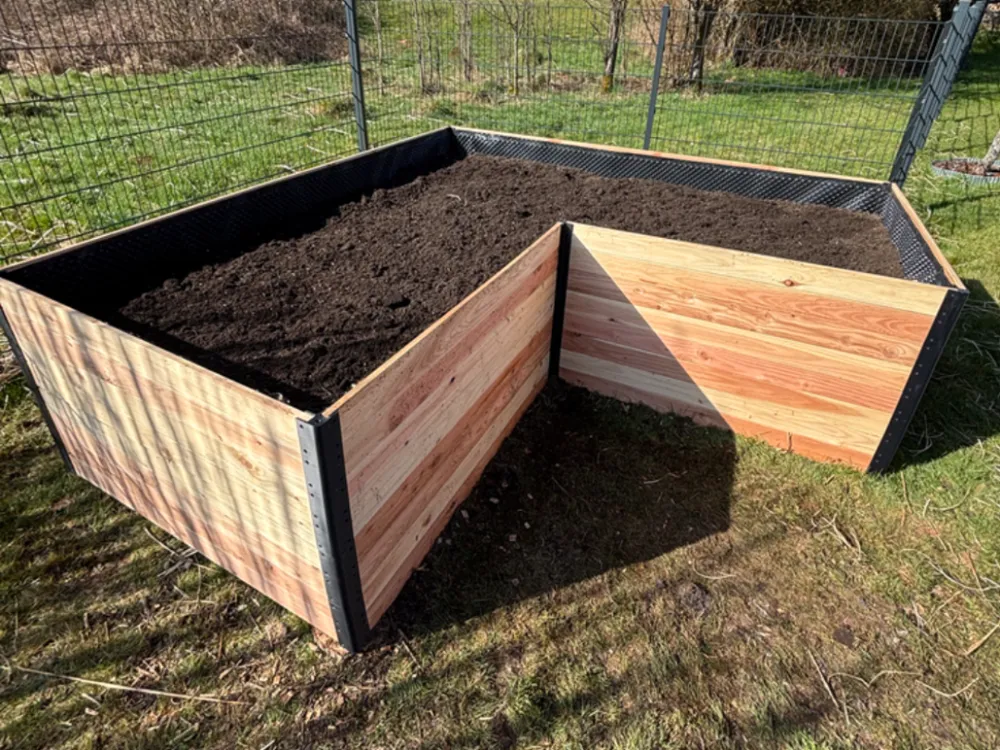

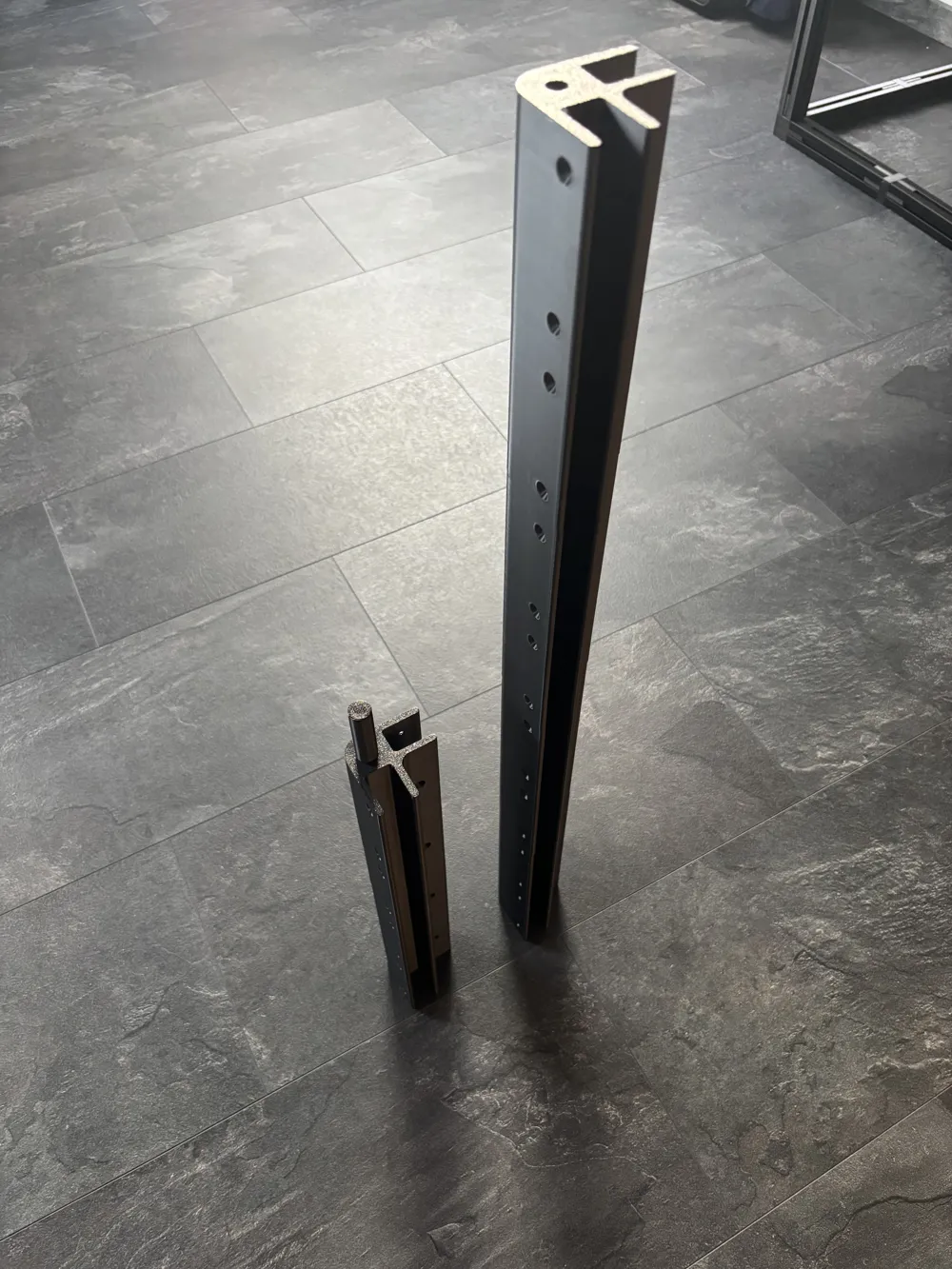

Raised Bed Corner Connectors for Modular Raised Beds
With these corner connectors, **modular raised beds of any size and height** can be built. The system is designed so that commercially available **planks or boards** can be used. This allows the raised bed to be flexibly adapted to the available space – from small balconies to large gardens
The size of the raised bed is determined solely by the **length of the boards used**. The **height can also be freely scaled by stacking multiple elements**
Compatible Wood Dimensions
Suitable for boards or planks with the following dimensions
- **95 × 19 × (X) mm**
- **190 × 19 × (X) mm**
(X = any length)
Print Recommendation
Recommended print settings for high stability
- Material: **PETG**
- Infill: **40–50 %**
- **4 walls**
- Layer height: according to printer (e.g. 0.2 mm recommended)
PETG is recommended over PLA due to its **higher temperature and weather resistance**
Assembly

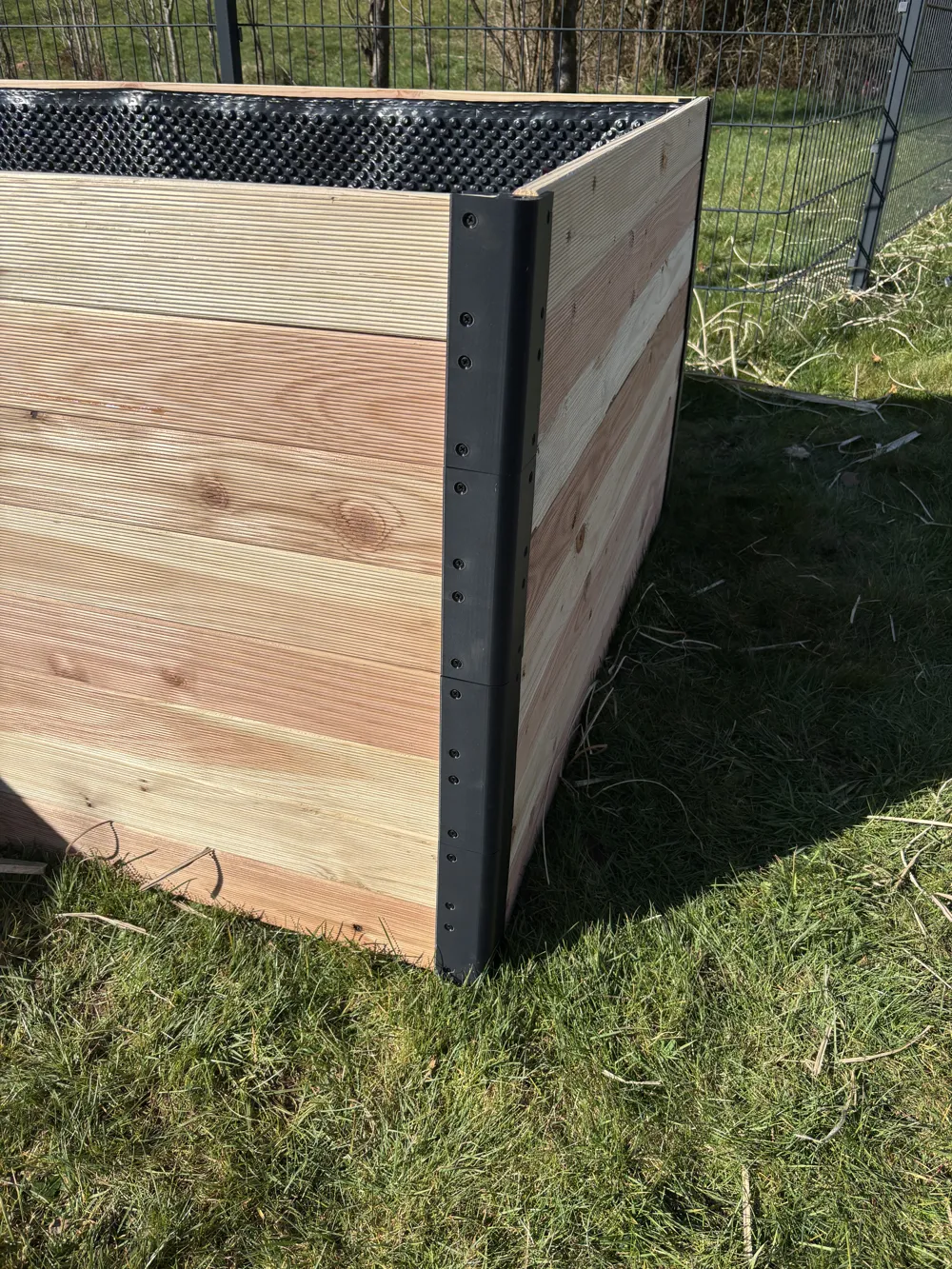

The wooden boards are fastened with **3.9 × 19 mm screws**

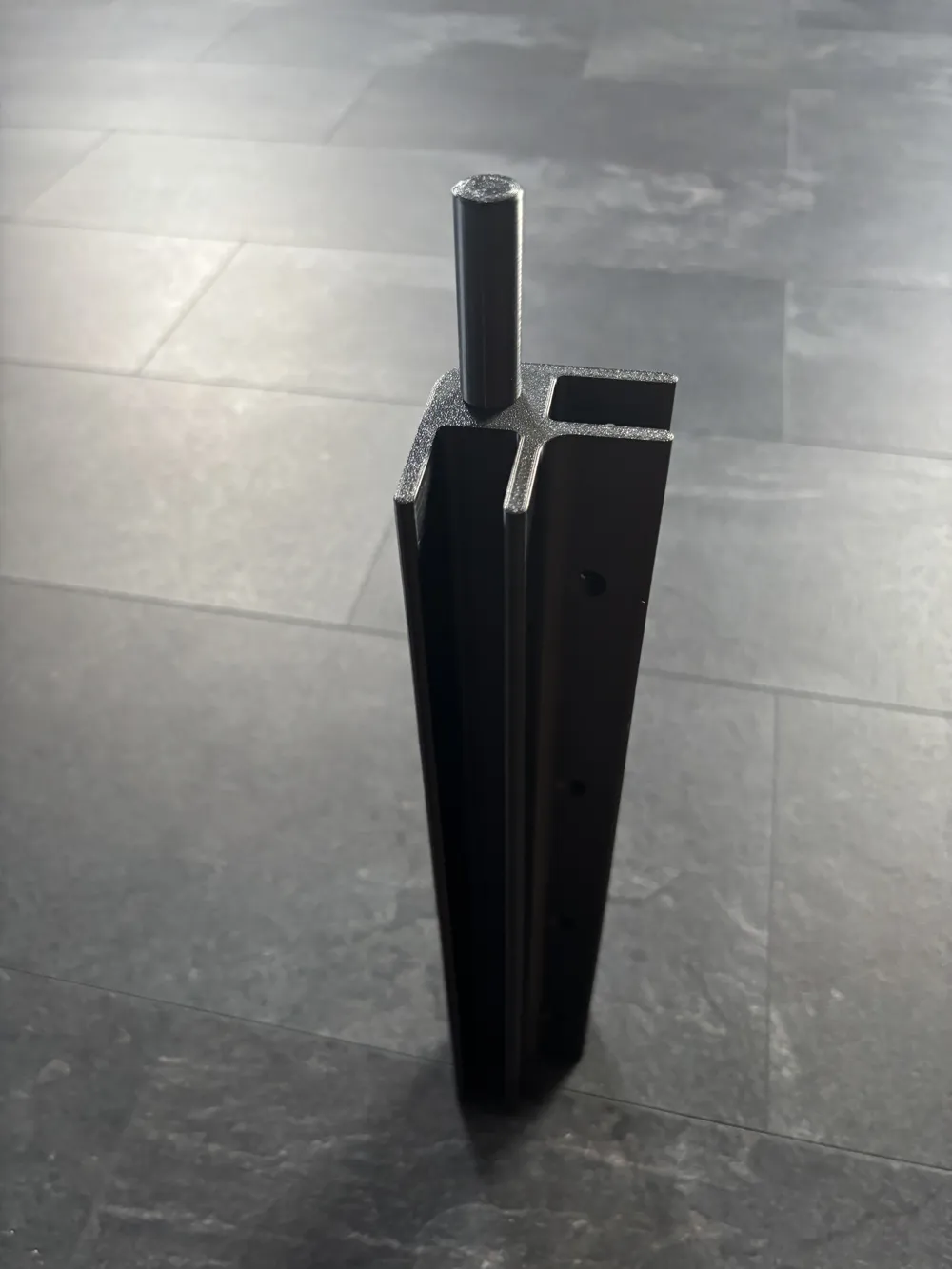

To connect several levels of a raised bed, a **connecting rod** can be used. A suitable model for this can also be found **in my profile**
https://makerworld.com/en/models/2485833-hochbeet-profilschiene-verbinder#profileId-2730862
Advantages of the System
- Modular raised bed system
- Size and height freely scalable
- Suitable for small balconies to large gardens
- Use of commercially available boards
- Simple and stable construction
