1:10 RC Drift Track
Print Profile(1)
Description
***This model is not mine, but wanted to share it here on Makerworld!***

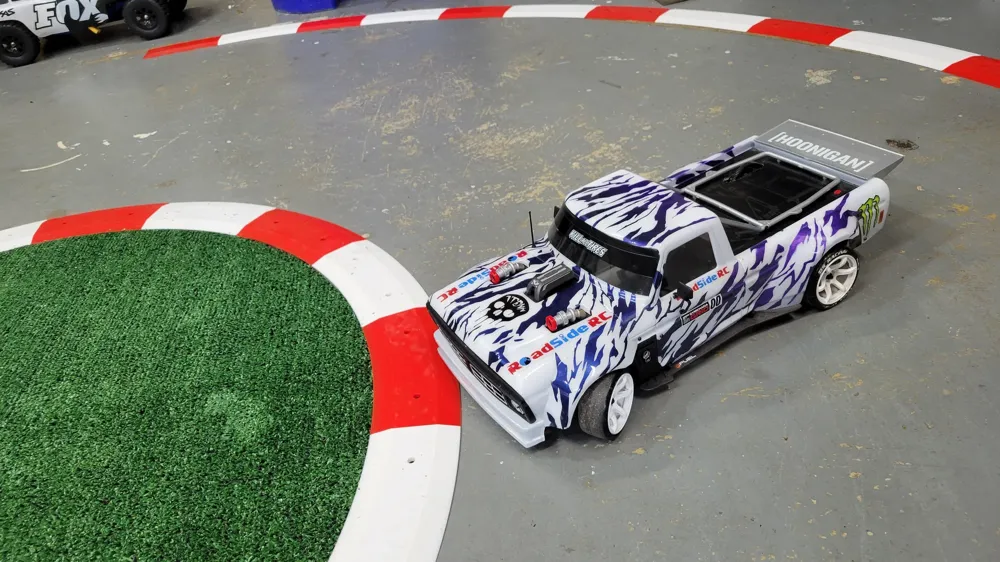

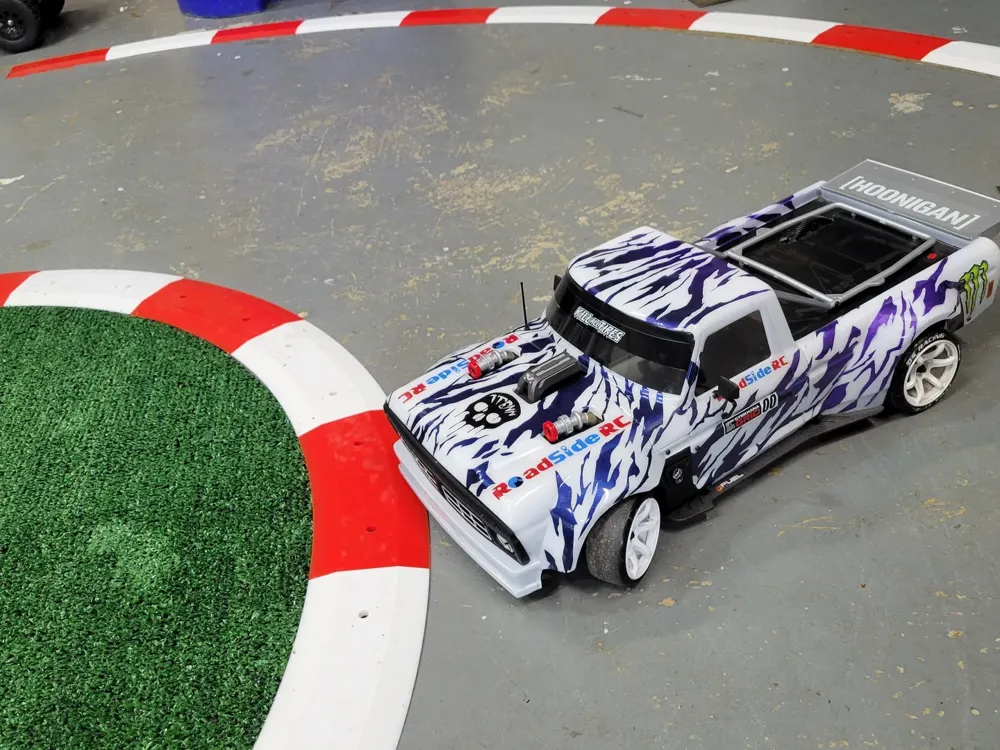

I wanted a GREAT looking drift track for my home…but didn't want to pay the crazy prices.
I decided I was going to create this curb model in different diameters so I could piece together a track however I wanted!

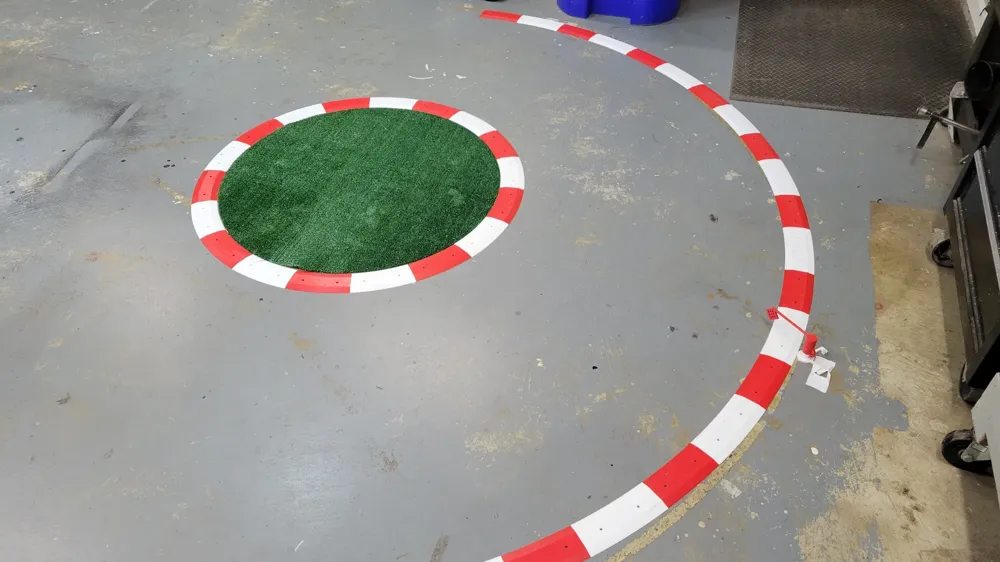

Available in 3ft, 5ft, 8ft, and 10ft diameters. Note - those are the inside diameters of the circle - each piece is 80mm wide, so add that to get a true OD.
Good news - they are linkable/mixable. So you can transition from 10ft to 8ft and so on to create a decreasing radius corner.

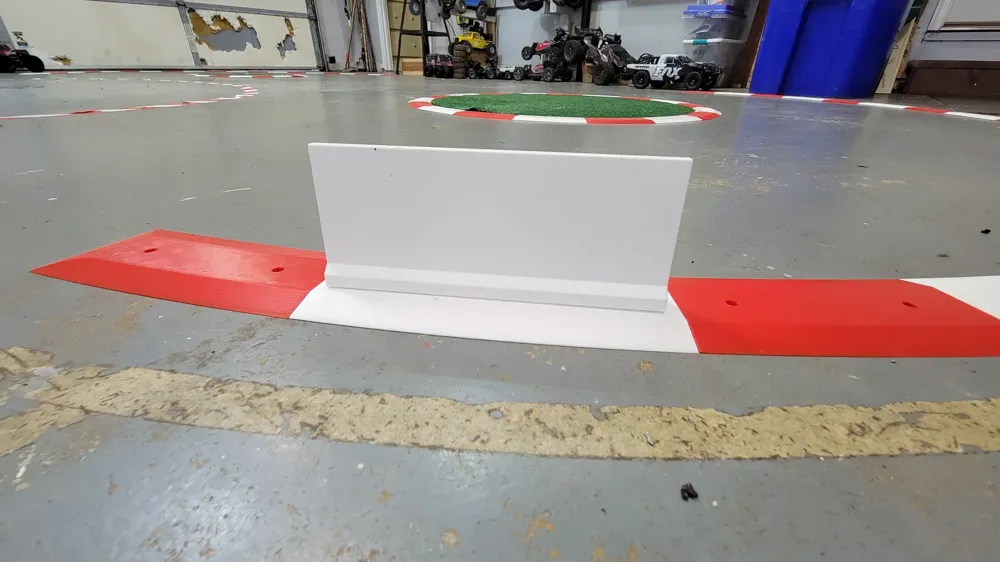

The holes in the top pair with the drift walls - just use some 6mm dowel rods to get a tight fit!
Printing: I printed 2 per sheet. Used PLA. Reduced to 2 solid bottom and top layers, 5% infill. Everything to reduce the print time.
Another pro tip - I shrunk the parts 20% for a test - and they STILL WORKED! Now I could get 3 parts on a print bed and they printed quicker. Of course, this impacts your diameter as well, so plan accordingly.
Video on these parts:
***RoadsideRC, if you would like me to remove so that you can upload please let me know!***
This remix is based on
