Mantis Tactical Slingshot Ergonomic Grip

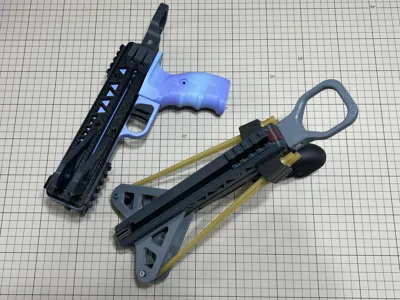

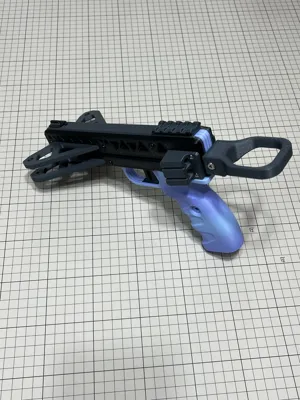

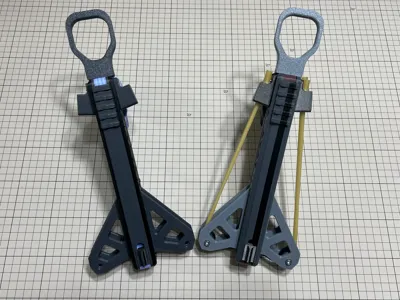

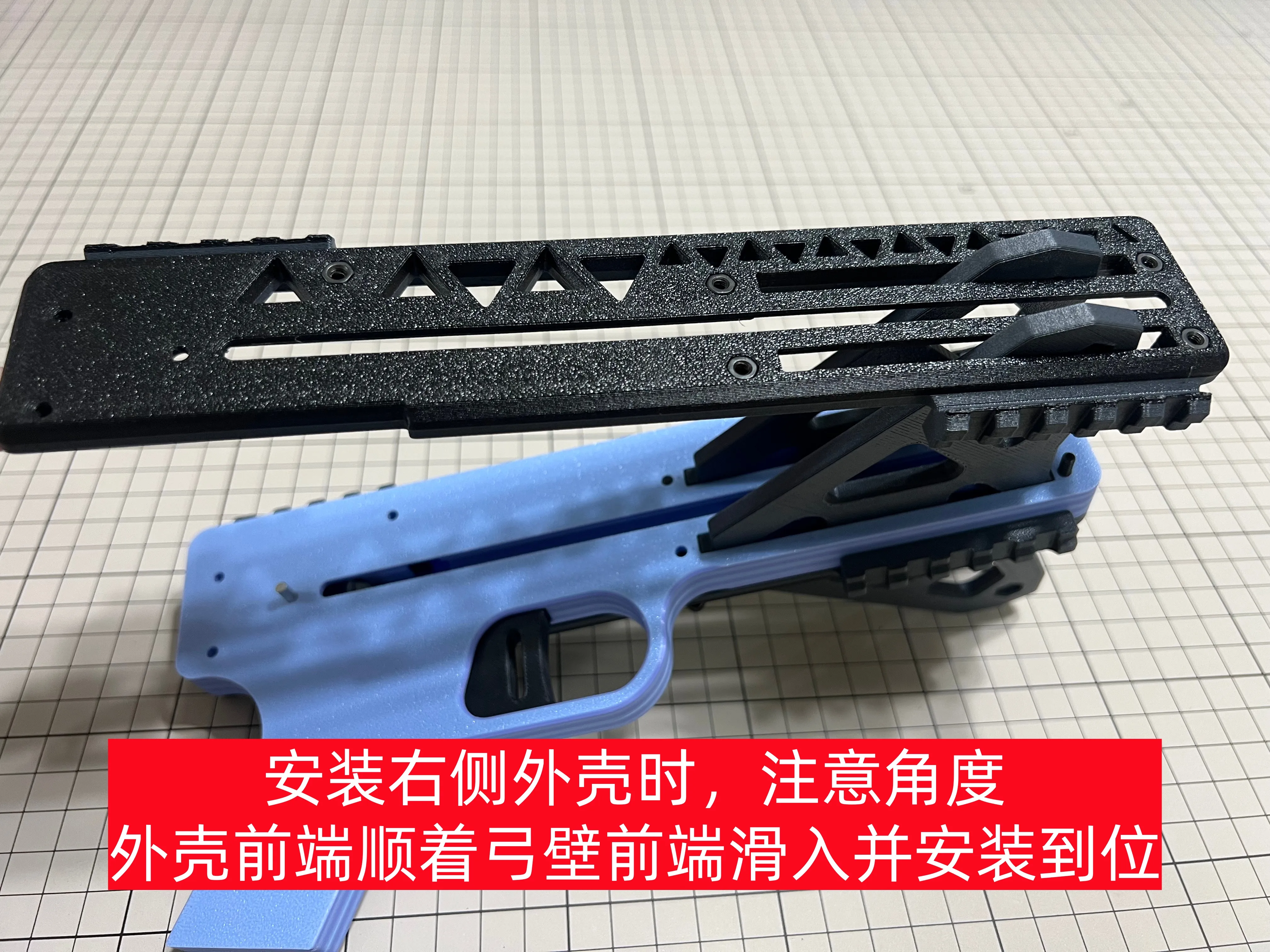

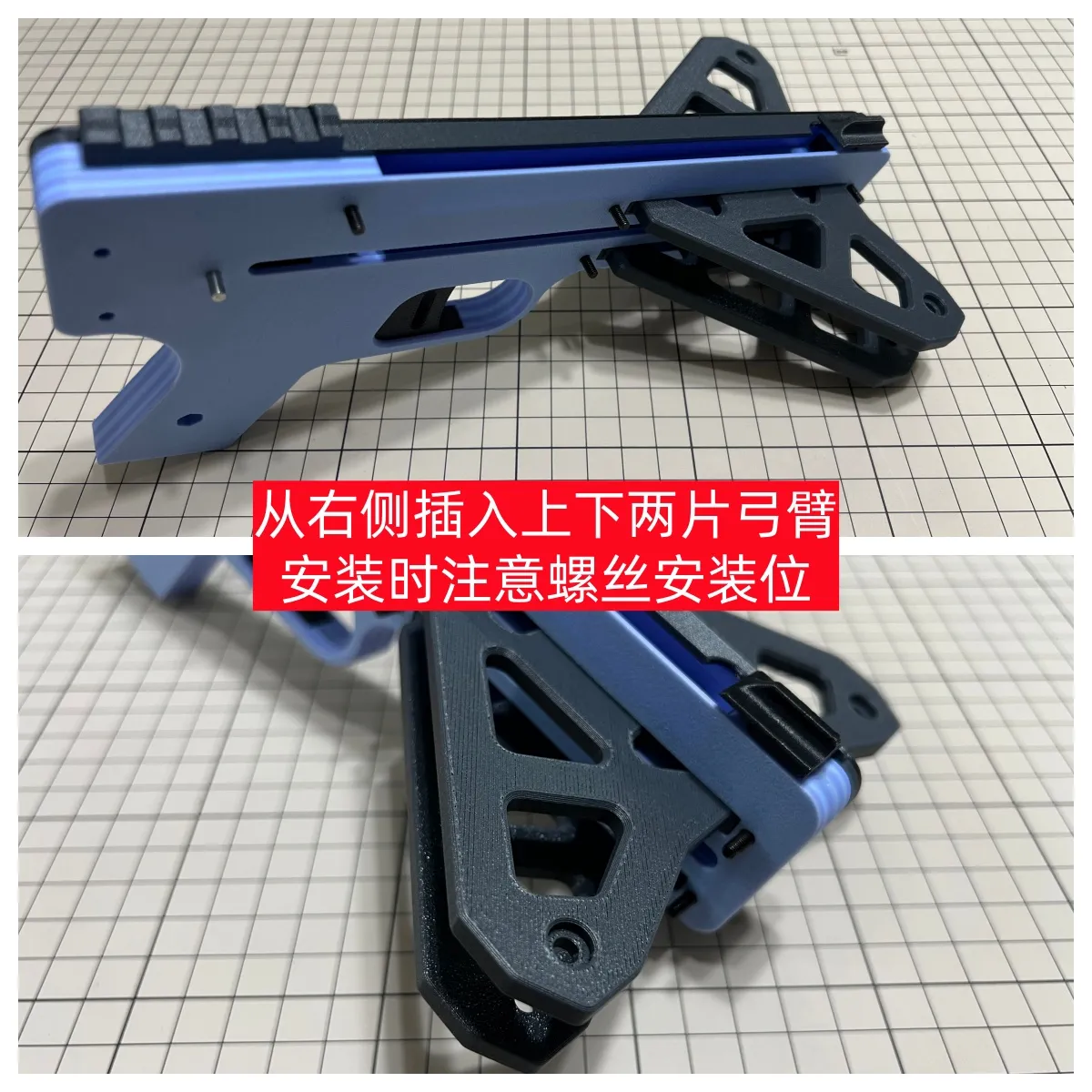

This is a brand-new slingshot launcher created by combining the best features and improving on shortcomings. It incorporates an ergonomic grip for a more comfortable feel. The rail length has been increased for overall proportional coordination, extending the rubber band's stretching distance. The bow arms have been designed with superior strength and structure, resembling a praying mantis's face when viewed vertically, hence the name "Mantis". In short, after optimizing multiple versions, the overall design has achieved the desired effect, and it is now shared with everyone. Feel free to download.

There are two versions in the file: a precision 8mm ball version and an 8mm magnetic mud ball version (actual aperture is 9.1mm). You can choose according to your needs.

The complete list of required parts is as follows:

M3 nut ×7

M4 locking nut ×2

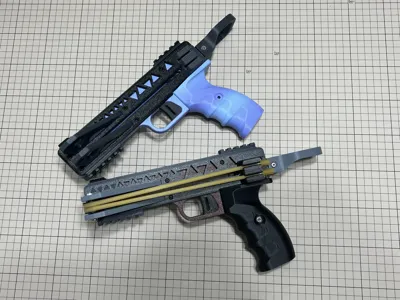

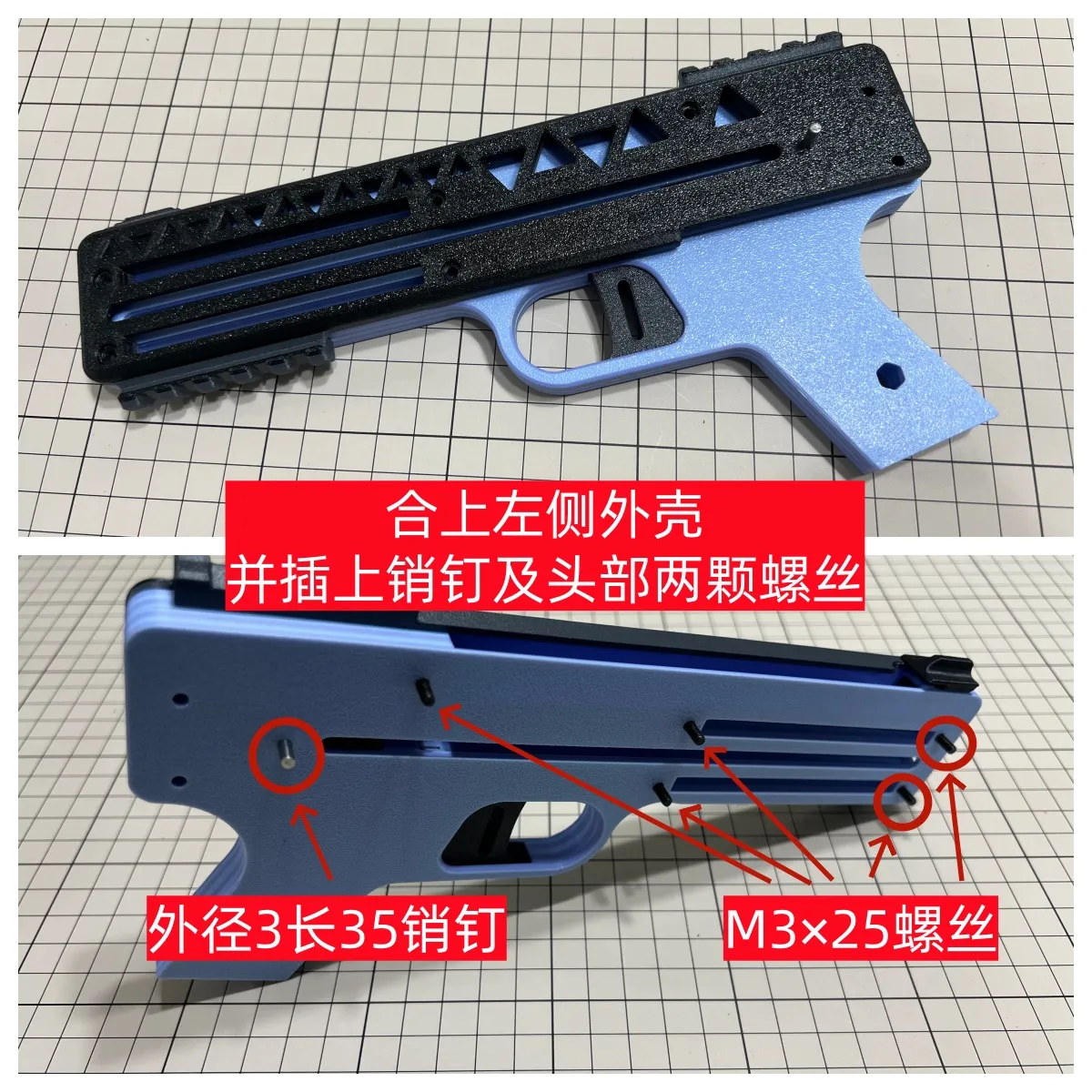

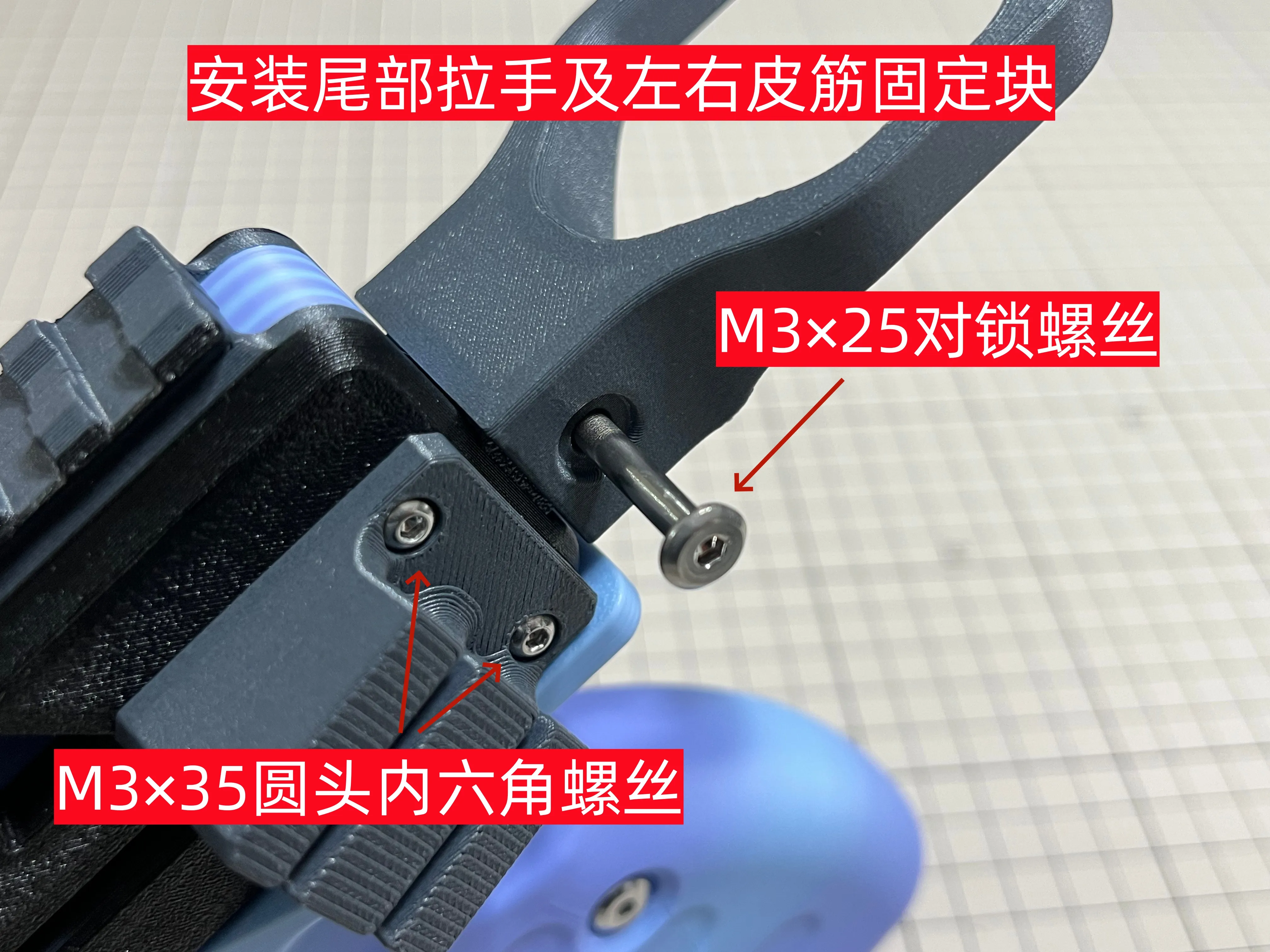

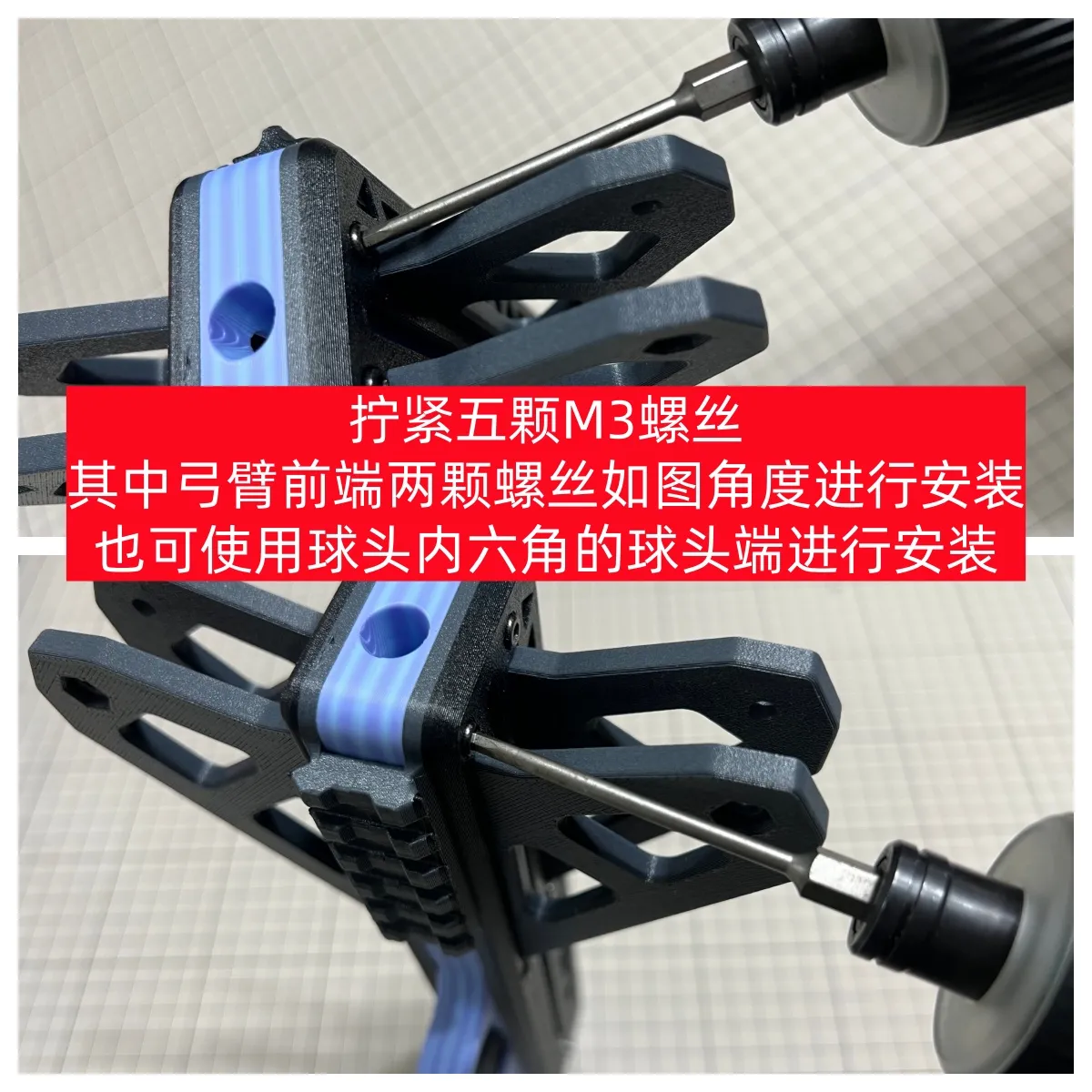

M3×25mm round head hex screw ×5

M3×35mm round head hex screw ×2

M4×28mm cup head hex screw ×2

M4×12mm large flat head hex screw ×2

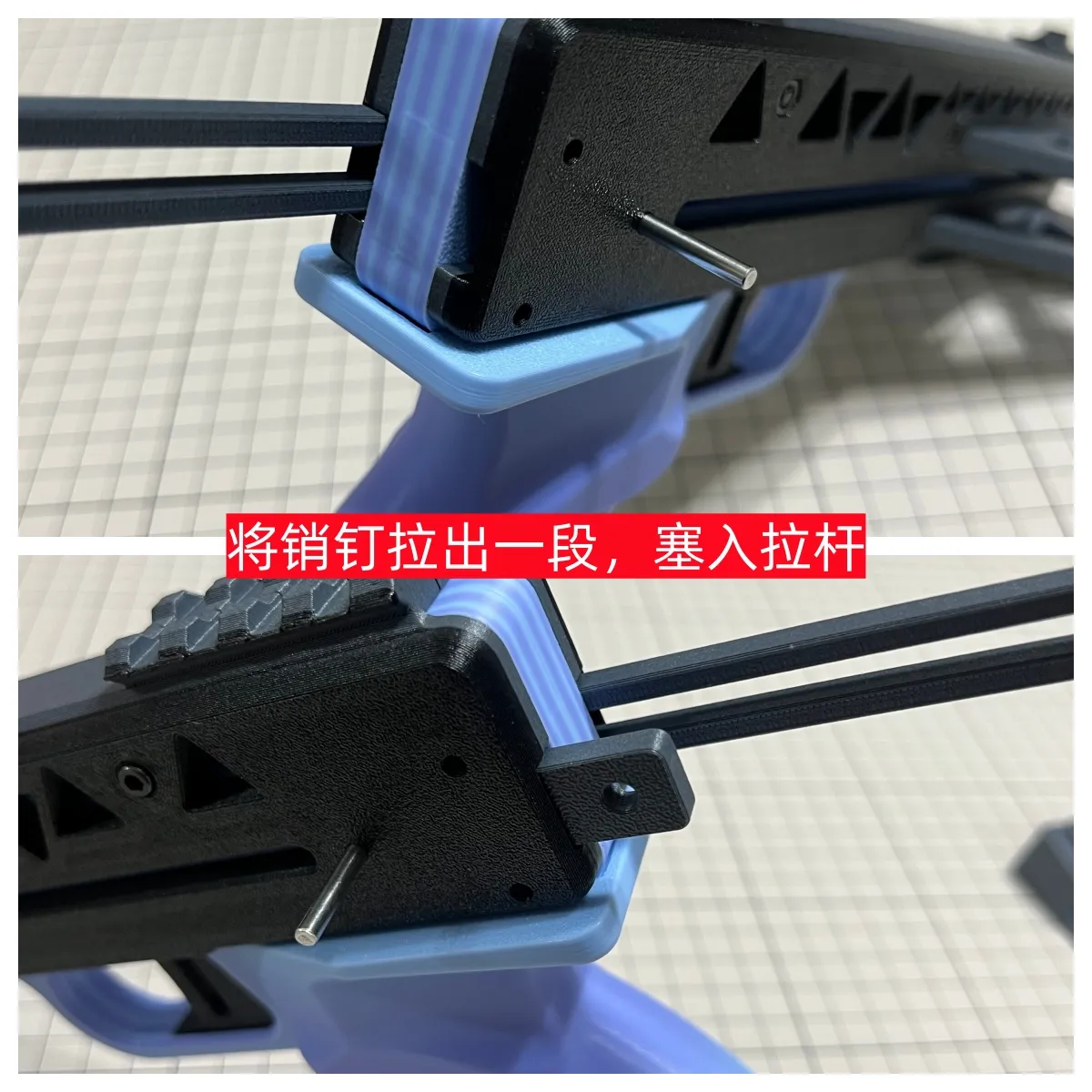

M3×35mm pin ×1

M3×25mm barrel nut screw ×1

6×6mm cylindrical N52 grade strong magnet ×1

15mm length, 8mm width, 3mm thickness magnet ×2 (optional)

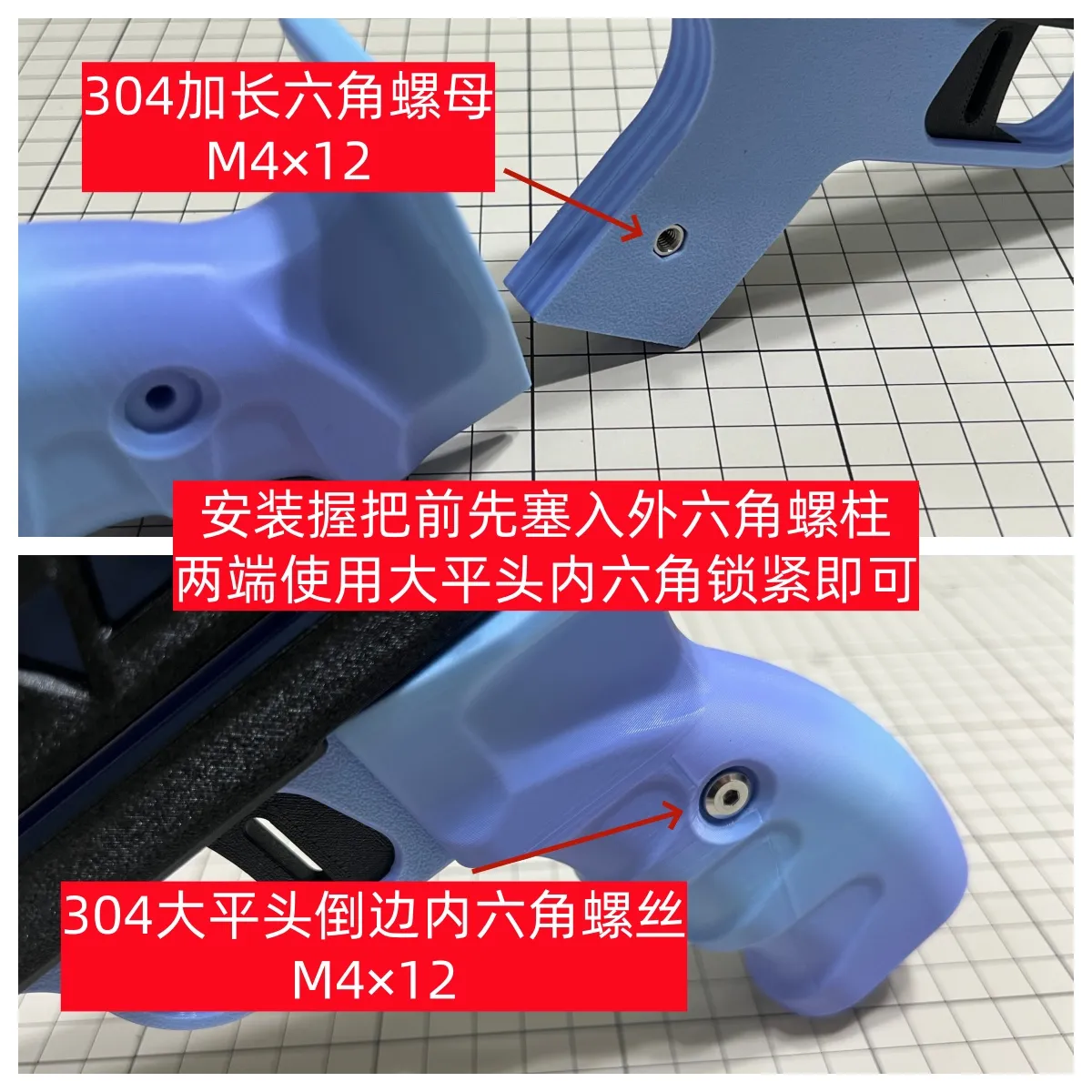

M4×12mm external hex standoff ×1

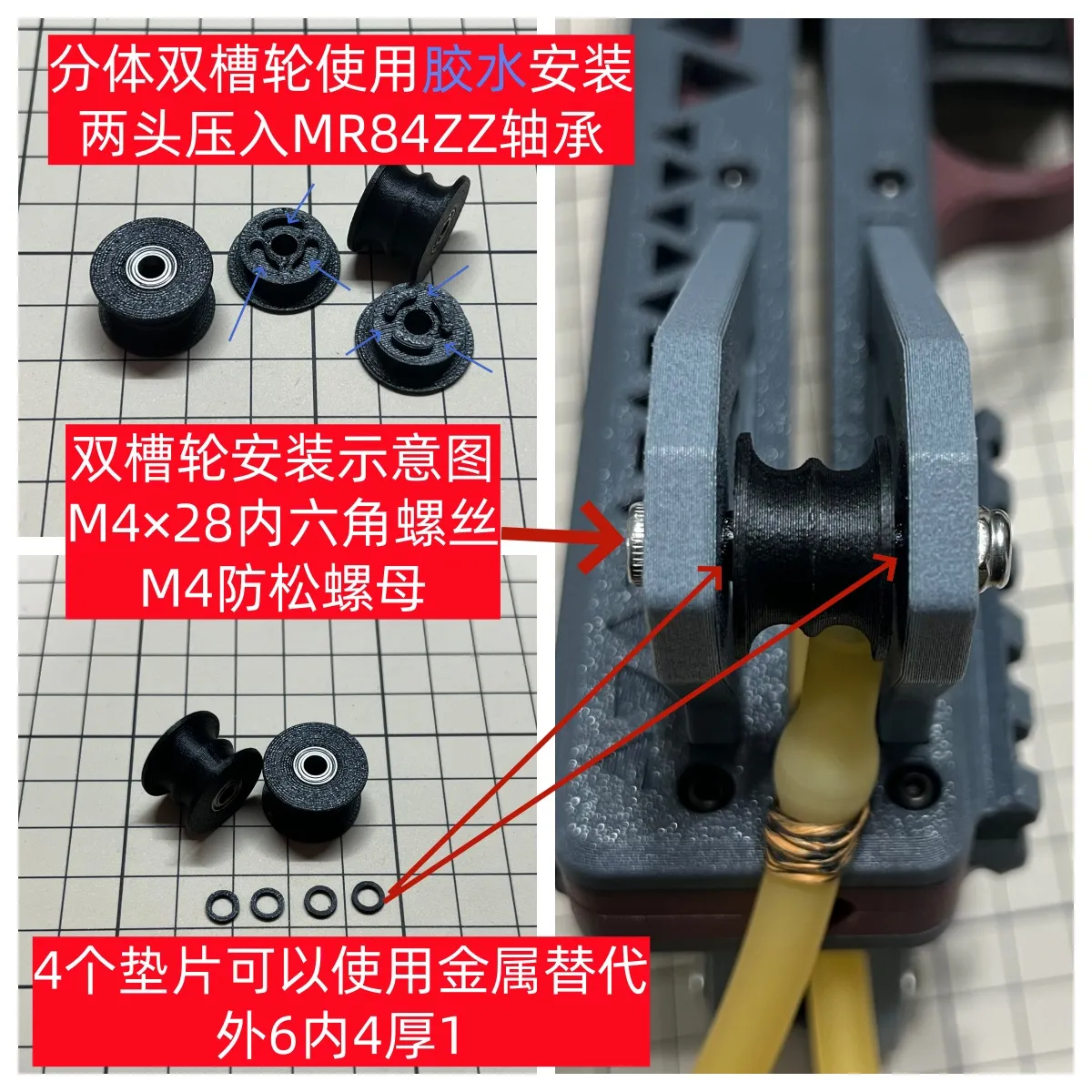

Outer diameter 6mm, inner diameter 4mm, thickness 1mm washer ×4 (optional, 3D printed parts can be used)

MR84ZZ bearing ×4

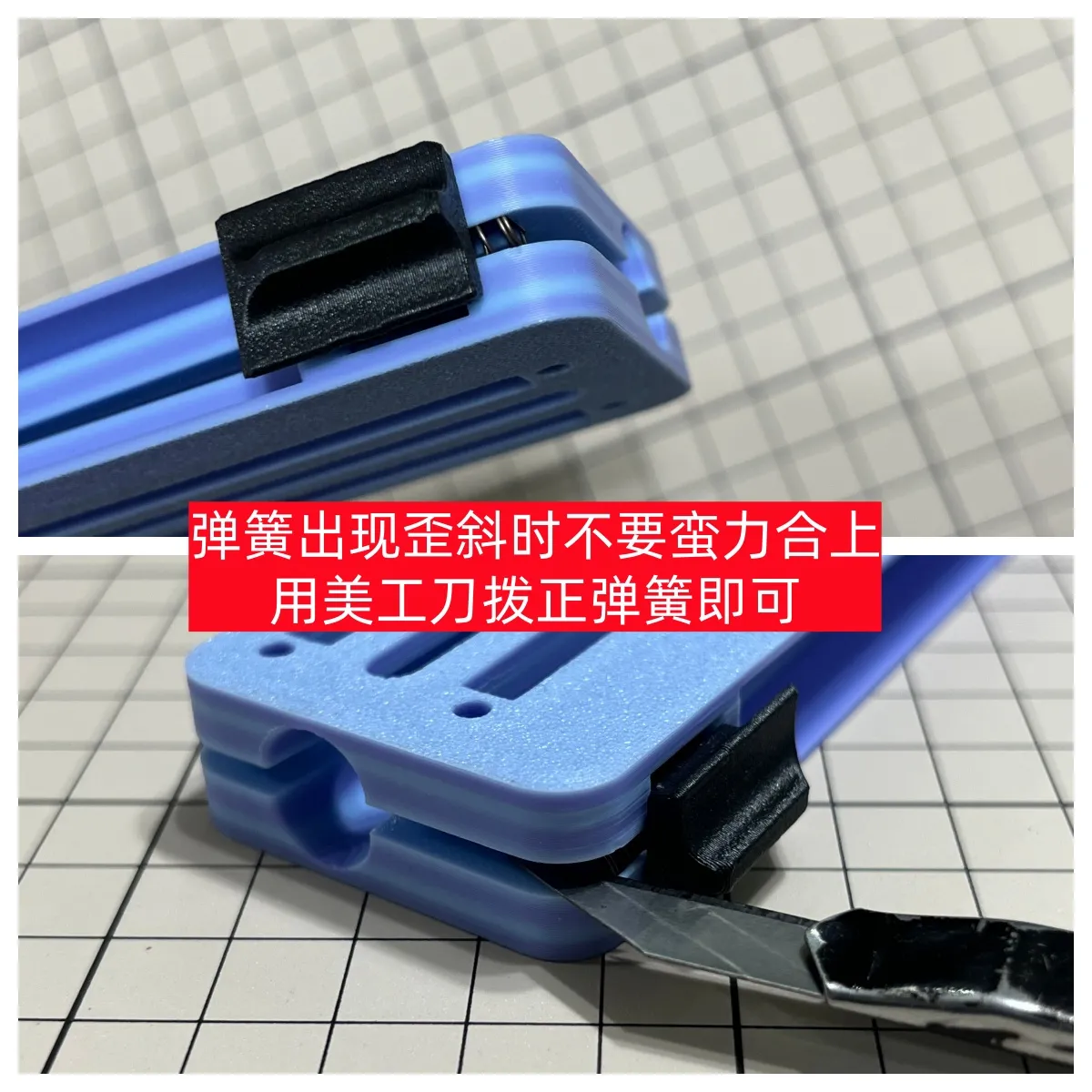

0.7×8×15 spring ×1

0.7×8×30 spring ×1

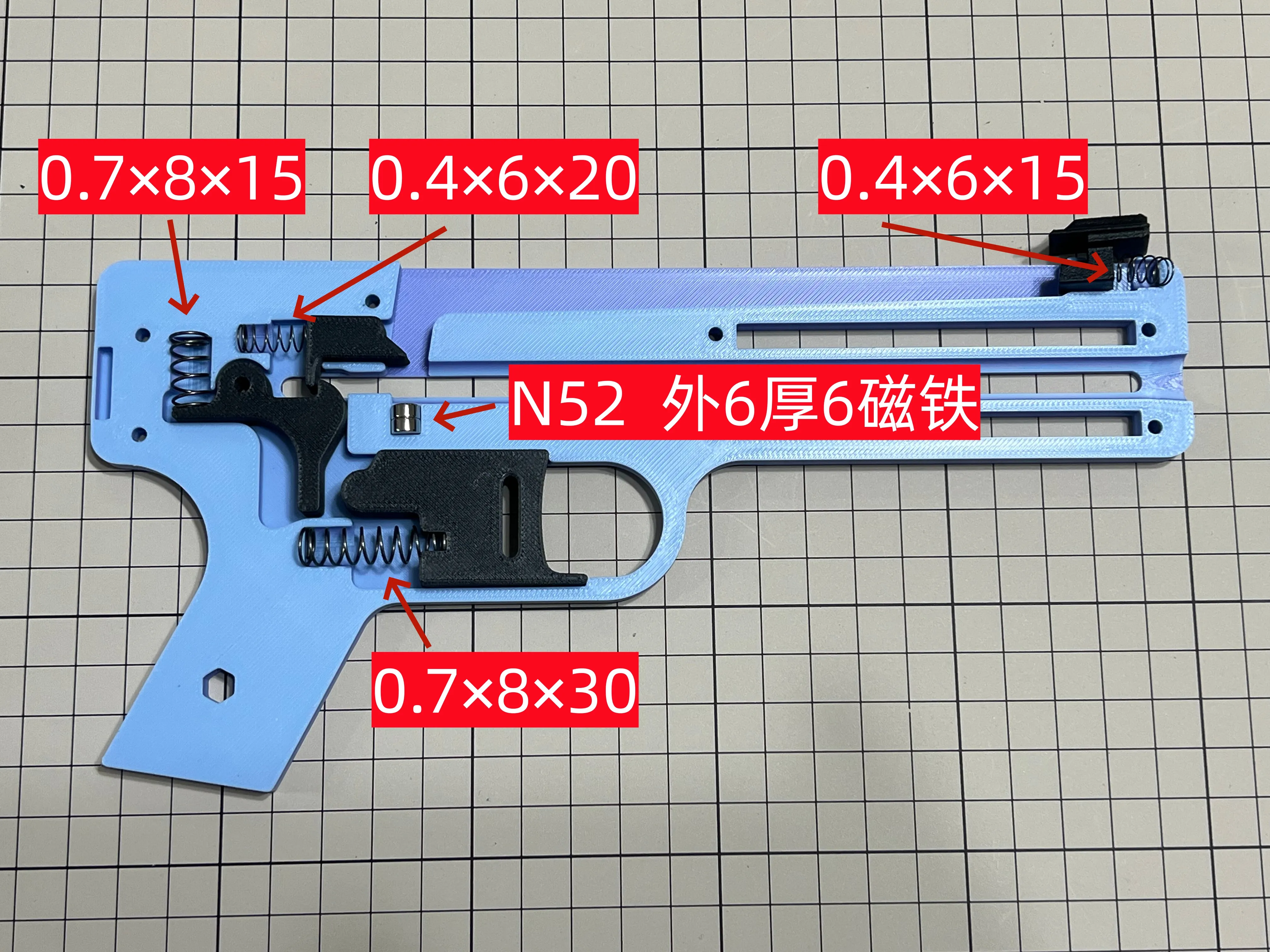

0.4×6×15 spring ×1

0.4×6×20 spring ×1

Bowstring length 8cm

Rubber band length 20cm (3070 card 8mm ball used in the picture)

The leftmost position is for the rectangular magnet, corresponding to the contact point of the pull handle.

This was the original design, but it became obsolete after optimizing the bow arms. It can be installed or not.
