Snapmaker U1 - Feeder Motor Mount
Print Profile(1)
Description

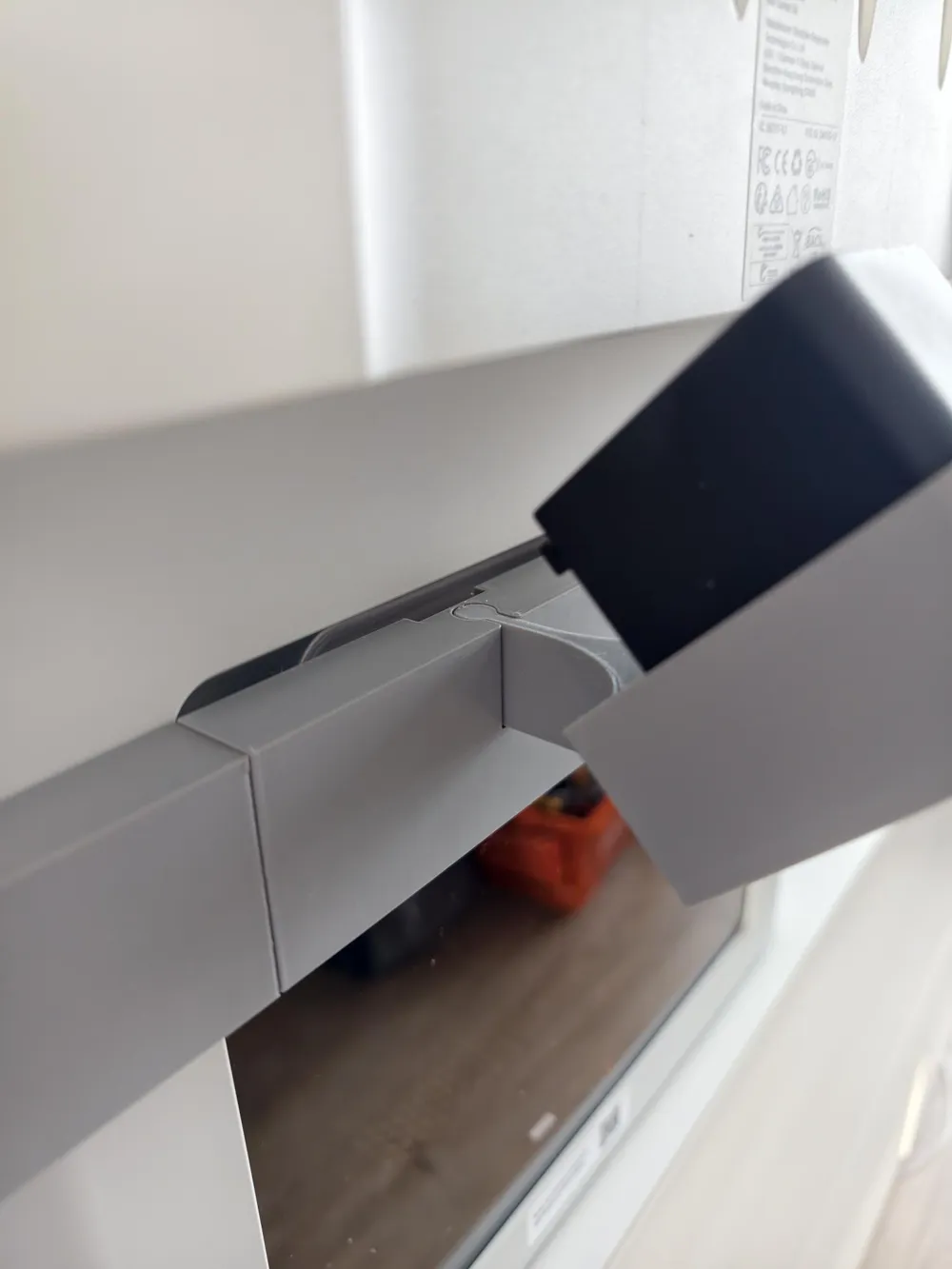

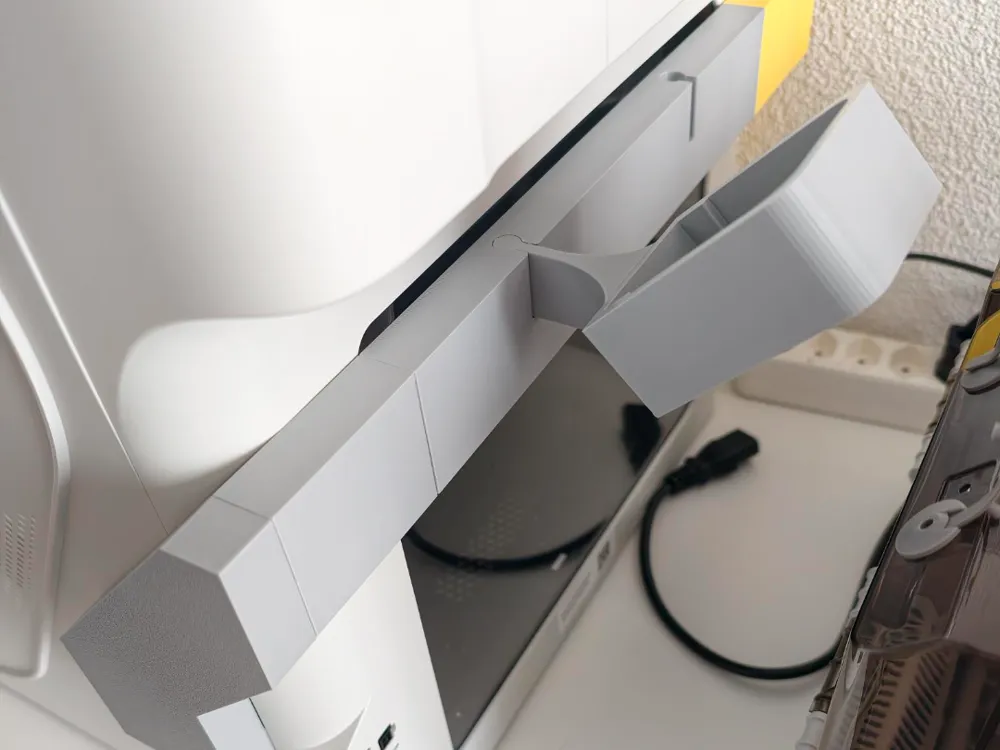

This mount allows the filament feeder to be neatly mounted behind the printer in combination with a dry box (e.g. Chitu E1). The goal is a compact, tidy filament guide without loose components or dangling cables
The feeder sits in a slightly angled holder, which keeps the filament path from the dry box to the printer as straight as possible. This reduces unnecessary friction and ensures a more stable filament feed

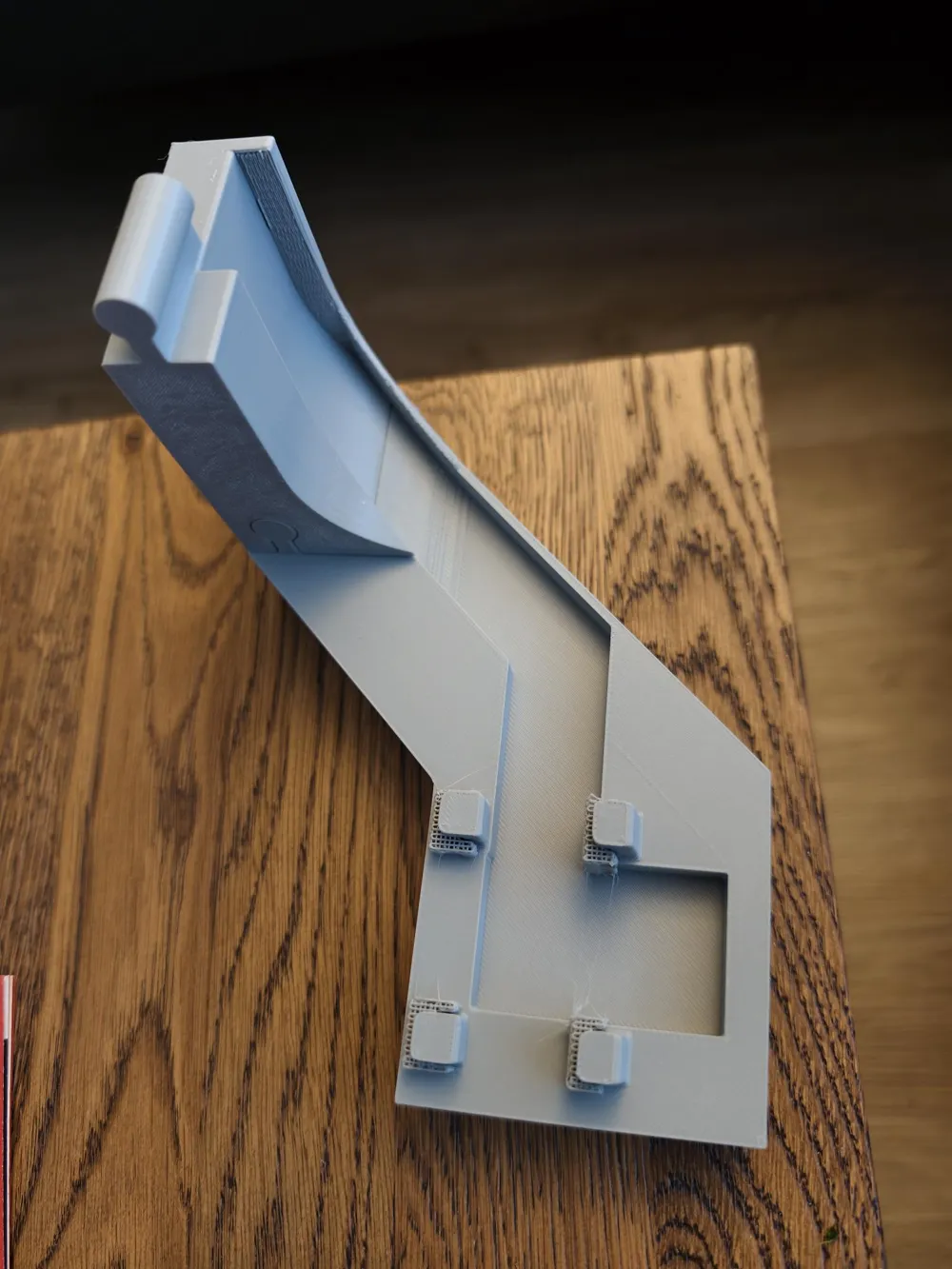

An integrated cable channel allows the extension cable to be laid directly within the component. This makes the cable practically invisible in the holder while keeping it neatly routed. No cable clutter behind the printer and no risk of anything getting caught in the moving area
The design is intentionally robust. The wall thicknesses are chosen so that the feeder sits securely even during longer print jobs. Mounting is done via the designated attachment points on the printer frame
Features
- Mount for feeder behind the printer
- Optimized for use with dry box (Chitu E1)
- Integrated cable channel for extension cable
- Clean filament routing without tight radii
- Robust construction for long-term use
- Compact design that integrates inconspicuously into the setup
Print Recommendations
- Material: PLA, PETG or ABS
- 0.2 mm layer height
- 3–4 perimeters
- 15–25 % infill
- Support necessary (depending on printer orientation)
Note
The holder is intended for setups where the dry box is positioned behind the printer. This creates a short, clean filament path directly from the dried filament to the feeder
Required Material:
https://de.aliexpress.com/item/1005010637306932.html?spm=a2g0o.order_list.order_list_main.23.23895c5fCKU5DW&gatewayAdapt=glo2deu
=> M6
